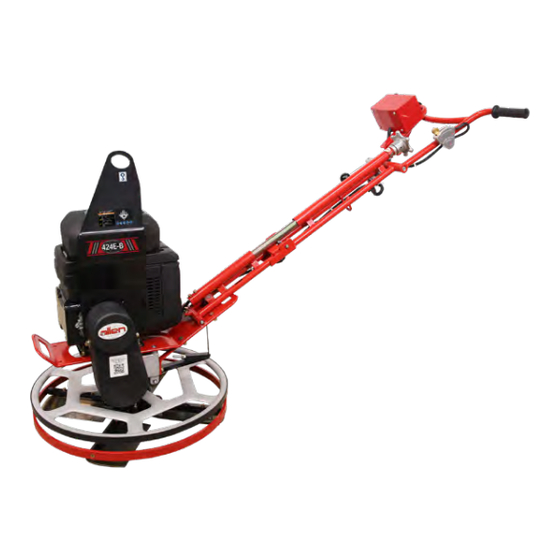

- Page 1 W A L K - B E H I N D T R O W E L S PRO424E-B PARTS & DECALS MANUAL Man ual Par t #: 080749P | R ev i si on : - Languag e: E n g lish | O r igin a l In stru cti on s...
- Page 2 No part of this manual may be reproduced or transmitted in any form or by any means, electronics or mechanical, for any purpose, without the express written permission of Allen Engineering Corporation (AEC). AEC assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual.
-
Page 3: Table Of Contents
Page Table of Contents ....................3 Factory Service Information ................4 Replacement Part Procedures ................5 Parts - Honda ....................6 Assembly, PRO424E-B Honda ................7 Spider Assembly (064958) .................8 Gearbox Assembly (064959) ................10 Power Unit Base Assembly (064961) ..............12 Handle Assembly (064962) .................14 Control Box Assembly (077764) ................16 Parts - Vanguard ....................18... -
Page 4: Factory Service Information
GENERAL Factory Service Information INFORMATION This section contains the illustrated drawings and parts list for help in identifying and/or ordering replacement parts for your machine. Follow the instructions in the front section of this manual “Ordering Parts” when ordering replacement parts to insure prompt and accurate delivery. -
Page 5: Replacement Part Procedures
Replacement Part Procedures GENERAL INFORMATION We recommend AEC quality replacement parts, available from the AEC Customer Service Department or your nearest AEC Dealer. Part numbers are subject to change without notice. Part numbers might be different outside of the United States of America. -
Page 6: Section 1: Parts - Honda
SECTION 1 PARTS - HONDA Section 1: Parts - Honda Page 6 068518 - 7/23... -
Page 7: Assembly, Pro424E-B Honda
HANDLE, FOR EDGER 077754 BATTERY, FOR EDGER 077756 POWER UNIT, HONDA 077764 ASSEMBLY, CONTROL BOX (HONDA) 078046 HARNESS, WIRING 424 E-B (HONDA) 077249 KIT, DECAL 424E-B HONDA Note: Wire harness schematic available on the Allen Engineering website 068518 - 7/23 Page 7... -
Page 8: Spider Assembly (064958)
Spider Assembly (064958) SECTION 1 PARTS - HONDA Page 8 068518 - 7/23... - Page 9 Spider Assembly (064958), Parts list SECTION 1 PARTS - HONDA ITEM PART NO. DESCRIPTION 064958 SPIDER, FOR TROWEL WALK EDGER 059022 BEARING COVER 059014 PRESSURE PLATE 059016 GUARD PLATE 059008V BLADE, COMBO SILVER 4.75IN X 9IN 059001 SPIDER, 4 BOSS 059153 LIFT LEVER 059009...
-
Page 10: Gearbox Assembly (064959)
Gearbox Assembly (064959) SECTION 1 PARTS - HONDA Page 10 068518 - 7/23... - Page 11 Gearbox Assembly (064959), Parts list SECTION 1 PARTS - HONDA ITEM PART NO. DESCRIPTION 064959 GEARBOX, FOR TROWEL WALK EDGER 059501 GEARBOX HOUSING 073562 BEARING FOR WORM GEAR 073563 SEAL, FOR SIDE COVER SIDE COVER 059011 FLAT WASHER, M6 059012 LOCK WASHER, M6 BOLT, M6 X 20MM GR 8.8 073564...
-
Page 12: Power Unit Base Assembly (064961)
Power Unit Base Assembly (064961) SECTION 1 PARTS - HONDA Page 12 068518 - 7/23... - Page 13 Power Unit Base Assembly (064961), Parts list SECTION 1 PARTS - HONDA ITEM PART NO. DESCRIPTION 064961 POWER UNIT BASE, FOR TROWEL WALK EDGER 059049 BOLT BRACKET 070064 CLUTCH, 3/4IN BORE 059036 BASE PLATE 059048 BRACKET, GEARBOX MOUNT 059057 BELT COVER 059052 BRACKET, BELT COVER MOUNT 036665...
-
Page 14: Handle Assembly (064962)
Handle Assembly (064962) SECTION 1 PARTS - HONDA Page 14 068518 - 7/23... - Page 15 Handle Assembly (064962), Parts List SECTION 1 PARTS - HONDA ITEM PART NO. DESCRIPTION 064962 HANDLE, FOR TROWEL WALK EDGER 059098 HANDLE GRIP 059083 ADJUSTING SCREW 065106 CENTRIFUGAL KILL SWITCH 059071 SPRING 059078 PITCH CABLE 059081 SLIDE BUSHING 059062 WHEEL FOR CABLE 059061 WHEEL BRACKET 059085...
-
Page 16: Control Box Assembly (077764)
Control Box Assembly (077764) SECTION 1 PARTS - HONDA Page 16 068518 - 7/23... - Page 17 Control Box Assembly (077764), Parts List SECTION 1 PARTS - HONDA ITEM PART NO. DESCRIPTION 077764 ASSEMBLY, CONTROL BOX HONDA 010002 FASTENER, HHCS 1/2”-20 X 3/4” 010089 FASTENER, LOCK WASHER 1/4” 013370 FASTENER, RHMS 10-32 X 3/8” 013740 FASTENER, STAR LOCK WASHER #10 077252 DECAL, CONTROL PANEL 424E-B (HONDA) 077762...
-
Page 18: Parts - Vanguard
SECTION 1 PARTS - VANGUARD Section 1: Parts - Vanguard Page 18 068518 - 7/23... -
Page 19: Assembly, Pro424E-B Vanguard
COVER, FOR ROCKER SWITCH 079146 INDICATOR, LED GREEN 48V 079350 HARNESS, WIRING 424E-B (VANGUARD) 078349 HARNESS, WIRING FOR BAC4000 CONTROLLER 077627 KIT, DECAL 424E-B VANGUARD Note: Wire harness schematic available on the Allen Engineering website 068518 - 7/23 Page 19... -
Page 20: Spider Assembly (064958)
Spider Assembly (064958) SECTION 1 PARTS - VANGUARD Page 20 068518 - 7/23... - Page 21 Spider Assembly (064958), Parts list SECTION 1 PARTS - VANGUARD ITEM PART NO. DESCRIPTION 064958 SPIDER, FOR TROWEL WALK EDGER 059022 BEARING COVER 059014 PRESSURE PLATE 059016 GUARD PLATE 059008V BLADE, COMBO SILVER 4.75IN X 9IN 059001 SPIDER, 4 BOSS 059153 LIFT LEVER 059009...
-
Page 22: Gearbox Assembly (064959)
Gearbox Assembly (064959) SECTION 1 PARTS - VANGUARD Page 22 068518 - 7/23... - Page 23 Gearbox Assembly (064959), Parts list SECTION 1 PARTS - VANGUARD ITEM PART NO. DESCRIPTION 064959 GEARBOX, FOR TROWEL WALK EDGER 059501 GEARBOX HOUSING 073562 BEARING FOR WORM GEAR 073563 SEAL, FOR SIDE COVER SIDE COVER 059011 FLAT WASHER, M6 059012 LOCK WASHER, M6 BOLT, M6 X 20MM GR 8.8 073564...
-
Page 24: Power Unit Base Assembly (064961)
Power Unit Base Assembly (064961) SECTION 1 PARTS - VANGUARD NOTE: See “Drive Line Assembly - Vanguard” on page 30 for additional power unit components. Page 24 068518 - 7/23... - Page 25 Power Unit Base Assembly (064961), Parts list SECTION 1 PARTS - VANGUARD ITEM PART NO. DESCRIPTION 064961 POWER UNIT BASE, FOR TROWEL WALK EDGER 059049 BOLT BRACKET 059036 BASE PLATE 059048 BRACKET, GEARBOX MOUNT 059047 BOLT, M8 X 20MM 059040 BOLT, M8 X 25MM 059037 HEX NUT, M8...
-
Page 26: Handle Assembly (064962)
Handle Assembly (064962) SECTION 1 PARTS - VANGUARD Page 26 068518 - 7/23... - Page 27 Handle Assembly (064962), Parts List SECTION 1 PARTS - VANGUARD ITEM PART NO. DESCRIPTION 064962 HANDLE, FOR TROWEL WALK EDGER 059098 HANDLE GRIP 059083 ADJUSTING SCREW 065106 CENTRIFUGAL KILL SWITCH 059071 SPRING 059078 PITCH CABLE 059081 SLIDE BUSHING 059062 WHEEL FOR CABLE 059061 WHEEL BRACKET 059085...
-
Page 28: Battery And Cage Assembly (077853)
Battery and Cage Assembly (077853) SECTION 1 PARTS - VANGUARD Page 28 068518 - 7/23... - Page 29 Battery and Cage Assembly (077853) Parts List SECTION 1 PARTS - VANGUARD ITEM PART NO. DESCRIPTION 077853 ASSEMBLY, BATTERY AND CAGE 010001 FASTENER, HHCS 1/4”-20 X 1/2” 010002 FASTENER, HHCS 1/4”-20 X 3/4” 010089 FASTENER, LOCK WASHER 1/4” 010109 FASTENER, HEX NUT NYLOC 5/16”-18 017314 FASTENER, SHCS 1/4”-20 X 5/8”...
-
Page 30: Drive Line Assembly - Vanguard
Drive Line Assembly - Vanguard SECTION 1 PARTS - VANGUARD ITEM PART NO. DESCRIPTION 010001 FASTENER, HHCS 1/4”-20 X 1/2” 010089 FASTENER, LOCK WASHER 1/4” 059137 PULLEY, DRIVEN 076565 KEY, 5 X 5 X 28 MM FOR DRIVEN PULLEY 077867 COVER FOR BELT 078364 BUSHING, 1210-20... -
Page 31: Section 2: Decals
SECTION 2 DECALS Section 2: Decals 068518 - 7/23 Page 31... -
Page 32: Decals
Decals SECTION 2 DECALS PRO424E-B Honda Decal Kit 077249 DECAL #077252 CONTROL PANEL DECAL #067322 LIFT HOOK DECAL #077251 BATTERY WARNINGS DECAL #077250 424E-B BRAND DECAL #056341 ALLEN OVAL Note: Decals not shown • Decal #067303, VP AEC Info / Warranty •... -
Page 33: Revision Notes
Revision Notes GENERAL INFORMATION MANUAL REVISION DETAIL REVISION # REVISION DATE REVISION REFERENCE # REVISION BY 10/24 Initial Release Page 33 068518P... - Page 34 AEC FACTORY & HEADQUARTERS 8 1 9 S . 5 T H S T R E E T P A R A G O U L D , A R K A N S A S 7 2 4 5 0 8 7 0 .
