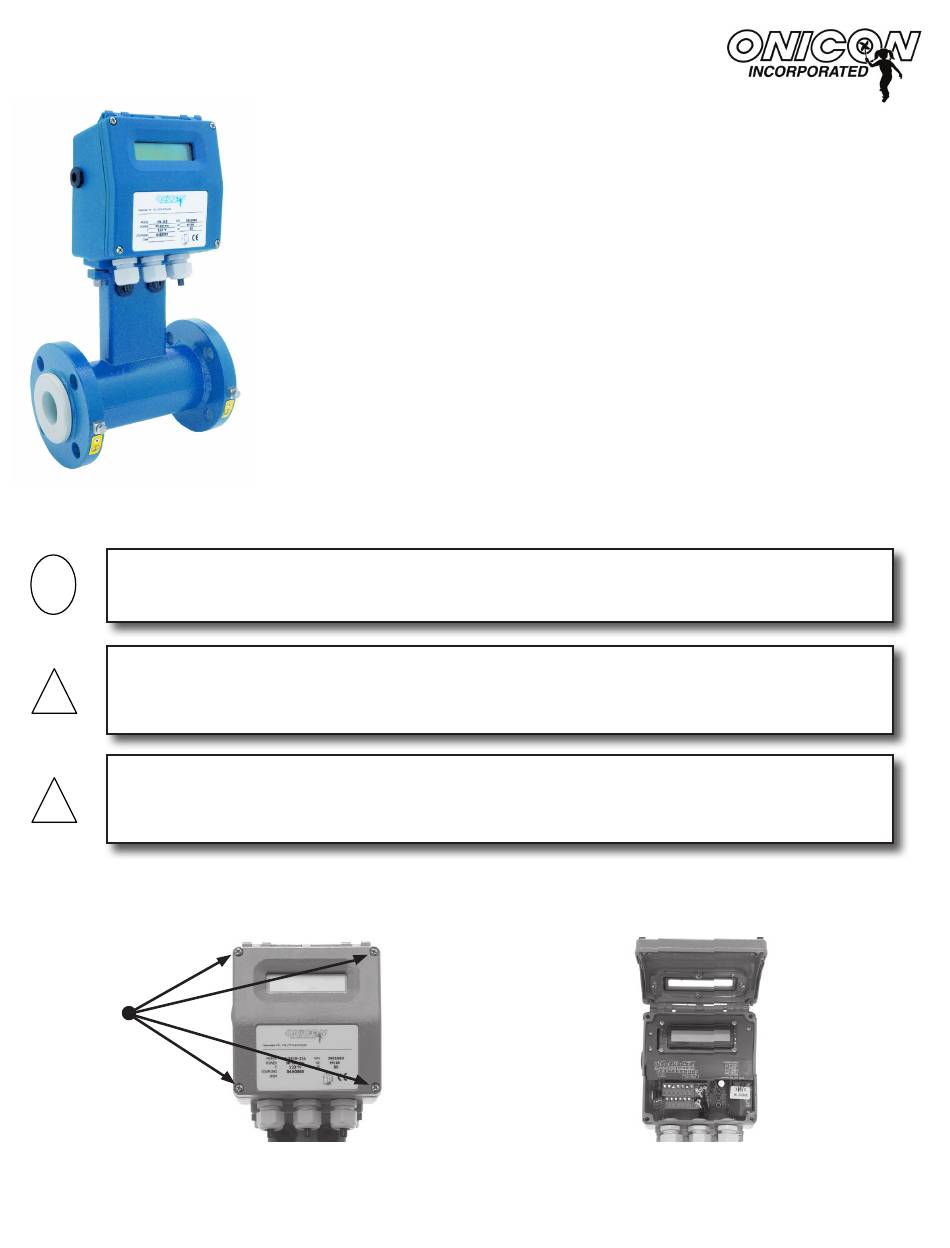

Onicon F-3100 Series Wiring Instructions

i
The voltage option is not field selectable. Contact the factory if you need to change the input voltage rating.
!
This product must be connected to earth ground for proper operation. Failure to do so will result in
erratic operation and an increased risk of injury.
!
All mains voltage connections must be made through the pre-drilled conduit/strain relief opening
located at the bottom of the enclosure. Failure to do so will result in an increased risk of injury.
Step 1:
Step 1:
Loosen screws to lift cover.
Step 1: Loosen screws to lift cover.
Step 3:
Step 3:
Make SIGNAL connections as shown
Pull straight out on connectors to remove them.
11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax (727) 442-5699
SIGNAL CONNECTIONS
0828-2
4-20 mA Output
4-20 mA Output
Pin 9 - Pos (+)
F-3100 SERIES
In-line Electromagnetic Flow Meter
Wiring Instructions
ELECTRICAL INSTALLATION
Input Power Requirements
F-3000 Electromagnetic Flow Meters equipped with standard transmitters
are available with two different options for input power. This is not a user
selectable function and must be configured at the factory.
Special care is required to ensure that the F-3100 is properly connected
to earth through an earth wire. This connection is required to prevent
random electrical noise from interfering with the operation of the meter.
Low Voltage: 10 – 63 VDC, 15 – 45 VAC 45/66 Hz, 300 mA maximum
High Voltage (Mains): 90 – 265 VAC 45/66 Hz, 35 mA maximum
CAUTION/WARNING
Loosen screws to lift cover.
Make SIGNAL connections as shown
Pull straight out on connectors to remove them.
SIGNAL CONNECTIONS
www.onicon.com • sales@onicon.com
Pulse Out 2
Pulse Out 2 Pulse Out 1
Pin 18 - Pos (+)
IMPORTANT NOTE
WARNING
Step 2:
Step 2:
Lift cover to expose electrical connections.
Step 2: Lift cover to expose electrical connections.
Step 4:
Step 4:
Open cover to expose POWER Connections.
POWER CONNECTIONS
Pulse Out 1 Remove retaining screw to
Remove retaining screw to
Pin 16 - Pos (+) expose connector.
Lift cover to expose electrical connections.
Open cover to expose POWER Connections.
POWER CONNECTIONS
Power connections
Power connections
are under this cover.
05-14
