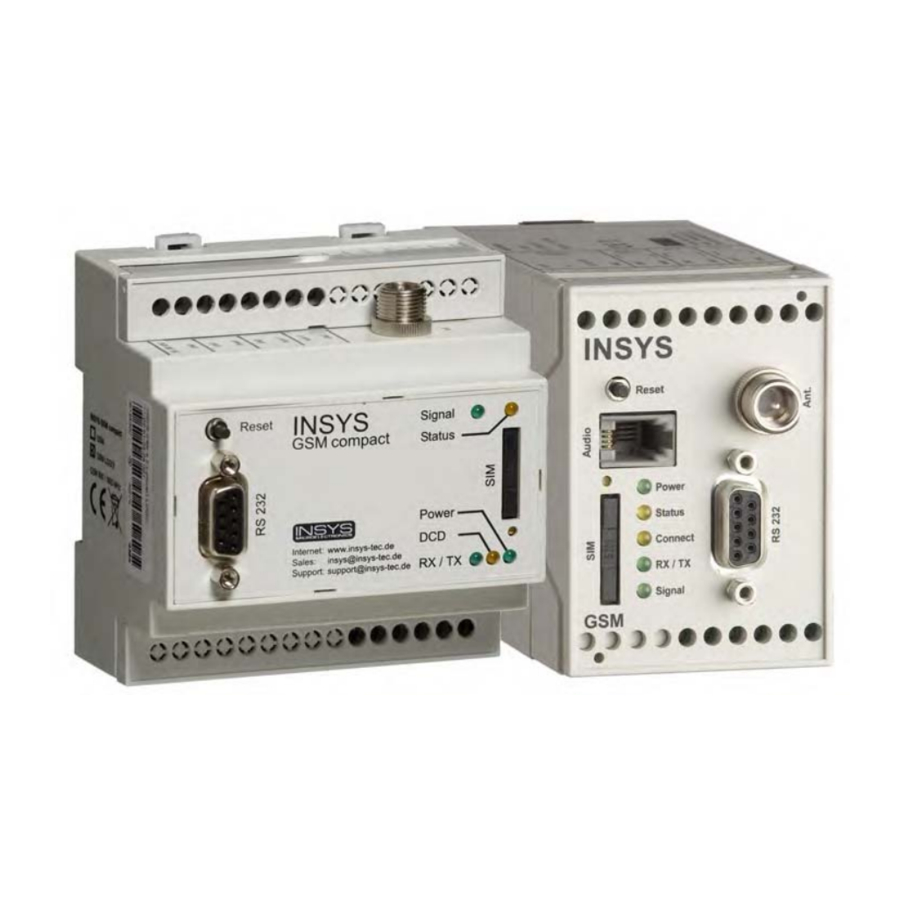

INSYS GSM 4.2 easy
.
January 07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GSM 4.2 easy and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for INSYS GSM 4.2 easy

Summary of Contents for INSYS GSM 4.2 easy

  • Page 1 INSYS GSM 4.2 easy January 07...
  • Page 3 The use of a trademark not shown below is not an indication that it is freely available for use. IBM PC, AT, XT are registered trademarks of International Business Machine Corporation. INSYS ® is a registered trademark of INSYS MICROELECTRONICS GmbH. Windows™ is a registered trademark of Microsoft Corporation. Publisher:...

  • Page 4: Table Of Contents

    Contents INSYS GSM 4.2 easy SCOPE OF DELIVERY............7 GENERAL..............8 INSYS GSM 4.2 ........8 OSSIBLE SES FOR EASY 2.1.1 Remote control via mobile phone or data connection ......9 2.1.2 Remote programming via data connection ........9 INSYS GSM....9 OSSIBILITIES WITH THE RECEDING ERSION ..............10...
  • Page 5 INSYS GSM 4.2 easy Contents ..............25 ROUBLESHOOTING 4.3.1 No response on commands ..............25 4.3.2 No connection established ...............25 4.3.3 Alarm SMS is not dispatched ............25 4.3.4 Signal Quality..................25 GSM N ..........26 TATE IN ETWORK CONFIGURATION WITH THE SOFTWARE HSCOMM EASY .................27 ................27...
  • Page 6 Contents INSYS GSM 4.2 easy 5.7.1 GSM Connection ................31 5.7.1.1 PIN........................31 5.7.1.2 Service Center Number..................31 5.7.1.3 Automatic SMS processing.................. 31 5.7.1.4 SMS storage locations ..................32 5.7.1.5 Connection attempts................... 32 5.7.1.6 Detect field strength intensity................32 5.7.2 System monitoring ................33 5.7.2.1...

  • Page 7: Scope Of Delivery

    Please keep the packaging material for dispatch or storage. Optional accessories Adapter cable D-SUB 9 pin, male on 9 pin, male GSM antenna: Outside mounted antenna, magnetic base antenna or patch antenna Connection cable Moeller easy - INSYS GSM 4.2 easy (on request) January 07...

  • Page 8: General

    The display of technical data and function descriptions of the standard version will be omitted in this manual (if possible). We refer to the user manual INSYS GSM 4.2. If the INSYS GSM 4.2 easy behaves differently than the standard version, we will mention this fact in the according passages.

  • Page 9: Remote Control Via Mobile Phone Or Data Connection

    The possibility to control the alarm inputs of the INSYS GSM with pulses, thus triggering up to 20 fault messages, has been implemented into the device series INSYS GSM and can still be used. This possibility is not tied to a device and can therefore be used for all kinds of control types.

  • Page 10: Restrictions/Notes

    INSYS GSM 4.2 easy Restrictions/Notes The INSYS GSM 4.2 easy is connected to the Moeller easy device via a serial interface. Therefore, a memory can not be used at the same time. The password protection of the easy device may not be activated. If it is activated, no communication between INSYS GSM 4.2 and the compact controller is...

  • Page 11: Function Descriptions

    Moeller easy device, it may not be clear for “outsiders” which object instance has which function. Therefore, so-called aliases were introduced for the INSYS GSM 4.2 easy. This offers the possibility to allocate a name that is easy to understand. If the Moeller easy device controls a waste water system, for example, the digital register M1 can be allocated the alias "waste water pump1”.
  • Page 12 INSYS GSM 4.2 easy. Behavior after reset or power up After a reset or a power up of the INSYS GSM 4.2 easy, values of object instances, which are not within the configured target state, will not trigger a fault message.
  • Page 13 The shortest polling cycle is 1 second, i.e. signals shorter than 1 second will generally not be recognized. The object instances are not automatically queried if the INSYS GSM 4.2 easy is busy with the following actions: Field strength query and login state query, duration approx. 5s, interval 60s, may be switched off.

  • Page 14: Periodic Sms

    Function Descriptions INSYS GSM 4.2 easy Periodic SMS 3.2.2 In addition to the monitoring of values, it is also possible to periodically query the current condition or value of an object instance and to send it automatically via SMS. A periodic SMS can be sent in hourly intervals of 1 to 255 h. After this time has expired, the set object instance is read out and the value is sent as SMS.

  • Page 15: Query And Controlling Via Sms

    SMS processing must be activated). It is furthermore possible to access the inputs and outputs of the INSYS GSM 4.2 easy indirectly via registers. For the INSYS GSM 4.2 easy it is also possible to query various information regarding the state of the easy device via SMS, or the control program that is running on it.
  • Page 16 Function Descriptions INSYS GSM 4.2 easy Monitoring of an object instance Command: MONITOR <Objectshortname><Instance>,CN:[ Callback] MONITOR <Alias>,CN:[ Callback] A reply with the value of the object instance or the alias follows. The query of the object instances is performed up to three times, if necessary. If there is still no reply from the easy device, an SMS with the text "NO SUCCESS"...
  • Page 17 Example 1: Query of the object instance M12 MONITOR M12,CN: In this case, an SMS is sent to the INSYS GSM 4.2 easy, which includes the command for the query of object instance M12. The reply SMS should be sent to the sender phone number which sent this command SMS to the INSYS GSM 4.2...

  • Page 18: Setting An Object Instance

    Function Descriptions INSYS GSM 4.2 easy Setting an object instance 3.3.2 Command: SET <Objectshortname><Instance>=<Value>[,CN:[ Callback]] SET <Alias>=<Value>[,CN:[ Callback]] The object instance is set to the according value. If callback is desired, the reply will contain "SUCCESS” for a successful setting procedure or “NO SUCCESS”...

  • Page 19: Status Query

    INSYS GSM 4.2 easy Function Descriptions E.g. it is not recommended to switch objects like digital inputs directly. On the other hand it is uncritical to set a parallel connected bit register to simulate the setting of digital input within the configuration program (e.g. imitate the triggering of a sensor).

  • Page 20: New History Entries

    INSYS GSM 4.2 easy New History Entries The description of the history functionality of the INSYS GSM 4.2 easy can be found in the supplied manual INSYS GSM 4.2. Due to the extended functionality of the INSYS GSM 4.2, there are several additional entries in the history memory:...

  • Page 21: Initial Operation

    4.1.1 Installation for configuration The serial interface (RS 232) of the INSYS GSM 4.2 easy and the configuration PC are connected for initial operation and configuration. The cable used for the RS232 is the default supplied 9-pin cable with 9–pin D-SUB plug / 9-pin D-SUB jack.

  • Page 22: Initial Operation

    Carry out the following steps: 1. Have the SIM card and PIN number ready, but do not insert the card yet. 2. Connect the INSYS GSM 4.2 easy and the PC with a serial cable (male/female). Connect the GSM antenna.
  • Page 23 6. Select the following standard setting for the serial interface in the menu Interface at the configuration PC: If the INSYS GSM 4.2 easy is in an undefined state (e.g. due to a previous configuration), reset it to the factory settings (button Send default settings), if required.
  • Page 24 Initial Operation INSYS GSM 4.2 easy 8. Disconnect the power supply. 9. Press the sunken yellow button (see image) above the SIM card slot and remove the cardholder. Put the SIM card into the cardholder and reinsert it. The contacts of the SIM card face to the left when inserting.

  • Page 25: Troubleshooting

    19.200 bps, 8N1) The INSYS GSM 4.2 easy can be reset to the factory settings by pressing the Reset key for an extended period (> 25 seconds).

  • Page 26: Log-In State In Gsm Network

    No further input necessary SIM PIN Enter PIN of the SIM card store the PIN for automatic dial-up of the INSYS GSM 4.2 easy and execute a reset. SIM PUK Enter PUK of the SIM card the PIN has been repeatedly entered wrong and is locked now.

  • Page 27: Configuration With The Software Hscomm Easy

    The software HSComm easy is used to configure the INSYS GSM 4.2 easy in Windows, without the need for explicit knowledge of the AT commands and their parameters. The settings are only sent to or read from the INSYS GSM 4.2 easy after the according instruction (buttons Send settings or Read settings).

  • Page 28: Program Settings

    "Automatic detection at program start" to attempt to establish a connection with the INSYS GSM 4.2 immediately after the start procedure. Use the item "Extended logging” to log all INSYS GSM 4.2 easy messages. The log can be viewed at the menu item "Send/receive log".

  • Page 29: Status Bar

    GSM network if the PIN is stored. 5.5.5 Synchronize The serial interfaces of the INSYS GSM 4.2 easy and the connected device have to be configured equally. With "Synchronize", all possible baud rates and data format settings at the PC side are tested until both sides match.

  • Page 30: Tabs

    Tabs The settings of the basic and extended settings are spread across several pages, which can be selected via the tab titles. The settings are transmitted to the INSYS GSM 4.2 easy only after pressing the button Send values. The functions are described in the following chapters, provided they are are relevant for the easy version.

  • Page 31: Gsm Connection

    The default setting is “0000”. When the INSYS GSM 4.2 easy has a stored PIN, the option PIN active is checked. A PIN stored in the INSYS GSM 4.2 easy is deleted by Delete PIN. This also enables the operation of SIM cards without PIN.

  • Page 32: Sms Storage Locations

    99 stands for not ascertainable field strength, e.g. due to network loss or a damaged antenna. When the location of the antenna is changed, it usually takes 5 to 10 seconds until the field strength of the INSYS GSM 4.2 easy is displayed correctly. January 07...

  • Page 33: System Monitoring

    5.7.2 System monitoring 5.7.2.1 Scheduled logout/login Log the INSYS GSM 4.2 easy in and out for a short period every day to allow maintenance functions of the GSM provider. Enter the logout time and the duration (1 to 98 minutes).

  • Page 34: Moeller Easy™ Settings

    “File” -> “Save as” before performing any changes at the controller. The buttons below "easy™ values" will only be displayed after the INSYS GSM 4.2 easy configuration has been read out once (button “Read out settings”).

  • Page 35: Alias Configuration

    INSYS GSM 4.2 easy Configuration with the Software HSComm easy These three buttons will enable you to read, write or delete the INSYS GSM 4.2 easy configuration for the Moeller easy™ functionality in particular. Reading and writing using these buttons will be faster than the total transfer via the button Send values, because the standard functionality need not be transferred once more.

  • Page 36: Configure Monitoring

    Configuration with the Software HSComm easy INSYS GSM 4.2 easy 5.8.2 Configure monitoring Clicking the button “Configure” displays the special configuration of the function. The table is not used to enter data, but to visualize the configuration. The entry takes place below the table.

  • Page 37: Configure Periodic Sms

    INSYS GSM 4.2 easy Configuration with the Software HSComm easy 5.8.3 Configure periodic SMS Clicking the button “Configure” displays the special configuration of the function. The displayed settings below are only effective when “Periodic SMS” is turned on in the main window! In the text field “Alias”...

  • Page 38: Remote Configuration With Easy-Soft And Insys Connect

    GSM Modem) is required locally. Any of these devices can be used to establish a connection to the remote INSYS GSM 4.2 easy via a dial up connection. When the connection is established, INSYS Connect will retreat from the serial interface. The communication device connected to this serial interface now has no connection to another program, but maintains the connection.
  • Page 39 INSYS GSM 4.2 easy Remote Configuration with EASY-SOFT and INSYS Connect Please note: To perform the remote configuration, the waiting period in EASY-SOFT must be adjusted. Otherwise, EASY-SOFT doesn’t wait long enough for the response of the addressed easy device. This device is not located at the local serial port, but the communication takes place via the GSM network.
