ENGLISH

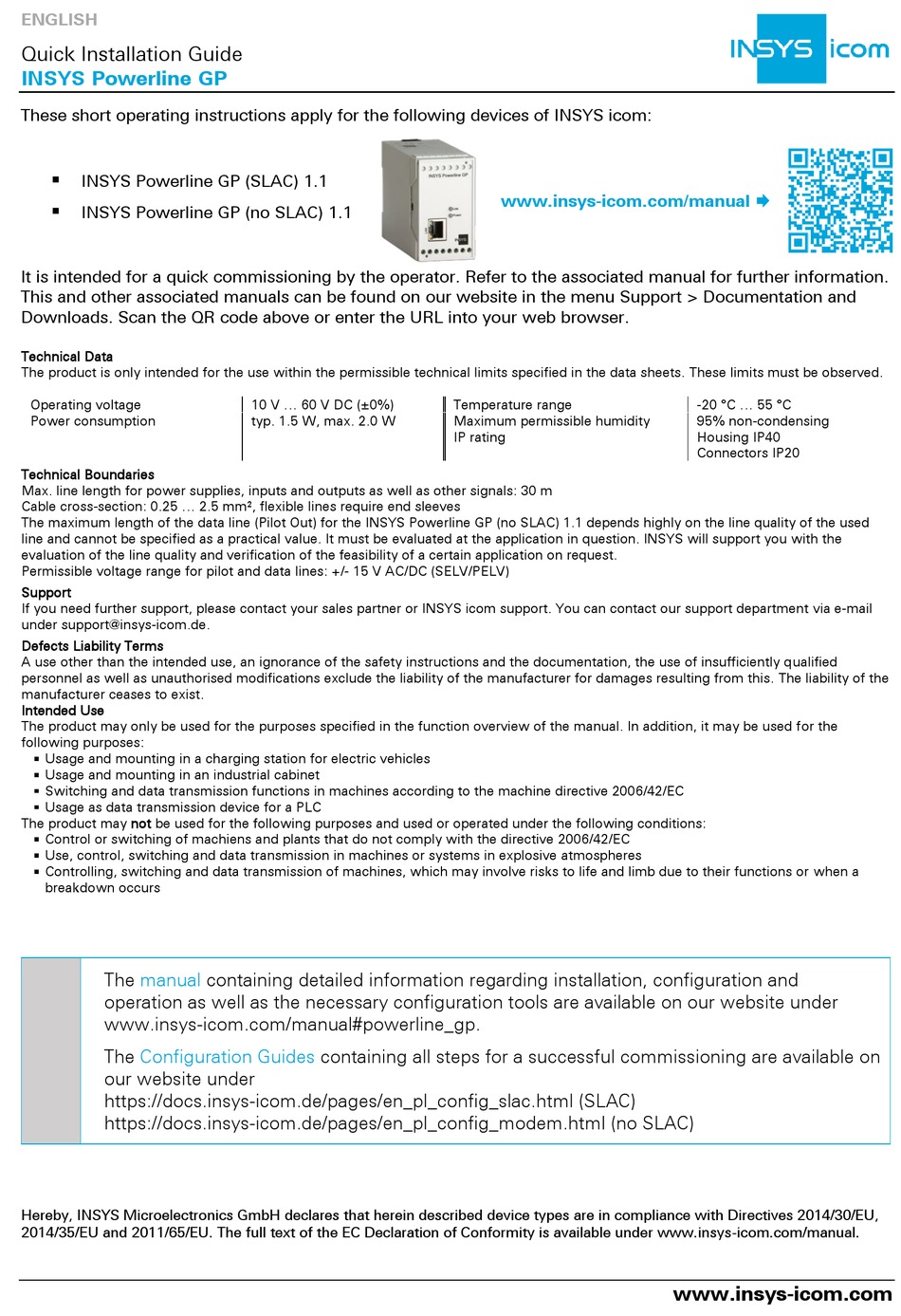

Quick Installation Guide
INSYS Powerline GP
These short operating instructions apply for the following devices of INSYS icom:
INSYS Powerline GP (SLAC) 1.1
INSYS Powerline GP (no SLAC) 1.1
It is intended for a quick commissioning by the operator. Refer to the associated manual for further information.
This and other associated manuals can be found on our website in the menu Support > Documentation and
Downloads. Scan the QR code above or enter the URL into your web browser.

Technical Data

The product is only intended for the use within the permissible technical limits specified in the data sheets. These limits must be observed.
Operating voltage
Power consumption

Technical Boundaries

Max. line length for power supplies, inputs and outputs as well as other signals: 30 m
Cable cross-section: 0.25 ... 2.5 mm², flexible lines require end sleeves
The maximum length of the data line (Pilot Out) for the INSYS Powerline GP (no SLAC) 1.1 depends highly on the line quality of the used
line and cannot be specified as a practical value. It must be evaluated at the application in question. INSYS will support you with the
evaluation of the line quality and verification of the feasibility of a certain application on request.
Permissible voltage range for pilot and data lines: +/- 15 V AC/DC (SELV/PELV)
Support
If you need further support, please contact your sales partner or INSYS icom support. You can contact our support department via e-mail
under support@insys-icom.de.
Defects Liability Terms
A use other than the intended use, an ignorance of the safety instructions and the documentation, the use of insufficiently qualified
personnel as well as unauthorised modifications exclude the liability of the manufacturer for damages resulting from this. The liability of the
manufacturer ceases to exist.

Intended Use

The product may only be used for the purposes specified in the function overview of the manual. In addition, it may be used for the
following purposes:
Usage and mounting in a charging station for electric vehicles
Usage and mounting in an industrial cabinet
Switching and data transmission functions in machines according to the machine directive 2006/42/EC
Usage as data transmission device for a PLC
The product may not be used for the following purposes and used or operated under the following conditions:
Control or switching of machiens and plants that do not comply with the directive 2006/42/EC
Use, control, switching and data transmission in machines or systems in explosive atmospheres
Controlling, switching and data transmission of machines, which may involve risks to life and limb due to their functions or when a
breakdown occurs
The
manual
operation as well as the necessary configuration tools are available on our website under
www.insys-icom.com/manual#powerline_gp.
The
Configuration Guides
our website under
https://docs.insys-icom.de/pages/en_pl_config_slac.html (SLAC)
https://docs.insys-icom.de/pages/en_pl_config_modem.html (no SLAC)
Hereby, INSYS Microelectronics GmbH declares that herein described device types are in compliance with Directives 2014/30/EU,
2014/35/EU and 2011/65/EU. The full text of the EC Declaration of Conformity is available under www.insys-icom.com/manual.
10 V ... 60 V DC (±0%)
typ. 1.5 W, max. 2.0 W
containing detailed information regarding installation, configuration and
containing all steps for a successful commissioning are available on
www.insys-icom.com/manual 
Temperature range
Maximum permissible humidity
IP rating
-20 °C ... 55 °C
95% non-condensing
Housing IP40
Connectors IP20
www.insys-icom.com
