INSYS GPRS 5.0 Manual

Hide thumbs Also See for GPRS 5.0:
Table of Contents

Advertisement

Quick Links

Download this manual
INSYS GPRS 5.0
Ethernet
Dez-06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GPRS 5.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for INSYS GPRS 5.0

Summary of Contents for INSYS GPRS 5.0

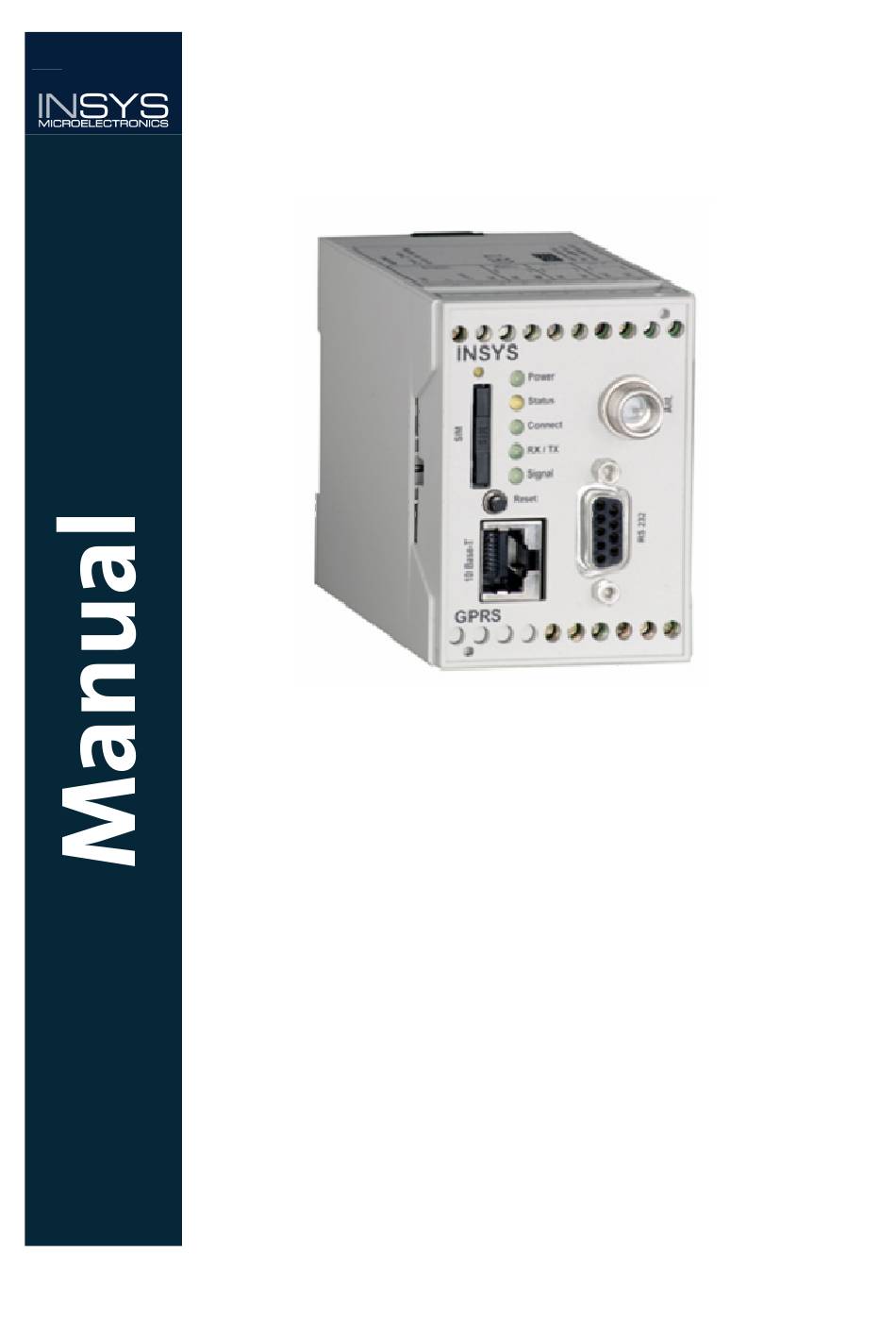

  • Page 1 INSYS GPRS 5.0 Ethernet Dez-06...
  • Page 2 MNP is a registered trademark of Microcom Inc. IBM PC, AT, XT are registered trademarks of International Business Machine Corporation. INSYS ® is a registered trademark of INSYS MICROELECTRONICS GmbH. Windows™ is a registered trademark of Microsoft Corporation. Publisher:...

  • Page 3: Table Of Contents

    Contents INTRODUCTION............6 SCOPE OF DELIVERY ........... 8 OVERVIEW..............9 INSYS GPRS 5.0 E ............10 THERNET ............... 10 UNCTION VERVIEW .............. 11 PPLICATION XAMPLE ..............11 ECHNICAL 3.4.1 General....................11 3.4.2 Mechanical characteristics..............11 3.4.3 Power Supply ..................12 3.4.4 SIM Card ....................13 3.4.5...
  • Page 4 Contents ............. 29 ESET TO ACTORY EFAULTS IP N .......... 29 ONFIGURATION IN THE ETWORK IP N ....... 30 NTRODUCTION TO THE OUTING OF ETWORKS 5.3.1 Routing general (without NAT) ............30 5.3.2 Private and public IP addresses ............31 5.3.3 Routing between private and public networks via NAT (Network Address Translation) .................32 ..............
  • Page 5 Contents INTERNATIONAL SAFETY INSTRUCTIONS....58 ............... 58 AFETY RECAUTIONS FCC R ......59 OMPLIANCE WITH ULES AND EGULATIONS NETWORK PROVIDER IDENTIFICATION NUMBERS .. 61 Dez-06...

  • Page 6: Introduction

    Introduction INSYS GPRS 5.0 Ethernet Introduction Validity range of the manual This user manual applies to the device INSYS GPRS 5.0 Ethernet. Purpose This manual is directed primarily at technical staff, in particular: Programmers Implementers Required basics General knowledge regarding communication technologies is required.
  • Page 7 INSYS GPRS 5.0 Ethernet Introduction Repurchasing of legacy systems According to the new WEEE guidelines, the repurchasing and recycling of legacy systems for our clients is regulated as follows: Please send those legacy systems to the following address, carriage prepaid: Frankenberg-Metalle Gärtnersleite 8...

  • Page 8: Scope Of Delivery

    Scope of Delivery INSYS GPRS 5.0 Ethernet Scope of Delivery Before you begin with the initial operation, please check if all accessories are included in the box. INSYS GPRS 5.0 Ethernet User Guide Crossed ethernet cable Please contact your supplier if the content is not complete. Please also check the device for shipping damage.

  • Page 9: Overview

    INSYS GPRS 5.0 Ethernet Overview Overview The INSYS GPRS Ethernet is a mounting rail device for industrial applications. It has a compact design and a robust plastic housing. It offers the following characteristics: Quadband GSM engine for all four frequency ranges...

  • Page 10: Insys Gprs 5.0 Ethernet

    Integrated SIM reader and external SIM interface for 3V / 1.8 V SIM cards Hardware watchdog Field strength indication of the GSM network. Status indication of the INSYS GPRS 5.0 Ethernet As default, the frequency ranges 850 MHz and 1900 MHz are deactivated due to FCC guidelines. To en- able those ranges, please contact the INSYS Microelectronics Sales Department (Phone ++ 49 (0)941/560061, e-mail: insys@insys-tec.de)

  • Page 11: Application Example

    Protection class terminals IP 20 As default, the frequency ranges 850 MHz and 1900 MHz are deactivated due to FCC guidelines. To en- able those ranges, please contact the INSYS Microelectronics Sales Department (Phone ++ 49 (0)941/560061, e-mail: insys@insys-tec.de) Dez-06...

  • Page 12: Power Supply

    Overview INSYS GPRS 5.0 Ethernet 3.4.3 Power Supply The INSYS GPRS Ethernet requires a power supply of 10 to 60 V (DC) at a maximum of 5% ripple. Caution - No overvoltage protection! The INSYS GPRS Ethernet does not have a fuse.

  • Page 13: Sim Card

    Changing the SIM card is only permitted when the device is switched off. 3.4.5 Antenna Interface The antenna connector at the front of the INSYS GPRS 5.0 Ethernet has the type FME (male plug). All commercial GSM antennas with a female FME connector can be used as antennas.

  • Page 14: Terminal Layout

    Overview INSYS GPRS 5.0 Ethernet 3.4.7 Terminal Layout Terminal Meaning Ground 10...60 VDC Reserved 10..60V DC Power supply 10V - 60V DC Ground Reset Ground Input 1 Reset Reset input Input 2 Ground Input 1 Input 1 Input 2 Input 2...

  • Page 15: Environmental Conditions

    0°C to 55°C Certifications The INSYS GPRS Ethernet bears the CE symbol of conformity. This symbol is a declaration that on account of its design and implementation, this device is in compliance with the currently valid versions of the following EC directives:...

  • Page 16: Display And Control Elements

    Overview INSYS GPRS 5.0 Ethernet Display and Control Elements The INSYS GPRS 5.0 Ethernet has 5 LEDs for status displays and one reset key. 3.7.1 Display Elements Name Color LED off LED on LED blinks LED flashes Green No power sup-...

  • Page 17: Reset Key

    Overview 3.7.2 Reset key Use the reset key to re-initialize the INSYS GPRS Ethernet or to load the factory settings. Press the reset key for at least 1 second. After a 10 s pause, a simple reset (re- initialization) of the device is performed. Pressing the reset key equals the bridging of the terminals Reset and GND.

  • Page 18: Installation

    The signal LED blinks or lights up permanently when the process is com- pleted. Connection to the PC Connect the 10BaseT socket at the INSYS GPRS 5.0 Ethernet to the network con- nection of your PC. For the configuration, you will need a crossover network ca- ble.
  • Page 19 INSYS GPRS 5.0 Ethernet Installation PC settings for the initial configuration. Example Windows XP Open Control Panel, open Network and Internet Connections Open the according LAN connection Dez-06...
  • Page 20 Installation INSYS GPRS 5.0 Ethernet Click on Properties Select Internet Protocol (TCP/IP) and click on Properties Dez-06...
  • Page 21 The manufacturer has set the default IP address 192.168.1.1 (Sub network mask: 255.255.255.0) for the INSYS GPRS 5.0 Ethernet. To be able to address the INSYS GPRS 5.0, the PC must receive an IP address from the same sub network, e.g. 192.168.1.9.
  • Page 22 Installation INSYS GPRS 5.0 Ethernet Open Tools > Internet Options in the browser (in this example, the browser Inter- net Explorer is used) Select the tab "Connections" and click on "Settings..." Dez-06...
  • Page 23 INSYS GPRS 5.0 Ethernet Installation Deactivate all settings Start the browser, enter the IP address of the GPRS 5.0 Ethernet Dez-06...
  • Page 24 During the initial configuration, a user name and a password should be assigned. The configuration of the INSYS GPRS 5.0 Ethernet takes place via the Web interface. (See Chapter 5.5.1 Operation). When the IP address is changed, the item 7 of these instruc- tions may need to be repeated.
  • Page 25 INSYS GPRS 5.0 Ethernet Installation GSM/GPRS configuration Enter the PIN number of the used SIM card in the entry field "PIN" and enter the Access Point Name of your GPRS provider in the entry field "APN". Click on "Ac- cept".
  • Page 26 Installation INSYS GPRS 5.0 Ethernet On the following page, click on "Restart" and confirm with "OK" when queried. Switch the power supply off Insert the SIM card Press the sunken yellow button (see image) above the SIM card slot and remove the card holder.

  • Page 27: Function Test

    INSYS GPRS 5.0 Ethernet Installation Function Test As soon as the LED status lights up permanently, the INSYS GPRS 5.0 Ethernet is ready for routing. For a quick test, enter an Internet address in your web browser, such as http://www.insys-tec.de...
  • Page 28 Installation INSYS GPRS 5.0 Ethernet Dez-06...

  • Page 29: Functions

    10 seconds. Connect the "Reset" terminal to GND at least 5 times for a duration of 100 ms to 500ms each within 10 seconds. After 10 seconds, the INSYS GPRS 5.0 Ethernet will reset all parameters to the factory defaults. Note The PIN stored in the SIM card is not reset and will be maintained also after the device has been reset to the factory defaults.

  • Page 30: Introduction To The Routing Of Ip Networks

    Functions INSYS GPRS 5.0 Ethernet Introduction to the Routing of IP Networks 5.3.1 Routing general (without NAT) A router is the link between two network segments. It forwards the IP packets, which are not located in the network of the sender, to the other network segment.

  • Page 31: Private And Public Ip Addresses

    INSYS GPRS 5.0 Ethernet Functions If only one router is available, this router is defined one time as standard gateway. It will then receive all IP packets which are not meant for the own network segment. It will as- sume the correct forwarding to the according destination network.

  • Page 32: Routing Between Private And Public Networks Via Nat (Network Address Translation)

    Functions INSYS GPRS 5.0 Ethernet 5.3.3 Routing between private and public networks via NAT (Network Address Translation) Dez-06...
  • Page 33 IP address from the private address range of the according network segment. The INSYS GPRS 5.0 Ethernet represents such a proxy. LAN devices treat it as a router or gateway, i.e. the LAN IP address of the INSYS GPRS 5.0 Ethernet is entered as gateway for LAN devices (see 5.3.1 Routing general).
  • Page 34 Functions INSYS GPRS 5.0 Ethernet Note The dynamic entry in the NAT table takes place when establishing a connection from the private LAN to the public WAN. For incoming connections from the WAN and their forwarding to ser- vices in the private LAN, static entries are used. (see Chapter 5.5.5)

  • Page 35: Port Forwarding

    It is thus possible to forward connections which come in at a certain public port (WAN port) of the INSYS GPRS 5.0 Ethernet to a computer of the local network (LAN). Example: A web server (TCP, port 80) with the local IP address 192.168.0.10 should be reached from the Internet.

  • Page 36: Operation With Gprs

    After the entries were stored and the INSYS GPRS 5.0 Ethernet was restarted, the lo- cal web server is available via the public IP address of the INSYS GPRS 5.0 Ethernet (in the example: 84.142.35.215). For the client computer with web browser it seems as if the INSYS GPRS 5.0 Ethernet is the called up web server.

  • Page 37: Configuration

    The settings in the individual configuration windows will only be saved when the button “Apply” is clicked. To activate the settings, the INSYS GPRS 5.0 Ethernet must be reset. This is also offered on the configuration pages. After the settings have been transmitted to the INSYS GPRS 5.0 Ethernet, the configura- tion pages must be reloaded (web browser menu "Update").

  • Page 38: Status Page

    Functions INSYS GPRS 5.0 Ethernet 5.5.2 Status page Dez-06...
  • Page 39 INSYS GPRS 5.0 Ethernet Functions The status page displays the current state of the INSYS GPRS 5.0 Ethernet. In detail, the following information is provided: IMEI: Unique, 15-digit ID of the GSM engine Network provider: Name of the network provider where the device is currently...

  • Page 40: Gsm/Gprs

    Functions INSYS GPRS 5.0 Ethernet 5.5.3 GSM/GPRS Dez-06...
  • Page 41 GPRS connection is closed. The output OUT1 will switch back to normally closed contact. Network provider If the INSYS GPRS 5.0 Ethernet is not supposed to register at identification number: the standard network provider, but a network provider should be selected manually;...
  • Page 42 Before inserting a new SIM card you have to ensure that the correct PIN is stored. The PIN may need to be deleted. Otherwise the INSYS GPRS 5.0 Ethernet tries to login with a wrong PIN, which results in a locked PIN if the attempt is repeated.

  • Page 43: Lan

    The default settings for the INSYS GPRS 5.0 Ethernet are as follows: 192.168.1.1 Subnet mask: 255.255.255.0 The INSYS GPRS 5.0 Ethernet offers the possibility to control the status of its LAN inter- face: Always on (default) The LAN interface is permanently active.
  • Page 44 Functions INSYS GPRS 5.0 Ethernet Better availability through standby router If necessary, a standby router may be activated through the LAN interface that is switchable via the input IN2. For reasons of availability, it may be required to equip a second router (standby router) with a SIM card of another provider.

  • Page 45: Nat

    INSYS GPRS 5.0 Ethernet Functions 5.5.5 TCP timeout: 1 ... 9999 The value of the TCP timeout (default: 130) specifies after how many minutes without data traffic a connec- tion entry in the NAT table will be marked as inactive.
  • Page 46 This list contains the already configured, static NAT entries. They may be removed, if necessary, using the according button. Note Creating a new NAT entry or removing an existing NAT entry will re- quire a restart of the INSYS GPRS 5.0 Ethernet to take effect. Dez-06...

  • Page 47: Dyndns

    (e.g. *.dyndns.org, *.mine.nu, etc.) as unique domain name free of cost. Billable ser- vices with extended functions are possible as well. As a so-called DynDNS client, the INSYS GPRS 5.0 Ethernet offers the possibility to allo- cate the newly assigned WAN IP address to this registered domain name after each GPRS connection setup.
  • Page 48 DynDNS service and specify the according DynDNS update server in this field. This is an advantage, if the INSYS GPRS 5.0 Ethernet is part of a virtual private network (VPN). Please find more information about the DynDSN update protocol in the following PDF file "DynDNS Update Specifications":...

  • Page 49: Administration

    On this page, the access protection for the web interface (user name and password) is set. In the default settings, neither a user name nor a password was specified. In addition, this page offers the opportunity, to restart the INSYS GPRS 5.0 Ethernet or to restore the factory defaults.

  • Page 50: Firmware Update

    After clicking the button "Start", the selected firmware is trans- ferred to the INSYS GPRS 5.0 Ethernet. The update takes approximately 30 seconds. Afterwards, a RESET is performed. Note Contingent upon the firmware version, the INSYS GPRS 5.0 Ethernet must be reconfigured after the update. Dez-06...

  • Page 51: Gprs General

    INSYS GPRS 5.0 Ethernet GPRS General GPRS General Application Notes When using data services via GPRS, providers offer various contract options, espe- cially regarding the pricing (basic price, basic data volume, billing unit). Please contact the according providers for further information.

  • Page 52: Network Design

    GPRS General INSYS GPRS 5.0 Ethernet Network Design The GPRS system is intended as additional service within the scope of the GSM system. The GPRS data exchange (GPRS = General Packet Radio Services) runs packet-oriented, based on the Internet Protocol (IP).
  • Page 53 INSYS GPRS 5.0 Ethernet GPRS General IP Addresses/Accessibility The IP address of the GPRS end device is dynamically allocated by the provider and is temporary, i.e. during the next dialup at the provider a new IP address is allo- cated.

  • Page 54: Data Rates

    GPRS General INSYS GPRS 5.0 Ethernet Data Rates The GPRS Ethernet has the following characteristics: GPRS Multislot class 12 GPRS End device class B Support of coding scheme 1 to 4 PBCCH Support GPRS has several classes (multislot classes) which are relevant for the transmis- sion speed.

  • Page 55: Quality Of Service (Qos)

    INSYS GPRS 5.0 Ethernet GPRS General 1 TS 2 TS 3 TS 4 TS 14.4 28.8 43.2 57,6 Data rates of PC data only (without GPRS control data) Note The above mentioned values represent the theoretically maximum possible values. In practice, the following applies: GPRS will not provide guaranteed data rates or bandwidths for the application.

  • Page 56: Gprs Dial-In Parameters

    GPRS Dial-in Parameters INSYS GPRS 5.0 Ethernet GPRS Dial-in Parameters Overview of network providers for German speaking countries (D, A, CH). All nec- essary information is available from the customer service center of the provider. Network Pro- PPP User name...

  • Page 57: Faq

    INSYS GPRS 5.0 Ethernet Problem: Possible cause: Remedy The GPRS Ethernet does The location of the GSM antenna Check the signal quality of the GSM not log in. is incorrect. network. For low field strength – below 12 – the antenna location should be changed.

  • Page 58: International Safety Instructions

    International Safety Instructions INSYS GPRS 5.0 Ethernet International Safety Instructions The following Siemens safety instructions apply to the used GSM/GPRS engine TC63. Fol- lowing US FCC specifications , each device must have a sticker with a note referring to the "FCC ID" attached.

  • Page 59: Compliance With Fcc Rules And Regulations

    INSYS GPRS 5.0 Ethernet International Safety Instructions IMPORTANT! Cellular terminals or mobiles operate using radio signals and cellular networks. Because of this, connection cannot be guaranteed at all times under all conditions. Therefore, you should never rely solely upon any wireless device for essential communications, for example emergency calls.
  • Page 60 International Safety Instructions INSYS GPRS 5.0 Ethernet Summary of the FCC guidelines for 850/1900MHz: If the final product is not approved in the US territories, the manufacturer should deactivate the frequency bands 850 MHz and 1900 MHz and make sure that they are not accessible to the end user.

  • Page 61: Network Provider Identification Numbers

    INSYS GPRS 5.0 Ethernet Network Provider Identification Numbers Network Provider Identification Numbers Identifiers and names of the network providers (GSM Location Area Identification Number) for the GSM module, in alphabetic order: 41802 41902 KT MTCNet 64501 ZM CELTEL 23430 41903...
  • Page 62 Network Provider Identification Numbers INSYS GPRS 5.0 Ethernet 28401 M-TEL GSM BG 27601 AMC - AL 64301 MOZ - mCel 62130 MTN - NG 34008 AMIGO 60901 MR MATTEL 62401 MTN CAM 362951 64901 MTC NAMIBIA 65510 MTN-SA ANT CURACAO...
  • Page 63 INSYS GPRS 5.0 Ethernet Network Provider Identification Numbers 26803 P OPTIMUS 65201 BW MASCOM 23101 Orange SK 26806 P TMN 25701 BY VELCOM 52099 Orange Th 41004 PAK - PL 338180 C&W 25011 ORENSOT 71401 PANCW 342600 C&W 23003 OSKAR...
  • Page 64 Network Provider Identification Numbers INSYS GPRS 5.0 Ethernet 25004 SIBCHALLENGE RUS 63903 CELTEL 64710 SFR REUNION 52501 SingTel 64005 celtel 52503 SGP-M1-3GSM 52502 SingTel-G18 63002 CELTEL DRC 29370 SI VEGA 070 51503 SMART 62803 CELTEL GA 29340 SI vodafone 45406...
  • Page 65 INSYS GPRS 5.0 Ethernet Network Provider Identification Numbers 24001 TELIA S 60201 EGY MobiNiL 72423 TELEMIG CEL 50501 Telstra Mobile 61710 EMTEL-MRU 70603 TELEMOVIL 310900 Texas Cellular 311160 41006 Telenor PK 61501 TG-TOGO CELL 26203 E-Plus 23820 TELIA DK 52015...
  • Page 66 Network Provider Identification Numbers INSYS GPRS 5.0 Ethernet 63102 UNITEL 45412 HK PEOPLES 64101 UG CelTel 25039 Uraltel 45416 HK SUNDAY 25502 UKR-WellCOM 74810 URYAMWU 70830 41603 UMNIAH 310870 HOLA PARAGUAY 74401 72207 UNIFON S.A. 31020 US - Union Telephone...
  • Page 67 INSYS GPRS 5.0 Ethernet Network Provider Identification Numbers 27801 vodafone MT 43602 Indigo-T 21670 vodafone HU 20404 vodafone NL 310770 Iowa Wireless USA 27201 vodafone IE 53001 vodafone NZ 43214 IR KISH 22210 vodafone IT 26801 vodafone P 43219 IR MTCE...
