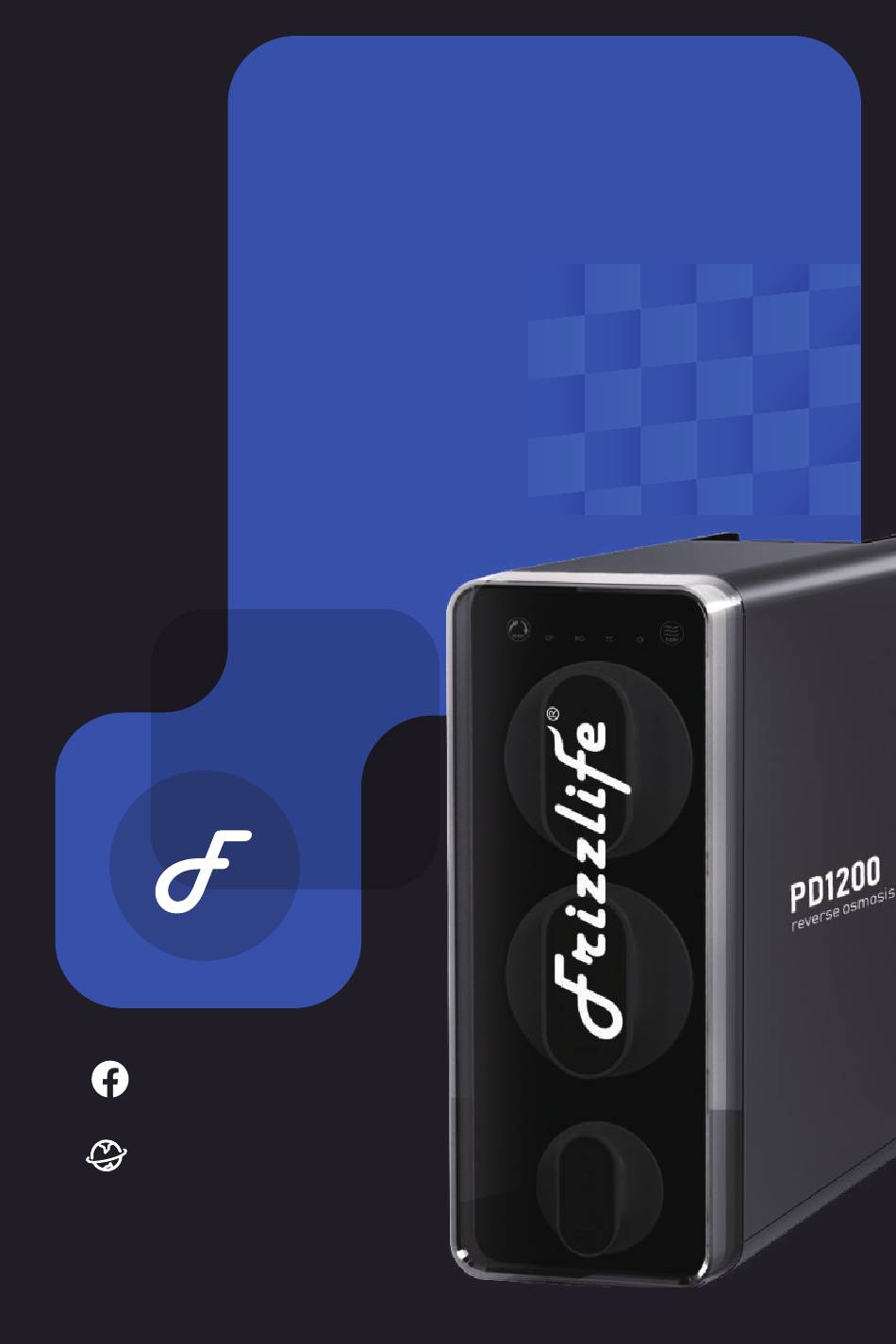

- Page 1 OWNER'S MANUAL R E V E R S E O S M O S I S W a t e r F i l t r a t i o n S y s t e m PD1200 Follow Frizzlife...
-
Page 2: Table Of Contents
CONTENT 1. Before Installation 2. Packing List 3. Product Introduction 4. Sample Connection 5. Installation Tips 6. Installation Steps 7. First Time Usage 8. Display and Operation 9. Replacement of Filter Cartridge 10. Filter Replacement Instruction 11. Hook Up to Your Refrigerator/Ice Maker 12. -
Page 3: Before Installation
"Product Introduction" and make sure nothing is missing or damaged during shipping. If any parts are cracked or broken, please do not proceed with the installation and contact Frizzlife for an exchange or diagnosis. Technical Parameters Model... -
Page 4: Packing List
2. Packing List Preinstalled System Housing x1 set PPC Filter(ASR611) X1 RO Filter(ASR612-1200G) X1 TC Filter(ASR613) X1 Smart RO Faucet x1 set White 1/4” tubing X1 White 3/8” tubing X1 Feed Water Valve X1 1/2”-3/8” Converter Set X1 Drain Saddle X1 Power Adapter X1 Blade X1 Plumber Tape X1... -
Page 5: Product Introduction
3. Product Introduction Reset button Connect to drinking faucet Filter life Flush button Connect to drain pipe PD1200 Connect to water supply Power supply Faucet supply 4. Sample Connection Filtered Line Supply Line Drain Line... -
Page 6: Installation Tips
5. Installation Tips How to cut the tubing? Please cut the tubing into two sections in proper length, make sure cut them squarely and cleanly. How to connect/disconnect the tubing? To connect: please push the tubing into the fitting and make sure it is fully inserted. -
Page 7: Installation Steps
Please glue the sticker on your sink or countertop, and drill a hole referring to the sticker hole size (1") Any help, please contact us at: support@frizzlife.com 6. Installation Steps Precautions: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection. - Page 8 Put one end of the tubing into boiled water for 5 seconds to soften itself. Step 2: Connect three-way feed water valve (3/8" or 1/2") Load the 3/8"tubing through the nut. Connect the end of 3/8" tubing that has been softened into the 3-way feed water valve.
- Page 9 Twist the feed water valve onto the angle valve and make sure the O ring is loaded. Connect cold water pipe onto the feed water valve. Valve installation complete. Step 4: Connect the "SUPPLY" water tubing Remove all three plugs except the “Do not use” Remove one by pressing the fitting sleeves.
- Page 10 Choose a spot on the drain plpe that is convenient for installing the drain saddle. It is recommended to install the drain saddle on the vertical drain pipe. Drill a 1/4" hole in the drain pipe. Make sure not to penetrate the opposite side of the pipe.
- Page 11 Step 7: Install the smart RO faucet Note: If your kitchen sink or countertop does not have an existing hole, you will have to drill one (1”). Refer to Page 04. Insert the faucet spout into the faucet body. Insert the faucet stem, power cord and blue filtered water tubing into the hole on countertop.
- Page 12 Use a 1/4”-3/8” water fitting to connect the other end of the 3/8” tubing and the blue tubing of faucet. Then Lock the clips. Step 9: Connect the power cord Insert the power cord which is attached to the RO faucet Faucet Connector into the“Faucet”...
-
Page 13: First Time Usage
Note: If the system can't be powered on after you insert the plug of power adapter, check the power under the sink, as this mostly occurs when the power under the sink is powered off. Also, check the connection between the plug and the power outlet, and ensure that the system has been plugged correctly into the power outlet, as this may occur in a few cases. -
Page 14: Display And Operation
8. Display and Operation Power-on When the system is powered on, you will hear a beep. All indicators will be on for 3 seconds. TDS display When the system is powered on and keeps producing water for 30 seconds, the system will automatically test the TDS of RO water and display on the faucet screen. - Page 15 Indication Faucet Screen Remaining Life Light Code Normal ≥5% White ＜5% Pre-waring Flashing Red Waring Constant Red ≤0 Display Time: All indicators will go off after 30 seconds when the system stops making water. Long-time operation reminder： When the system keeps producing water continuously for 30 minutes, the system will enter into protection status and all the components stop working.
- Page 16 3. Recycled Fresh Water Flushing when in standby status. Recycled fresh water flushing function is to ensure each cup of water to be fresh and healthy. When the system is in standby status for 20 minutes, the system will automatically recycle fresh water and start flushing for 1minute. If the user decides to take water during the flushing, the system will quit flushing and switch to dispensing.
-
Page 17: Replacement Of Filter Cartridge
9. Replacement of Filter Cartridge Please replace filter cartridges regularly according to the recommended replacement period shown below. Position Filter Model Number Recommended Replacement Period 1st stage PP+CB 2-in-1 filter ASR611 One year or cumulative water production for 20 hours(around 900-1000gal) 2nd stage RO membrane ASR612-1200G... - Page 18 Unscrew the cartridge needs to be replaced counter clockwise. Screw the new cartridge clockwise into the system. Step 2: Reset the filter lifetime Long press the " " button for 3 seconds, the buzzer will beep and you can start to select the filter you want to change. Press "...
-
Page 19: Hook Up To Your Refrigerator/Ice Maker
11. Hook Up to Your Refrigerator/Ice Maker The PD1200 system can be connected with your refrigerator/lce-maker by utilizing an extra lMC-1 ice maker connection kit (not included). Simply search "Frizzlife IMC-1"or Asin#"- BO7R7NH55L" on Amazon, or scan the QR code to purchase. -
Page 20: Mini Tank Available Now
2.lf you are encountering the constant on and off issue of the system pump due to unstable/lackof water pressure. Simply search"Frizzlife MWT3" on Amazon, or frizzlife.com, or scan the QR code to purchase. Filtered Line The mini water tank is not included in the package.If you consider the initial lag of... -
Page 21: Maintenance
13. Maintenance Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection. If you don't use the system for a long time: A. If the system has not been used for more than 2 days, please turn on the faucet and discharge the filtered water at least 5 minutes before usage. -
Page 22: Trouble Shooting
14. Trouble Shooting Possible Cause Fault Solution The system is not connected Please check if the adapter is to the power adapter or the connected properly. connection is loose. No water Cold water valve, 3-way feed Please open the valves. water valve or the faucet is off. - Page 23 Please reinstall the system according Pipes or filters are not installed properly. to the instruction or contact customer service team. The O rings are missed. Please contact customer service team. Water leakage Other components are Please contact customer service team. damaged Unchanged filter Electronic controller or...
-
Page 24: Frequently Asked Questions
1 minute to get the water, since the whole system will not release any harmful substances to the water. The TDS removing rate for PD1200 is about 94-95%, if your incoming TDS is high, the outlet TDs will be high too. -
Page 25: Limited Product Warranty
1. Frizzlife is not liable for anything that we deem as abuse of the units, including but not limited to, misuse of product outside of intended use, equipment modifications. - Page 26 Most of the unit components are made of plastic and eventually can break or crack from stress. There are no other warranties which extend beyond what is described above. To receive warranty service, please contact Frizzlife at support@frizzlife.com 150% Extended Warranty support@frizzlife.com .
