OWNER'S MANUAL
Model: SP99
Certified by IAPMO R&T according to
NSF/ANSI 42 & 53 for Material Safety,
Structural Integrity, Chlorine, Lead,
Particulate Class I, Cyst and VOC remove.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP99 and is the answer not in the manual?

Questions and answers

Related Manuals for Frizzlife SP99

Summary of Contents for Frizzlife SP99

  • Page 1 OWNER'S MANUAL Model: SP99 Certified by IAPMO R&T according to NSF/ANSI 42 & 53 for Material Safety, Structural Integrity, Chlorine, Lead, Particulate Class I, Cyst and VOC remove.

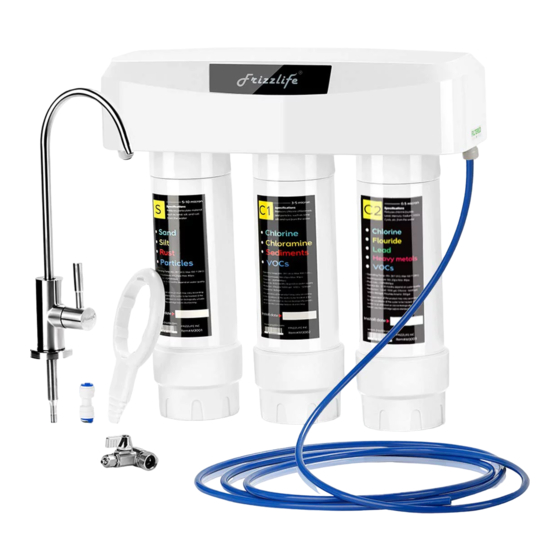

  • Page 2 WARNING: Please read the manual carefully before proceeding with installation Thank you for purchasing the Frizzlife 3-Stage Under Sink Water Filtration System. When maintained properly, this unit will provide you with years of service. The system conforms to NSF/ANSI 42&53 for the specific performance claims verified and substantiated by test data.

  • Page 3: Before Installation

    Please take the system and all the components out of the box. Inspect the system carefully, make sure nothing is damaged during shipping. If any part is cracked or broken, please do not proceed with the installation and contact FRIZZLIFE for an exchange or diagnosis.

  • Page 4: Technical Data

    Model: SP99 TECHNICAL DATA Water flow rate: 1.5GPM Min. working pressure: 20psi Max. working pressure: 80psi Min. temperature: 4 C/39.2 F Max. temperature: 38 C/100.4 F Capacity: 1000 gallon Replacement filter model: M3001, M3002, M3003 INSTALLATION OF THE FILTER SYSTEM STEP 1: INSTALL THE SYSTEM ONTO A WOODEN PLATE 1.
  • Page 5 Model: SP99 STEP 2: INSTALL THE WATER PRESSURE REGULATOR 1. Attached the Water Pressure Regulator to the 'Supply' end of the system. 2. Seal the connection with a bigger blue clip. 3. Make sure the arrow on the regulator is set upwards.
  • Page 6 Model: SP99 STEP 6: CONNECT THE FILTER SYSTEM 1. Connect the other end of 1/4" supply tubing to the water pressure regulator at the “Supply” end. Make sure the tubing hits the bottom of the fitting. Seal the connection with a smaller blue clip.

  • Page 7: Cartridge Replacement

    Model: SP99 CARTRIDGE REPLACEMENT STEP 1: Shut off the water supply(Important!!); STEP 2: Twist off the housing; STEP 3: Using wrench to unscrew the housing body; STEP 4: Take out the old cartridge and load with new one, then install back the same way.

  • Page 8: Limited Warranty

    1. Frizzlife is not liable for anything that we deem as abuse of the units, including but not limited to, misuse of product outside of intended use, equipment modifications, unauthorized repairs, improper installation, damage from freezing, hot water, fire or other acts of God outside of Frizzlife control.
  • Page 9 There are no other warranties which extend beyond what is described above. To receive warranty service, please contact Frizzlife at support@frizzlife.com 150% Extended Warranty 1. Email us your order ID and full name at support@frizzlife.com 2. Scan the QR code below to register...

This manual is also suitable for:

Sp99-new
