Summary of Contents for UEi CEA

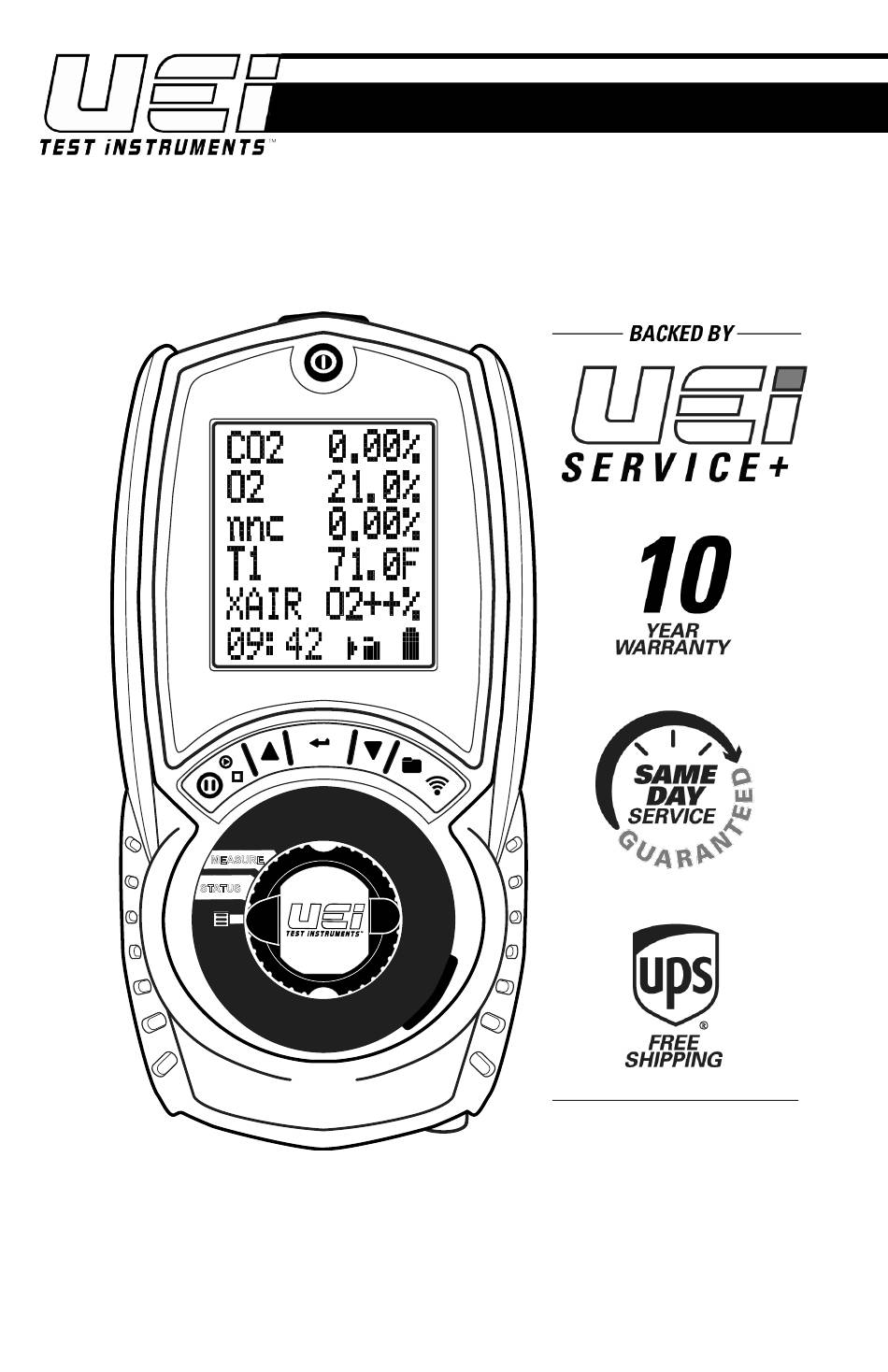

- Page 1 CEA Q uiCk tArt uidE Combustion Efficiency Tester MEASURE STATUS 1-800-547-5740 • www.ueitest.com Email: info@ueitest.com...
- Page 2 CEA OVERVIEW Power button Display lines 1 through 6 Protective boot with built-in magnets Status bar line Navigation Pump On/Off Log & Print Measure Test MEASURE Status screen STATUS Menu screen LED Water Trap Full Indication Water Trap Window Thermocouple input...
-
Page 3: Status Screen
MENU SCREEN - CEA START UP Press ”Power” Button for 2 seconds. The analyzer will perform a 60 second purge. This should be done in fresh air. Rotate Selector Dial to MENU to set up or customize your settings. Selected parameter are centered, highlighted with arrow icons on either side. -
Page 4: Before Testing
NOTE: If there is no hole, check with service and installation instructions of appliance for best testing method or check with your local authority on best practice AFTER TESTING POWERING OFF When you power off the CEA, there is a 45 second purge. CAUTION Make sure you do not exceed the analyzer’s operating specifications. - Page 5 Press to select fuel. arrow icons display. PRINTING To Print: Align printer above During MEASURE test, Press CEA. Printer will not receive to print results. data if the printer ports are not Press again to abort. aligned. C161 LOG is automatically saved.
- Page 6 VIEW SAVED LOGS Rotate the dial to MENU. Screen displays all saved LOGS. Press buttons to scroll Test Report categories. Press button until the LOGS With VIEW selected in the Status is selected between two arrow Bar, Press to select. Press to select a category.
-
Page 7: Warranty
WARRANTY The CEA combustion tester is warranted for one year including sensors. If within the warranty period your instrument should become inoperative from such defects, the unit will be repaired or replaced at UEi’s option. This warranty covers normal use and does not cover damage which occurs in shipment or failure which results from alteration, tampering, accident, misuse, abuse, neglect or improper maintenance (calibration). - Page 8 Same Day Service: All qualifying analyzers received for recertification through UEi Service+ are returned on the same business day, GUARANTEED. Free Shipping: UEi Service+ offers free shipping both to and from our service center. When customers book their recertification, they receive a prepaid UPS Ground shipping label.
