No: 23992 – 04/21 rev. 7
Catalog Numbers • Les Numéros de Catalogue • Números de Catálogo: LMRC-211/LMRC-211-347
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China
LMRC-211-U and LMRC-211-347 -U are BAA and TAA compliant (Product produced in the U.S.)
This unit is pre-set for Plug n' Go™ operation, adjustment
is optional.
For full operational details, adjustment and more features of the
product, see the DLM System Installation Guide provided with
Wattstopper room controllers, and also available at
www.legrand.us/Wattstopper.
Installation shall be in accordance with all applicable
regulations, local and NEC codes. Wire connections shall
be rated suitable for the wire size (lead and building wiring)
employed.
For Class 2 DLM devices and device wiring: To be connected
to a Class 2 power source only. Do not reclassify and install as
Class 1, or Power and Lighting Wiring.
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions
should always be followed including the following:
a. READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
b. Do not use outdoors.
c. Do not mount near gas or electric heaters.
d. Equipment should be mounted in locations and
at heights where it will not readily be subjected to
tampering by unauthorized personnel.
e. The use of accessory equipment not recommended by
the manufacturer may cause an unsafe condition.
f. Do not use this equipment for other than intended use.
g. Installation should be performed by qualified service
personnel.
SAVE THESE INSTRUCTIONS
CAUTION: TO CONNECT A COMPUTER TO THE DLM LOCAL NETWORK USE
THE LMCI-100. NEVER CONNECT THE DLM LOCAL NETWORK TO AN
ETHERNET PORT – IT MAY DAMAGE COMPUTERS AND OTHER CONNECTED
Wattstopper

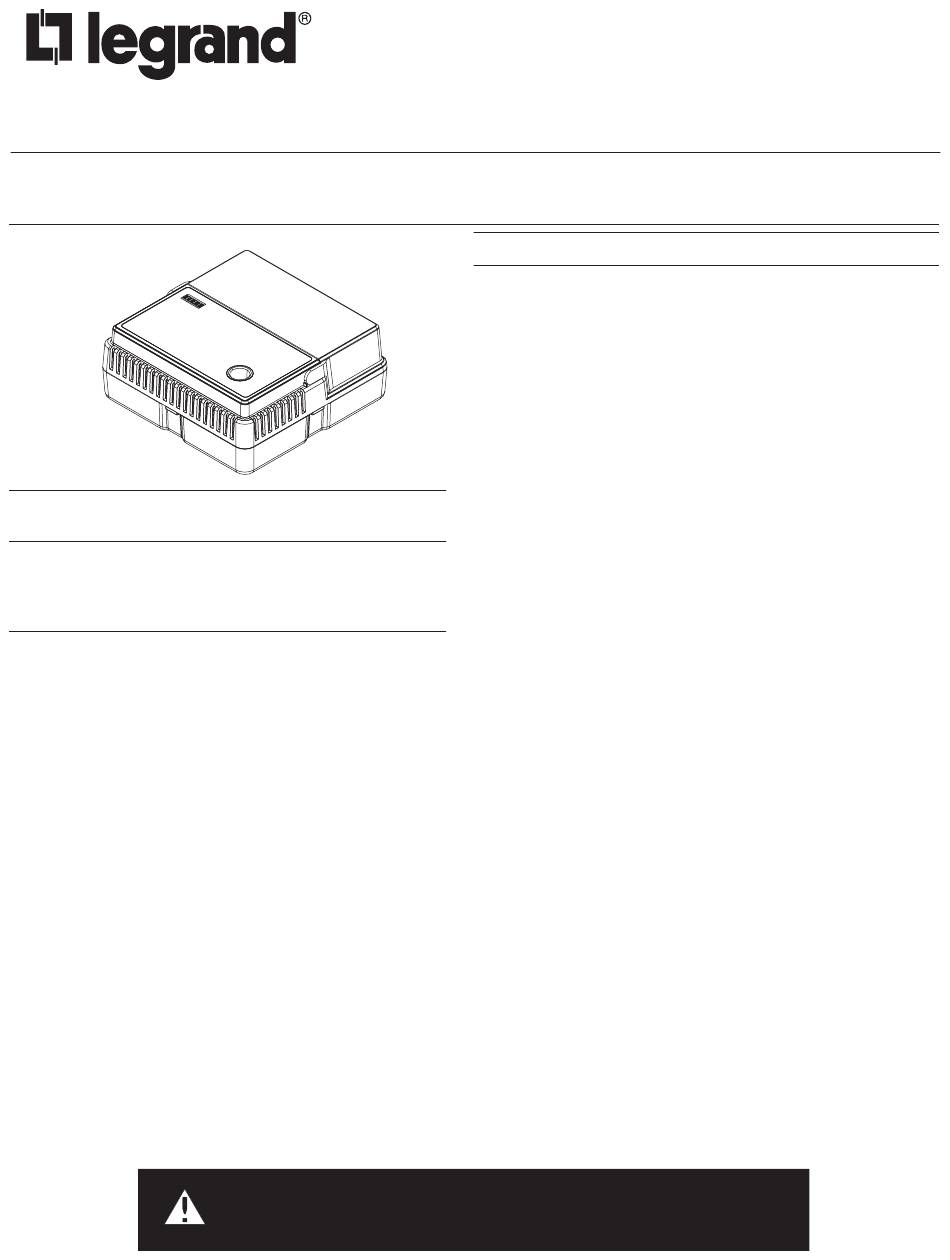

DLM Single Relay w/0-10V Dimming Room Controller
DLM relais simple avec contrôleur de pièce de gradation 0-10 V
Relé simple DLM con controlador de regulación de habitación de 0 a 10 V
Quick Start Guide • Guide de démarrage rapide • Guía de inicio rápido
SPECIFICATIONS
Voltage
LMRC-211 Input Voltage ... Single Phase 120/230/240/277VAC, 50/60Hz
LMRC-211-347 Input Voltage ................................. 347VAC, 50/60Hz
Load Requirements
LMRC-211 relay rated for up to:
Incandescent. .........................................................20A @ 120VAC
Ballast .............................................................20A @ 120/277VAC
E-Ballast ............................................................16A@120/277VAC
Motor ..................................................................... 1Hp @ 120VAC
LMRC-211-347 relay rated for up to:
Ballast/LED Driver ..................................................15A @ 347VAC
Class 2 Dimming Output, 0-10V ......................sinks up to 100mA per channel
Output to DLM Local Network ............................... up to 250mA @ 24VDC
Connection to the DLM Local Network .................................. 4 RJ-45 ports
DLM Local Network characteristics when using LMRC-11x/2xx room
controllers:
Low voltage power provided over Cat 5e cable (LMRJ);
max current 800mA. Supports up to 64 load addresses,
48 communicating devices including up to 4 LMRC-10x
series and/or LMPL-101 controllers, and LMPB-100.
Free topology up to 1,000' max.
Environment ............................................................... For Indoor Use Only
Operating Temperature ...............................32° to 158°F (0° to 70°C)
Storage Temperature .................................23° to 176°F (-5° to 80°C)
Relative Humidity .....................................5 to 95% (non condensing)
Patent Pending
UL2043 Plenum Approved – Suitable for Use in Air Handling Spaces
UL/CUL Listed under UL60730:
Type 1
Operating Control – For Electronic Ballast, CFLs, LED, LED Lamps,
Motors and Incandescent Lamps.
Independently Mounted for Surface Mounting
Pollution Degree 2
Software Class A
Impulse Voltage Rated – 4000V
The LMRC-211 is also Complementary Listed to "Emergency
Lighting Equipment", (UL924) intended for Indoor Dry Locations
(does not apply to LMRC-211-347).
EQUIPMENT.
®
