LEGRAND Wattstopper LMCP-GE24 Installation Instructions

No: 24813 – 11/16 rev. 1
Catalog Numbers • Les Numéros de Catalogue • Números de Catálogo: LMCP-GE24/LMCP-GE48
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China

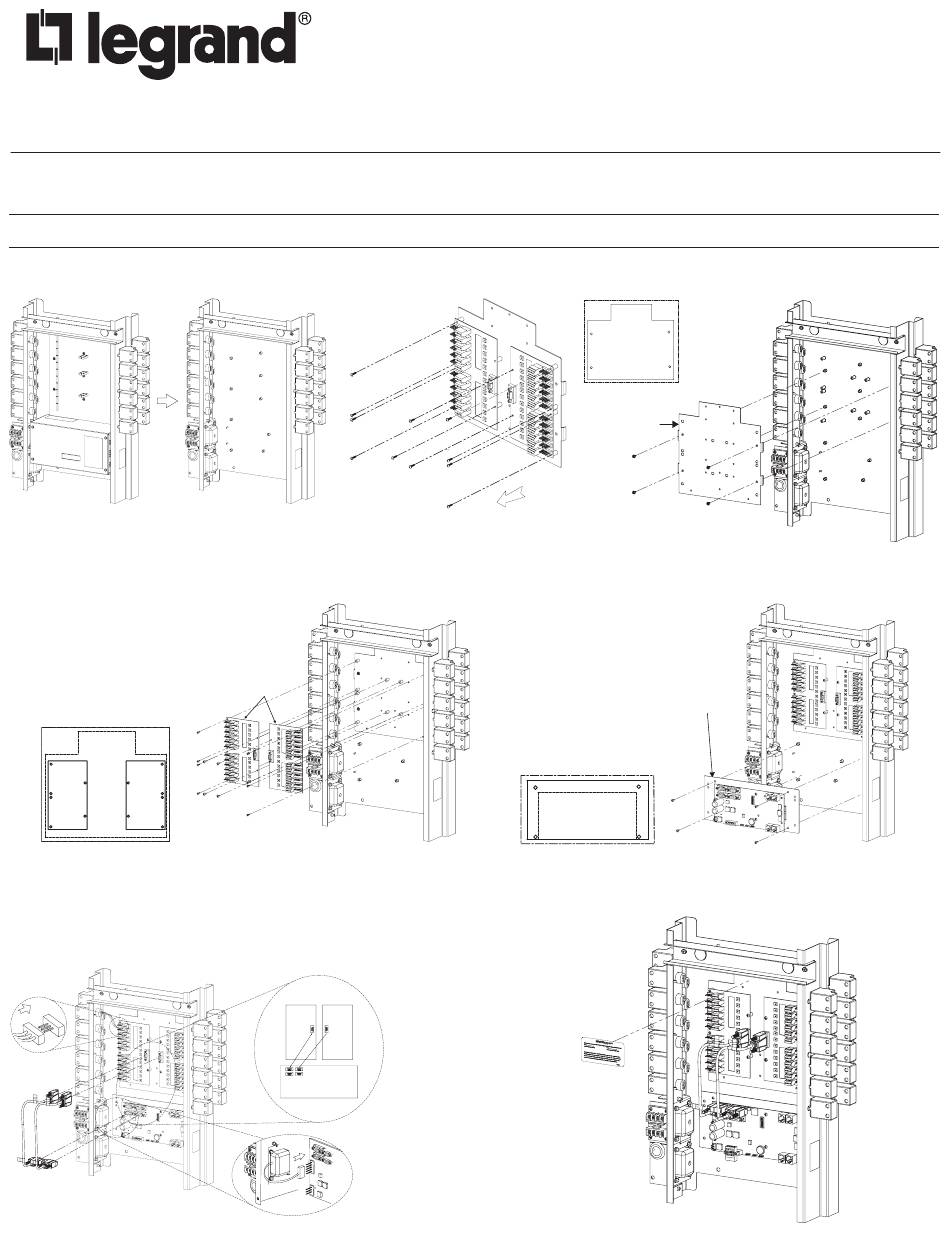

Step 1: Remove All Interior Components
leaving relays and power supply only.

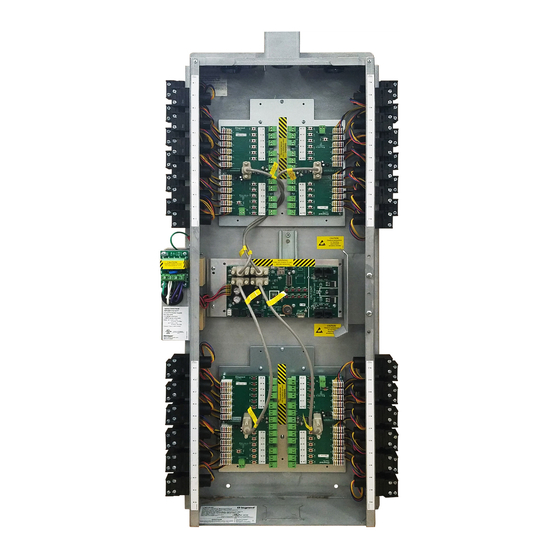

Fig. 1: Example GE24 Fig. 2: After removing
panel assembly interior items
Step 4: Install Lmrd And Lmpi Cards.
CAUTION: Do not overtighten screws.
Mounting plate screw locations
(Total 12 #4-40 screws for
mounting plate)
Step 5:
• Connect LMRD card to LMPI.
• Connect relays to LMRD card.
• Connect power to LMPI.
(See Relay Connection Details for DIP Switch settings.)
Fig. 6: Connection details

LMCP-GE24 RETROFIT KIT INSTALLATION

Step 2: Remove LMRD cards
from adapter plate.
Fig. 3: Remove LMRD
LMRD-12
P/N # 16694
Fig. 5: LMRD and LMPI mounting details
Power supply connection detail
Wattstopper
DLM - DLM GE SWS or TLC Relay to LMCP Retrofit Kits
Installation Instructions • Instructions d'Installation • Instrucciones de Instalación

Step 3: Install LMRD adapter plate.

LMRD-12-MP
P/N # 841436
Fig. 4: Install LMRD adapter plate
Mounting plate screw locations
(Total 4 #6-32 screws for
mounting plate)
Step 6: Apply Upgrade Label.
Fig. 7: Label location suggestion
®
Mounting plate
screw locations
(Total 4 #6-32
screws for
mounting plate)
LMPI-ASSY
P/N # 770431
