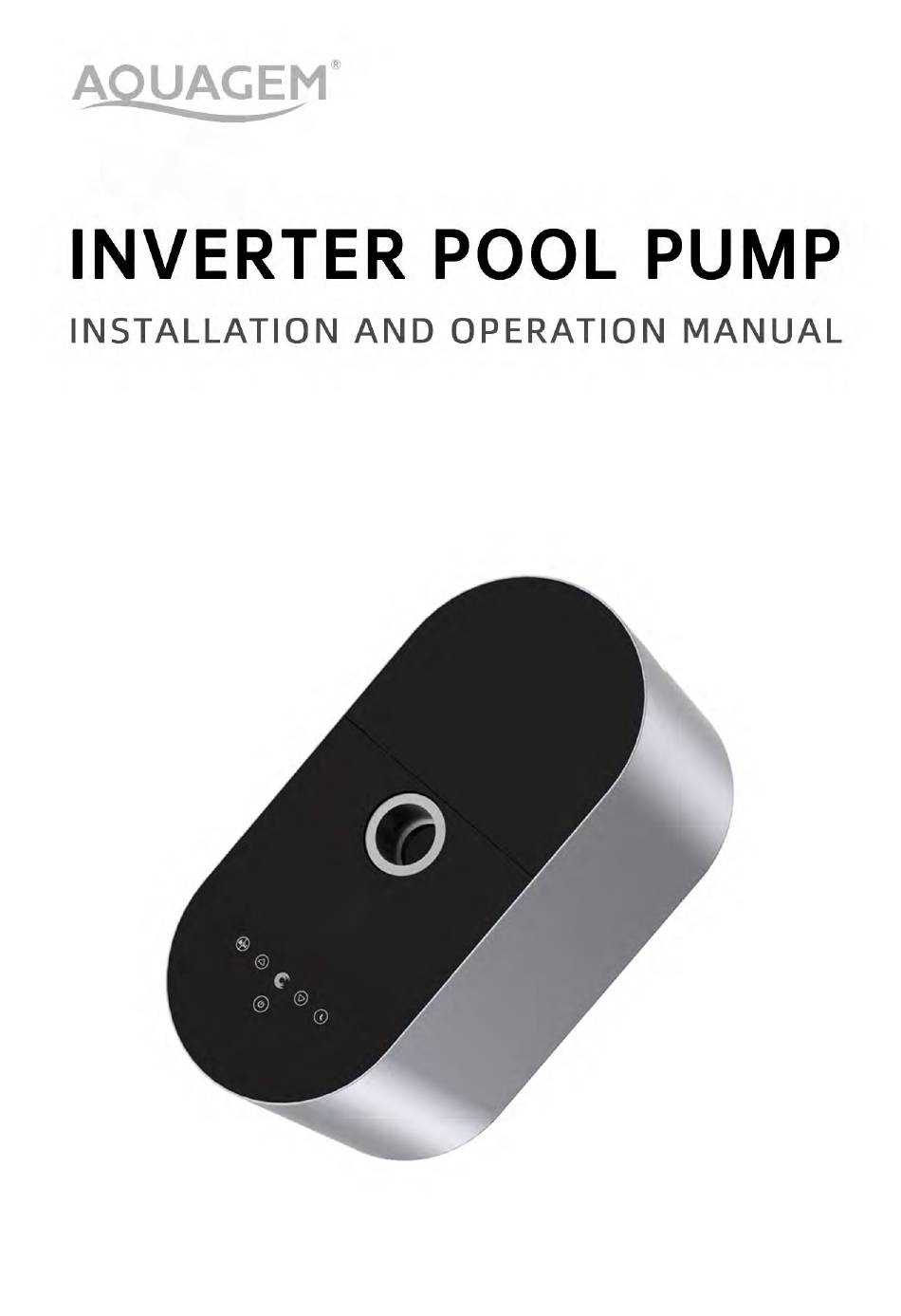

Aquagem IM25 Installation And Operation Manual

Inverter pool pump
Hide thumbs Also See for IM25:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the IM25 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aquagem IM25

Summary of Contents for Aquagem IM25

  • Page 2: Table Of Contents

    CONTENTS IMPORTANT SAFETY INSTRUCTIONS ........................1 2. TECHNICAL SPECIFICATIONS ..............................2 3. OVERALL DIMENSION (mm) ..............................2 4. INSTALLATION ................................... 3 5. SETTING AND OPERATION ..............................5 6. WIFI OPERATION ..................................13 7. EXTERNAL CONTROL ................................22 8. PROTECTION AND FAILURE ..............................23 9.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS This guide provides installation and operation instructions for this pump. If you have any other questions about this equipment, please consult your supplier. 1.1 When installing and using this electrical equipment, basic safety precautions should always be followed, including the following: •RISK OF ELECTRICAL SHOCK.

  • Page 4: Technical Specifications

    2. TECHNICAL SPECIFICATIONS Model Voltage Qmax Hmax Circulation (m³/h) (V/Hz) (m³/h) At 10m At 8m 220-240/ IM25 1.10 27.0 20.0 20.5 25.0 50/60 3. OVERALL DIMENSION (mm) Figure 1...

  • Page 5: Installation

    4. INSTALLATION 4.1. Pump Location 1) Install the pump as close to the pool as possible, to reduce friction loss and improve efficiency, use short, direct suction and return piping. 2) To avoid direct sunshine, heat or rain, it is recommended to place the pump indoors or in the shade.
  • Page 6 4.3. Valves and Fittings Elbows should be no closer than 350mm to the inlet. Do not install 90° elbows directly into the pump inlet/outlet. Joints must be tight. Elbow Return to pool 63mm ≥350mm Suction 63mm Figure 2 * The pump inlet/outlet union size: optional with 48.5/50/60.3/63mm 2) Flooded suction systems should have gate valves installed on suction and return line for maintenance;...

  • Page 7: Setting And Operation

    4.5 Application conditions Ambient temperature Indoor installation, temperature range: -10 - 42℃ 5℃-50℃ Water temperature Salt pools Salt concentration up to 0.5%, i.e 5g/l Humidity ≤90% RH, （20℃±2℃） Installation The pump can be installed max. 2m above water level; Insulation Class F, IP55 5.
  • Page 8 5.2 Startup process overview：  Step1：Startup Press to startup the pump，then the device code will be displayed.   Step2：Self-priming The pump will start counting down from 1500s; When the system detects the pump is full of  water, it will stop counting down and exit priming automatically. Users can exit self-priming manually by pressing for more than 3 seconds.
  • Page 9 5.3 Startup: When the power is switched on, the screen will fully light up for 3 seconds, the device code will be displayed, and then it will enter the normal working state. When the screen is locked, only the button will light up;...
  • Page 10 5.5 Backwash Users can start the backwash or fast re-circulation in any running state by pressing Default Setting range Time 180s Press to adjust from 0 to 1500s with 30 seconds for each step Running capacity 100% 60-100%, enter the parameter setting (see 5.11) Exit backwash: When backwash mode is on, users can hold for 3 seconds to exit, the pump will return to the...
  • Page 11 Manual Inverter mode. The default adjustable flow range for InverMaster is as below: Model Default adjustable flow rate range IM25 8-28 m³/h 5.8 Timer mode The pump ’ s on/off and running capacity could be commanded by a timer, which could be programmed daily as needed.
  • Page 12 Note: 1) When timer mode is activated, if the set time period contains the current time, the pump will start running according to the set running capacity or flow rate. If the set time period does not contain the current time, the timer number (1 or 2 or 3 or 4) that is about to start running will be displayed on the controller and flash, will display the...
  • Page 13 At the skimmer duration, the controller will show the parameter of the preset, users can hold to exit the skimmer duration each time. When the skimmer duration ends, the pump will return to the normal state for the users to operate. Skimmer cycle (hour) Skimmer duration (minute) Skimmer mode preset...
  • Page 14 2. Manual self-priming 3. Auto Inverter mode 4. Flow rate setting in the timer mode 5.11 Parameter Setting Restore factory Under off mode, hold both for 3 seconds setting Check the Under off mode, hold both for 3 seconds software version Enter parameter Under off mode, hold both for 3 seconds;...
  • Page 15 System time 00:00 00:00 - 23:59 Skimmer cycle: 1-24h, 1h for each step Preset 1 of the Skimmer duration: 1-30min, 1min for each step skimmer mode Skimmer speed: 30%-100%, by 5% increments 01:00 (skimmer cycle, Skimmer flow: 8-28m³/h， by 1 m³/h increments 00:03 skimmer duration, 100%...

  • Page 16: Wifi Operation

    6. WIFI OPERATION Download InverFlow APP Account Registration Email Registration...
  • Page 17 Third-party application registration Create Home Please set home name and choose the location of the device. (It is recommended to set the location so the weather can be shown in the App for your convenience)
  • Page 18 App pairing Please make sure your pump is turned on before you start. Option 1 (Recommended): With Wifi and Bluetooth (Network requirement: 2.4GHz; 2.4Ghz and 5GHz into one SSID; but no separate 5GHz network) 1) Please confirm that your phone is connected to Wifi and your Bluetooth is on. 2) Press for 3 seconds until hearing “Beep”...
  • Page 19 Option 2: With Wifi (Network requirement: 2.4GHz only) Please confirm that your phone is connected to Wifi Press for 3 seconds until hearing “Beep” to unlock the screen. Press for 5 seconds until hearing “Beep” and then release. will flash. Click “Add Device”, and then follow the instructions to pair device.

  • Page 20: Operation

    Operation Using Auto Inverter mode: Change flow rate units Error code list Real-time power consumption Turn the control dial to set the flow rate Auto Inverter mode Timer Data On/off Backwash Using Manual Inverter mode: Change flow rate units Error code list Real-time power consumption Turn the control dial to set...
  • Page 21 Notice for the timer setting via the APP: Time variance is ±30s； In order to avoid overlapping timing points conflicting and invalidating due to network delay, it is recommended that the end time and the start time of the next timing period cannot overlap, and a sufficient time interval should be reserved, for example, at least 2 minutes;...
  • Page 22 Sharing Devices with your family members After pairing, if your family members also want to control the device, please let your family members register “InverFlow” first, and then the administrator can operate as below:...
  • Page 23 Feedback If you have any problem while using, welcome to send feedback. Notice: The weather forecast is just for reference; The power consumption data is for reference only, as it may be affected by network problems and imprecision of the calculation. The App is subject to updates without notice.

  • Page 24: External Control

    7. EXTERNAL CONTROL External control can be enabled via following contacts. If more than one external control is enabled, the priority is as below: Digital Input > RS485 > Panel control Connector configurable user inputs, including Digital Input and RS485 Relay output AC Power input 7 PINs connector...

  • Page 25: Protection And Failure

    Name Color Description PIN 1 Digital Input 4 PIN 2 Black Digital Input 3 PIN 3 White Digital Input 2 PIN 4 Grey Digital Input 1 PIN 5 Yellow Digital Ground PIN 6 Green RS485 A PIN 7 Brown RS485 B Digital input Running capacity is determined by the state of digital input, 1) When PIN4 connects with PIN5, the pump will be mandatory to stop;...

  • Page 26: Troubleshooting

    reduced by 15%; If current operating capacity is higher than 70%, the running capacity will be automatically reduced by 10%; If current operating capacity is lower than 70%, the running capacity will be automatically reduced by 5%. b）If AL01 is not displayed for the first time, the running capacity will be automatically reduced as below: If the module temperature is lower than 85 ℃...
  • Page 27 Low Water • Pump does not prime. Flow • Air entering suction piping. • Basket full of debris. • Inadequate water level in pool. Pump being • Air leak in suction piping, cavitation caused by restricted or undersized suction line or noisy leak at any joint, low water level in pool, and unrestricted discharge return lines.

  • Page 28: Maintenance

    9. MAINTENANCE Empty the strainer basket frequently. The basket should be inspected through the transparent lid and emptied when there is an evident stack of rubbish inside. The following instructions should be followed: 1). Disconnected the power supply. 2). Press the cover plate to spring it up and open the cover plate. (see Figure 5) Figure 5 3).

  • Page 29: Disposal

    11. DISPOSAL When disposing of the product, please sort the waste products as electrical or electronic product waste or hand it over to the local waste collection system. The separate collection and recycling of waste equipment at the time of disposal will help ensure that it is recycled in a manner that protects human health and the environment.
