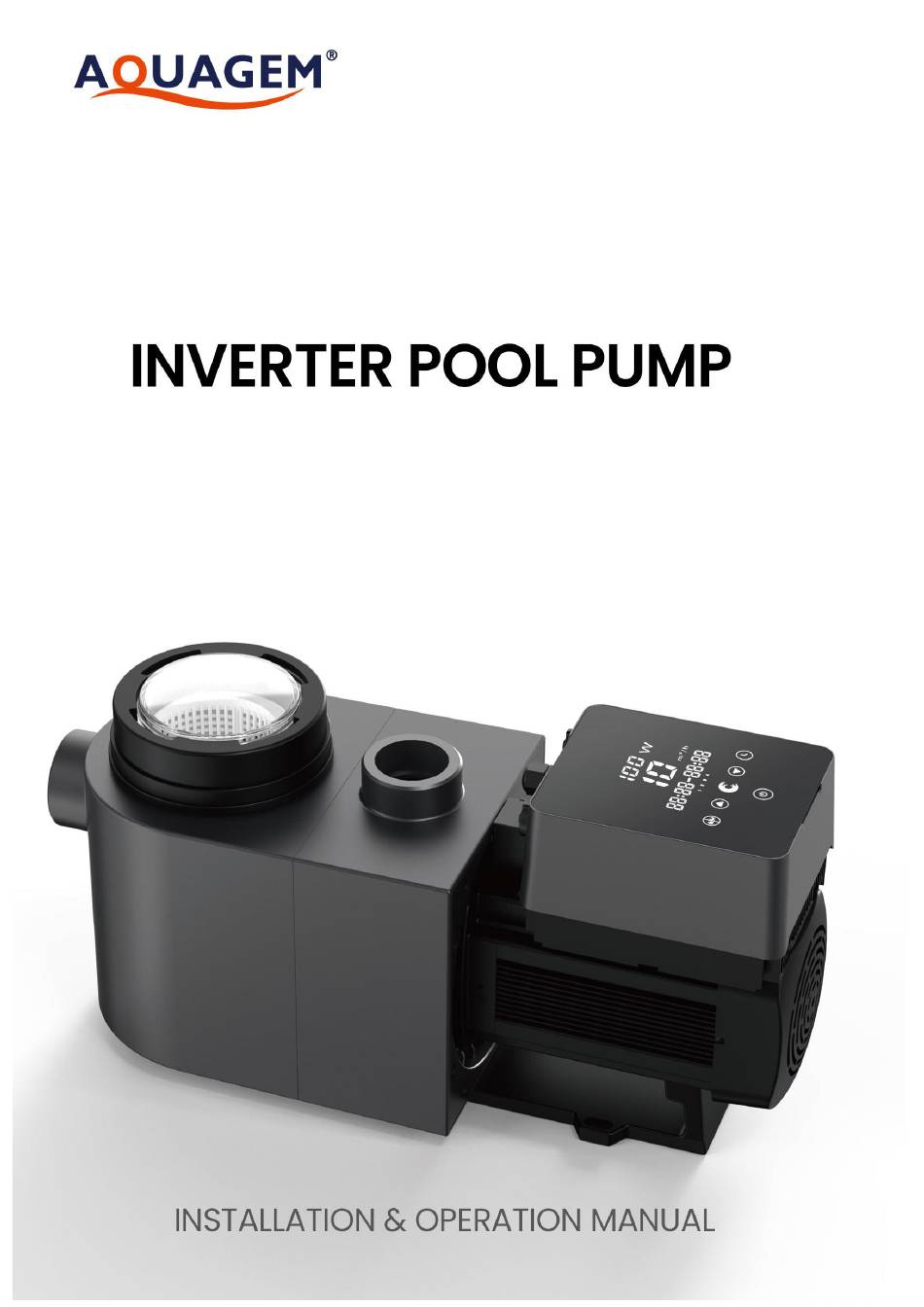

Aquagem IP20 Installation & Operation Manual

Inverter pool pump
Hide thumbs Also See for IP20:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aquagem IP20

Summary of Contents for Aquagem IP20

  • Page 2: Table Of Contents

    IMPORTANT SAFETY INSTRUCTIONS ............... 1 2. TECHNICAL SPECIFICATIONS ....................2 3. OVERALL DIMENSION (mm) ....................2 4. INSTALLATION ........................... 3 5. SETTING AND OPERATION....................5 6. WIFI OPERATION ........................10 7. EXTERNAL CONTROL ......................17 8. PROTECTION AND FAILURE ....................19 9.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS This guide provides installation and operation instructions for this pump. If you have any other questions about this equipment, please consult your supplier. 1.1 When installing and using this electrical equipment, basic safety precautions should always be followed, including the following: •RISK OF ELECTRICAL SHOCK.

  • Page 4: Technical Specifications

    2. TECHNICAL SPECIFICATIONS Model Advised Voltage Qmax Hmax Circulation (m³ /h) Pool (V/Hz) (m³ /h) At 8m At 10m Volume (m³ ) IP20 30~50 220~240/ 0.07~0.77 25.0 12.5 6.2~20.5 4.5~15.0 50/60 IP25 40~70 0.08~1.05 27.5 15.0 7.7~25.6 6.6~22.0 IP30 50~80 0.09~1.4...

  • Page 5: Installation

    4. INSTALLATION 4.1. Pump Location 1) Install the pump as close to the pool as possible, to reduce friction loss and improve efficiency, use short, direct suction and return piping. 2) To avoid direct sunshine, heat or rain, it is recommended to place the pump indoors or in the shade. 3) DO NOT install the pump in a damp or non-ventilated location.
  • Page 6 4.3. Valves and Fittings 1) Elbows should be no closer than 350mm to the inlet. Do not install 90° elbows directly into the pump inlet/outlet. Joints must be tight. Elbow Return to pool 63mm 350mm Suction 63mm Figure 2 * The pump inlet/outlet union size: optional with 48.5/50/60.3/63mm 2) Flooded suction systems should have gate valves installed on suction and return line for maintenance;...

  • Page 7: Setting And Operation

    4.5 Application conditions Ambient temperature Indoor installation, temperature range: -10~42℃ 5℃~50℃ Water temperature Salt pools Salt concentration up to 0.5%, i.e 5g/l Humidity ≤90% RH, （20℃±2℃） Altitude Not exceed 1000m above sea level Installation The pump can be installed max. 2m above water level; Insulation Class F, IP55 5.
  • Page 8 5 to 25 m³ /h, 3 seconds after the setting is completed, the flow rate will be automatically adjusted to the actual adjustable maximum or minimum value, namely 7-22m³ /h. The default flow range for InverPro is as below: Model Default flow rate range IP20 5~20 m³ /h IP25 5~25 m³ /h IP30 5~30m³...
  • Page 9 5.4 Backwash User can start the backwash or fast re-circulation in any running state by pressing Default Setting range Time 180s Press to adjust from 0 to 1500s with 30 seconds for each step Running capacity 100% 80~100%, enter the parameter setting (see 5.8) If backwash is completed or disabled, press and hold for 3 seconds, the pump will return to the normal operating state before backwash.
  • Page 10 5.6 Manual-Inverter Mode Unlock the screen, press to shift from the Auto-Inverter mode to Manual-Inverter mode. Press to set the running capacity between 30%~100%, each step by 5% Press again to switch to Auto-Inverter mode. 5.7 Timer mode The pump’s on/off and running capacity could be commanded by timer, which could be programmed daily as needed.
  • Page 11 5.8 Parameter Setting Restore factory setting Under off mode, hold both for 3 seconds Check software Under off mode, hold both for 3 seconds version Boost mode of priming for 3 seconds Under off mode hold both Enter parameter setting Under off mode, hold both for 3 seconds;...

  • Page 12: Wifi Operation

    6. WIFI OPERATION InverFlow Download Account registration Register by e-mail or third-party application Android a. Email Registration...
  • Page 13 b. Third-party application registration Create Home Please set home name and choose the location of the device. (It is recommended to set the location so the weather can be shown in the App for your convenience)
  • Page 14 App pairing Please make sure your pump is turned on before you start. Option 1 (Recomended): With Wifi and Bluetooth (Network requirement: 2.4GHz; 2.4Ghz and 5GHz into one SSID; but no seperate 5GHz network) 1) Please confirm that your phone is connected to Wifi and your Bluetooth is on. for 3 seconds until hearing “Beep”...
  • Page 15 Option 2: With Wifi (Network requirement: 2.4GHz only) 1) Please confirm that your phone is connected to Wifi for 3 seconds until hearing “Beep” to unlock the screen. Press 2) Press for 5 seconds until hearing “Beep” then release. Will flash. 4) Click “Add Device”, and then follow the instructions to pair device.
  • Page 16 Operation 1) Using Auto Inverter mode: Change flow rate units Error code list Real-time power consumption Real-time running capacity Turn the control dial to set the flow rate Auto Inverter mode Data Timer Backwash On/off 2) Using Manual Inverter mode: Real-time power consumption Real-time flow rate...
  • Page 17 Sharing Devices with your family members After pairing, if your family members also want to control the device, please let your family members register “InverFlow” first, and then the adminstrator can operate as below:...
  • Page 18 Feedback If you have any problem while using, welcome to send feedback. Notice: 1) Weather forecast is just for reference; 2) The power consumption data is for reference only, as it may be affected by network problems and imprecision of the calculation. 3) App is subject to updates without notice.

  • Page 19: External Control

    7. EXTERNAL CONTROL External control can be enabled via following contacts. If more than one external control is enabled, the priority is as below: Digital Input >Analog Input > RS485 > Panel control Connector for configurable user inputs, including Digital Input, Analog input and RS485 AC Power input...
  • Page 20 Name Color Description PIN 1 Digital Input 4 PIN 2 Black Digital Input 3 PIN 3 White Digital Input 2 PIN 4 Grey Digital Input 1 PIN 5 Yellow Digital Ground PIN 6 Green RS485 A PIN 7 Brown RS485 B PIN 8 Blue Analog Input 0 (0-10V or 0~20mA)

  • Page 21: Protection And Failure

    Voltage (V) 1.3~2.9 V 2.9~10 V The default control mode is by current signal, if you want to change to voltage signal, please enter the parameter setting. (see 5.8) c. RS485: To connect with PIN6 and PIN7, the pump could be controlled via Modbus 485 communication protocol. Relay output (optional): Connect terminal L &...
  • Page 22 Problem Possible causes and solution • Power Supply fault, disconnected or defective wiring. Pump does not • Fuses blown or thermal overload open. start • Check the rotation of the motor shaft for free movement and lack of obstruction. • Because of long time lying idle. Unplug the power supply and manually rotate motor rear shaft a few times with a screwdriver.

  • Page 23: Maintenance

    E108 Motor power overload E201 Circuit board error E203 RTC time reading error E204 Display Board EEPROM reading failure E205 Communication Error E207 No water protection E208 Pressure sensor failure Note: 1. When causes for E002/E101/E103 is displayed, the device will resume working automatically, however when it appears a fourth time, the device will stop working, to resume operation, unplug the device and plug in &...

  • Page 24: Disposal

    tampering or using non-original spare parts. 11. DISPOSAL When disposing the product, please sort the waste products as electrical or electronic product waste or hand it over to the local waste collection system. The separate collection and recycling of waste equipment at the time of disposal will help ensure that it is recycled in a manner that protects human health and the environment.

This manual is also suitable for:

Ip25Ip30Ip40
