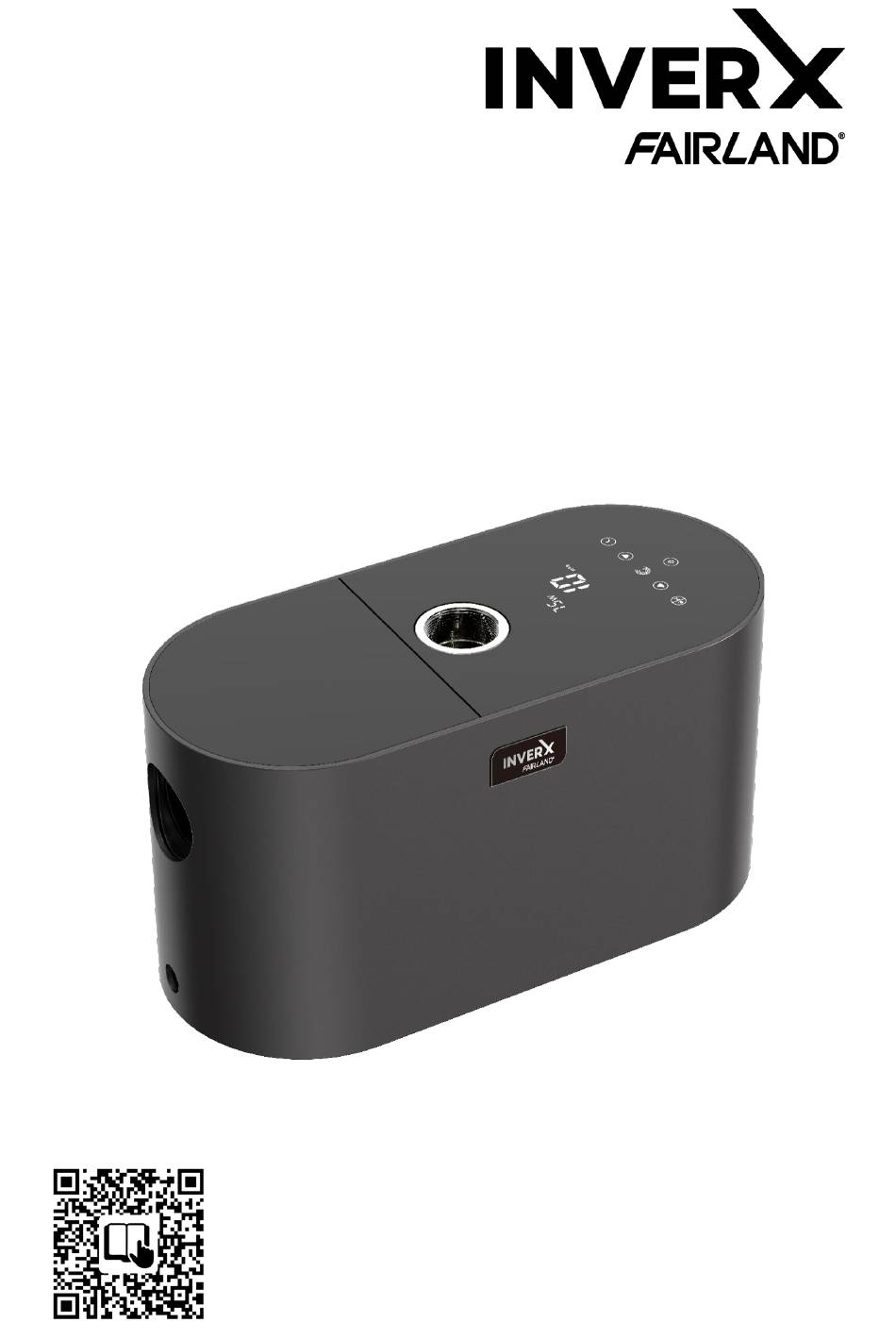

- Page 1 INVERTER POOL PUMP I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L Follow this QR code for manual in other language Suivez ce QR code pour consulter le manuel en francais Volg deze QR-code om de handleiding in het Nederlands te raadplegen...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..................1 2. TECHNICAL SPECIFICATIONS ......................2 3. OVERALL DIMENSION (mm) ........................ 2 4. INSTALLATION ............................3 5. SETTING AND OPERATION ........................5 6. WIFI OPERATION ..........................15 7. EXTERNAL CONTROL .......................... 22 8. PROTECTION AND FAILURE ......................24 9. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS This guide provides installation and operation instructions for this pump. If you have any other questions about this equipment, please consult your supplier. 1.1 When installing and using this electrical equipment, basic safety precautions should always be followed, including the following: •RISK OF ELECTRICAL SHOCK. -
Page 4: Technical Specifications
2. TECHNICAL SPECIFICATIONS Circulation (m³/h) Voltage Qmax Hmax Model (V/Hz) (m³/h) At 10m At 8m IM20 0.80 25.0 18.0 15.5 19.5 220-240/ IM25 1.10 28.0 20.0 21.5 25.0 50/60 IM30 1.40 30.0 21.0 26.7 29.7 3. OVERALL DIMENSION (mm) Figure 1 - Pump Dimensions... -
Page 5: Installation
4. INSTALLATION 4.1. Pump Location 1) Install the pump as close to the pool as possible, to reduce friction loss and improve efficiency, use short, direct suction and return piping. 2) To avoid direct sunshine, heat or rain, it is recommended to place the pump indoors or in the shade. - Page 6 4.3. Fittings 1) Elbows should be no closer than 350mm to the inlet. Do not install 90° elbows directly into the pump inlet/outlet. Joints must be tight. 2) Joints must be tight. Elbow Return to pool 63mm (recommended) ≥350mm Suction 63mm (recommended) Figure 2 - Plumbing and Fittings installations *The pump inlet/outlet union size: optional with 48.5/50/60.3/63mm.
-
Page 7: Setting And Operation
4.4. Check before initial startup 1) Check whether pump shaft rotates freely; 2) Check whether power supply voltage and frequency conform to the nameplate; 3) It is forbidden to run the pump without water. 4.5. Application conditions Ambient temperature Indoor installation, temperature range: -10 - 42℃ Maximum water temperature 50℃... -
Page 8: Step 4：Pump Running
5.2. Startup process overview ① Step 1：Startup Press and hold for more than 3 seconds to unlock the screen. Press to startup the pump. ② Step 2：Self-priming The pump will start counting down from 1500s; When the system detects the pump is full of ... - Page 9 5.3. Startup When the power is switched on, the screen will fully light up for 3 seconds, the device code will be displayed, and then it will enter the normal working state. When the screen is locked, only the button will light up;...
-
Page 10: Setting Range
5.5. Backwash Users can start the backwash or fast re-circulation in any running state by pressing Default Setting range Press to adjust from 0 to 1500s with 30 seconds Time 180s for each step Running capacity 100% 60-100%, enter the parameter setting (see 5.11) Exit backwash: When backwash mode is on, users can hold for 3 seconds to exit, the pump will return to the... - Page 11 5.7. Auto Inverter Mode Under Auto Inverter Mode, the pump can automatically detect the system pressure and adjust the speed of motor to reach the set flow. Unlock the screen, press to switch from the Manual Inverter mode to Auto Inverter mode. The flow rate could be adjusted, by pressing with 1m³/h for each step.
- Page 12 Note: 1) When timer mode is activated, if the set time period contains the current time, the pump will start running according to the set running capacity or flow rate. If the set time period does not contain the current time, the timer number (1 or 2 or 3 or 4) that is about to start running will be displayed on the controller and flash, will display the...
- Page 13 2）Cancel Skimmer Mode: Unlock the screen, press both for 3s to enter the preset interface of skimmer mode. Press to select the presetting 4 (refer to Table 1 as below), skimmer mode will be canceled. When skimmer mode is canceled, the controller will exit the preset interface and display normal running state.
-
Page 14: Speed Limit
Figure 4 - Skimmer cycle 5.10. Speed Limit Users can set the speed limit of the running capacity to meet the flow requirement of other equipment such as sand filters. Speed limit of the running capacity can be set from 60% - 100% in the parameter setting. (see 5.11) .100% means no speed limit and the running capacity can be set from 30% - 120% under normal operation. - Page 15 Paramete Description Default Setting Setting Range r Address Speed：100% Flow： Di2 （Digital input 2） 25m³/h (IM20) 28m³/h (IM25) 30m³/h (IM30) Speed：30-120%, by 5% increments Speed：80% Flow：8-25m³/h (IM20)，8-28m³/h (IM25) Flow： Di3（Digital input 8-30m³/h (IM30)，by 1 m³/h increments 20m³/h (IM20) 3） 22m³/h (IM25) Note：Press to switch to flow rate 24m³/h (IM30)
- Page 16 Time period of the Start time: 00:00-24:00 preset 1 of the 7:00-21:00 End time: 00:00-24:00 skimmer mode Speed：60%-100%, by 5% increments （100% means no speed limit） Flow：15-25 m³/h (IM20), 17-28m³/h (IM25)， Speed：100% Speed limit 18-30 m³/h (IM30), by 1 m³/h increments Flow：28m³/h Note：Press to switch to flow rate...
-
Page 17: Wifi Operation
6. WIFI OPERATION Download APP Account [ Fairland Smart Pool ] Mobile / Email Registration... - Page 18 Create Home Please set home name and choose the location of the device. (It is recommended to set the location so the weather can be shown in the App for your convenience)
- Page 19 App pairing Please make sure your pump is turned on before you start. Turn on Wifi and Bluetooth. (Network requirement: 2.4GHz; 2.4Ghz and 5GHz into one SSID; but no separate 5GHz network) 1) Please confirm that your phone is connected to Wifi and your Bluetooth is on. 2) Press for 3 seconds until hearing “Beep”...
-
Page 20: Operation
Operation Using Auto Inverter mode: Change flow rate units Error code list Real-time power consumption Turn the control dial to set the flow rate Auto Inverter mode Timer Data On/off Backwash Using Manual Inverter mode: Change flow rate units Error code list Real-time power consumption Turn the control dial to set... - Page 21 Notice for the timer setting via the APP: Time variance is ±30s； In order to avoid overlapping timing points conflicting and invalidating due to network delay, it is recommended that the end time and the start time of the next timing period cannot overlap, and a sufficient time interval should be reserved, for example, at least 2 minutes;...
- Page 22 Sharing Devices with your family members After pairing, if your family members also want to control the device, please let your family members register “InverFlow” first, and then the administrator can operate as below:...
- Page 23 Feedback If you have any problem while using, welcome to send feedback. Notice: The weather forecast is just for reference; The power consumption data is for reference only, as it may be affected by network problems and imprecision of the calculation. The App is subject to updates without notice.
-
Page 24: External Control
7. EXTERNAL CONTROL External control can be enabled via following contacts. If more than one external control is enabled, the priority is as below: Digital Input > Analog Input > RS485 > Panel control Connector for configurable user inputs, including Digital Input、Analog Input and RS485 AC Power Input 9 PINs connector for Digital Input、... - Page 25 External Control Color Description Di4（Digital Input 4） Black Di3（Digital Input 3） Digital Input White Di2（Digital Input 2） Grey Di1（Digital Input 1） Yellow Digital Ground（COM） Green RS485-A RS485 Brown RS485-B Blue Analog Input 0 (0-10V or 0~20mA) Analog Input Orange Analog Ground Digital Input Running capacity is determined by the state of digital input, 1) When Di1(Grey) connects with COM(Yellow), the pump will be mandatory to stop;...
-
Page 26: Protection And Failure
Current control Voltage control State （mA) Invalid 0 —2.6 0—1.3 Power off 2.6—5.8 1.3—2.9 5.8—6.8 2.9—3.4 6.8—7.6 3.4—3.8 7.6—8.4 3.8—4.2 8.4—9.2 4.2—4.6 9.2—9.8 4.6—4.9 9.8—10.6 4.9—5.3 10.6—11.4 5.3—5.7 11.4—12.0 5.7—6.0 12.0—12.8 6.0—6.4 12.8—13.6 6.4—6.8 13.6—14.4 6.8—7.2 14.4—15.0 7.2—7.5 15.0—15.8 7.5—7.9 15.8—16.6 7.9—8.3 100%... -
Page 27: Troubleshooting
b）If AL01 is not displayed for the first time, the running capacity will be automatically reduced as below: If the module temperature is lower than 85℃, the controller will detect the module temperature every 2mins ， for each 1 ℃ increments in temperature, the running capacity will be automatically reduced by 5%;... -
Page 28: Low Water
• Pump does not prime. Low Water • Air entering suction piping. Flow • Basket full of debris. • Inadequate water level in pool. • Air leak in suction piping, cavitation caused by restricted or undersized suction line or Pump being leak at any joint, low water level in pool, and unrestricted discharge return lines. - Page 29 The pump will stop automatically for 15 sec and then resume working， Process if this occurs for thrice continuously, the pump will shut down and need to be checked and restarted manually. Phase-deficient protection：Motor cables are not plugged into the Description master drive board.
-
Page 30: Maintenance
Display Board EEPROM reading failure：Reading and writing the Description information of display board EEPROM is incorrect. E204 Process The pump needs to be powered off and restarted manually. Communication Error：The communication between display board Description and master driver board is failure lasts 15 sec. E205 The pump will stop automatically for 15 sec and resume working if it Process... -
Page 31: Warranty & Exclusions
3). Unscrew the strainer basket lid anti-clockwise and remove. 4). Lift up the strainer basket. 5). Empty the trapped refuse from the basket and rinse out the debris if necessary. Note: Do not knock the plastic basket on a hard surface as it will cause damage 6). - Page 32 MFD BY Aquagem Manufacturing Limited NO.15, 101, 16, 401, 501, NO.193, Jinlong Road, Dalong Street, Panyu District, Guangzhou www.aquagem.com IMPORTED BY Pollet Pool Group Textielstraat 13, 8790 Waregem, Belgium www.polletpoolgroup.com AG024-IM-02...
