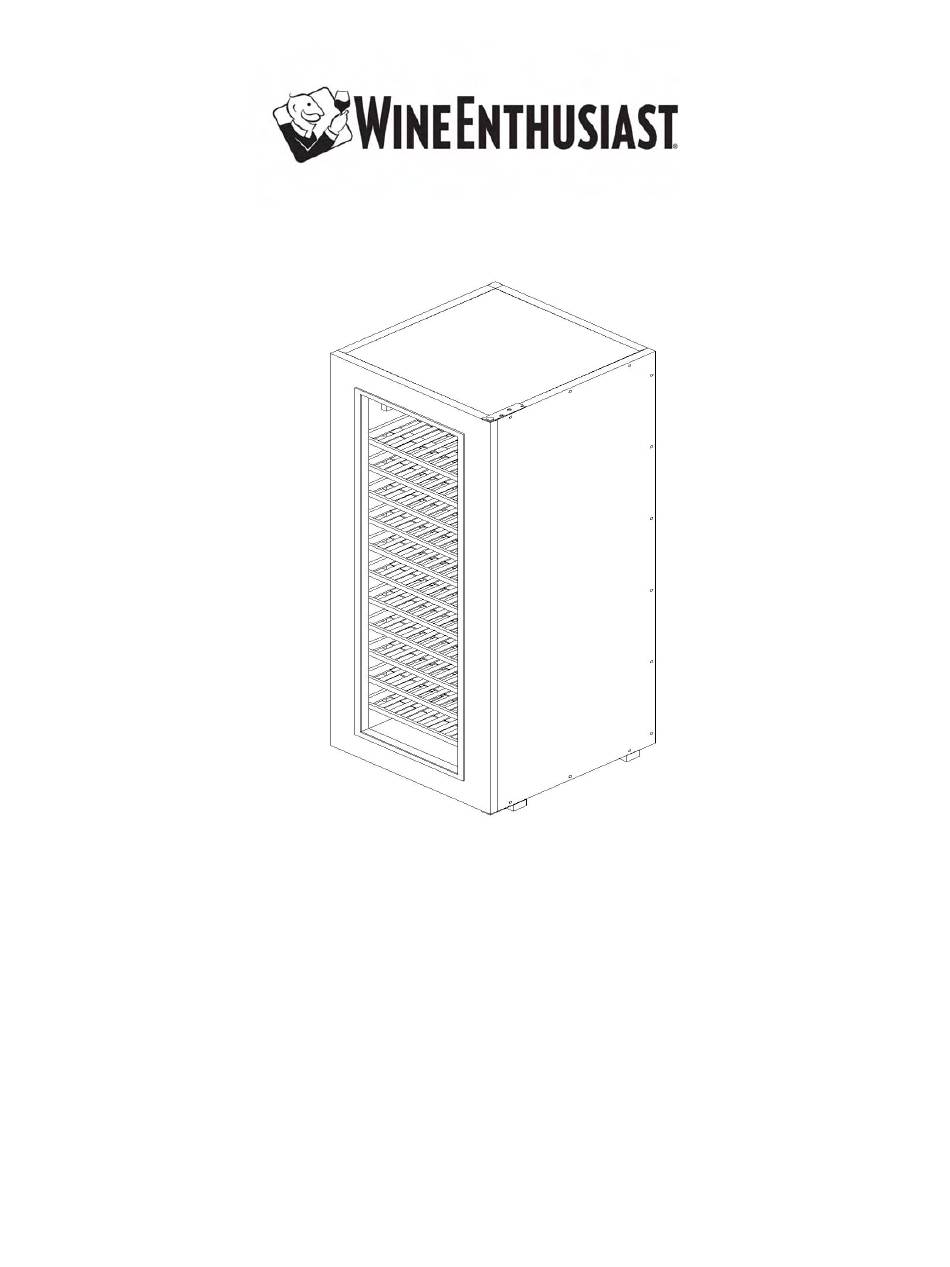

BYO DELUXE SINGLE ASSEMBLY INSTRUCTIONS
Call 800.356.8466 or Visit our Website at
333 North Bedford Rd, Mount Kisco, NY 10549
Please review all assembly instructions before building your cellar.
-
This unit is not meant to be built- in order recessed into cabinetry. Provide
5" clearance for back, top and both sides of the unit.
This unit is not meant to be located outdoors or in areas of high humidity
-
-
Place unit in a clean area so that you can periodically vacuum the
condenser coil.
Always remove all bottles before moving your BYO.
-
WineEnthusiast.com
1
Advertisement
Related Manuals for WineEnthusiast BYO DELUXE SINGLE
Summary of Contents for WineEnthusiast BYO DELUXE SINGLE
- Page 1 BYO DELUXE SINGLE ASSEMBLY INSTRUCTIONS Call 800.356.8466 or Visit our Website at WineEnthusiast.com 333 North Bedford Rd, Mount Kisco, NY 10549 Please review all assembly instructions before building your cellar. This unit is not meant to be built- in order recessed into cabinetry. Provide 5”...
- Page 2 Part and Hardware List When laying out BYO parts, Place pieces on a soft surface to prevent scratching. IMPORTANT: Letter code labels on A, B, C, C1 and D mark the EXTERIOR side of panel. 1) Start by laying out all pieces to make sure you received all the parts you will need to assemble your BYO 150.
- Page 3 ASSEMBLY INSTRUCTIONS Once you confirm you have all the hardware and parts to assemble your unit, start by attaching part A & B (top and bottom panel with the black paper side facing the inside of the cabinet and the metal lip facing away from part D. this metal lip will line up with the door gasket to seal the door.) to part D (back panel with hole cut out for cooling unit, make sure the black paper side faces in.) use screw L to attach these parts.
- Page 4 5) Install legs (part G) using screws (part H). Then tighten all bolts and stand cabinet upright. Check that doors seals fit to body Panel and doors are turning smoothly. Adjust hinges accordingly, if necessary. 6) Starting from the bottom insert the shelf (part F) into the cabinet and drop on to the wooden dowel to anchor it in its place.
- Page 5 BYO Shelf Loading Tips Each wooden shelf can hold 12 standard Bordeaux bottles, neck to neck. If you load the shelves with oversized bottles, you will reduce overall bottle capacity Maximum load- 120 pounds per shelf Maximum Capacity- 156 Bordeaux bottles. (Removing bottom shelf). 10 shelves- 120 bottles plus 36 bottles stacked 3 rows high on floor of cabinet.
- Page 6 7) Attach the cooling unit (kw800) to the ceiling using part I which will be pre attached in part A. Please refer to cooling unit manual for proper usage. Take insulating foam (part Q) and fit in the space between the cooling unit and outer edge of the back panel to ensure a tight fit.
- Page 7 Limited warranty – 90 day replacement plan with a free 9 month upgrade, totaling 1 year, on parts and labor from the date of shipment. For customer service, please contact Wine Enthusiast by e-mail (custserv@WineEnthusiast.net) or by phone (800.648.6058). The limited warranty does not cover: Damage due to such things as accident, misuse, abuse, mishandling, neglect, unauthorized repair or any other cause beyond the control of the seller whether similar or dissimilar to the foregoing.
