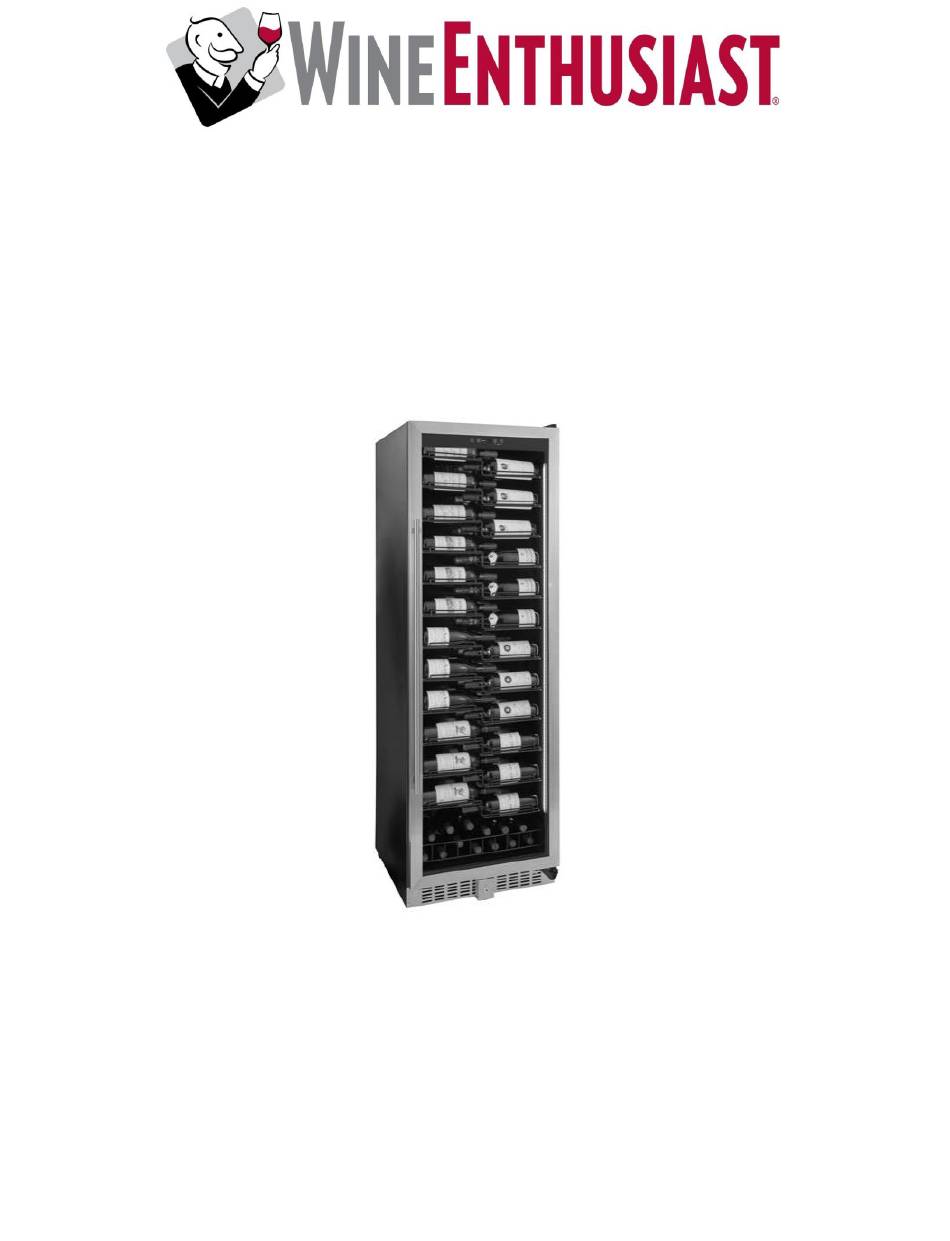

- Page 1 VinoView Wine Cellar ® User Manual (Features and Size May Vary) Models: 269 0X 88 0Y X= 2 (Stainless Steel Trim) or 3 (Black Trim Glass) Y= 3 (Right Hinge) or 4 (Left Hinge) PLEASE READ THIS MANUAL CAREFULLY BEFORE INSTALLING AND OPERATING...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS When using this appliance, always exercise basic safety precautions, including the following: 1. Read all of the instructions before using this appliance. 2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 3 SAVE THESE INSTRUCTIONS DANGER Risk of child entrapment! Before you throw away your old wine cellar, take off the doors. Leave the shelves in place so that children may not easily climb inside. Thank you for using our Wine Enthusiast product.
-
Page 4: Table Of Contents
Table of Contents IMPORTANT SAFEGUARDS .........................2 Wine Cellar Features and Use ........................5 Initial Setup ...............................5 Temperature Adjustment ..........................6 VinoView ® Shelving (Type and number of shelves will vary per model) ........6 Installation as a built-in wine cellar ....................7 Installing the Handle ............................7 Operating Your Wine Cellar ........................8 Before You Start ...............................9 Setting the Temperature Control .......................9... -
Page 5: Wine Cellar Features And Use
Electrical Requirement • Make sure there is a suitable power Outlet (115 volts, 15 amps outlet) with proper grounding to power the wine cellar. • Avoid the use of three plug adapters or cutting off the third grounding in order to accommodate a two plug outlet. -
Page 6: Temperature Adjustment
• Once you have plugged the unit into an electrical outlet, let the unit run for at least 30 minutes to acclimate before making any adjustments. Temperature Adjustment • The wine cellar can be set to accommodate your wine storage requirements. To set the temperature, press the up or down arrow button to increase or decrease the temperature setting until the desired temperature is attained. -
Page 7: Installation As A Built-In Wine Cellar
Installation as a built-in wine cellar These cut out dimensions show the minimum space required for your wine cellar to perform as designed. Installing the Handle 1. Pull back the door seal behind handle location. 2. Insert screws into pre-drilled screw holes. 3. -
Page 8: Operating Your Wine Cellar
Operating Your Wine Cellar Each wine cellar includes an operating panel on the front of the unit. This operating panel includes several features to operate and control the temperature. Power: Turns the Wine Cellar System ON and OFF (Hold for 3 sec.) Lighting: Turns the Interior Light ON and OFF Press for 5 seconds to switch between Celsius and Fahrenheit... -
Page 9: Before You Start
Before You Start The wine cellar should be placed in a location where the ambient temperature is between 60-80° Fahrenheit. If the ambient temperature is above or below this range, the performance of the unit may be affected. For example, placing your unit in extreme cold or hot conditions may cause interior temperatures to fluctuate. -
Page 10: Door Lock
• Press and hold the Temperature Down (-) button for 5 seconds, the temperature indicator will flash a 2 digit number when the ‘light set mode’ is active. • Use the Temperature UP and DOWN buttons to scroll through the light intensity settings. -
Page 11: Technical Data
Technical Data Total Volume 15.11 CF Installation Free-Standing or Built-In Voltage & Frequency 115~60Hz 2.0A Current Power Input 160 W Protection Class Climate Class Running Amps 1.6A Ambient Temperature 60 - 77°F R600a – 2.19 oz. Refrigerant Temp. Control Range 40°F to 72°F Approx. -
Page 12: Proper Wine Cellar Care And Cleaning
Proper Wine Cellar Care and Cleaning Cleaning and Maintenance Warning: To avoid electric shock always unplug your wine cellar before cleaning. Ignoring this warning may result in death or injury. Caution: Before using cleaning products, always read and follow manufacturer’s instructions and warnings to avoid personal injury or product damage. -
Page 13: Troubleshooting
Power Interruptions • Occasionally there may be power interruptions due to thunderstorms or other causes. Remove the power cord from AC outlet when a power outage occurs. When power has been restored, wait 3 to 5 minutes then re-plug the power cord to AC outlet. Vacation and Moving Care •... - Page 14 Wine temperature is too cold: • If temperature control setting is too cold, adjust to a warmer setting. Wine cellar runs too frequently: • This may be normal to maintain constant temperature during high temperature and humid days. • Doors may have been opened frequently or for an extended period of time.
-
Page 15: Limited Warranty
(1) year limited warranty to two (2), three (3), or five (5) years. Details about our extended protection plans can be found @ wineenthusiast.com. Who is Protected: This Limited Warranty protects the original purchaser during the Limited Warranty Period, provided that such purchaser can present appropriate proof of original purchase. - Page 16 How to get Warranty Service: In the event your wine cellar is not operating within the manufacturer’s specifications, during the Warranty Period, contact customer service by email at custserv@WineEnthusiast.net or by phone 800.648.6058. Limitation of Implied Warranties: All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to the length of this Limited Warranty.
