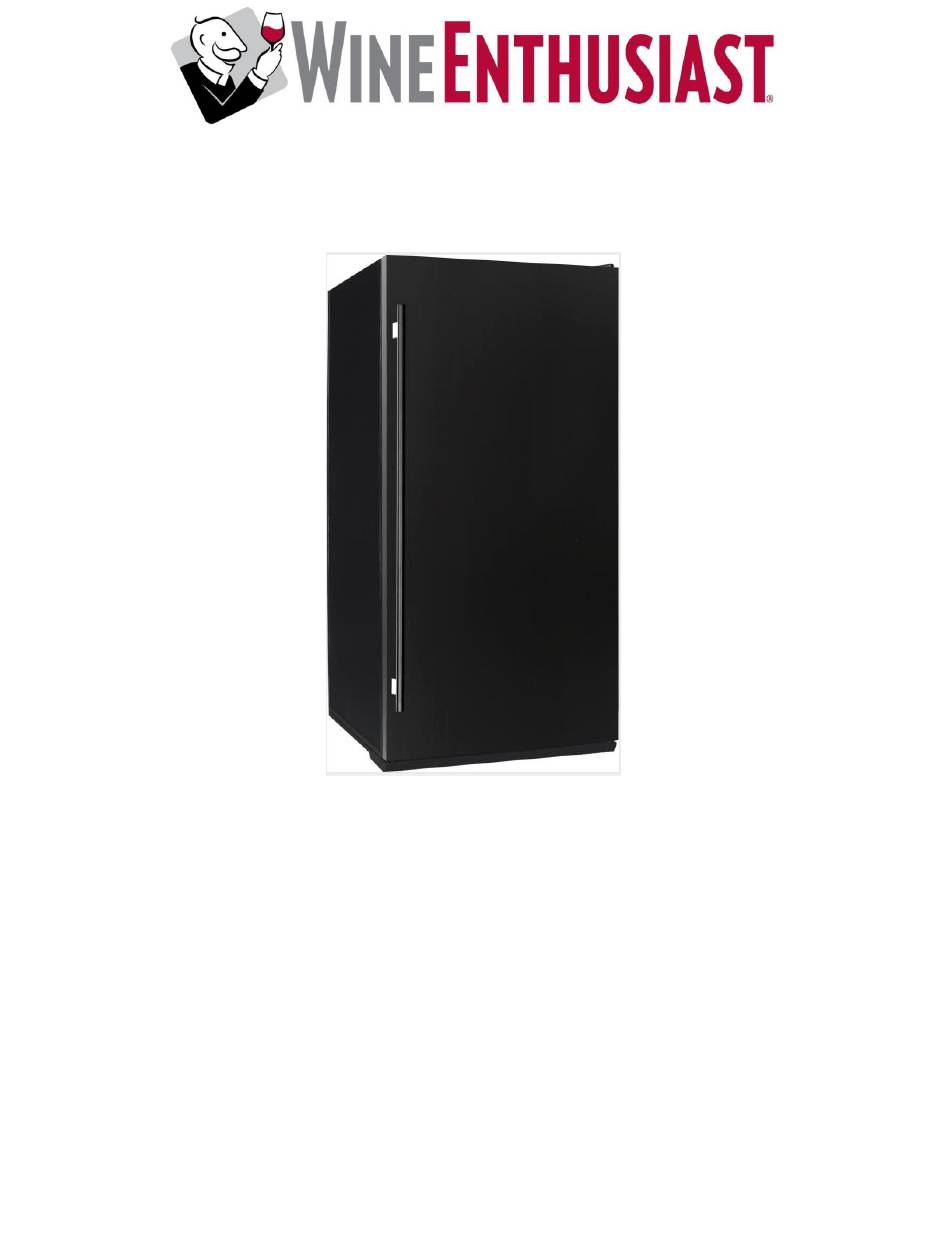

- Page 1 Wine Vault (Features and Size May Vary) User Manual Model # 264 08 59 0Y Y= 3 (Right Hinge) or 4 (Left Hinge) PLEASE READ THIS MANUAL CAREFULLY BEFORE INSTALLING AND OPERATING...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS When using this appliance, always exercise basic safety precautions, including the following: 1. Read all of the instructions before using this appliance. 2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 3: Save These Instructions
SAVE THESE INSTRUCTIONS DANGER Risk of child entrapment. Before you throw away your old Wine Vault, take off the doors. Leave the shelves in place so that children may not easily climb inside. Thank you for using our Wine Enthusiast product. -
Page 4: Table Of Contents
Table of Contents IMPORTANT SAFEGUARDS ..................2 SAVE THESE INSTRUCTIONS ................. 3 Electrical Requirement ..................5 Install Limitations ..................... 5 Use of Extension Cords ..................5 Wine Vault Features and Use ................. 6 Initial Setup ..................... 6 Before You Start ....................6 Temperature Adjustment.................. -
Page 5: Electrical Requirement
Electrical Requirement • Make sure there is a suitable power Outlet (115 volts, 15 amps outlet) with proper grounding to power the wine vault. • Avoid the use of three plug adapters or cutting off the third grounding in order to accommodate a two plug outlet. -
Page 6: Wine Vault Features And Use
Wine Vault Features and Use Initial Setup • Before connecting the wine vault to the power source, let it stand upright for approximately 24 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation. •... - Page 7 • Disperse the bottles evenly to avoid concentrating weight in one place. Bottles must not touch either the back of the cabinet or the step at the bottom. • Make sure that the bottles are not all grouped together either at the top or bottom of the cabinet.
- Page 8 Rearranging the Shelf Layout You can rearrange the configuration of your wine vault by moving the location of your shelf brackets. To move a sliding shelf, first remove all bottles then remove the rolling shelf as illustrated above. You are now ready to remove the shelf guide rails.
-
Page 9: Installing The Handle
Installing the Handle 1. Pull back the door seal behind handle location. 2. Insert screws into pre-drilled screw holes. 3. Attach handle and tighten screws. 4. Press door seal back into place. Operating Your Wine Vault Each wine vault includes an operating panel on the front of the unit. This operating panel includes several features to operate and control the temperature. -
Page 10: Setting The Temperature Control
ON or OFF and depending on the position of the bottles. Replacing the Charcoal Filter Located on the back wall of your wine cellar, Turn counterclockwise to unlock, then remove. Replace with a new filter, turn clockwise to lock in place. Reorder part #: 264 08 44 at www.WineEnthusiast.com... -
Page 11: Interior Light
Temperature Settings for Serving Wine Although optimal storage temperature is generally regarded to be 53-57°F, different varietals of wine require different service temperature settings. The recommended temperature ranges for serving different varietals of wine are listed below. Your Wine Vault will indicate when you have set the Upper/Lower zones to the below temperature ranges. -
Page 12: Technical Data
Technical Data Classic XL Wine Vault Total Volume 26.84 Cu. Ft. Installation Free-Standing Only Power 115V~60Hz Current 2.1A Protection Class Climate Class N/ST Start-Up Amps Ambient Temperature 50°F - 100°F Refrigerant R600a – 2.47 oz. Temperature Control Range 41°F - 72°F Approx. -
Page 13: Proper Wine Vault Care And Cleaning
Proper Wine Vault Care and Cleaning Cleaning and Maintenance Warning: To avoid electric shock always unplug your Wine Vault before cleaning. Ignoring this warning may result in death or injury. Caution: Before using cleaning products, always read and follow manufacturer’s instructions and warnings to avoid personal injury or product damage. - Page 14 Door Gaskets: • Clean door gaskets every three months according to general instructions. Gaskets must be kept clean and pliable to assure a proper seal. • Petroleum jelly applied lightly on the hinge side of gaskets will keep the gasket pliable and assure a good seal. Power Interruptions •...
-
Page 15: Troubleshooting
Troubleshooting Many common issues with your wine vault can be easily solved. Try the troubleshooting tips below if you experience any problems. Wine Vault Does Not Operate: • Check if wine vault is plugged in. • Check if there is power in the AC outlet, by checking the circuit breaker. - Page 16 • Check to see if doors are completely closed. Moisture build-up on interior or exterior of the wine vault: • This is normal during high humidity periods. • Prolonged or frequent door openings. • Check door gaskets for proper seal. Wine Vault door does not shut properly: •...
-
Page 17: Limited Warranty
(1) year limited warranty to two (2), three (3), or five (5) years. Details about our extended protection plans can be found @ wineenthusiast.com. Who is Protected: This Limited Warranty protects the original purchaser during the Limited Warranty Period, provided that such purchaser can present appropriate proof of original purchase. - Page 18 How to get Warranty Service: In the event your wine vault is not operating within the manufacturer’s specifications, during the Warranty Period, contact customer service by email at custserv@WineEnthusiast.net or by phone 800.648.6058. Limitation of Implied Warranties: All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to the length of this Limited Warranty.
