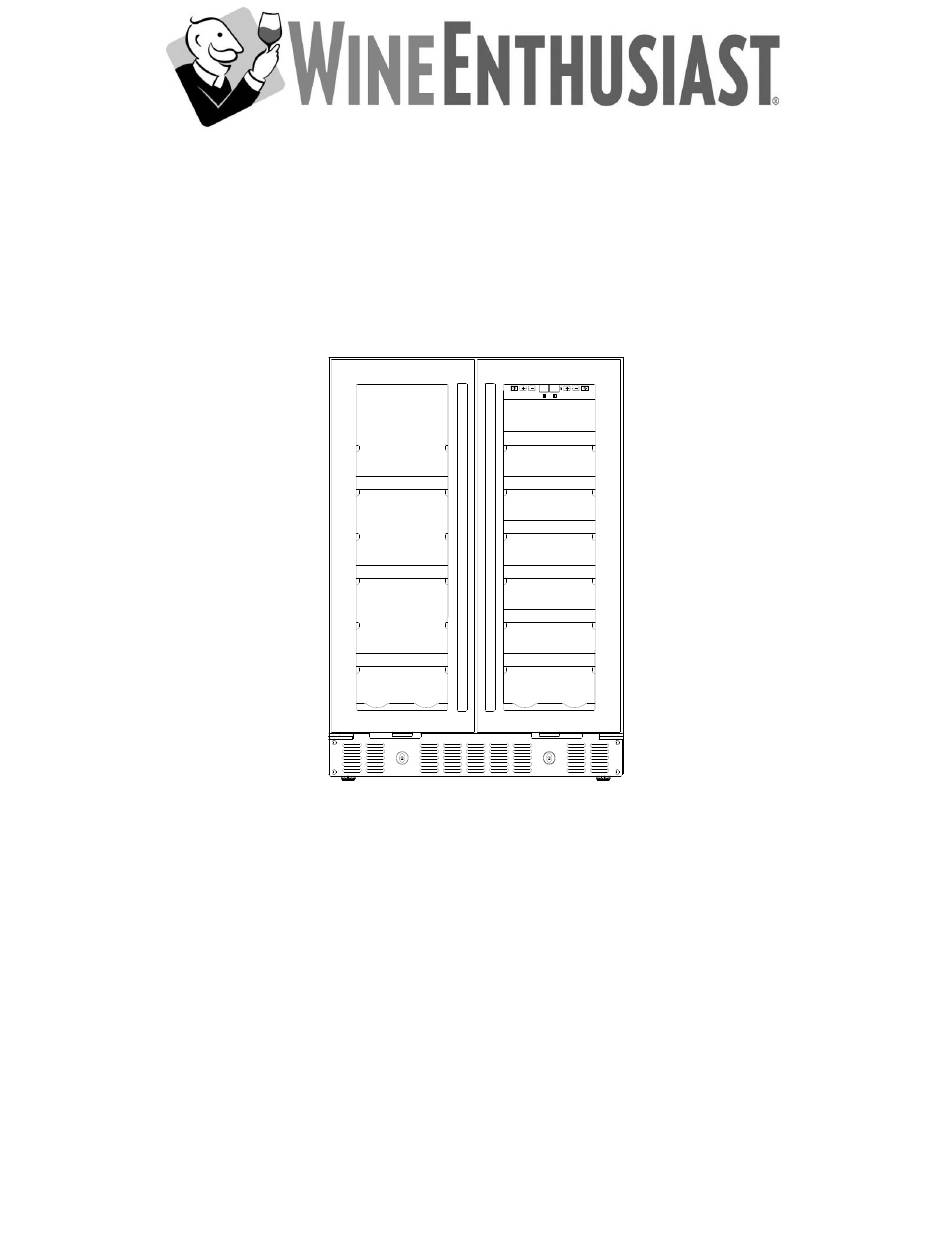

- Page 1 24” Wine & Beverage Center (Features and Size May Vary) User Manual 288 02 20 02 Model # PLEASE READ THIS MANUAL CAREFULLY BEFORE INSTALLING AND OPERATING...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS When using this appliance, always exercise basic safety precautions, including the following: 1. Read all of the instructions before using this appliance. 2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 3 SAVE THESE INSTRUCTIONS DANGER Risk of child entrapment. Before you throw away your old wine cellar, take off the doors. Leave the shelves in place so that children may not easily climb inside. Thank you for using our Wine Enthusiast product.
-
Page 4: Table Of Contents
Table of Contents IMPORTANT SAFEGUARDS .........................2 Wine Cellar Features and Use ........................6 Initial Setup ...............................6 Shelving ................................6 Installing the Handle ............................6 Parts and Features ............................7 Installation as a Built-In Cellar ........................7 Operating Your Wine Cellar ........................8 Before You Start ...............................9 Setting the Temperature Control .......................9 Temperature Memory Function ........................10 Temperature Alarm / Door alarm ......................10... -
Page 5: Electrical Requirement
Electrical Requirement • Make sure there is a suitable power Outlet (115 volts, 15 amps outlet) with proper grounding to power the wine cellar. • Avoid the use of three plug adapters or cutting off the third grounding in order to accommodate a two plug outlet. -
Page 6: Wine Cellar Features And Use
Wine Cellar Features and Use Initial Setup • Before connecting the wine cellar to the power source, let it stand upright for approximately 24 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation. •... -
Page 7: Parts And Features

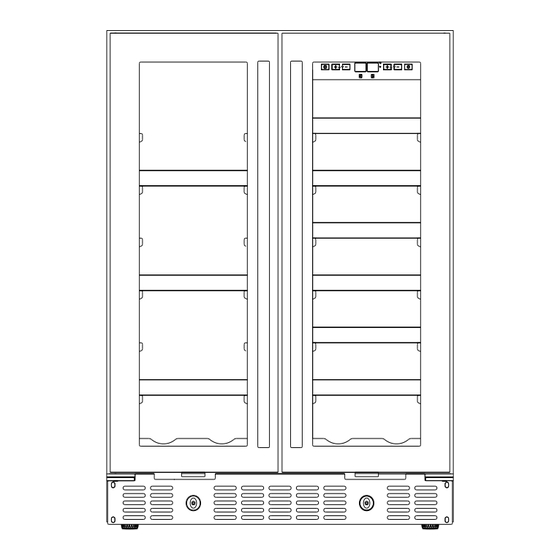

Parts and Features Digital Control Panel LED Light Handle LED Light Left Zone (Beverage Center) Right Zone Glass Shelves(3) (Wine Chiller) Wood Shelves(6) Glass Door Lock Adjustable Legs Kick-plate Installation as a Built-In Cellar These cut out dimensions show the minimum space required for your wine cellar to perform as designed. -
Page 8: Operating Your Wine Cellar
Operating Your Wine Cellar Each wine cellar includes an operating panel on the front of the unit. This operating panel includes several features to operate and control the temperature. 1. Power Control: Turns the Wine & Beverage Center ON and OFF 2. -
Page 9: Before You Start
5. Temperature Display: Wine zone (Right compartment) 6. Temperature Control: Right compartment: increases the set temperature 7. Temperature Control: Right compartment: decreases the set temperature 8. Light Control: Turns the interior light ON and OFF ºF ºC: To change the temperature from Fahrenheit to Celsius or from Celsius to Fahrenheit, press and hold the LIGHT control key for 5 seconds Before You Start... -
Page 10: Temperature Memory Function
Temperature Memory Function In the event of a power interruption (power surge, breaker switch, etc.), the unit will remember the previous temperature settings, and when the power is recovered, the cabinet temperature will return to the same setting as before the power went off. -
Page 11: Interior Light
Interior Light To complement the look of your wine collection, a LED lighting has been built into the wine cellar. The LIGHT switch allows you to toggle between 2 modes of operation: Functional (default) mode and Showcase mode. Functional mode, the lights will turn on only when the door is open. -
Page 12: Technical Data
Technical Data Total Volume 4.4 Cu. Ft. Installation Free-Standing or Built-In Power 115V~60Hz Current 1.0A Protection Class Start-Up Amps 10.0A Running Amps 1.0A Ambient Temperature 60 - 90°F Refrigerant R600a – 1.06 oz. Temperature Control Range 36°F to 43°F (Left Zones) 41°F to 68°F (Right Zones) Approx. -
Page 13: Proper Wine Cellar Care And Cleaning
Proper Wine Cellar Care and Cleaning Cleaning and Maintenance Warning: To avoid electric shock always unplug your wine cellar before cleaning. Ignoring this warning may result in death or injury. Caution: Before using cleaning products, always read and follow manufacturer’s instructions and warnings to avoid personal injury or product damage. -
Page 14: Vacation And Moving Care
outage occurs. When power has been restored, wait 3 to 5 minutes then re-plug the power cord to AC outlet. DEFROSTING The unit defrosts automatically under normal operating conditions. • The evaporator behind the rear wall of the unit defrosts automatically. The condensate collects in the drainage channel behind the rear wall of the unit and flows through the drainage hole into the drip tray by the compressor where it evaporates. -
Page 15: Troubleshooting
Troubleshooting Many common issues with your wine cellar can be easily solved. Try the troubleshooting tips below if you experience any problems. Wine Cellar Does Not Operate: • Check if wine cellar is plugged in. • Check if there is power in the AC outlet, by checking the circuit breaker. - Page 16 Wine cellar door does not shut properly: • Level the wine cellar. • Check for blockages e.g. wine bottles, shelves. Display “E1”. “E2”, “E3”, “E4”, “E6” or “E7”. • E1” or “E2” indicates that the air temperature sensor has failed. “...
-
Page 17: Limited Warranty
(1) year limited warranty to two (2), three (3), or five (5) years. Details about our extended protection plans can be found @ wineenthusiast.com. Who is Protected: This Limited Warranty protects the original purchaser during the Limited Warranty Period, provided that such purchaser can present appropriate proof of original purchase. - Page 18 How to get Warranty Service: In the event your wine cellar is not operating within the manufacturer’s specifications, during the Warranty Period, contact customer service by email at custserv@WineEnthusiast.net or by phone 800.648.6058. Limitation of Implied Warranties: All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to the length of this Limited Warranty.
