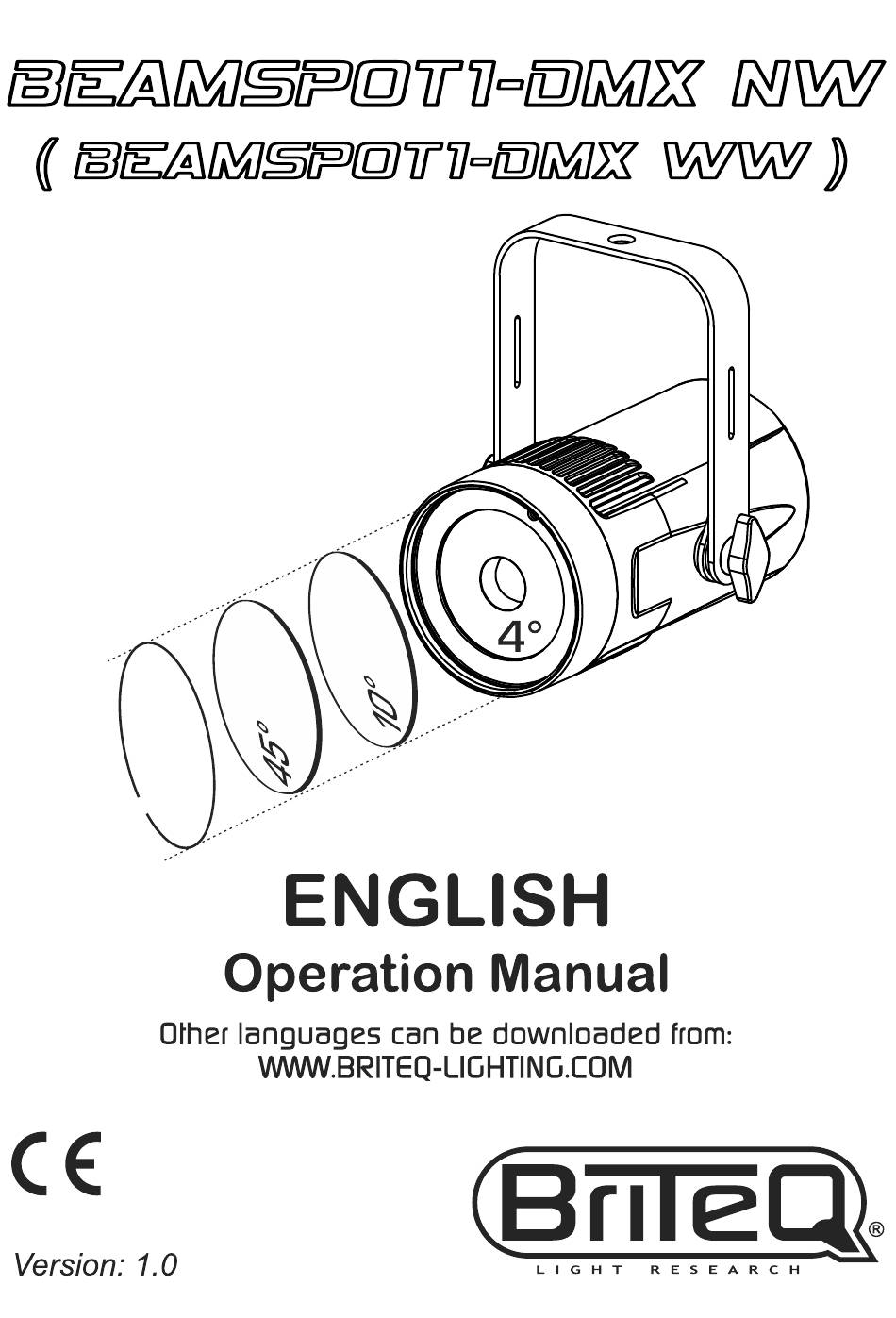

ENGLISH OPERATION MANUAL OPERATION MANUAL ® Thank you for buying this Briteq product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit. FEATURES This compact, stylish 15W WHITE single beam projector is equipped with a very narrow 4° lens making it a very powerful tool for all kinds of applications: perfect for all kinds of effects on stage but also for simply illuminating mirror balls etc. -
Page 4: Safety Instructions
Due to safety reasons it is prohibited to make unauthorized modifications to the unit. Important: Never look directly into the light source! Don’t use the effect in the presence of persons suffering from epilepsy. BRITEQ BEAMSPOT1-DMX NW (WW) ®... -
Page 5: Overhead Rigging
The operator has to make sure that the safety-relating and machine-technical installations are approved by an expert before using them for the first time. The installations should be inspected every year by a skilled person to be sure that safety is still optimal. BRITEQ BEAMSPOT1-DMX NW (WW) ®... - Page 6 CHANNEL MODE Used to set the desired channel mode. Press the [MENU] button or ▲/▼buttons until the desired function is showing on the display. Press the [ENTER] button: the values can be changed BRITEQ BEAMSPOT1-DMX NW (WW) ®...
- Page 7 After a short time the setup menu locks automatically, the display shows [LOCKED *****]. Unlock the display by pressing the buttons in this order: UP, DOWN, UP, DOWN, ENTER. Once the correct option shows on the display, press the [ENTER] button to save it. BRITEQ BEAMSPOT1-DMX NW (WW) ®...
- Page 8 Each time the projector is switched on, the display shows “UPDATE Wait ….”: while this message shows on the display you can start the update using our special upgrade tool. More information about this can be found in the user manual of the upgrade tool and / or our website: www.briteq-lighting.com BRITEQ BEAMSPOT1-DMX NW (WW) ®...
-
Page 9: Electrical Installation
Each unit in the chain needs to have its proper starting address so it knows which commands from the controller it has to decode. In the next section you will learn how to set the DMX addresses. BRITEQ BEAMSPOT1-DMX NW (WW) ®... - Page 10 The DMX-controller sends out a “discovery command”, all RDM devices respond and send their unique device ID. The DMX-controller asks each RDM device for some basic data so it knows which devices are connected. The projector will respond: Device name: BEAMSPOT1-DMX NW (WW) Manufacturer: ® Briteq Category: LED Dimmer ...
-
Page 11: Maintenance
4° (10° + 45° with frost filter) IP-Rating: IP20 Size: see drawing Weight: 1.4 kg The information might be modified without prior notice You can download the latest version of this user manual on our website: www.briteq-lighting.com BRITEQ BEAMSPOT1-DMX NW (WW) ®...
