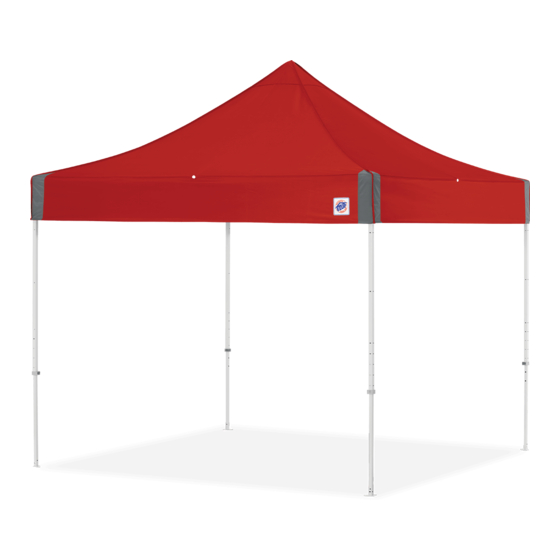

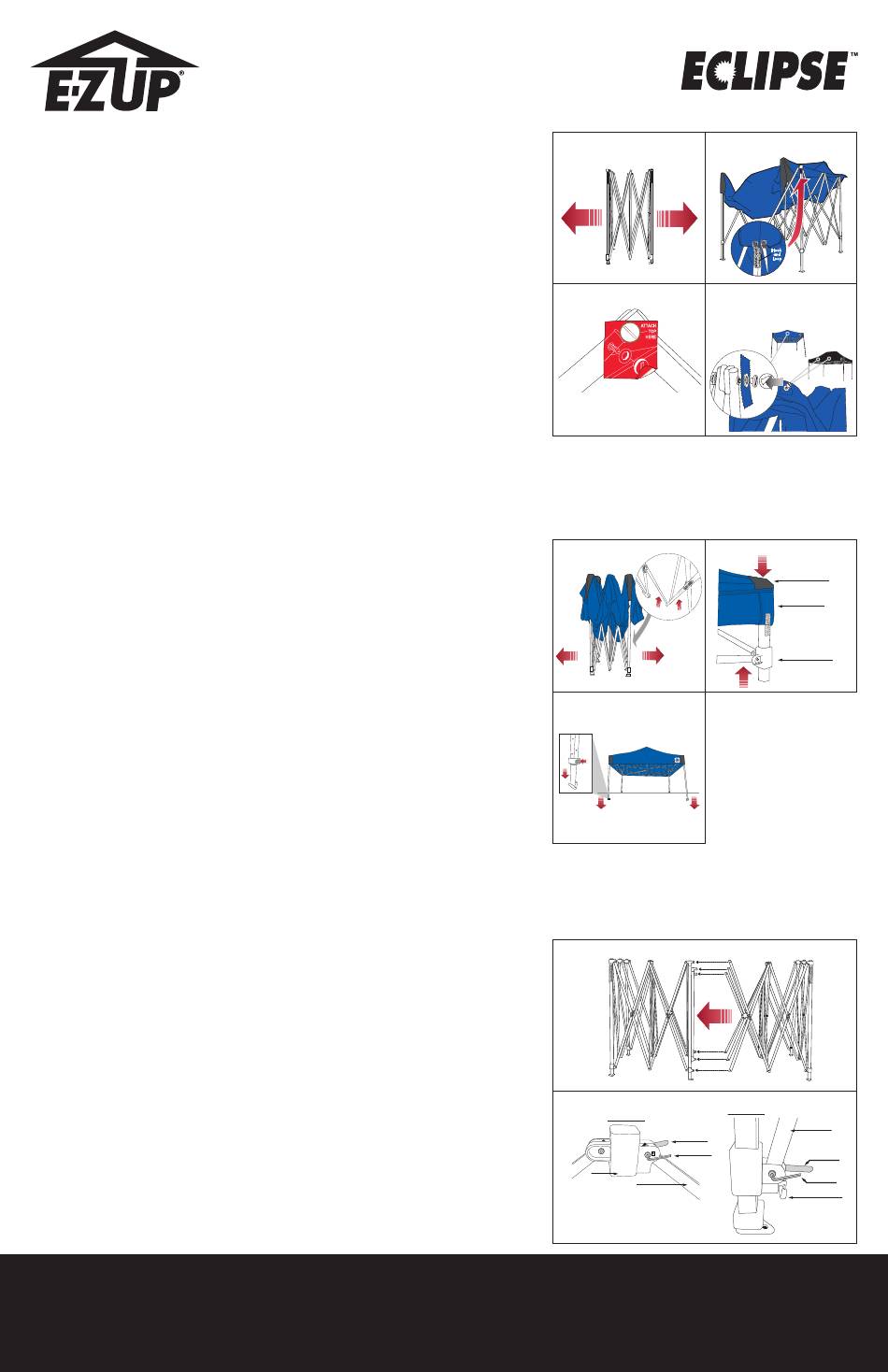

E-Z UP ECLIPSE Instructions

WHAT'S IN THE BOXES
Frame Box: (1) Eclipse™ Frame, Allen Wrench and 7/16 Wrench
Top Box: (1) Fabric Top and (1) Cover Bag
ONE-TIME TOP INSTALLATION
REFER TO BOTTOM OF PAGE FOR 10' x 20' MODEL INSTRUCTIONS
Unpack and Open
1. Place your E-Z UP Frame in the center of the area to be sheltered.
®
2. With a partner on the opposite side of the Frame, grasp two outer legs, lift the Frame slightly off the ground, and step
backward while pulling the Frame to open.
3. Stop when the Frame is approximately 3/4 of its fully-opened size. (Fig. A)
4. Set the Frame back on the ground.
Attach Fabric Top
5. Gently unfold the Fabric Top, and place it over the semi-opened Frame.
6. Attach the Fabric Top to the E-Z UP Frame by matching the Hook and Loop Strips on the inside of the Fabric Top
®
corners with the Hook and Loop Strips on each Frame corner. (Fig. B)
7. Pull the Fabric Top down over the Frame corners—pushing the Hook and Loop Strips firmly together.
Secure Top to Frame
8. Line up the grommet holes on the sides of the Fabric Top to the frame Top Attachment Points. The Top Attachment
Points on the Frame are denoted by the RED tags. (Fig. C)
9. Using a coin, unscrew the Top Attachment Nut from the frame bolt. (Fig. D)
10. Place Fabric Top grommet on the Frame bolt.
11. Screw on Top Attachment Nut and tighten until snug. Fabric Top should rotate easily. Do not over-tighten.
12. Repeat this procedure at each of the Top Attachment Points.
Note: Hold the bolt assembly with one hand while tightening the top attachment nut with your other hand.
SET UP
OPEN E-Z UP Shelter
®
1. With a partner on the opposite side, grasp the bottom of the diamond-shaped area of Outer Trusses near the "OPEN
HERE" sticker. (Fig. A)
2. Lift the Frame up slightly and step backward until the shelter is almost fully opened. Gently shake the shelter while
opening. Be careful not to pinch fingers!
For 10' x 15' (3.0m x 4.5m) MODEL ONLY:
Complete the above instructions on the 10' (3.0m) side of the shelter.
Secure Auto-Slider Pull Pin
®
3. Fold up the Fabric Top corner to expose the Auto-Slider
4. Lift shelter corner slightly off the ground and engage the Auto-Slider
with one hand while holding down the top of the Frame Leg with the other hand. The pins will auto-engage when
aligned with the holes on the Frame Legs.
5. After the Auto-Slider Pull Pin has locked into place, pull the Fabric Top down over the Frame Leg, making sure to
®
align and secure the hook and loop strips on the Fabric Top to the Frame.
6. Repeat on all remaining corners.
Extend Frame Legs
7. With a partner, lift the two adjacent outer legs up off the ground simultaneously to about waist height.
8. Slide the lower/inner legs out until the Leg Adjustment Toggle buttons lock at selected height on each leg. (Fig. C)
Note: There are 5 adjustment settings on each leg.
9. Lower middle leg until the toggle button locks.
10. Repeat on the remaining legs.
Note: It is recommended that you use genuine E-Z UP
your shelter.
Your E-Z UP shelter setup is now complete!
®
FOR 10' X 20' MODELS (3.0M X 6.0M)
Unpack and Open
1. Place your E-Z UP Frames in the center of the area to be sheltered.
®
2. With a partner on the opposite side of the Frame, gently expand both the Main Frame (A) and Sub-Frame (B) to
approximately half of their fully-opened size. (Fig. A)
3. Face open ends of the trusses to align the bracket attachment points on each frame.
Connect Frames
4. Remove bolt assembly (nut and bolt) from each bracket on Main Frame (A).
5. Insert truss end from Sub-Frame (B) (labeled "A" for top and "B" for bottom) into the corresponding attachment point
on the Main Frame (A) and align holes.
6. Use the nut and bolt that was previously removed to secure the truss. Tighten the nut and bolt securely using the
enclosed Allen Wrench and 7/16 wrench. (Fig. B)
Note: Hold the bolt assembly with one hand while tightening the Top Attachment Nut with your other hand. Do not
over-tighten bolts–they should rotate easily. Connection points must rotate in order for shelter to open properly.
Over-tightening will result in broken trusses.
7. Repeat these steps for all six connection points (3 top points labeled "A" and 3 bottom points labeled "B").
INTERNATIONAL E-Z UP, INC.
1900 Second St., Norco, California 92860
800-45-SHADE
Pull Pin. (Fig B)
®
Pull Pin by pushing up on the Frame side trusses
®
Deluxe Weight Bags and/or Heavy-Duty Stake Kits to secure
®
INSTRUCTIONS FOR
Fig. A
Fig. C
(Remove Tag Before Attaching Top)
Fig. A
Fig. C
Main Frame (A)
Fig. A
Fig. B
Main Frame (A)
End Cap
Sub-Frame (B)
"A" Label
The #1 Instant Shelter
Fig. B
Hook
and
Loop
• 8' x 8' & 10' x 10' Shelters have Four
Fig. D
Attachment Points
• 10' x 15' Shelter has Six Attachment Points
• 10' x 20' Shelter has Eight Attachment Points
Fig. B
Top of the Frame Leg
Fabric Top Corner
Auto-Slider ® Pull Pin
Sub-Frame (B)
"A" Labels
"B" Labels
Main Frame (A)
Sub-Frame (B)
7/16 Wrench
Allen Wrench
7/16 Wrench
Allen Wrench
Auto-Slider ® Pull Pin
"B" Label
Brand in the World
®
ezup.com
