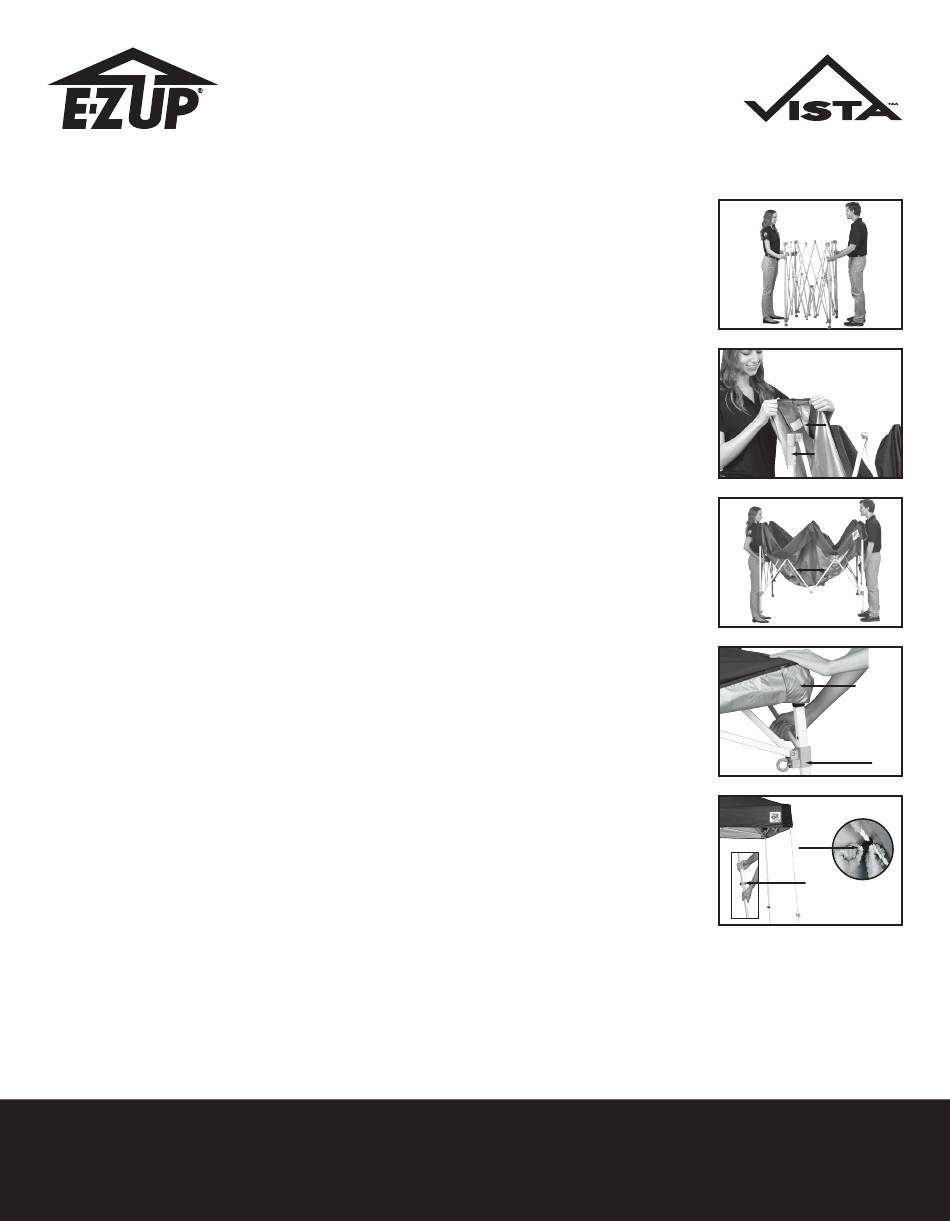

E-Z UP VISTA Instructions

WHAT'S IN THE BOX
(1) 10' or 12' Vista Frame, (1) Recreational Grade Top, (1) 4-Piece Spike Kit, (1) Carry Bag
™
ONE-TIME TOP INSTALLATION
Unpack and Open
1. Place your E-Z UP Frame in the center of the area to be sheltered.
®
2. With a partner on the opposite side of the Frame, grasp two outer legs, lift the Frame slightly off the
ground, and step backward while pulling the Frame to open.
3. Stop when the Frame is approximately 1/2 of its fully-opened size. (Fig A)
4. Set the Frame back on the ground.
Attach Fabric Top
5. Gently unfold the Fabric Top, and place it over the semi-opened Frame.
6. Attach the Fabric Top to the E-Z UP
Fabric Top corners with the Hook and Loop Strips on each Frame corner. (Fig B)
7. Pull the Fabric Top down over the Frame corners—pushing the Hook and Loop Strips firmly together.
SET UP
OPEN E-Z UP Shelter
®
1. With a partner on the opposite side, grasp the bottom of the diamond-shaped area of Outer Trusses
near the "OPEN HERE" sticker. (Fig C)
2. Lift the Frame up slightly and step backward until the shelter is almost fully opened. Gently shake the
shelter while opening. Be careful not to pinch fingers!
Secure Auto-Slider Pull Pin
®
3. Fold up the Fabric Top corner to expose the Auto-Slider
4. Lift shelter corner slightly off the ground and engage the Auto-Slider
Frame side trusses with one hand while holding down the top of the Frame Leg with the other hand.
The pins will auto-engage when aligned with the holes on the Frame Legs.
5. After the Auto-Slider Pull Pin has locked into place, pull the Fabric Top down over the Frame Leg,
®
making sure to align and secure the hook and loop strips on the Fabric Top to the Frame.
6. Repeat on all remaining corners.
Secure Top Strips; Extend Frame Legs
7. Secure the four Hook and Loop Strips on the top to the four peak poles.
8. With a partner, lift the two adjacent outer legs up off the ground simultaneously to about waist height.
9. Slide the lower/inner legs out until the Leg Adjustment Toggle buttons lock at selected height on each
leg. (Fig E) Note: There are 2 adjustment settings on each leg.
10. Lower middle leg until the toggle button locks.
11. Repeat on the remaining legs. Note: It is recommended that you use genuine E-Z UP
Weight Bags and/or Heavy-Duty Stake Kits to secure your shelter.
Your E-Z UP shelter setup is now complete!
®
