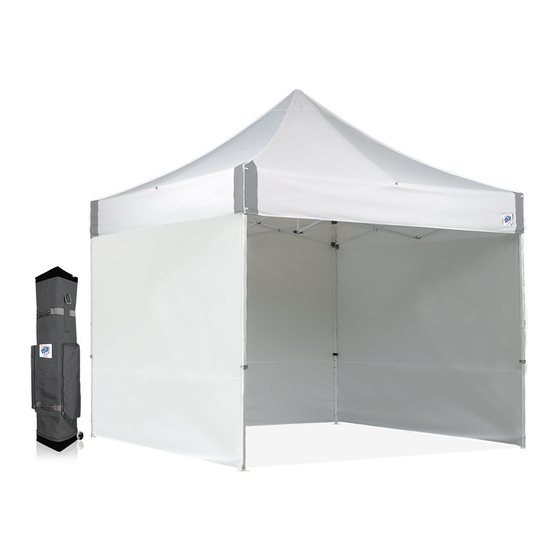

E-Z UP ES100S Instructions

WHAT'S IN THE BOX
(1) 10' ES100S Frame, (1) Top, (3) Sidewalls, (1) Mid-Zip Sidewall (1) 4-Piece Spike Kit, (1) Wide-Trax
™
ONE-TIME TOP INSTALLATION
Unpack and Open
A. Place your E-Z UP Frame in the center of the area to be sheltered.
®
B. With a partner on the opposite side of the Frame, grasp two outer legs, lift the Frame slightly off the ground, and step backward while pulling
the Frame to open.
C. Stop when the Frame is approximately 1/2 of its fully-opened size. (Fig. A)
D. Set the Frame back on the ground.
Attach Fabric Top
A. Gently unfold the fabric top, and place it over the semi-opened frame.
B. Attach the fabric top to the E-Z UP frame by matching the Hook and Loop Strips on the inside of the fabric top corners with the Hook and
®
Loop Strips on each frame corner. (Fig. B)
C. Pull the fabric top down over the frame corners—pushing the Hook and Loop Strips firmly together.
Secure Top to Frame
A. Line up the grommet holes on the sides of the fabric top to the frame Top Attachment Points. The Top Attachment Points on the frame are
denoted by the "RED" tags. (Fig. C)
B. Using a coin, unscrew the top attachment nut from the frame bolt.
C. Place fabric top grommet on the frame bolt.
D. Screw on top attachment nut and tighten until snug. Top fabric should rotate easily. Do Not over-tighten.
E. Repeat on each side.
SET UP
OPEN E-Z UP® Shelter
A. With a partner on the opposite side, grasp the bottom of the diamond-shaped area of Outer Trusses. (Fig. D)
B. Lift the frame up slightly and step backwards until the shelter is almost fully opened. Gently shake the shelter while opening. Be careful not to
pinch fingers!
Secure Auto-Lock & Quick Release
A. Fold up the Fabric Top Corner to expose the Auto-Lock & Quick Release. (Fig. E)
B. Lift shelter corner slightly off the ground and engage the Auto-Lock & Quick Release by pushing up on the frame side trusses with one hand
while holding down the top of the frame leg with the other hand. The pins will auto-engage when aligned with the holes on the frame legs.
C. After the Auto-Lock & Quick Release has locked into place, pull the fabric top down over the frame leg, making sure to align and secure the
hook and loop strips on the fabric top to the frame.
D. Repeat on all remaining corners.
Extend & Secure Frame Legs
A. With a partner, lift the two adjacent Outer Legs up off the ground simultaneously to about waist height.
B. Slide the Lower/Inner Legs out until the E-Z Glide™ Leg Adjusters lock at selected height on each leg. (Fig. F)
Note: There are 5 adjustment settings on each leg.
C. Repeat on the remaining legs.
Note: It is recommended that you use genuine E-Z UP® Deluxe Weight Bags, Water Weight Bags, Weight Plates and/or Heavy-Duty Stake Kits to
secure your shelter.
Your E-Z UP shelter setup is now complete!
®
Attaching Sidewalls to Shelter
In order to attach your sidewalls to your shelter, your ES100S™ should be set up and in its intended location.
A. Slightly lift up the fabric valance corners on the side of the shelter from which you will begin to hang each sidewall.
B. Identify the top of the sidewall (includes four Truss Clips). Attach each of the Truss Clips to the top truss on the ES100S™ frame. Be sure the
open side of each clip is facing into the shelter (not facing toward the outside). (Fig. G)
C. Secure the sidewall to the frame by attaching each Hook and Loop Strip to the outer leg.
D. Utilize E-Z Attachment Points to hang your gear.
Sidewall Rollup Features
Your ES100S™ includes a Toggle and Loop feature that allows you to roll up and secure your sidewalls as needed.
A. Detach each edge of the sidewall from the frame legs by undoing the hook and loop strips.
B. Starting at the bottom, roll up the sidewall.
C. Secure the rolled up sidewall to the top of the frame truss by wrapping the toggle around one end and the loop around the other. Fit the toggle
through the strip and twist to secure. (Fig. H)
D. Repeat on remaining sidewalls.
INTERNATIONAL E-Z UP, INC.
1900 Second St., Norco, California 92860
800-45-SHADE
INSTRUCTIONS FOR
Roller Bag
™
The #1 Instant Shelter

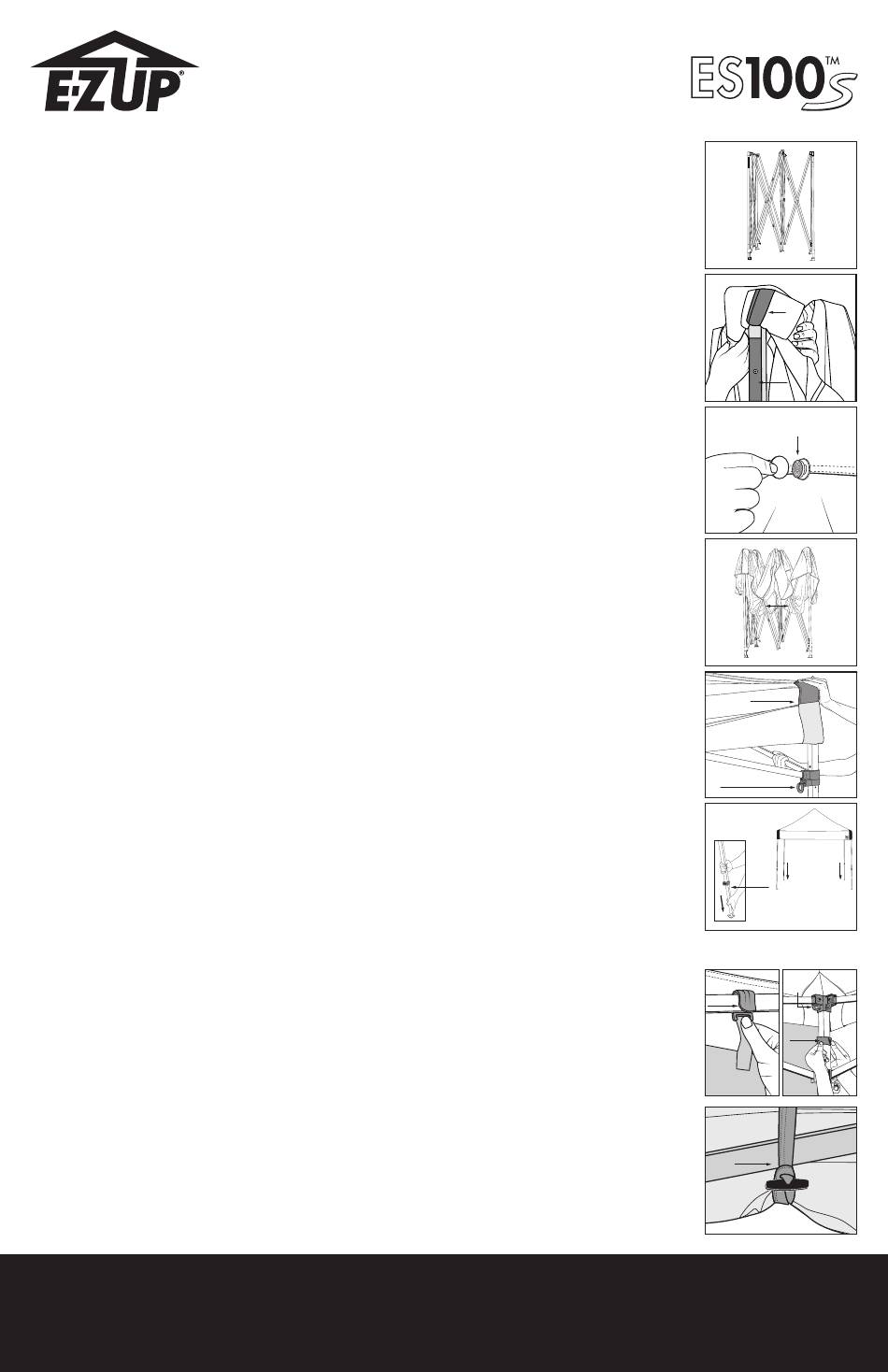

Fig. A
Fig. B
Loop
Hook
Fig. C
Top Attachment Point
Fig. D
Outer Trusses
Fig. E
Fabric Top Corner
Auto-Lock & Quick Release
Fig. F
E-Z Glide™
Leg Adjusters
Fig. G
Attachment
Points
Truss Clip
Hook &
Loop
Fig. H
Toggle & Loop
Brand in the World
®
ezup.com
