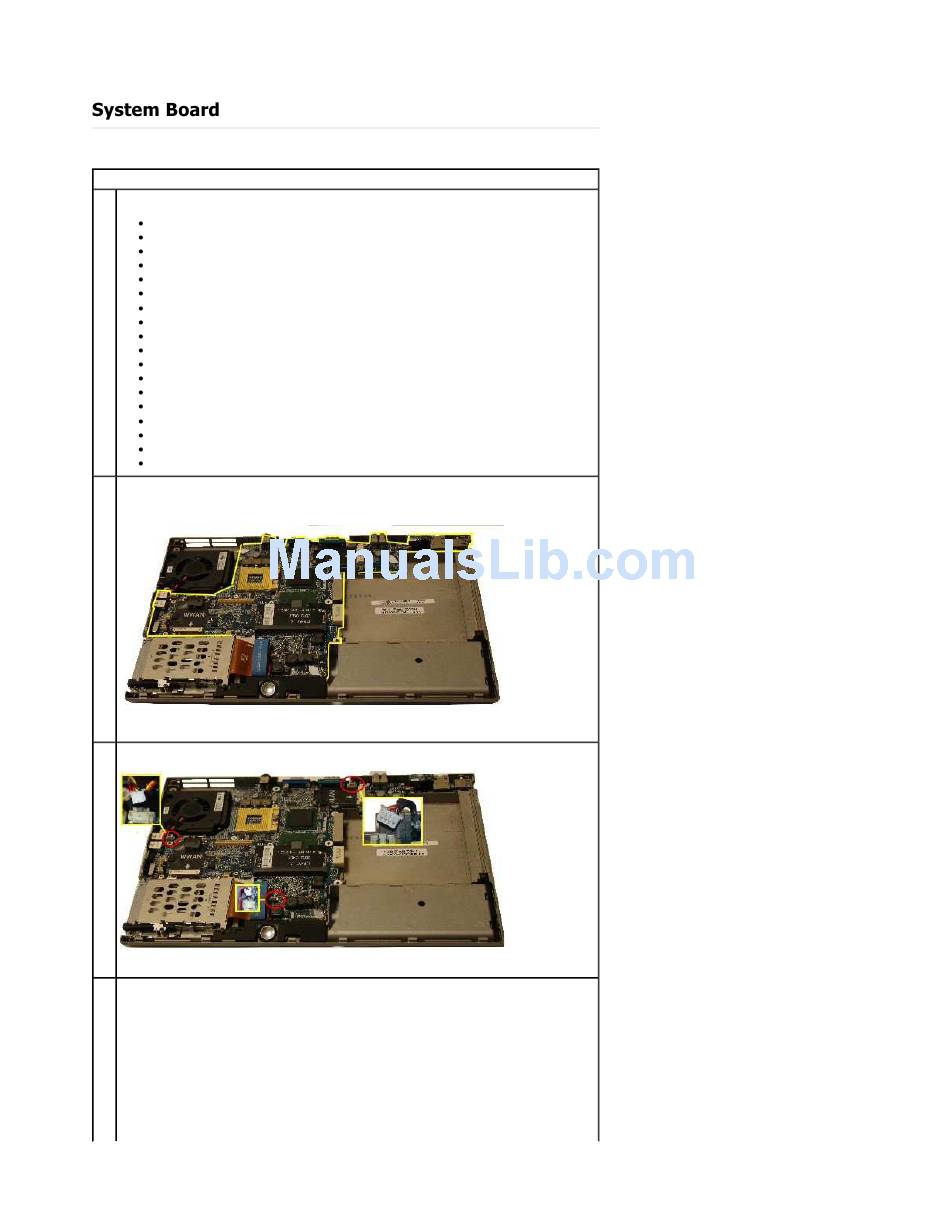

The following table outlines the steps for removing and replacing the system board.

Removing and Replacing the System Board

1. Before removing the system board:
Remove the AC power.
Remove the battery.
Remove the phone SIM.
Remove the memory DIMM
Remove the optical drive.
Remove the hard drive.
Remove the hinge cover.
Remove the keyboard.
Remove the Bluetooth® card.
Remove the coin battery.
Remove the memory DIMM
Remove the WWAN card.
Remove the WLAN card.
Remove the LCD.
Remove the palm rest assembly.
Remove the modem daughter
Remove the processor.
Remove the fan.
2. Locate the system board.
3. Dissconnect the speaker cable and modem cables from the system board.
4.
Disconnect the card cage cable from the system board.
