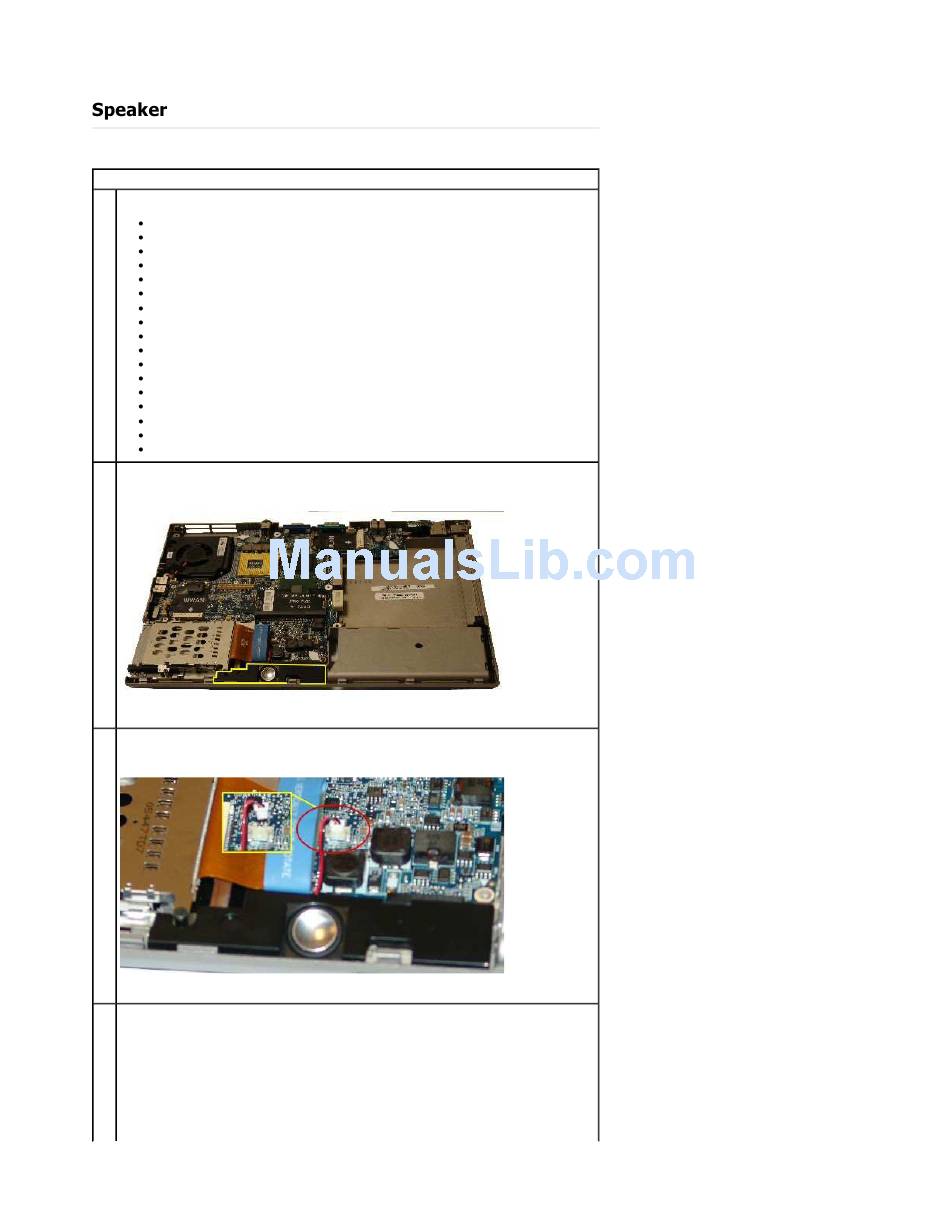

The following table outlines the steps for removing and replacing the speaker for the Latitude™ D620.

Removing and Replacing the Speaker

1. Before removing the speaker:
Remove the AC power.
Remove the battery.
Remove the phone SIM.
Remove the memory DIMM
Remove the optical drive.
Remove the hard drive.
Remove the hinge cover.
Remove the keyboard.
Remove the Bluetooth® card.
Remove the coin battery.
Remove the memory DIMM
Remove the WWAN card.
Remove the WLAN card.
Remove the LCD.
Remove the palm rest assembly.
Remove the modem daughter
Remove the processor.
2. Locate the speaker.
3. Disconnect the speaker cable from the system board.
4.
Lift the speaker from the system.
