The following table outlines the steps for removing and replacing the fan for the Latitude™ D620.

Removing and Replacing the Fan

1. Before removing the fan:
Remove the AC power.
Remove the battery.
Remove the phone SIM.
Remove the memory DIMM
Remove the optical drive.
Remove the hard drive.
Remove the hinge cover.
Remove the keyboard.
Remove the Bluetooth® card.
Remove the coin battery.
Remove the memory DIMM
Remove the WWAN card.
Remove the WLAN card.
Remove the LCD.
Remove the palm rest assembly.
Remove the modem daughter
Remove the processor.
Remove the system board.

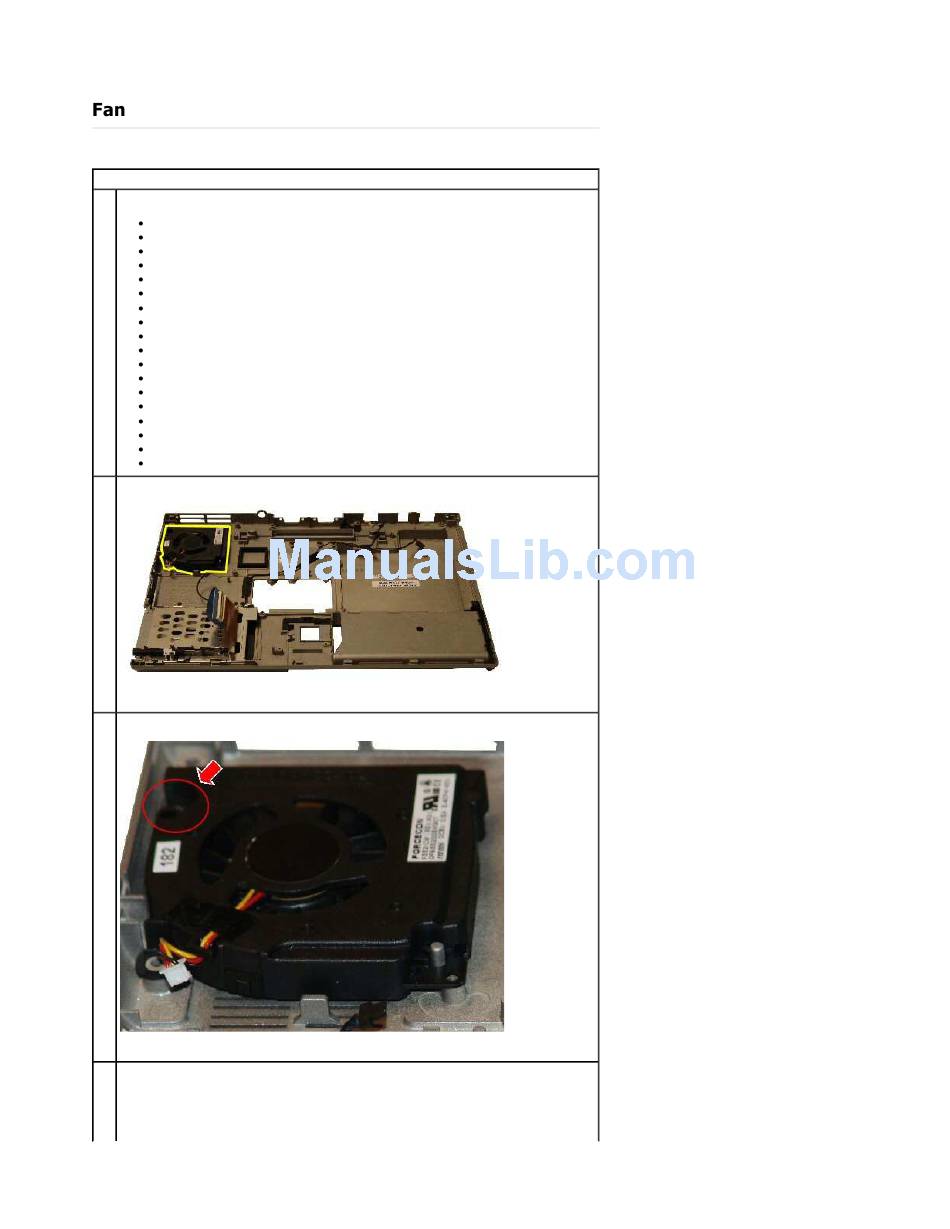

2. Locate the system fan.
3. Remove the screw securing the fan to the system board.
4.
Lift the fan from the system.
https://dcse.dell.com/SelfStudy/Foundations_2007/Foundations_2007_Portables/Portable...
B.
A.
card.
