Electromechanical road barrier

EN - Instructions and warnings for installation and use

Table of Contents

Need help?

Do you have a question about the M-Bar and is the answer not in the manual?

Questions and answers

Summary of Contents for Nice M-Bar

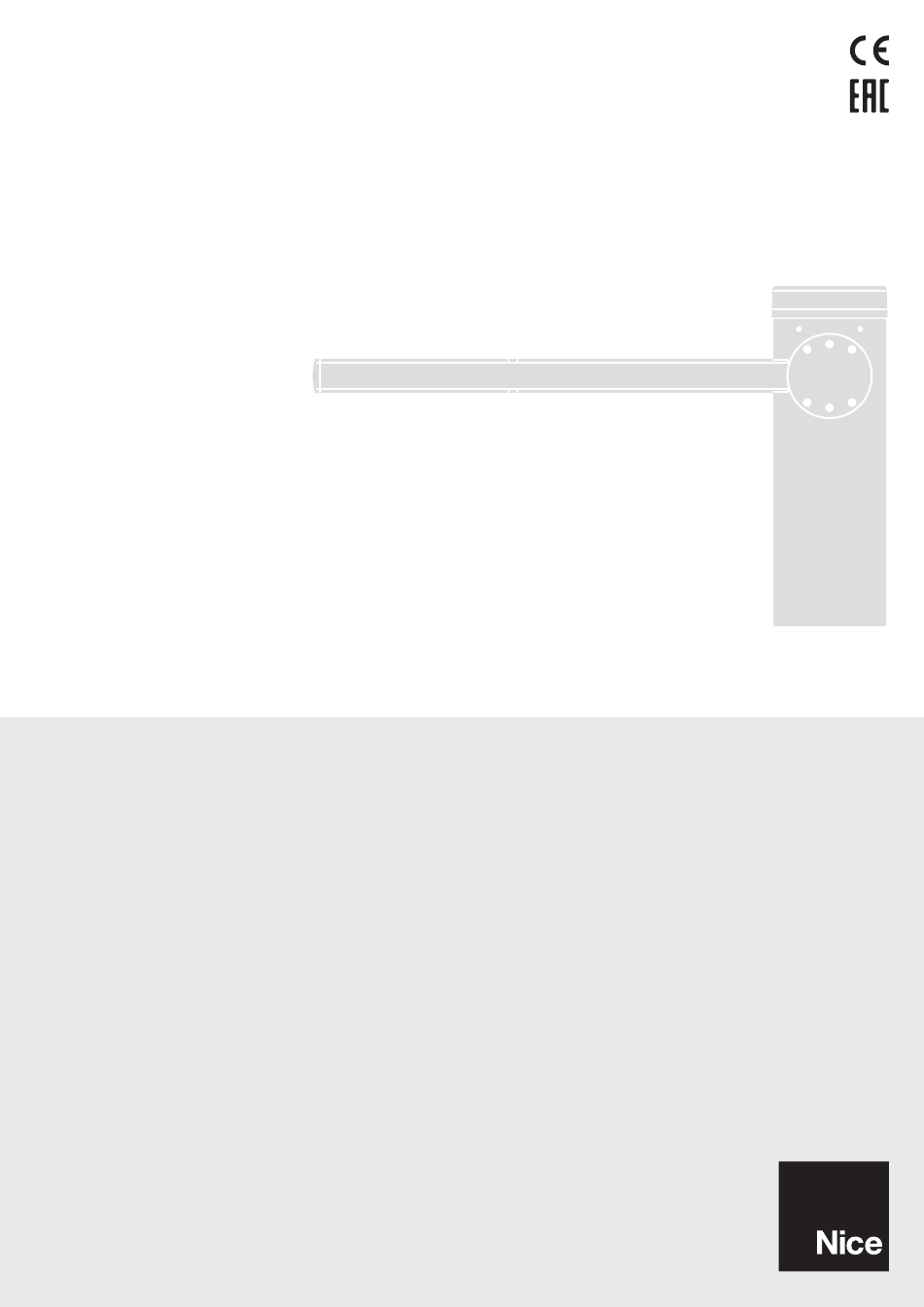

Page 1 M/L-Bar M3BAR M5BAR M7BAR L9BAR Electromechanical road barrier EN - Instructions and warnings for installation and use...
Page 2: Table Of Contents
GENERAL SAFETY WARNINGS AND ENGLISH PRECAUTIONS Translation of the original instructions in full GENERAL SAFETY WARNINGS AND PRECAUTIONS GENERAL WARNINGS WARNING! Important safety instructions. Observe all the CONTENTS instructions as improper installation may cause serious damages. GENERAL SAFETY WARNINGS AND PRECAUTIONS ..2 General warnings .
Page 3: Installation Warnings
The control unit is configured for being connected to the various devices and supports to detect any imbalances and signs of wear or belonging to the Nice Opera System and to the “Solemyo” solar power damage. Do not use the product if it needs to be repaired or system (see paragraph “Connecting the Solemyo solar energy sys-...
Page 4: List Of Constituent Parts
INSTALLATION taking into account standard conditions of use, correct installation and maintenance in accordance with the Nice S.p.A. technical manual. This PRE-INSTALLATION CHECKS figure can be influenced by variable factors, such as climatic and envi- ronmental conditions, which can significantly affect performance.
Page 5: Product Identification And Overall Dimensions
Table 2 M-BAR PRODUCT DURABILITY 464,5 mm Severity index M3BAR M5BAR M7BAR L9BAR Joint for boom (XBA11) Speed level 4 Level 3 speed Manoeuvre interrupted by photocell > 10% Manoeuvre interrupted by Stop > 10% Mobile support (WA12) Force equal to 5 or 6...
Page 6: Pre-Installation Works
PRE-INSTALLATION WORKS The figure shows an example of an automation system, constructed using Nice components. A Photocells These above-mentioned components are positioned according to a typi- B Photocells on column cal standard layout. Using the layout in “Figure 5” as a reference, define...
Page 7: Adjusting The Boom Gate
ADJUSTING THE BOOM GATE – if multiple accessories will be installed: identify in box “B” in “Fig- ure 6” your boom gate version, the length of the boom and, lastly, the The boom gate is factory-set in the following way: type and number of accessories you wish to mount on the boom;...
Page 8: Spring Displacement Or Replacement
3.6.1 SPRING DISPLACEMENT OR REPLACEMENT to loosen the tension of the balancing spring: – for M-BAR loosen the nut (B) and manually turn the spring (C) To shift the spring’s attachment to different holes with respect to the facto- clockwise ry setting, proceed as explained below: –...
Page 9 remove the spring from the drilled plate, located at the base of the with the help of “Figure 6”, identify the new holes to which to at- cubicle tach the two ends of the spring fasten the spring to the drilled plate, located at the base of the cubicle M3BAR-M5BAR M3BAR-M5BAR...
Page 10: Installing The Gearmotor
INSTALLING THE GEARMOTOR Incorrect installation may cause serious physical injury to the person working on the system or to its future users. Before starting to assemble the automation, complete the preliminary checks described in the “Pre-installation checks” paragraph (page 4) and the “Product usage lim- its”...
Page 11: Installing The Boom
Proceed as follows to mount the boom of the gate: insert the two pins (A) through the appropriate housings on the exit motor shaft M-BAR L-BAR insert the aluminium connector (D) into one end of the shortest boom and lock it with the screw provided place the support (B) on the exit motor shaft, orienting it in the “vertical boom”...
Page 12 only for booms made up of two pieces: connect the universal put on the boom cap (H) and secure it with the two screws joint (E) into the free ends of the two booms, aligning the holes cor- position and fit together the two rubber protector caps (I) rectly;...
Page 13: Adjusting The Mechanical Limit Switches
To verify the spring tension, proceed as explained below. For models M-BAR (“Figure 28”) unlock the gearmotor with the relevant key provided (refer to the “Manually unlocking and locking the gearmotor” paragraph) manually move the boom to about half-way (45°) and leave it sta-...
Page 14: Manually Unlocking And Locking The Gearmotor
3.11 MANUALLY UNLOCKING AND LOCKING THE For models L-BAR (“Figure 30”) unlock the gearmotor with the relevant key provided (refer to the GEARMOTOR “Manually unlocking and locking the gearmotor” paragraph) The gearmotor is equipped with a mechanical unlocking system that al- manually move the boom to about half-way (45°) and leave it sta- lows for opening and closing the boom manually.
Page 15: Detection And Adjustment Of Rod Play
To shift the lock cylinder to the opposite side of the gearmotor: To make the adjustment proceed as follows: insert the key (A) and turn it by 180° clockwise remove the upper cover (A) of the boom gate cubicle from inside the cubicle, pull downwards the U-shaped spring (B) that locks the lock cylinder remove the cylinder (C) from the cubicle by pulling it outwards loosen the two screws fastening the cubicle panel...
Page 16: Electrical Connections
turn the screw 90° anticlockwise by (B). To make the electrical connections: remove the upper cover (A) of the boom gate cubicle Once the adjustment has been made, the swing range should be within 0-1° (0-10 cm) maximum. feed the electrical cables inside the cubicle towards the left, starting from the base and moving towards the control unit feed the power supply cable through the cable clamp and connect it to the 3-contact terminal with fuse...
Page 17: Wiring Diagram And Description Of Connections
LED strips R+G XBA40, XBA60, XBA80 can be connected by changing the programming. Output for warning light; it is possible to connect 12 V max 21 W lamps or a Nice LUCY B, MLB or MLBT warning light. FLASH It can also be programmed for other functions (refer to the “PROGRAMMING”...
Page 18: Final Checks And Start-Up
ANTENNA input for connecting the radio receiver antenna; the antenna is incorporated in Nice LUCY B, MLB and MLBT warning lights. Output used to connect the LED warning light board (XBA7) or the LED traffic light board (XBA8). Moreover, the diagnostics flashes INTERNAL LIGHT are carried out.
Page 19: Power Supply Connection
POWER SUPPLY CONNECTION CHECKING THE BOOM’S MOVEMENT Once the learning stage is complete, it is advisable to carry out a few ma- The power supply connections must only be made by noeuvres in order to verify that the boom gate moves properly. qualified and experienced personnel possessing the nec- essary requirements and in full conformity to the laws, regulations and standards in force.
Page 20: Testing And Commissioning
verify the correct operation of all the safety devices present, one- TESTING AND COMMISSIONING by-one (photocells, sensitive edges, etc.) verify the correct operation of the photocells in the following way: – depending on whether one or two pairs of photocells have been TESTING AND COMMISSIONING These are the most important phases of the automation’s construction, as installed, one or two blocks of rigid material (e.g.
Page 21: Commissioning
OFF and that the boom remains stationary when a command is sent. Check the efficiency of the locking system to prevent any un- For all the above-mentioned documentation, Nice – intentional or unauthorised connection. through its technical assistance service – provides the following: instruction manuals and guides.
Page 22: Programming
PROGRAMMING PROGRAMMING The control unit can be programmed by rotating the incremental encoder (A), pressing the same encoder vertically and using the display (B). Refer to “Table 6” for the complete list of parameters and the relative selectable values. PROGRAMMING THE CONTROL UNIT Turning clockwise or anti-clockwise the encoder (A) allows for scrolling on the display (B) the parameters shown in “Table 6”, which identify the Level 1 menu.
Page 23 PROGRAMMING PARAMETERS Level I Level II Meaning Effect after pressing the encoder (A) parameters parameters “Close always” excluded O F F Standard: when the power supply is restored after a blackout, if the boom is not closed, a closing manoeuvre starts immediately, preceded by a pre- Always Close flashing period equal to the “Close always”...
Page 24 PROGRAMMING PARAMETERS Level I Level II Meaning Effect after pressing the encoder (A) parameters parameters 1 (min) Opening manoeuvre slowdown 2 (med) S L O speed 3 (max) 1 (min) Closing manoeuvre slowdown 2 (med) S L C speed 3 (max) Opening slowdown position 0°...
Page 25 PROGRAMMING PARAMETERS Level I Level II Meaning Effect after pressing the encoder (A) parameters parameters No command Step-by-step Open Close High-priority Step-by-Step: it moves the automation even if it is locked by a lock command Opens and locks the automation Closes and locks the automation Courtesy light timer: causes the courtesy light to switch on, which then switches off once the courtesy light time has elapsed...
Page 26 PROGRAMMING PARAMETERS Level I Level II Meaning Effect after pressing the encoder (A) parameters parameters No command Step-by-step Open Close High-priority Step-by-Step: it moves the automation even if it is locked by a lock command Opens and locks the automation Closes and locks the automation Courtesy light timer: causes the courtesy light to switch on, which then switches off once the courtesy light time has elapsed...
Page 27 PROGRAMMING PARAMETERS Level I Level II Meaning Effect after pressing the encoder (A) parameters parameters Opens, with open-open sequence (normally open – NA – input) Loop 2 input function Closes, with close-close sequence (normally open – NA – input) L O 2 Photo (normally closed –...
Page 28 PROGRAMMING PARAMETERS Level I Level II Meaning Effect after pressing the encoder (A) parameters parameters 24 V warning light Boom closed Boom open Internal Light output function Courtesy light Consult “Table 7” for information on O U 4 Red traffic light the single parameters Green traffic light Unidirectional traffic light...
Page 29 ADDENDUM - PARAMETER LEGEND Parameter Description Activates the output when command 1 is sent with the transmitter, the command sent to the control unit is ignored Radio channel 1 Output active 24 V DC / max 10 W Activates the output when command 2 is sent with the transmitter, the command sent to the control unit is ignored Radio channel 2 Output active 24 V DC / max 10 W Activates the output when command 3 is sent with the transmitter, the command sent to the control unit is ignored...
Page 30: Special Functions
SPECIAL FUNCTIONS 7.2.3 VERIFYING THE NUMBER OF MANOEUVRES COMPLETED The number of manoeuvres completed can be checked through the con- 7.2.1 “MOVE ANYWAY” FUNCTION trol unit (refer to “Table 6”) or with the Oview programmer, under “Main- This function can be used to operate the automation even one or more tenance”.
Page 31: Diagnostics
Table 9 TROUBLESHOOTING Problems Recommended checks The radio transmitter does not control the gate and the LED on the transmitter Check whether the transmitter batteries are exhausted and replace them if necessary. does not light up The radio transmitter does not control the gate but the LED on the transmitter Check whether the transmitter has been memorised correctly in the radio receiver.
Page 32: Display Diagnostics
TERMINAL LEDS ON THE CONTROL UNIT Status Meaning Possible solution CLOSE LED Everything normal CLOSE input not active. Intervention of the CLOSE input This is normal if the device connected to the CLOSE input is actually active. HP SbS LED Everything normal Hp SbS input not active.
Page 33: Signals With The Display
8.3.2 SIGNALS WITH THE DISPLAY In case of anomalies, the display can visualise an error code both during the boom’s movement and when the manoeuvre stops. The following table shows the error codes that can be displayed. Table 14 SIGNALS WITH THE DISPLAY Error code Description Cause...
Page 34: Signalling Through Warning Light
SIGNALLING THROUGH WARNING LIGHT If a warning light (or a LED warning light is used – optional accessory) is connected to the control unit’s FLASH output, it will flash once a second during manoeuvres. If any anomalies occur, the warning light will emit shorter flashes which are repeated twice with a 1-second pause between each pair. The same signals are also emitted by the LED warning light (optional accessory).
Page 35: Bluebus
9.2.1 BLUEBUS BlueBUS is a technology that allows the connections of compatible devic- es to be made with only two conductors over which both power supply and communication signals pass. All devices are connected in parallel on 1 I I the same 2 BlueBUS conductors and without the need to respect any F O T O polarity;...
Page 36: Optical Device For Sensitive Edge
9.2.5 OPTICAL DEVICE FOR SENSITIVE EDGE Perform the following operations to install two motors in MASTER and The control unit's BlueBus terminal can also be used to hook up an ad- SLAVE mode: dressed working device FT210B using the operating logic given in “Table install the two motors 17”...
Page 37 EPMB/EPLB 24V 4W Bluebus Bluebus Bluebus FLASH Light Flash OGI Bluebus Stop Open Close HPSbS MASTER LOOP1 LOOP2 24V 4W FLASH Light Flash OGI Bluebus Stop Open Close HPSbS LOOP1 SLAVE LOOP2 ENGLISH – 37...
Page 38: Connecting An Sm-Type Radio Receiver
CONNECTING AN SM-TYPE RADIO RECEIVER Table 19 The control unit has a slot for mounting radio receivers with SM connector OXI / OXIFM /OXIT / OXITFM IN MODE 2 EXTENDED (optional accessories) belonging to the SMXI, OXI, etc. families, which can Command Description be used to remotely control the control unit through transmitters that inter-...
Page 39: Connecting And Installing The Emergency Power Supply
CONNECTING AND INSTALLING THE To install the interface: EMERGENCY POWER SUPPLY remove the cover (A) The electrical connection of the battery to the control unit must be made only after completing all the installation and programming stages, as the battery is an emergency power supply.
Page 40 Precautions for making the loops: – install the loop close to the boom gate – the inductive loop's electric cables must be routed separately from the other cables in the boom gate circuit (power, acces- sories, etc.) – if the inductive loops are connected to different boom gates, they must be located at least 1 m apart from each other –...
Page 41: Connecting The Solemyo Solar Energy System
CONNECTING THE SOLEMYO SOLAR ENERGY SYSTEM 5 mm - 8 mm When the automation is powered by the “Solemyo” sys- tem, IT MUST NOT BE POWERED by the electricity grid at the same time. 30-50 mm For information on the “Solemyo” system, consult the rel- evant instruction manual.
Page 42: Connecting The Boom Lights (Optional Accessory)
CONNECTING THE BOOM LIGHTS (OPTIONAL if necessary, shorten the lights cable by cutting it only in one of the ACCESSORY) points indicated by an appropriate mark. After cutting the cable, the cap of the cut end must be shifted to close the new end To perform the installation: insert the wiring cable first through the hole on the boom support put the boom in the vertical position...
Page 43: Connecting The Warning Light Or Traffic Light
– The XBA40, XBA60 and XBA80 strips have red and green lights insert the boom and lock it with its cover, by vigorously tightening and must be connected to the LIGHT and OGI outputs as per the 6 screws and being careful not to pinch the cable. Figure 68.
Page 44: Product Maintenance
PRODUCT MAINTENANCE PRODUCT DISPOSAL PRODUCT MAINTENANCE PRODUCT DISPOSAL The automation must be subjected to regular maintenance to keep its This product is an integral part of the operator and must safety level constant and guarantee long-lasting operation; to this aim, therefore be disposed of with it.
Page 45: Technical Specifications
TECHNICAL SPECIFICATIONS All technical specifications stated in this section refer to an ambient temperature of 20°C (± 5°C). Nice S.p.A. reserves the right to apply modifications to the product at any time when deemed necessary, without altering its functions and intended use.
Page 46: Declaration Of Conformity
DECLARATION OF CONFORMITY Nice S.p.A. manufacturer of this equipment declares that it conforms to Directive 2014/53/EU (RED) and Directive 2006/42/EC (Machinery) according to Annex II, Part 1, Section B. The instruction manual and the complete text of the EU Declaration of Conformity can be found at: www.niceforyou.com;...
Page 47 NOTES ENGLISH – 47...
Page 48: Instructions And Warnings
INSTRUCTIONS AND WARNINGS Before using the automation system for the first time, ask the installer to Safety devices out of order: the automation can also be used when explain the origin of residual risks and take a few minutes and read this one or more safety devices are defective or out of order.
Page 49 Unlocking and manual movement To unlock the device: insert the key (A) and turn it by 180° towards the left or right the gate leaf can now be moved manually to the desired position. To lock the device: turn the key (A) back to its initial position remove the key.
Page 50: Maintenance Schedule (To Be Handed To The End User)
This “Maintenance register” refers to the following automation: model: M-BAR and L9BAR - serial no....- installed on ....- at ..............The following attached documents are part of the Maintenance Register: 1) - Maintenance schedule 2) - ....................
Page 51 Table 25 TABLE ON INTERVENTIONS Description of intervention performed Signature of Date Signature of Owner (Description of checks, adjustments, repairs, modifications, etc.) Technician All the phases envisaged in the maintenance schedule have been carried out ___YES ___NO ENGLISH – 51...
