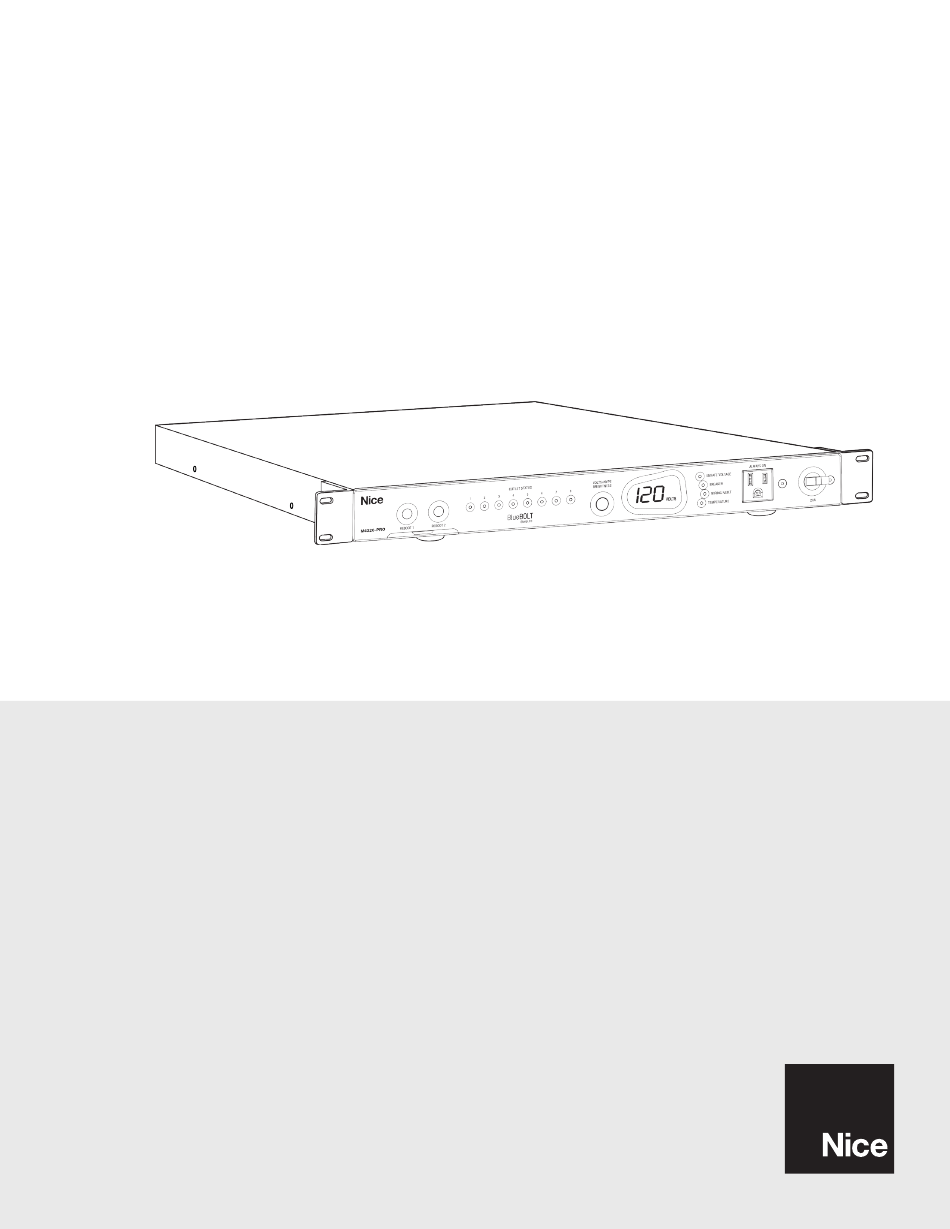

  • Page 1 M4320-PRO Power Management with Control System User Guide...

  • Page 2: Table Of Contents

    M4320-PRO Specifications . . . . . . . . . . . . . . . . . . .

  • Page 3: Introduction

    Introduction Thank you for purchasing a Nice M4320-PRO Power Management with control system interactive functionality, and congratulations on your choice . The M4320-PRO features Nice’s revolutionary AVM (Automatic Voltage Monitoring) circuit, and our exclusive Linear Filtering Technology (LiFT) . Together, these technologies comprise precisely what our customers have come to expect from Nice: uncompromised AC protection and purification.

  • Page 4: Features Descriptions

    . The circuitry utilizes auto-resetting PTCRs and solid state SIDACtors® for reliability and unsurpassed protection . The clamping level of the M4320-PRO’s telephone protector is 260 volts . This will allow typical ring voltage (90-130VAC) and operating battery voltage (-48DC) to pass through the circuit and still protect the modem in your satellite receiver from damage .

  • Page 5: Important Safety Instructions

    . CAUTION - Contains Always On Receptacles . To reduce risk of shock - Disconnect M4320-PRO from power source before servicing any equipment 13. Where the power cord is used as the main disconnect device, the disconnect connected to M4320-PRO .

  • Page 6: Preset Profile Information

    Preset Profile Information PROFILE 1 (P1) DEFAULT OUTLET SEQUENCING (preset profile P1, by outlet #s): Start up: 1→(1 sec)→2→(1 sec)→3→(1 sec)→4→(1 sec)→5→(1 sec)→6→(1 sec)→7→(5 sec)→8 With switching on and off Shut down: 8→(5 sec)→7→(5 sec)→6→(1 sec)→5→(1 sec)→4→(1 sec)→3→(1 sec)→2→(1 sec)→1 BREAKER or holding both REBOOT buttons.

  • Page 7: Rear Panel Features Overview

    Outlets 8 and 7 - 20A 1. Power inlet: 4. CATV/SAT 1 & 2: M4320-PRO (120 Vac/20 A, IEC 320 C20 do not remove steel retention clip . Universal voltage (±75V clamping), <0 .5 dB @ 0 Hz - 2 .2 GHz . (20A plug) 5.

  • Page 8: Getting Setup For Bluebolt

    BlueBOLT-CV3 card . M4320-PRO . Step 3. Power on M4320-PRO . (NOTE: adding a device to your Step 2: Connect the coaxial line or telephone DSL line from the wall, to home/office network may require a power cycle of the router/ M4320- PRO signal line pass-through protection circuits .

  • Page 9: Identify Connected Equipment

    Identify Connected Equipment Use this diagram to write in what pieces of equipment are plugged into each outlet for an easy reference . Please note that the outlets start at No . 8 on the left . The outlet indicator lights on the front panel are numbered 1 through 8 left to right . Outlets CATV/SAT ALWAYS ON...

  • Page 10: Telnet/ Protocol Specification

    Telnet/ Protocol Specification Command Set/Status Messaging The following commands are applicable when communicating with your M4320-PRO via direct connection . OVERVIEW POWER CYCLE COMMAND USING TELNET PROTOCOL WITH BlueBOLT-CV3 The purpose of this document is to outline the command set used to #CYCLE Turns an outlet off, then delays before turning it back on .
  • Page 11 3. CONTROLLER COMMANDS Turns on all outlets . Turn on is immediate with no delay . The following are commands sent by the controlling equipment to the M4320-PRO unit . 3 .4 .1 Command: !ALL_ON<CR> NOTE: Responses are only transmitted if unsolicited feedback (§3 .9) is 3 .4 .2...
  • Page 12 Rs-232 and Telnet Command Set / Protocol Specifications (continued) 3.7 SET REBOOT DELAY 3.11 RESET FACTORY SETTINGS Assign the delay between the last outlet turning off and the beginning of the turn on se- Resets all of the custom configuration settings (i.e. triggers, delays, feedback mode, quence in a reboot cycle .
  • Page 13 TRIGGER FOR 6 = BUTTON_1, GREEN_BUTTON TRIGGER FOR 7 = DC_TRIGGER, GREEN_BUTTON 4 .0 .2 Response: $PANAMAX<CR> TRIGGER FOR 8 = DC_TRIGGER, GREEN_BUTTON $M4320-PRO<CR> $FIRMWARE: revision<CR> DELAY FOR 1 = 1,90 DELAY FOR 2 = 10,80 DELAY FOR 3 = 20,70 4.1 FAULT STATUS...
  • Page 14 RS-232 and Telnet Command Set / Protocol Specifications (Continued) 4.5 VOLTAGE 5. Responses and Warning Messages Request line voltage . If unsolicited feedback is enabled, the following warning messages will be transmitted under the conditions outlined in their description . 4 .5 .1 Query: ?VOLTAGE<CR>...

  • Page 15: M4320-Pro Specifications

    High Current Outlets ........2 Outlets Total Current Capacity ....M4320-PRO 20 A (2400W)

  • Page 16: Fcc Notice

    Contacting Customer Service All equipment being returned for repair must have a Return Authorization (RA) number . To get an RA number, please call the Nice Service Department . Before returning any equipment for repair, please be sure that it is adequately packed and cushioned against damage in shipment, and that it is insured . We suggest that you save the original packaging and use it to ship the product for servicing .
