Halsey Taylor Owners Manual
Fully-Recessed Barrier-Free Water Cooler
RC
INSTALLER
To assure you install these models easily and correctly,
PLEASE READ THESE SIMPLE INSTRUCTIONS BEFORE STARTING THE
INSTALLATION. CHECK YOUR INSTALLATION FOR COMPLIANCE WITH PLUMB-
ING, ELECTRICAL, AND OTHER APPLICABLE CODES. After
installation, leave these instructions with the Water Cooler for future reference.
ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON
THE GROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. TO WATER
LINES IS A COMMON PROCEDURE. THIS GROUNDING MAY BE IN THE BUILDING OR MAY OCCUR AWAY
FROM THE BUILDING. THIS GROUNDING CAN CAUSE ELECTRICAL FEEDBACK INTO A FOUNTAIN, CREATING
AN ELECTROLYSIS WHICH CAUSES A METALLIC TASTE OR AN INCREASE IN THE METAL CONTENT OF THE
WATER. THIS CONDITION IS AVOIDABLE BY USING THE PROPER MATERIALS AS INDICATED. ANY DRAIN
FITTINGS PROVIDED BY THE INSTALLER SHOULD BE MADE OF PLASTIC TO ELECTRICALLY ISOLATE THE
FOUNTAIN FROM THE BUILDING PLUMBING SYSTEM.
RC8AQ*A RC12AQ*A
IMPORTANT
IMPORTANT! INSTALLER PLEASE NOTE.

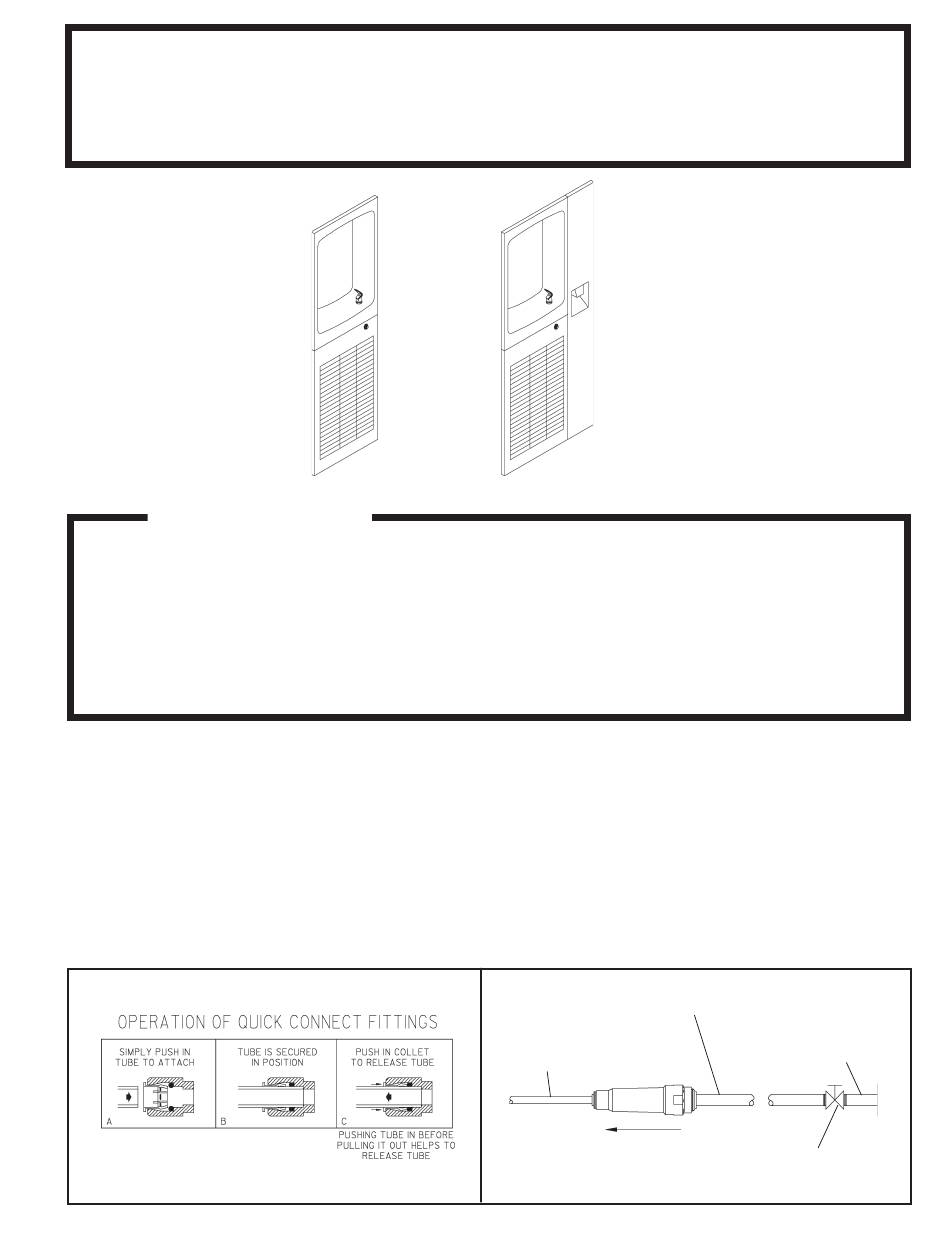

FIG. 1
RC W/CUP DISPENSER
3/8" O.D. UNPLATED COPPER TUBE CONNECT COLD WATER SUPPLY
1/4" O.D. TUBE WATER INLET TO COOLER
NOTE: WATER FLOW DIRECTION
PAGE 1
BUILDING WATER INLET
SERVICE STOP
(NOT FURNISHED)
FIG. 2
97884C (Rev. B - 3/08)
