Halsey Taylor HVR8BL*1D Owner's Manual
  1. Manuals
  2. Brands
  3. Halsey Taylor Manuals
  4. Water Dispenser
  5. HVR8BL*1D
  6. Owner's manual

Halsey Taylor HVR8BL*1D Owner's Manual

Hvrbl series barrier-free water coolers
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

Uses HFC-134A refrigerant
Usa refrigerante HFC-134A
Utilise du fluide frigorigéne HFC-134A
63
46
See Fig. 4
61
16
49
21
37
57
49
FIG. 1
HVR8BL SHOWN

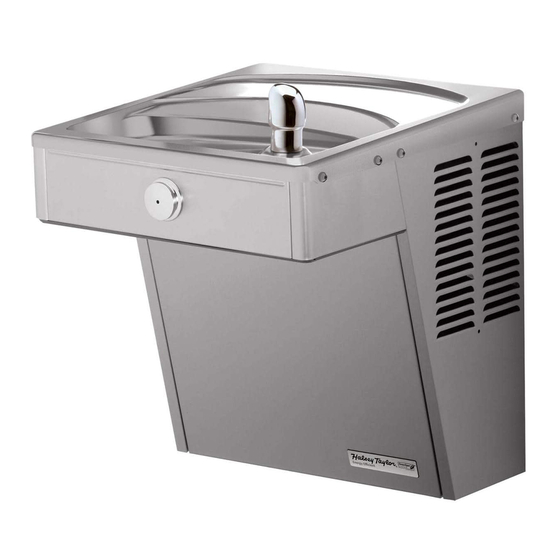

HVR8BL(R)*1D
MANUAL DEL PROPIETARIO HALSEY TAYLOR
MANUEL DE L'UTILISATION HALSEY TAYLOR
TM
HVRBL
Series Barrier-Free Water Coolers
TM
HVRBL
La Barrera de la serie Liberta Agua Coolers
TM
HVRBL
Coolers d'Eau de Barrière-Libère de feuilleton
16
25
38 (BL)
39 (BLR)
35
40 (BL)
41 (BLR)
HVR8BLWF*1D
OWNERS MANUAL
60
10
55
1, 4
See Fig. 4
See Fig. 4
25
47
8
49
21
53
2, 3, 5
Page 1
20
6
42, 43
7, 22, 45
64
46
16
1, 4
See Fig. 7
49
21
58
21
19
36
11
35
49
9, 12, 13
98953C (Rev. A - 3/12)
