Halsey Taylor HAC-Q Series Quick Start Manual

Halsey Taylor HAC-Q Series Quick Start Manual

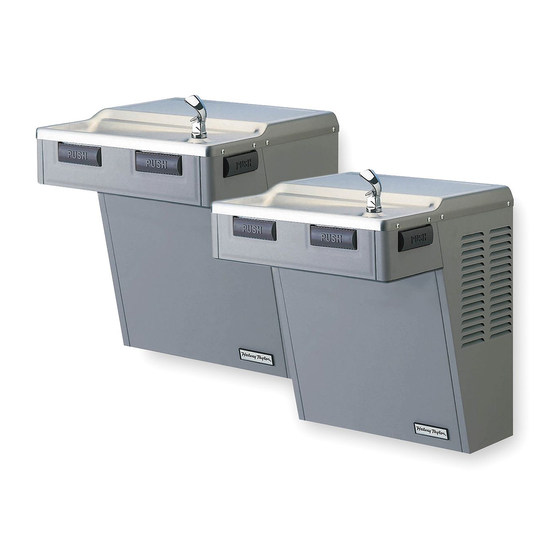

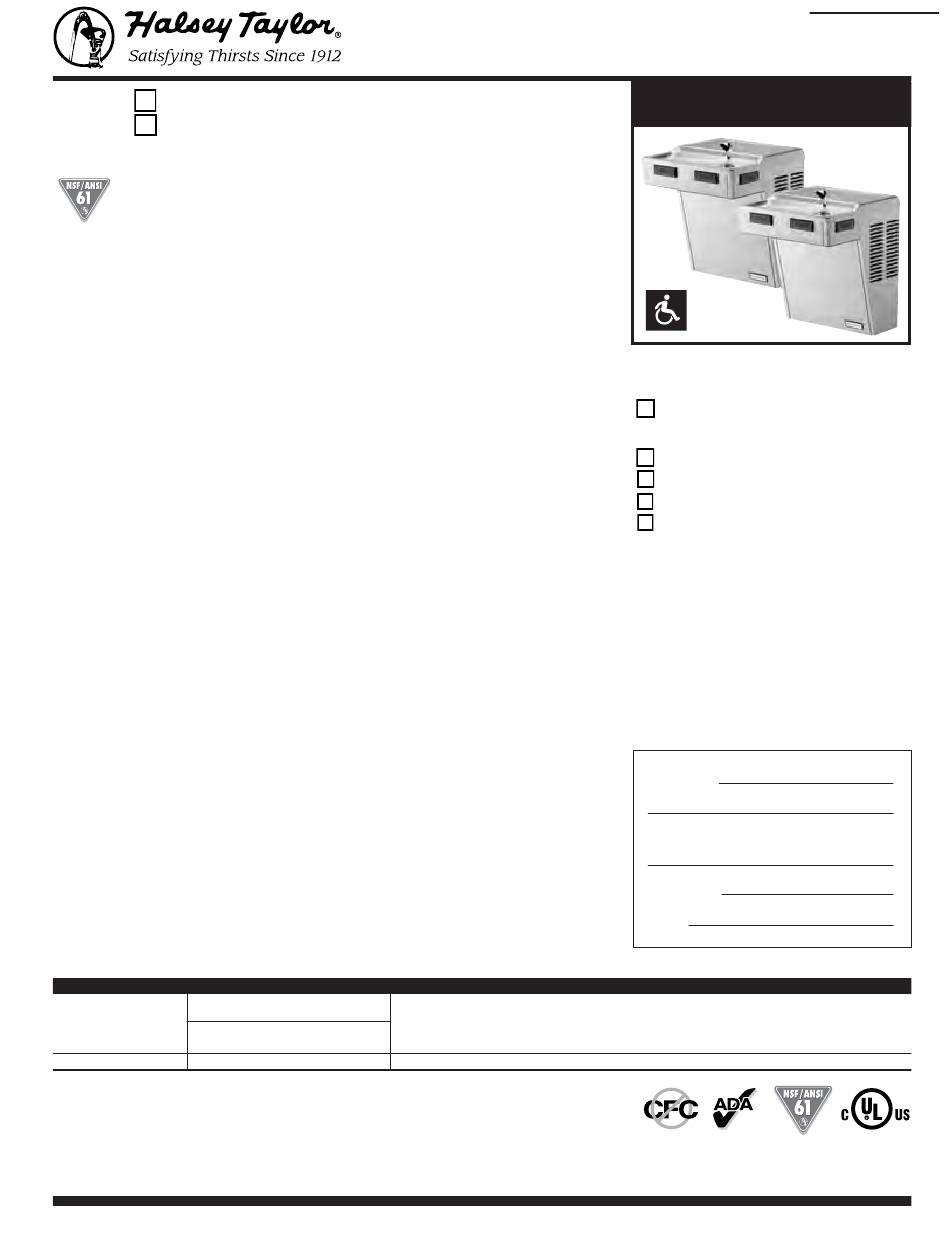

Bi-level barrier-free cooler

Advertisement

Quick Links

MODEL:
HAC8FSBL-Q ADA
HACFSDBL-L/R ADA
This water cooler is certified to
NSF/ANSI 61 and 372.
GENERAL
Self-contained, electric refrigerated, bi-level
wall-mounted water cooler easily accessible
to physically challenged individuals. When
properly installed, unit meets state and federal
requirements for both children or adults as
defined by the Americans with Disabilities Act.
Unit is certified to NSF/ANSI 61 & 372 and meets
requirements of the Safe Drinking Water Act.
Unit provides 50° F water at 80° F inlet water and
90° F ambient.
CABINET
Stainless steel panels resist wear and corrosion.
Durable satin finish helps hide water spots and
fingerprints.
COOLER TOP
Non-corrosive stainless steel cooler top, no.
300 series with satin finish resists stains and
corrosion and is easy to maintain. Anti-splash
ridge reduces splatter. Contoured to insure
proper drainage.
BUBBLER
Exclusive one-piece, chrome-plated two-
stream mound-building bubbler with
non-removable anti-squirt feature and integral
hood insures a satisfying drink of water.
PUSH BAR ACTUATION MECHANISM
Self-closing, light-touch push bars on front and
sides with raised letters for the visually
impaired.
AUTOMATIC STREAM HEIGHT REGULATOR
Self-closing assembly is located inside unit to
prevent tampering. Unit resists corrosion and
liming. A constant stream height is automatically
maintained under line pressures that vary from
20 to 105 psi.
INLET STRAINER
Easily cleaned in-line strainer screen traps
particles of 140 microns or larger before they
enter the waterway.
TEMPERATURE CONTROL
Positive sensing thermostat for controlling
temperature of storage tank water. Factory set
at 50° F Adjustable ± 5° F.
HAC-Q BARRIER-FREE SERIES
M
o
d
l e
N
. o
70°F
HAC8FSBL-Q ADA
9
7 .
*
With projector service and tap water at 80° F
UL listed and complies with ARI Standard 1010
Trap and service stop not included
STORAGE TANK
Stainless steel evaporator/storage tank for
long life. Waterways are certified to NSF/ANSI
61, far exceeding the requirements of the
Safe Drinking Water Act.
REFRIGERATION SYSTEM
Hermetically sealed, positive start compressor
with lifetime lubrication and built-in overload
protection, efficient capillary sizing, large
capacity dryer-strainer, and self-lubricated fan
cools copper/aluminum condenser. System
uses R134A refrigerant. Protected by Halsey
Taylor's Limited 5 Year Warranty.
VENTILATION
Insure proper ventilation by maintaining
6" (152mm) minimum clearance from
cabinet louvers to wall.
SUGGESTED SPECIFICATIONS
Shall deliver 8.0 GPH of 50° F water at 90° F
ambient and 80° F inlet water. Shall have
stainless steel basin with removable drain
strainer. Bubbler shall be two-stream, mound
building type. Separate valve and automatic
stream regulator shall be mounted within
cabinet. Refrigeration system shall employ high
efficiency, positive start compressor using
R134A, stainless steel tank with totally
encapsulated insulation and be controlled by
positive sensing thermostat. Shall have front
and side push-bar water controls with raised
lettering for the visually impaired. Cooler shall
comply with ANSI 117:1 and ADA for visual
and motion disabilities. The manufacturer shall
certify the unit to meet the requirements of
NSF/ANSI 61 & 372 and the Safe Drinking Water
Act. Unit complies with ARI Standard 1010.
NOTE: Continued product improvement
makes specifications subject to change
without notice. See Halsey Taylor website
for most current spec sheet.
G
P
H
C
a
p
a
i c
y t
C
o
o
e l
d
o t
5
° 0
* F
Ambient Air Temp
80°F
90°F
100°F
8
8 .
8
0 .
7
2 .
HALSEY TAYLOR, 2222 CAMDEN COURT, OAK BROOK, ILLINOIS 60523
B
a
s
e
. F
. L
R
a
e t
A
m
p
s
C
a
. p
8
0 .
4
0 .
halseytaylor.com
Bi-Level
Barrier-Free Cooler
Standard Finish Is Platinum Vinyl
Optional Finish (at additional cost)
Stainless Steel
Optional Accessories (extra cost)
Glass Filler Kit
Water Filter
Easy-Flex
Bubbler
Cane Touch Apron
JOB NAME:
ENGINEER/CONTRACTOR NAME:
APPROVAL:
DATE:
S
h
p i
p
n i
g
R
W
e
g i
t h
W
l
. b
U
9
2
3
A15 /
a
e t
d
a
t t
s
a
g
e
7
0
8-2012
