Halsey Taylor HACFSCWSD1F Owner's Manual

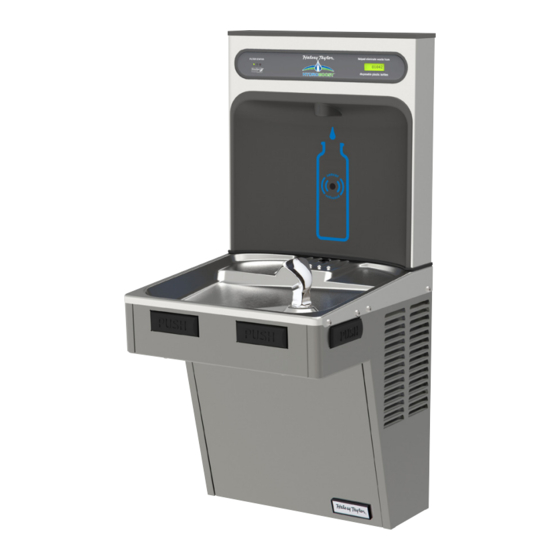

Hydroboost bottle filling station and cooler
Hide thumbs

Advertisement

Table of Contents

HACFSCWSD*1F
HACFSCWSDNF*1F
HAC8FSCWSQ*1F, *3F
HAC8FSCWSNFQ*1F, *2F
Owners Manual
MANUAL DEL PROPIETARIO HALSEY TAYLOR
MANUEL DE L'UTILISATION HALSEY TAYLOR
Hydroboost Bottle Filling Station and Cooler
Estación de llenado de botella Hydroboost y enfriador
Station de remplissage de bouteille Hydroboost et refroidisseur
Page 1
1000001728 (Rev. B - 11/14)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HACFSCWSD1F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Halsey Taylor HACFSCWSD1F

Summary of Contents for Halsey Taylor HACFSCWSD1F

  • Page 1 HACFSCWSD*1F HACFSCWSDNF*1F HAC8FSCWSQ*1F, *3F HAC8FSCWSNFQ*1F, *2F Owners Manual MANUAL DEL PROPIETARIO HALSEY TAYLOR MANUEL DE L'UTILISATION HALSEY TAYLOR Hydroboost Bottle Filling Station and Cooler Estación de llenado de botella Hydroboost y enfriador Station de remplissage de bouteille Hydroboost et refroidisseur Page 1 1000001728 (Rev.
  • Page 2 HACFSCWSD*1F HACFSCWSDNF*1F HAC8FSCWSQ*1F, *3F HAC8FSCWSNFQ*1F, *2F Pictured is unit only without bottle filler. Uses HFC-134A refrigerant Usa refrigerante HFC-134A Utilise du fluide frigorigéne HFC-134A See Fig. 5 for Push Bar Mechanism Vea la Fig. 5 para el Mechanisme de la Barra de Empuje Voir Fig.
  • Page 3 HACFSCWSD*1F HACFSCWSDNF*1F HAC8FSCWSQ*1F, *3F HAC8FSCWSNFQ*1F, *2F Fig. 2 Page 3 1000001728 (Rev. B - 11/14)
  • Page 4 HACFSCWSD*1F HACFSCWSDNF*1F HAC8FSCWSQ*1F, *3F HAC8FSCWSNFQ*1F, *2F IMPORTANT IMPORTANTE MPORTANT ALL SERVICE TO BE PERFORMED BY AN TODO EL SERVICIO DEBERÁ SER EFECTUADO POR TOUT ENTRETIEN DOIT ÊTRE EFFECTUÉ PAR AUTHORIZED SERVICE PERSON UNA PERSONA DE SERVICIO AUTORIZADA UN REPRÉSENTANT AUTORISÉ HANGER BRACKETS &...
  • Page 5 HACFSCWSD*1F HACFSCWSDNF*1F HAC8FSCWSQ*1F, *3F HAC8FSCWSNFQ*1F, *2F PUSH BAR MECHANISM MECANISMO DE BARRA DE EMPUJE MÉCANISME DU BOUTON-POUSSOIR 26 B Fig. 5 LEGEND/LEYENDA/LÉGENDE Water Valve Mechanism - ADJUSTMENT PROCEDURE: A) Note: Water flow direction - Turn adjustment screw “Counter-Clockwise” until water flow Nota: Dirección del flujo de agua from bubbler starts. Note: Direction de l’eau - Turn adjustment screw “Clockwise” until water flow stops, THEN turn B) Adjust this screw to eliminate mechanism an additional 1/2 turn.
  • Page 6 HACFSCWSD*1F HACFSCWSDNF*1F HAC8FSCWSQ*1F, *3F HAC8FSCWSNFQ*1F, *2F 7/16” BOLT HOLES FOR MOUNTING FASTENING UNIT TO WALL SCREWS TOP COVER UNIT CENTER LINE Fig. 6 Fig. 7 BRACKET, WASHERS, Fig. 9 Fig. 8 & SCREWS Bottle Filler Installation Instructions 1) Remove two (2) mounting screws with 5/32” Allen wrench holding top cover to Bottle Filler (See Fig. 7). Remove top cover. Note do not discard mounting screws, they will be needed to reinstall top cover.
  • Page 7 HACFSCWSD*1F HACFSCWSDNF*1F HAC8FSCWSQ*1F, *3F HAC8FSCWSNFQ*1F, *2F BF11 PROGRAM SETTING THE CONTROL BOARD VERIFY CONTROL BOARD SOFTWARE Continued from below: 1) To verify the software program of the control board the unit will 2) When the display changes to “SETTINGS”, depress the button again. need to be shut down and restarted.
  • Page 8 HACFSCWSD*1F HACFSCWSDNF*1F HAC8FSCWSQ*1F, *3F HAC8FSCWSNFQ*1F, *2F WALL MOUNTING PLATE BOTTLE FILLING UNIT Fig. 10 Fig. 11 Fig. 12 220V/240V Detail 220V PARTS LIST/ 220V LISTA DE PIEZAS/ 220V LISTE DES PIÈCES ITEM PART NO. DESCRIPTION DESCRIPCIÓN DESCRIPTION Compressor Serv. Pak (220v/50Hz) Compresor Paquete de servicio (220v/50Hz) Kit d’Entretien du Compresseur (220v/50Hz) 36085C...
  • Page 9 HACFSCWSD*1F HACFSCWSDNF*1F HAC8FSCWSQ*1F, *3F HAC8FSCWSNFQ*1F, *2F Superseal Fitting Assembly Supersello Accesorio de Montaje Superseal Montage Assemblage Note: Screw the locknut hand tight to seal. Nota: Apriete la mano de la contratuerca para sellar. Remarque : Visser la main de l'écrou de blocage pour assurer l'étanchéité.
  • Page 10 HACFSCWSD*1F HACFSCWSDNF*1F HAC8FSCWSQ*1F, *3F HAC8FSCWSNFQ*1F, *2F PARTS LIST/ LISTA DE PIEZAS/ LISTE DES PIÈCES ITEM PART NO DESCRIPTION DESCRIPCIÓN DESCRIPTION 22897C Panel - Bottom Dispenser Panel- Dispensador Inferior Panneau - Distributeur Inférieur 23003C Bracket - Regulator Mounting Fijador-Montaje Regulador Support - Montage du Régleur 28551C Hanger Bracket Fijador de Suspensión...

This manual is also suitable for:

Hac8fscwsq1fHacfscwsdnfHac8fscwsq3fHac8fscwsnfq1fHacfscwsdn1fHac8fscwsnfq2f
