IKEA VAPPEBY Manual

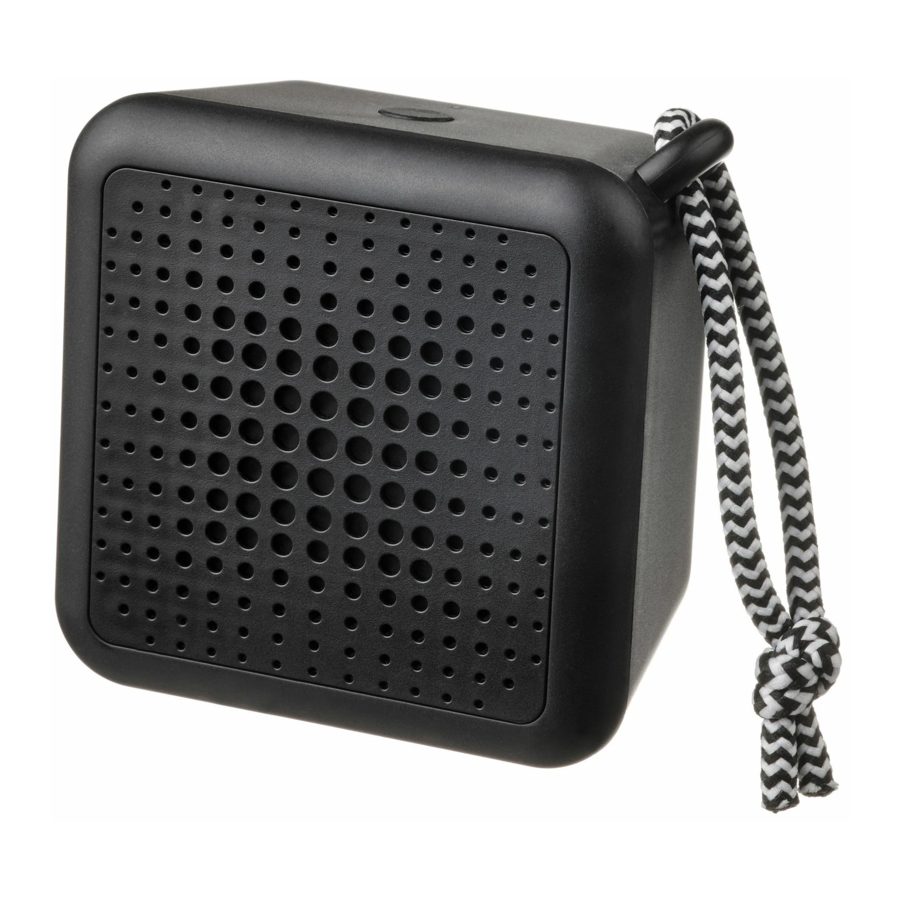

Overview

1. Speaker Power On/Off button and play/pause.
2. LED status light.
3. USB-C port

LED status

Flashing white: Bluetooth is pairing.
Solid white: Paired to a device.
Flashing red: Low battery.
Solid red: Charging (when speaker is off).

Getting started

Connect a USB-C cable to the input port and the other end to a power source (a computer or a power supply) to charge your product before the first use and whenever the LED is flashing red to indicate a low battery. When charging, the LED light will remain solid red if the speaker is off and will turn off when the battery is fully charged.

Recommended power supply:
5.0 VDC, 1.0 A (Not included)

Speaker functions

Turning On/Off
Press and hold the Power button (1) to turn your speaker On/Off.

Play/Pause
A short press on the Power button will play or pause music.

Auto-off
If the speaker is not paired to any device, it will turn off automatically after 5 minutes. If the speaker is paired but no music is playing, it will turn off automatically after 20 minutes.

Bluetooth pairing

To pair your speaker to a source device, the speaker must be in Bluetooth pairing mode. To pair, open the Bluetooth setting on your source device and connect to "VAPPEBY Portable".
The speaker will enter Bluetooth pairing mode automatically the first time it is powered on, and any time that a previously paired device cannot be found.

Factory reset

To remove previous Bluetooth pairings, reset the speaker by pressing and holding the button (1) for more than 5 seconds. Successful factory reset is confirmed by the LED flashing red and with an audible sound. Alternatively, go to the Bluetooth menu on your source device and unpair.

Stereo pairing

Two VAPPEBY Portables can be stereo paired:

1. Make sure both speakers are in Bluetooth search mode.

2. Double-press the power button on one of the speakers. A sound will confirm successful stereo pairing.

3. Connect to the source device by following the Bluetooth pairing instructions.


Care instructions

To clean the product, wipe with a soft moistened cloth. Use another soft, dry cloth to wipe dry.
Note!
Never use abrasive cleaners or chemical solvents as this can damage the product.

Product servicing

Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.
Disassembly of the product and removal of battery is only intended at the end of the product's life cycle and shall be performed by a skilled professional.

Technical data

Model Name: VAPPEBY PT
Type Number: E2133
Battery capacity: 3.6 V, 2600 mAh, 9 Wh, Li-ion
Input: 5.0V DC, 1.0A, 5.0W USB-C
Estimated battery play time at 50% volume and Bluetooth mode: 80 hrs
Operating temperatures: 0°C to 40°C (32°F to 104°F)
Operating humidity: 0 to 95% RH
Operating Frequency: 2400-2483.5 MHz
Radio output power: 4 dBm (EIRP)
IP Class: IP67

Good to know

• The speaker is suitable for outdoor use, protected against dust and water according to IP67.
• If the speaker's front protection is soaked with water, acoustic performance may be affected temporarily, but it will go back to normal once the water is gone.
• Devices and the battery may get warm during charging. This is completely normal, and they will gradually cool down again after they are fully charged.
• Charging time may vary based on the device's battery capacity, charge level, the age of the battery and the temperature in the surrounding area.
• USB cable length and quality influences charging speed and performance.
• Storage temperature: -20°C to 25°C (-4°F to 77°F).
• Unplug the product from the power supply before cleaning and when it is not in use.
• The battery should not be left discharged for a longer period.
• The battery should not be charged while in contact with flammable materials like textiles.

• Too high volume can damage your hearing.
• Do not charge the product when it is wet.
• Only charge the product indoors.
• Do not use a defective power supply when charging the product.
• Never use a damaged or faulty USB cable for charging since this can damage the product and your devices.
• Never install the product in a confined space.
• Always leave a space of at least 5 mm around the product for ventilation.
• Do not modify, disassemble, open, drop, crush, puncture or shred the battery.
• Do not expose the battery to rain or water.
• Risk of fires and burns. Do not heat above 60°C (140°F) and do not incinerate the battery.
• Keep the battery away from open flame or sunlight to prevent heat build-up.
• Keep the battery away from high voltage devices.
• This product is not a toy, ensure that all persons who use this product read and follow these warnings and instructions.
• Do not short-circuit the battery or its cells.
• In the event of a cell leaking, do not allow the liquid to come in contact with the skin or eyes.

Manufacturer: IKEA of Sweden AB
Address: Box 702, SE-343 81 Älmhult, SWEDEN
