VAPPEBY

Need help?

Do you have a question about the VAPPEBY and is the answer not in the manual?

Questions and answers

Carmel

June 8, 2025

How to know the Vappeby speaker is in bluetooth search mode In order to pair two speakers?

Summary of Contents for IKEA VAPPEBY

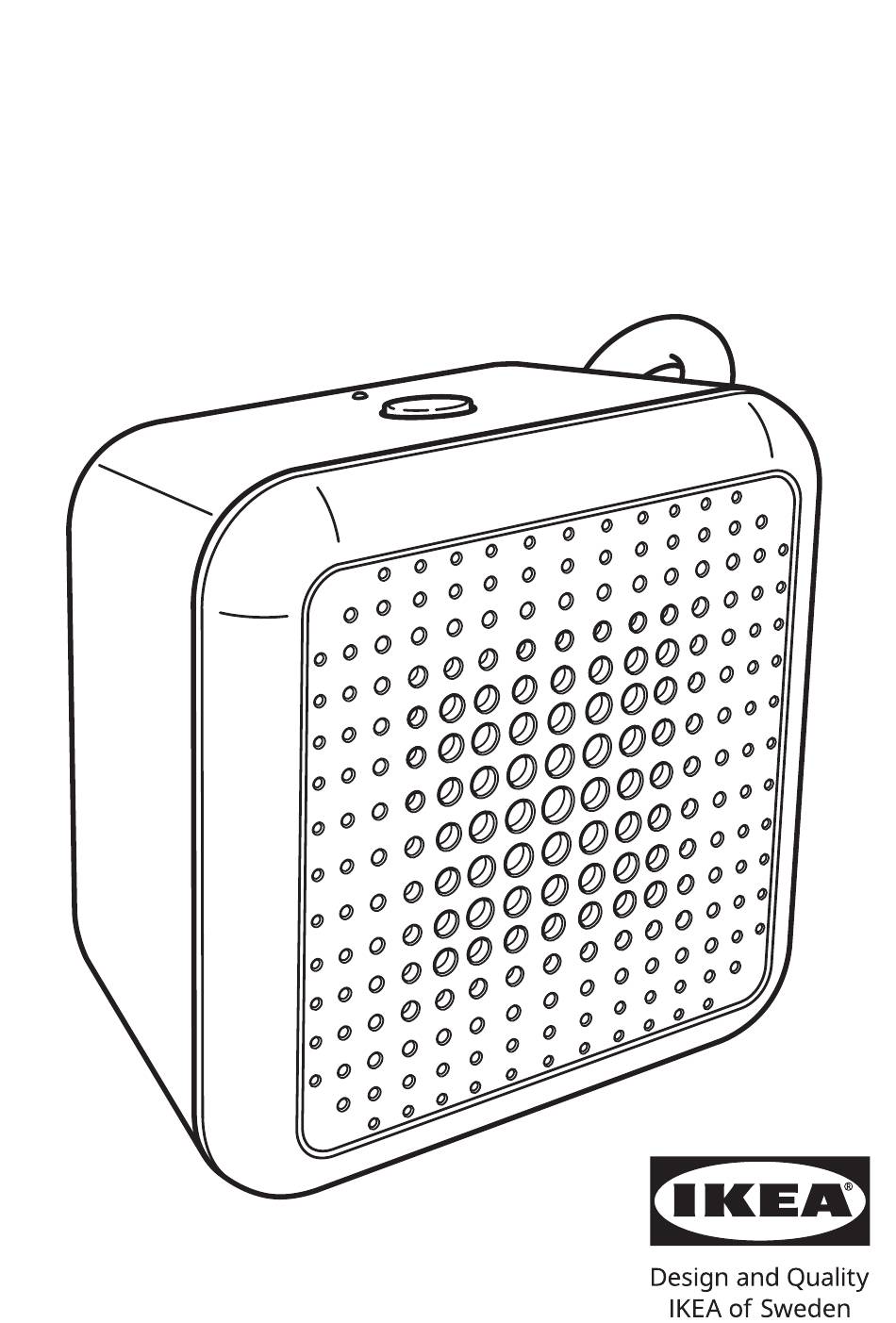

Page 1 VAPPEBY...
Page 3 5VDC Min 1A, SELV 5VDC Min 1A, SELV...
Page 4 >1.5 sec Play/Pause <1.5 sec...
Page 7 Stereo pairing...
Page 9 English ‫ע‬ ‫ברית‬ 1 5...
Page 10 English 1. Speaker Power On/Off button and play/pause. 2. LED status light. 3. USB-C port LED status Flashing white: Bluetooth is pairing. Solid white: Paired to a device. Flashing red: Low battery. Solid red: Charging (when speaker is off).
Page 11 Getting started Connect a USB-C cable to the input port and the other end to a power source (a computer or a power supply) to charge your product before the first use and whenever the LED is flashing red to indicate a low battery. When charging, the LED light will remain solid red if the speaker is off and will turn off when the battery is fully charged. Recommended power supply: 5.0 VDC, 1.0 A (Not included) Speaker functions Turning On/Off Press and hold the Power button (1) to turn your speaker On/Off. Play/Pause A short press on the Power button will play or pause music. Auto-off If the speaker is not paired to any device, it will turn off automatically after 5 minutes. If the speaker is paired but no music is playing, it will turn off automatically after 20 minutes. Bluetooth pairing To pair your speaker to a source device, the speaker must be in Bluetooth pairing mode. To pair, open the Bluetooth setting on your source device and connect to "VAPPEBY Portable". The speaker will enter Bluetooth pairing mode automatically the first time it is powered on, and any time that a previously paired device cannot be found. Factory reset To remove previous Bluetooth pairings, reset the speaker by pressing and holding the button (1) for more than 5 seconds. Successful factory reset is confirmed by the LED flashing red and with an audible sound. Alternatively, go to the Bluetooth menu on your source device and unpair.
Page 12 Stereo pairing: Two VAPPEBY Portables can be stereo paired: 1. M ake sure both speakers are in Bluetooth search mode. 2. D ouble-press the power button on one of the speakers. A sound will confirm successful stereo pairing. 3. C onnect to the source device by following the Bluetooth pairing instructions. Good to know • The speaker is suitable for outdoor use, protected against dust and water according to IP67. • If the speaker’s front protection is soaked with water, acoustic performance may be affected temporarily, but it will go back to normal once the water is gone. • Devices and the battery may get warm during charging. This is completely normal, and they will gradually cool down again after they are fully charged. • Charging time may vary based on the device’s battery capacity, charge level, the age of the battery and the temperature in the surrounding area. • USB cable length and quality influences charging speed and performance. • Storage temperature: -20 °C to 25 °C (-4 °F to 77 °F). • Unplug the product from the power supply before cleaning and when it is not in use.
Page 13 • Do not modify, disassemble, open, drop, crush, puncture or shred the battery. • Do not expose the battery to rain or water. • Risk of fires and burns. Do not heat above 60 °C (140 °F) and do not incinerate the battery. • Keep the battery away from open flame or sunlight to prevent heat build-up. • Keep the battery away from high voltage devices. • This product is not a toy, ensure that all persons who use this product read and follow these warnings and instructions. • Do not short-circuit the battery or its cells. • In the event of a cell leaking, do not allow the liquid to come in contact with the skin or eyes. Save these instructions for future use. Care instructions To clean the product, wipe with a soft moistened cloth. Use another soft, dry cloth to wipe dry. Note! Never use abrasive cleaners or chemical solvents as this can damage the product. Product servicing Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Disassembly of the product and removal of battery is only intended at the end of the product’s life cycle and shall be performed by a skilled professional.
Page 14 Estimated battery play time at 50% volume and Bluetooth mode: 80 hrs Operating temperatures: 0°C to 40°C (32°F to 104°F) Operating humidity: 0 to 95% RH Operating Frequency: 2400-2483.5 MHz Radio output power: 4 dBm (EIRP) IP Class: IP67 Manufacturer: IKEA of Sweden AB Address: Box 702, SE-343 81 Älmhult, SWEDEN The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by IKEA is under license. Other trademarks and trade names are those of their respective owners. The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from...
Page 15 ‫עברית‬ .‫לחצן הפעלה/כיבוי של הרמקול והפעלה/השהיה‬ .‫נורית מצב‬ USB-C ‫יציאת‬ ‫נורית מצב‬ .‫ מבצע שיוך‬Bluetooth :‫לבן מהבהב‬ .‫לבן מלא: משויך להתקן‬ .‫אדום מהבהב: סוללה חלשה‬ .)‫אדום מלא: טוען (כאשר הרמקול כבוי‬...
Page 16 .‫02 דקות‬ Bluetooth ‫שיוך‬ ‫. כדי‬Bluetooth ‫כדי לשייך את הרמקול להתקן מקור, הרמקול חייב להיות במצב שיוך‬ VAPPEBY" ‫ בהתקן המקור והתחבר אל‬Bluetooth-‫לבצע שיוך, פתח את הגדרות ה‬ ."Portable ‫ בהפעלה הראשונה שלו, ובכל פעם‬Bluetooth ‫הרמקול ייכנס אוטומטית למצב שיוך‬ .‫שלא ניתן יהיה למצוא התקן ששויך בעבר‬...
Page 17 :‫שיוך סטריאו‬ :‫ כסטריאו‬VAPPEBY Portable ‫ניתן לשייך שני רמקולי‬ .Bluetooth ‫1. ודא ששני הרמקולים נמצאים במצב חיפוש‬ ‫2. לחץ פעמיים על לחצן ההפעלה באחד הרמקולים. יושמע צליל המאשר כי שיוך‬ .‫הסטריאו הצליח‬ .Bluetooth ‫3. התחבר להתקן המקור על ידי ביצוע הוראות השיוך של‬...
Page 18 .‫יש לשמור הוראות אלה לשימוש עתידי‬ ‫הוראות תחזוקה‬ ‫כדי לנקות את המוצר יש לנגב אותו במטלית לחה ורכה. כדי לייבש, יש להשתמש‬ .‫במטלית נוספת, רכה ויבשה‬ !‫שים לב‬ ‫אין להשתמש בחומרי ניקוי שוחקים או בממסים כימיים, מכיוון שהם עלולים לגרום נזק‬ .‫למוצר‬ ‫טיפול במוצר‬ ‫אל תנסה לתקן מוצר זה בעצמך, מכיוון שפתיחה או הסרה של כיסויים עלולה לחשוף‬ .‫אותך...
Page 19 ‫נתונים טכניים‬ VAPPEBY PT :‫שם דגם‬ E2133 :‫מספר סוג‬ V, 2600 mAh, 9 Wh, Li-ion 3.6 :‫קיבולת סוללה‬ 5.0V DC, 1.0A, 5.0W USB-C :‫כניסה‬ 50% ‫אומדן זמן ההפעלה של הסוללה בעוצמת קול של‬ 80 ‫: שעות‬Bluetooth ‫ובמצב‬ ‫טמפרטורות הפעלה: °0 עד °04 צלזיוס‬ ‫לחות הפעלה: %0 עד %59 לחות יחסית‬ 2400-2483.5 MHz :‫תדר הפעלה‬ )EIRP( 4 dBm :‫החשמל של פלט הרדיו‬...
Page 20 AGREE PAR L´ANRT MAROC Numero d’agrément: MR 00037300 ANRT 2023 Date d’agrément: 14/03/2023 © Inter IKEA Systems B.V. 2022 AA-2365745-4...
