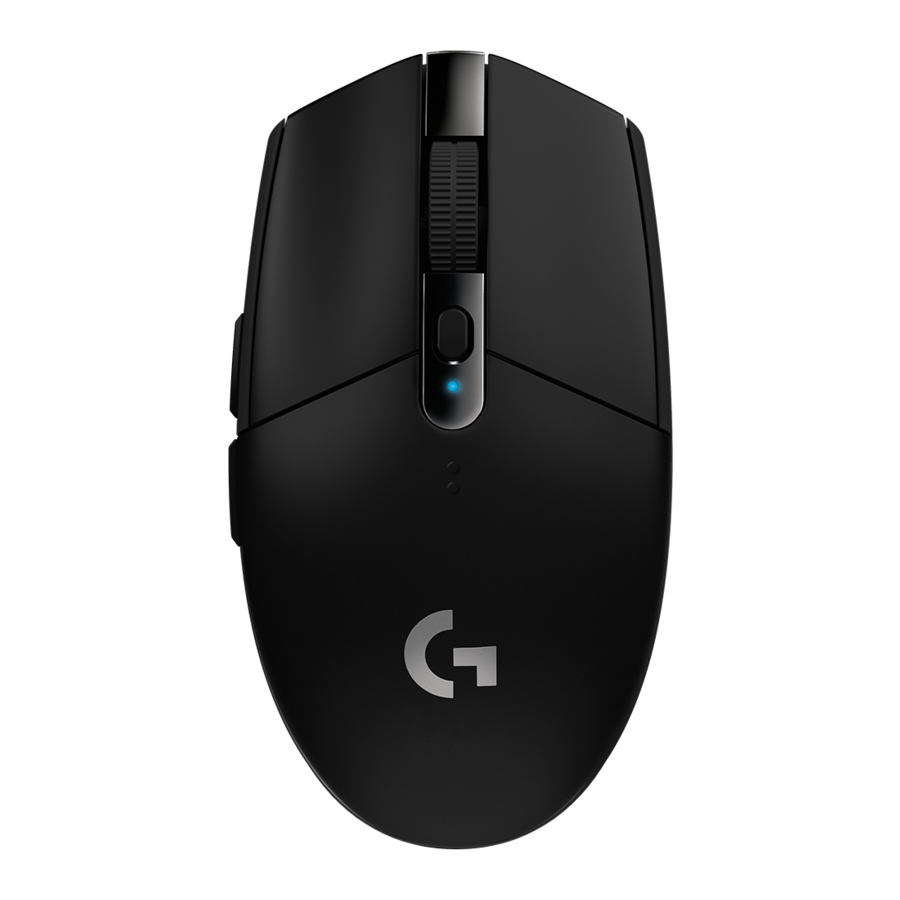

Logitech G LIGHTSPEED G305 Manual

SETUP INSTRUCTIONS

1. Remove the battery cover by pressing the top of the cover and pulling it downwards

2. Remove the receiver

3. Insert the battery

4. Close the battery cover

5. Make sure the mouse is turned on via the switch on the bottom of the mouse

6. Recommended: Insert receiver into the receiver extension cable Insert extension cable into your USB port Alternatively, insert receiver directly into your USB port

7. Download the G HUB software
   logitechG.com/GHUB
   logitechG.com/support


Tips:

• To make your mouse lighter, a lithium AA battery (not included) can be used
• Keep the mouse and receiver 2 m+ away from wireless routers or other 2 4GHz wireless devices to minimize environmental noise
• G304/G305 has a wireless range of up to 10 meters To ensure optimal performance in noisy wireless environments, it is recommended to keep the receiver within 20 cm of the mouse


FULLY PROGRAMMABLE BUTTONS

1. Left (Button 1)
2. Right (Button 2)
3. Wheel click (Button 3)
4. Forward (Button 4)
5. Back (Button 5)
6. DPI cycle (Button 6)
7. On/Off switch (bottom of mouse, not programmable)

LED INDICATOR

Battery life
Flashing red: battery <15%

DPI
Yellow: step 1 - 400 DPI
White: step 2 - 800 DPI (default)
Orange: step 3 - 1600 DPI
Magenta: step 4 - 3200 DPI
Blue: step 5 - 6400 DPI (Step 5 can be activated via software only)

Mode
Cyan: performance mode (default)
Green: endurance mode (can be activated via software only)

Tips:

• Activating endurance mode will degrade tracking performance but improve battery life

G HUB SOFTWARE

You can customize the onboard profile settings using the G HUB. These settings include button programming, report rate, performance/endurance modes and tracking behavior. G304/G305 allows up to 5 DPI settings.
By default, G304/G305 has the following settings:

• DPI: 400/800/1600/3200
• Report rate: 1ms
• Performance mode
