Kärcher A 2204, A 2254 Me Manual

Introduction

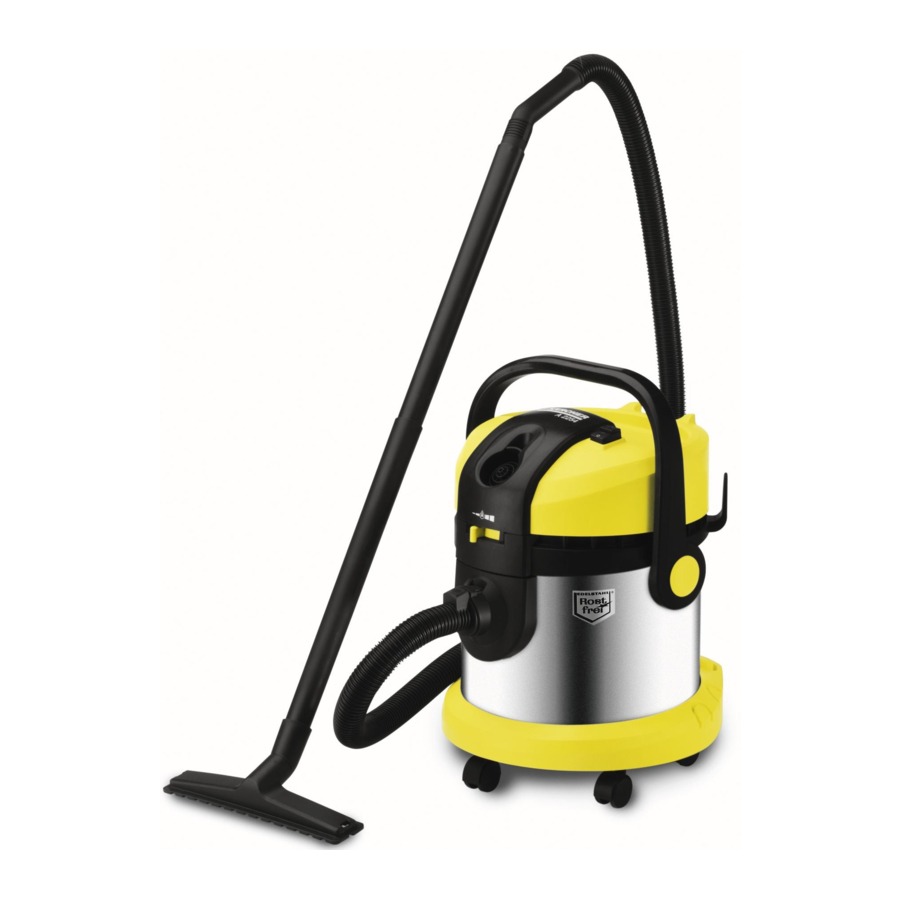

Dear Customer, please note that the operation of the appliances A 2204 (plastic container), A 2254 Me (stainless steel container) is identical.
warningPlease read and comply with these instructions prior to the initial operation of your appliance. Retain these operating instructions for future reference or for subsequent possessors.

Commissioning and operation

Description of the Appliance
„ When unpacking the product, make sure that no accessories are missing and that none of the package contents have been damaged. If you detect any transport damages please contact your dealer. Note: Please refer for figures of the appliance and the operation.
Description of the Appliance

  1. Carrying handle
  2. ON/OFF switch for appliance
  3. Blowing connection
  4. Air regulation of the blowing function
  5. Suction hose connection
  6. Swivel casters
  7. Accessory mount
  8. Storage, power cord
  9. Power cord with plug

Accessories

  1. Suction hose
  2. Suction tubes 2 x 0.5 m
  3. Floor nozzle with hard surface insert
  4. Crevice nozzle
  5. Filter bag
  6. Swivel casters

Start up
Illustration
Remove the motor casing and take accessories out of the container.
Start up

Illustration
You will find the swivel casters in the container. The swivel casters must be mounted on the appliance.

Illustration

Connect accessories.

Illustration

Plug in the main plug.
Switch on the appliance using the ON/OFF switch.

Operations
warning Always work with an inserted cartridge filter - during wet as well as dry vacuum cleaning!

Dry vacuum cleaning
Illustration
For a dust-free disposal of the vacuuming material we recommend to insert the paper filter bag as well. This provides the additional advantage that the cartridge filter will not become contaminated that quickly.
warningWork only with a dry cartridge filter!
Therefore: Always let the cartridge filter dry thoroughly before using it!
warning Added filter bags can burst!
Therefore: Change the filter bag at the appropriate time!
warning Always use a filter bag while sucking in fine dust!
Dry vacuum cleaning

Wet vacuum cleaning

Do not use a filter bag!
Immediately switch the appliance off if foam forms or liquids escape!
Note: If the container is full a float closes the suction opening and the appliance works at a higher speed. Switch off the appliance immediately and empty the container.

Blowing function
Use this function, for example, to blow out leaves or dust from the garage, hobby room, work shop, courtyard or garden.
Illustration
Connect connection hose. Open the slide of the air regulation, and select the desired blowing performance.
Blowing function

Finish operation
Illustration
Empty the container
Turn off the appliance and disconnect the mains plug.
Remove the motor casing and empty the container.

Illustration
Storing the Appliance
Place the accessories in the appropriate compartments at the appliance and store the appliance in a dry room.

Transporting the device
The device is to be fastened properly before transporting the device in the car.

Maintenance and Care

warning Risk of injury
Always switch off the appliance and pull out the mains plug before care and maintenance work.

Cleaning the device

Do not use abrasives, glass or universal cleaners! Never immerse the appliance in water.
Clean the appliance and accessory parts made of plastic with a commercial plastic cleaner.
If required, rinse the container and accessories with water properly and dry them before reuse.

Faults

Decreasing cleaning power

If the cleaning power of the appliance deteriorates please check the following:
Accessories, suction hose or suction tubes are clogged, please remove the obstruction using a stick.
Filter bag is full, insert a new filter bag (for the order no. please see the spare parts list at the end of the present instructions).
The cartridge filter is dirty, clean the filter under running water, allow the filter to dry completely before inserting it again. Replace the filter if damaged (for the order no. please see the spare parts list at the end of the present instructions).

General notes

Customer Service
Our Kärcher branch will be pleased to help you further in the case of questions or faults. (See address on the reverse)

Ordering spare parts and special attachments
At the end of the operating instructions you will find a selected list of spare parts that are often required.
You can procure the spare parts and the attachments from your dealer or your Kärcher branch office. (See address on the reverse)

Specifications

Voltage
1~ 50/60 Hz
220 - 240V
Mains fuse (slow-blow) 10 A
Container capacity 18 l
Water intake, max. 8 l
Output Pnom 1000 W
Output Pmax 1200 W
Mains cable: Type: H05-VV-F2x0,75
Sound pressure level
(EN 60704-2-1)
73 dB(A)

Subject to technical modifications!

Proper use

This appliance has been designed for use in private households and is not intended for commercial use.

  • This device can be used indoors as well as outdoors. Protect the unit from rain. Do not store outside.
  • This device may not be used to suck in ash and soot.
  • Only use accessories and spare parts which have been approved by the manufacturer. The exclusive use of original accessories and original spare parts ensures that the appliance can be operated safely and troublefree.

Any use extending beyond this is not considered as proper use. The manufacturer is not liable for any losses resulting from this; the user alone bears the risk for this.

Safety instructions

  • Allow children and young persons to use the appliance only under supervision.
  • Turn off the appliance while you do not vacuum.
  • Do not use worn out appliance; first put it out of use; then arrange for its proper disposal as scrap.

Electrical connection
The appliance may only be connected to alternating current. The voltage must correspond with the type plate on the appliance.

Risk of electric shock
Never touch the mains plug and the socket with wet hands.
Do not pull the plug from the socket by pulling the mains cable.
Check the power cord with mains plug for damage before every use. If the power cord is damaged, please arrange immediately for the exchange by an authorized customer service or a skilled electrician.
To avoid accidents due to electrical faults we recommend the use of sockets with a line-side current-limiting circuit breaker (max. 30 mA nominal tripping current).

Certain materials may produce explosive vapours or mixtures when agitated by the suction air!
Never vacuum up the following materials:

  • Explosive or combustible gases, liquids and dust particles (reactive dust particles)
  • Reactive metal dust particles (such as aluminium, magnesium, zinc) in combination with highly alkaline or acidic detergents
  • Undiluted, strong acids and alkalies
  • Organic solvents (such as petrol, paint thinners, acetone, heating oil). In addition, these substances may cause the appliance materials to corrode.
