Worx WX176, WX176.1, WX176.2, WX176.3, WX176.9 Manual

PRODUCT SAFETY

burn hazardburn hazard
Read all safety warnings, instructions, illustrations and specifications provided with this power tool.
Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

  1. WORK AREA SAFETY
    1. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
    2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
    3. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
  2. ELECTRICAL SAFETY
    1. shock hazard Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
    2. shock hazard Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
    3. shock hazard Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
    4. shock hazard Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
    5. shock hazard When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
    6. shock hazard If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.Use of an RCD reduces the risk of electric shock.
  3. PERSONAL SAFETY
    1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
    2. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
    3. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
    4. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
    5. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
    6. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
    7. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
    8. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
  4. POWER TOOL USE AND CARE
    1. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
    2. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
    3. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
    4. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
    5. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
    6. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
    7. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
    8. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
  5. Battery tool use and care
    1. burn hazard Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
    2. burn hazard Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

    3. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

    4. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
    5. burn hazard Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
    6. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion.
    7. burn hazard Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.
  6. Service
    1. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
    2. Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

DRILL SAFETY WARNINGS

  1. Safety instructions for all operations
    1. Use auxiliary handle(s). Loss of control can cause personal injury.
    2. shock hazard Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory or fasteners may contact hidden wiring. Cutting accessory or fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
  2. Safety instructions when using long drill bits
    1. Never operate at higher speed than the maximum speed rating of the drill bit. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.
    2. Always start drilling at low speed and with the bit tip in contact with the workpiece. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.
    3. Apply pressure only in direct line with the bit and do not apply excessive pressure. Bits can bend causing breakage or loss of control, resulting in personal injury.

SYMBOLS

warning Warning
Wear ear protection
Wear eye protection
Wear dust mask
Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.
Do not burn
Wear protective gloves
Great torque
Small torque
Wood
Metal
High speed
Low speed
Lock

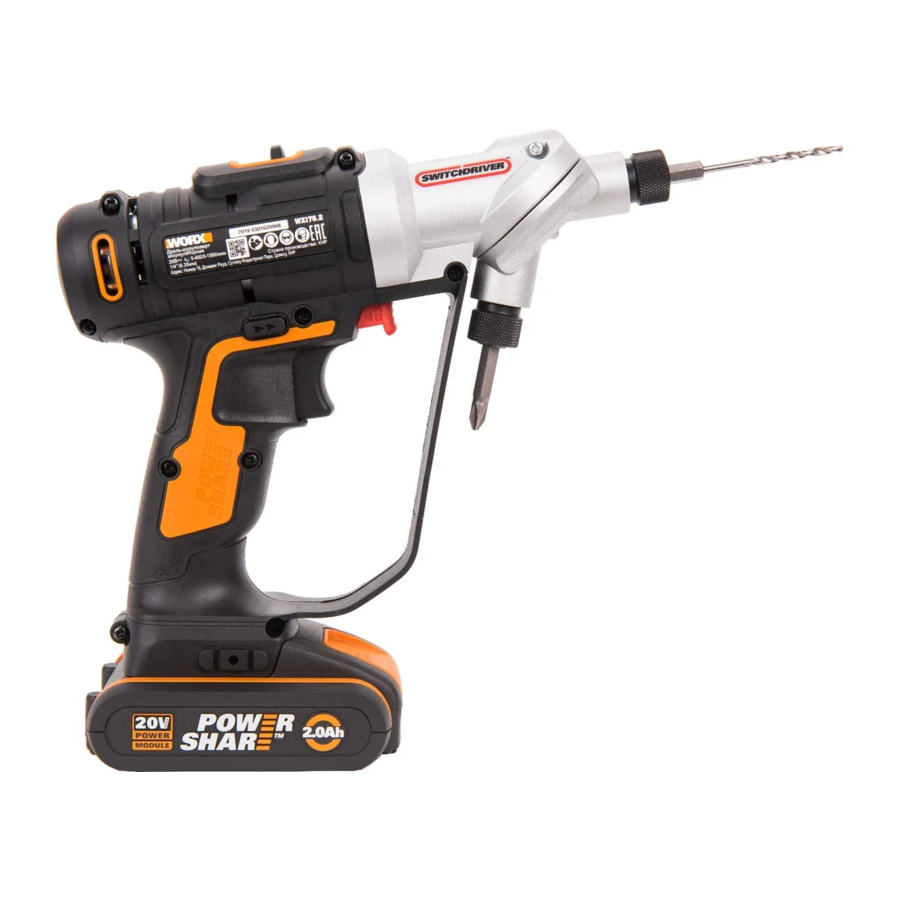

PRODUCT OVERVIEW

PRODUCT OVERVIEW

  1. TWO-SPEED GEAR CONTROL
  2. FORWARD/REVERSE ROTATION CONTROL
  3. ON/OFF SWITCH
  4. SOFT GRIP HANDLE
  5. BATTERY PACK
  6. BATTERY PACK RELEASE BUTTON
  7. ELECTRONIC TORQUE-ADJUSTING DIAL
  8. COLLET LOCKING SLEEVE
  9. DUAL CHUCK RELEASE BUTTON
  10. LED LIGHT

Not all the accessories illustrated or described are included in standard delivery.

TECHNICAL DATA

Type WX176 WX176.1 WX176.2 WX176.3 WX176.9 (1-designation of machinery, representative of Cordless Drill)

WX176 WX176.1
WX176.2
WX176.3
WX176.9
Rated voltage 20V Max*
No load speed 0-400/0-1500/min
Clutch positions 11+1
Max torque 30N.m
Chuck capacity 1/4" ( 6.35mm)
Max. drilling capacity Steel 10mm
Wood 30mm
Machine weight 1.32kg 0.94kg

*Voltage measured without workload. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.

NOISE INFORMATION

A weighted sound pressure LpA: 61.0dB(A)
A weighted sound power LwA: 72.0dB(A)
KPA& KWA 5.0dB (A)
Wear ear protection.

VIBRATION INFORMATION

Vibration total values (triax vector sum) determined according to EN 62841:

Drilling into metal Vibration emission value ah, D = 7.24m/s²
Uncertainty K = 1,5m/s²

The declared vibration total value and the declared noise emission value have been measured in accordance with a standard test method and may be used for comparing one tool with another.
The declared vibration total value and the declared noise emission value may also be used in a preliminary assessment of exposure.


The vibration and noise emissions during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used especially what kind of workpiece is processed dependant on the following examples and other variations on how the tool is used:
How the tool is used and the materials being cut or drilled.
The tool being in good condition and well maintained.
The use of the correct accessory for the tool and ensuring it is sharp and in good condition.
The tightness of the grip on the handles and if any anti vibration and noise accessories are used.
And the tool is being used as intended by its design and these instructions.

This tool may cause hand-arm vibration syndrome if its use is not adequately managed.


To be accurate, an estimation of exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.
Helping to minimise your vibration and noise exposure risk.
Always use sharp chisels, drills and blades. Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate).
If the tool is to be used regularly then invest in anti vibration and noise accessories.
Plan your work schedule to spread any high vibration tool use across a number of days.

ACCESSORIES

WX176 WX176.1
Battery pack (WA3551.1) 1 1
Charger(WA3760) 1 1
Charger(WA3880) / /
16pc Drill bit set (WA1115) 1 /
100pc Drill bit set (WA1114) / 1
WX176.2 WX176.3 WX176.9
Battery pack (WA3551.1) 1 2 /
Charger(WA3760) / / /
Charger(WA3880) 1 1 /
16pc Drill bit set (WA1115) 1 1 1
100pc Drill bit set (WA1114) / / /

We recommend that you purchase your accessories listed in the above list from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

Recommended pilot-hole size for Screws

Ø 3mm 3.5mm 4mm 4.5mm
1.5mm 2mm 2.5mm 3mm
5mm 6mm 8mm
3mm 3.5mm 4mm/5mm

OPERATING INSTRUCTIONS

NOTE: Before using the tool, read the instruction book carefully.

INTENDED USE

The machine is intended for drilling (including pilot hole) in wood, metal and plastic as well as for driving and removing fasteners.

ASSEMBLY AND OPERATION

ACTION FIGURE
BEFORE OPERATION
Removing the Battery Pack ASSEMBLY AND OPERATION - Removing the Battery Pack
See Fig. A1
Charging the Battery Pack
More details can be found in charger's manual
ASSEMBLY AND OPERATION - Charging the Battery Pack
See Fig. A2
Installing the Battery Pack ASSEMBLY AND OPERATION - Installing Battery Pack
See Fig. A3
ASSEMBLY
Inserting the Bits ASSEMBLY AND OPERATION - Inserting the Bits
See Fig. B
Removing the Bits ASSEMBLY AND OPERATION - Removing the Bits
See Fig. C
OPERATION
Rotating the Dual Chuck ASSEMBLY AND OPERATION - Rotating the Dual Chuck
See Fig. D

FORWARD/REVERSE ROTATION CONTROL


Never change the direction of rotation when the chuck is rotating, wait until it has stopped!

See Fig. E1, E2, E3
USING FORWARD/REVERSE ROTATION CONTROL - Example 1
USING FORWARD/REVERSE ROTATION CONTROL - Example 2

TWO-SPEED GEAR CONTROL


To prevent gear damage, always allow the chuck to come to a complete stop before changing gears.

USING TWO-SPEED GEAR CONTROL
See Fig. F
Drilling/driving Torque Setting DRILLING/DRIVING TORQUE SETTING
See Fig. G

ON/OFF SWITCH


Do not operate for long periods at low speed because excess heat will be produced internally.

ASSEMBLY AND OPERATION - On/Off Switch Operation
See Fig. H

USING THE LED LIGHT

(See Fig. H)


To turn on the light, press the On/Off Switch and make sure the Forward/Reverse Rotation Control is on right/left position.
LED lighting increases visibility-great for dark or enclosed area. LED is also a battery capacity indicator.
It will flash when power gets low.
The tool and battery pack are equipped with a protection system. When the LED Light is quickly flashing and turn off, the system will automatically cut off power to the tool to extend battery life. The tool will automatically stop during operation if the tool and/or battery pack are placed under one of the following conditions:

  • Overloaded: The tool is operated in a manner that causes it to draw an abnormally high current. In this situation, release the Trigger Switch on the tool and stop the application that caused the tool to become overloaded. Then pull the Trigger Switch again to restart.
  • Overheated: Under the condition above, if the tool does not start, the Tool and Battery Pack are overheated. In this situation, let the Tool and Battery Pack cool before pulling the Trigger Switch again.
  • Low battery voltage: The remaining Battery capacity is too low and the tool will not operate. In this situation, remove and recharge the Battery Pack.

TROUBLESHOOTING

  1. WHY DOES THE DRILL NOT TURN ON WHEN YOU PRESS THE SWITCH?
    The Forward/Reverse Rotation Control, which is on top of the trigger, is positioned in the lock function. Unlock the Forward/Reverse Rotation Control by putting it into the required rotation position. Push the trigger and the drill will start to rotate.
  2. THE DRILL STOPS BEFORE THE SCREW IS COMPLETELY TIGHTENED. WHY?
    Verify the torque position of the Electronic TorqueAdjusting Dial. Find the Electronic Torque-Adjusting Dial (7) at the end of the soft grip handle. Position 1 is the lowest torque (screw driving force) and position 11 is the highest torque (screw driving force). Position is for drilling operation. Regulate the Electronic Torque-Adjusting Dial to a higher position to reach better result.
  3. REASONS FOR DIFFERENT BATTERY PACK WORKING TIMES

Charging time problems, and having not used a Battery Pack (8) for a prolonged time will reduce the Battery Pack working time. This can be corrected after several charge and discharge operations by charging & working with your drill. Heavy working conditions such as large screws into hard wood will use up the Battery Pack energy faster than lighter working conditions. Do not re-charge your Battery Pack below 0°C(32°F) and above 45°C (113°F)word as this will affect performance.

  1. WHY DRILL BITS CAN NOT BE INSERTED INTO THE COLLET?
    Only 1/4" hex bits will work with this collet. We recommend that you use the dills/bits like those supplied with your Switchdriver.
  2. WHY DOES THE DRILL NOT WORK AFTER ROTATING THE DUAL CHUCK?
    The drill can work only when the Dual Chuck is in right position as shown in Fig. H. When the Dual Chuck reaches proper position, you can hear a "click" sound.

MAINTENANCE

Remove the battery pack from the tool before carrying out any adjustment, servicing or maintenance.
Your tool requires no additional lubrication or maintenance.
There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will not damage your power tool.

FOR BATTERY TOOLS

The ambient temperature range for the use and storage of tool and battery is 0°C-45°C.
The recommended ambient temperature range for the charging system during charging is 0°C-40°C.
