Worx WX255L Manual

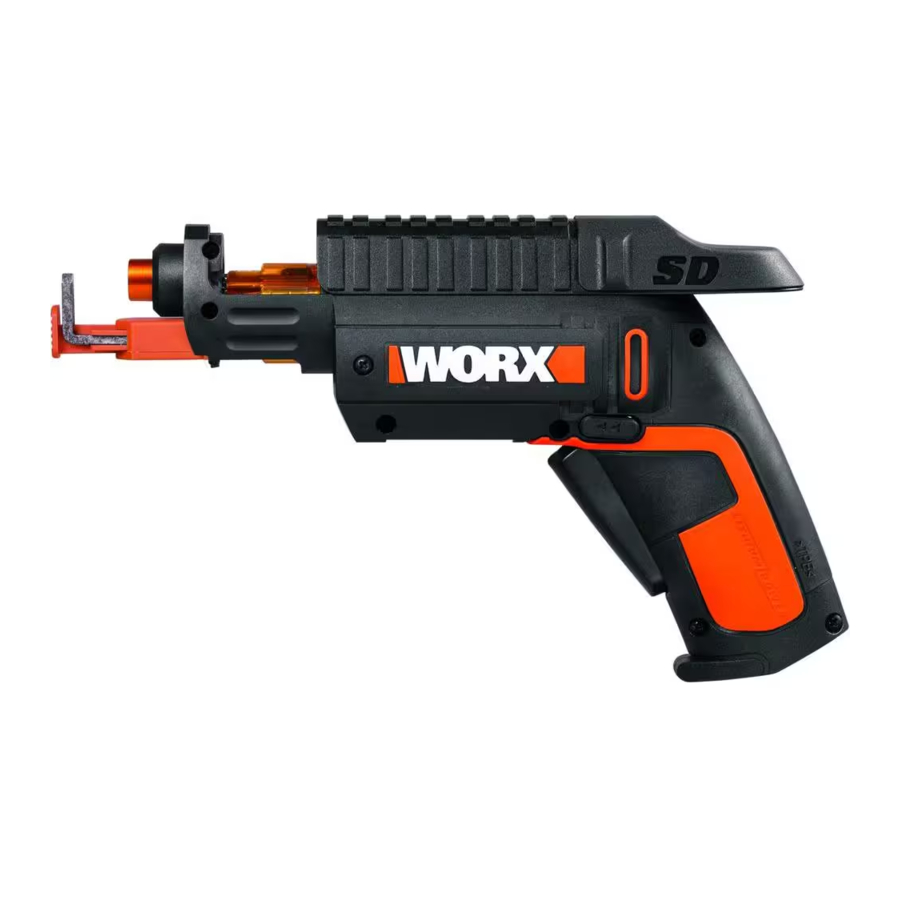

Overview

1. SLIDE COVER
2. FORWARD/REVERSE ROTATION CONTROL
3. SOFT GRIP HANDLE
4. CHARGING INDICATOR
5. CHARGING SOCKET
6. ON/OFF SWITCH
7. LED LIGHT
8. SCREW HOLDER
9. CHUCK
10. BIT CARTRIDGE

Not all the accessories illustrated or described are included in standard delivery.

TECHNICAL DATA

Charger input	100-240V- 50/60Hz 190mA
Charger output	4.2V 500mA
Rated voltage	4V Max*
Charger input power	3W
Battery capacity	1.5 Ah
Battery type	lion
Battery model no,	ISR18650
No-load speed	230/min
Maximum torque	27 in.lbs
Machine weight	1.1 lbs
Charger protection class	/II
Charging time	5 hours (Aprox.)

* Voltage measured without workload. Initial battery voltage reaches maximum of 4 volts. Nominal voltage is 3.6 volts.

ACCESSORIES

Screwdriver bit (PHI, PH2, SL4, SL6. sol, SQ2) 6
Cartridge 1
Charger 1
We recommend that you purchase your accessories from the same store that sold you the tool. Use good quality accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

Some dust created by power CD sanding, sawing, grinding, drilling and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints;
• Crystalline silica from bricks and cement and other masonry products and
• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. TO reduce your exposure to these chemicals:

• Work in a well ventilated area, and
• Work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

  his product maybe contains lead, phthalate or other chemicals known to the State of California to cause cancer, birth defects and other reproductive harm. Please wash your hands after use.

GENERAL POWER TOOL SAFETY WARNINGS

Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.

The term power tool in the warnings refers to your mains-operated (corded) power tool or battery operated (cordless) power tool.

1. WORK AREA SAFETY

1. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
2. Do not operate power tools in explosive atmospheres, such as in presence Of flammable liquids, or Power tools create sparks which may ignite the dust or fumes.
3. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. ELECTRICAL SAFETY

1. Power tool plugs must match the outlet. Never modify the plug in any way. DO not use any adapter plugs with grounded power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
2. Avoid body with grounded surfaces such as ra&tors, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
4. Do not abuse the cord. Never use the cord for carrying. pulling or unplugging the power tool. Keep cord away from heat. oil. sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

5. When operating a power tool outdoors, use an extension cord suitable for outdoor use marked "W-A" or Use of a cord suitable for outdoor use reduces the risk of electric shock.
6. If operating a power in a damp location is unavoidable, use a Ground Fault Circuit Interupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.

3. PERSONAL SAFETY

1. Stay alert. watch what you are doing and use common sense when operating a power tool. DO not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
2. use personal protective equipment. Wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
3. Prevent unintentional starting. Ensure ate switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.

4. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
5. DO not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
6. If devices are provided for the connection Of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

1. DO not force the power tool. use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
2. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments. changing accessories. or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

4. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
5. power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged. have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
7. use the power tool, accessories and tool bits etc.. in accordance with these instructions and in the manner intended for the particular type of power tool. taking into account the working conditions and the work to be pet-formed. Use of the power tool for operations different from those intended could result in a hazardous situation.
8. use clamps or another practical way to secure and support the workpiece to a stable platform.
9. Holding the work by hand or against your body leaves it unstable and may lead to loss of control.

SYMBOL

	DO not stare directly into the tool. When changing the tool insert, it can be thrown out toward the front.
	To reduce the risk of injury, user must read instruction manual
	Warning
	Double insulation
	Wear eye protection
	Wear ear protection
	Wear dust mask
	Do not burn
	DO not expose to rain or water
	Wear protective gloves
	For indoor use only
	Fuse T 1A time lag fuse with rated current of 1A
	The output plug is with positive center pole and negative outer pole
	Don't use double end bit

OPERATING INSTRUCTIONS

NOTE: Before using the tool, read the instruction book carefully.

ACTION	FIGURE
BEFORE OPERATION
Charging the Battery NOTE: Maximize Battery Performance Prior to initial use, the battery must be charged 5 hours to fully utilize the battery capacity. When the battery is full charged, the Iight turns green.	See Fig. A
ASSEMBLY AND ADJUSTMENT
Inserting and Removing due Bit Cartridge	See Fig. B, C
Assemble and Remove the Screw Holder	See Fig. D1, D2
Forward/Reverse/Lock Never change the direction of rotation when the chuck is rotating, wait until it is stopped!	See Fig. E1,E2, E3
OPERATION
Selecting a Bit	See Fig. F1, F2
Drilling a Pilot Hole	See Fig. G
Assembling screw	See Fig. H1, H2,H3
Tightening and Loosening Screw	See Fig. I1, I2
Operating the On/Off Switch Do not operate for long periods at low speed because excess heat will be produced internally.	See Fig. J
LED Light Indicator	See Fig. J
Automatic Spindle Locking NOTE: When the slide driver is out of power, this function enables the customer tightening or loosening screws manually.
