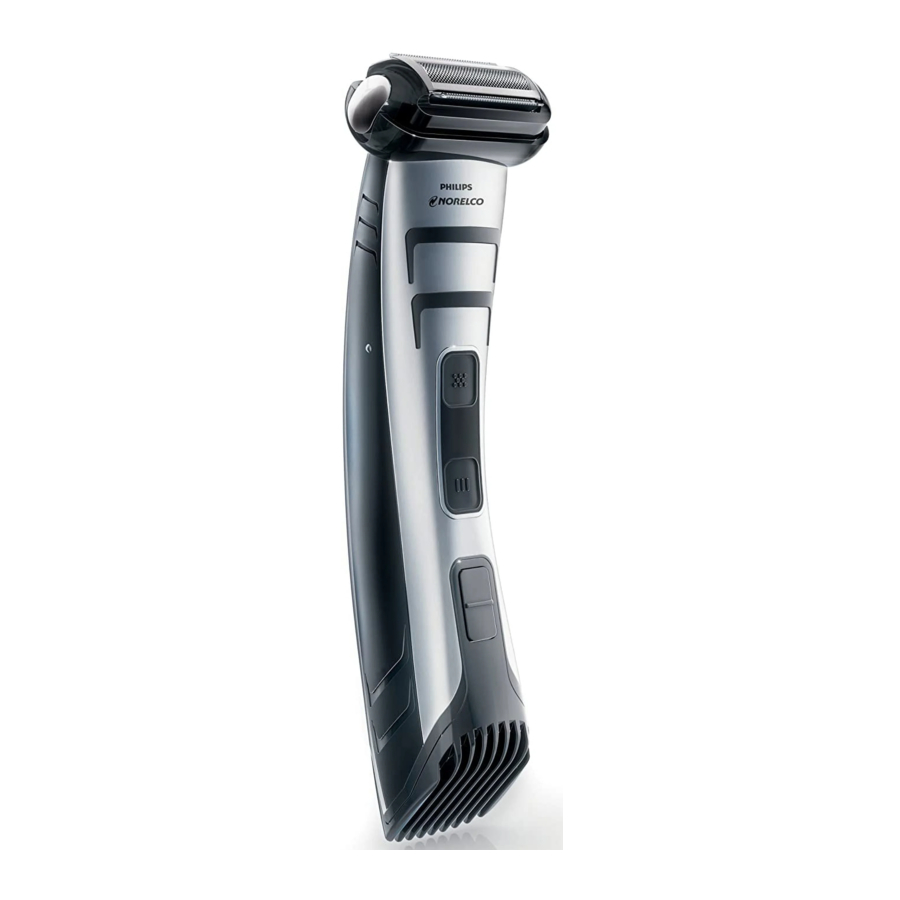

Philips NORELCO BG2039 Manual

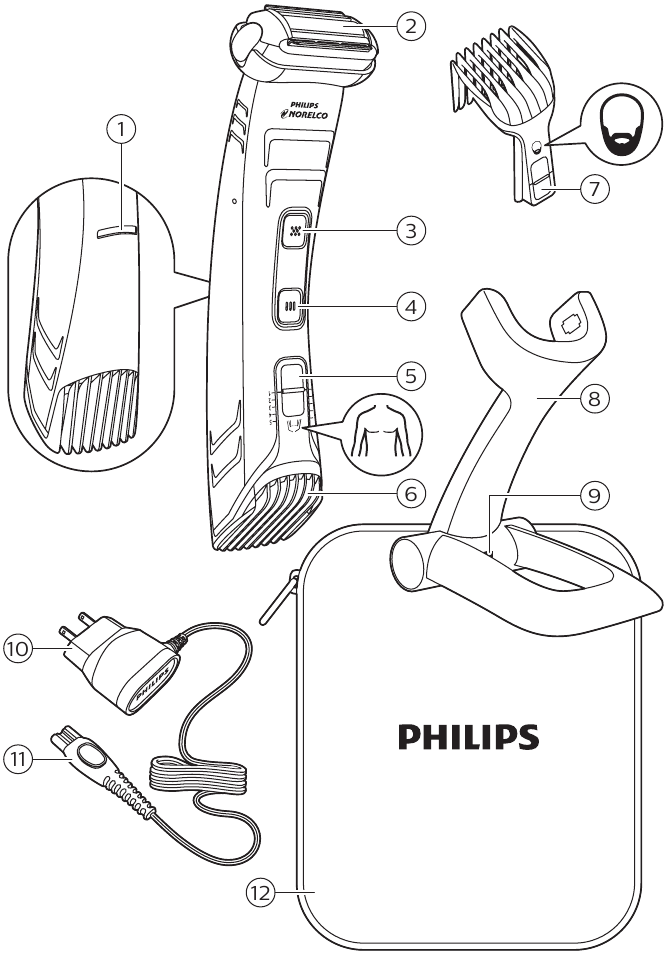

General description

(Fig. 1)

1. Charging and battery low indicator light
2. Shaving unit
3. Shaving unit on/off button
4. Trimming unit on/off button
5. Hair length selector
6. Trimming unit with body comb
7. Beard comb
8. Charging stand
9. Socket for small plug
10. Power plug
11. Small plug
12. Pouch Cleaning brush (not shown)

This symbol indicates that the product can be used in the bath or shower.

Charging

Battery status indications

• When the battery is almost empty, the battery charge indicator flashes orange (Fig. 5).
• When the product is charging, the battery charge indicator flashes green.
• When the battery is fully charged, the battery charge indicator lights up green continuously.

Note: After approx. 30 minutes the light switches off automatically.

Charging

Note: The product can only be charged in the charging stand. Only use the power cord and charging stand provided.

Charging takes approx. 8 hours. Charge the product before you use it for the first time and when the display indicates that the battery is almost empty.

• Charging, recharging, or using the product at temperatures below 40°F (4,5°C) or higher than 95°F (35°C) adversely affects lifespan of the battery.
• If the product is subjected to a major change in temperature, pressure or humidity, let the product acclimatize for 30 minutes before using.
  1. Make sure the product is switched off.
  2. Put the small plug in the charging stand (Fig. 2) and put the power plug in any 120V AC outlet.

     Note: The small plug is easiest to insert when the charging stand is folded.
  3. Unfold the charging stand (Fig. 3).

  4. Put the product in the charging stand with the shaving unit pointing upwards (Fig. 4).

• Make sure the charging contacts on each side of the product fit into the charging stand correctly.
• When placed correctly, the charging light will flash green to indicate the product is (re)charging (Fig. 5).

  5. After charging, remove the power plug from the wall outlet and pull the small plug out of the charging stand.fawl

Note: An adapter plug may be necessary for cord usage in some foreign countries. Use an attachment plug adapter of the proper configuration for power outlet.

Optimize the working life of the battery

• After the product has been charged for the first time, do not recharge the product between grooming sessions. Continue using it until the battery is completely empty.
• Discharge the battery completely twice a year by letting the motor run until it stops.
• Do not keep plug permanently plugged in.

Operating time

When the product is fully charged, it has a cordless operating time of up to 50 minutes.

Using the product

Always check the product and all its accessories before you use it. Do not use the product or any accessory if it is damaged, as this may cause injury. Always replace a damaged part with one of the original type.

• Use this product for its intended household use as described in this manual.
• For hygienic reasons, the product should only be used by one person.
• Trimming is easier when the skin and hair are dry.

Note: This product is for cordless use.

Switching the product on and off

Shaver

1. Press the shaving on/off button once to switch the product on or off (Fig. 6).


Trimmer

1. Press the trimming on/off button once to switch the product on or off (Fig. 7).


Attaching and detaching the combs

Attaching the comb

1. Slide the beard or body comb into the guiding grooves on both sides of the handle.
2. Press the length selector and then slide it up or down to select the desired hair length setting (Fig. 8).


Detaching the comb

1. Press the length selector and then slide the comb upwards off the product.

Trimming length settings

The trimming combs allow you to cut hair to 5 different lengths:

• If you are trimming for the first time, be careful. Do not move the product too fast. Make smooth and gentle movements.
• When you trim for the first time, start at the highest length setting to familiarize yourself with the product.
• Since all hairs do not grow in the same direction, you may want to try different trimming positions (i.e. upwards, downwards, or across). Practice is best for optimum results.
• Always make smooth and gentle movements and be sure the surface of the comb always stays in contact with your skin.
• For body trimming, make sure hair is clean and dry as wet hair tends to stick to the body and, when trimming sensitive areas, always use the body comb.
  1. Hold the product in the trimming position, with the trimming unit pointing upwards and the shaving unit pointing downwards (Fig. 9).

  2. Slide the beard or body comb into the guiding grooves on both sides of the handle.
  3. Press the length selector and then slide it up or down to select the desired hair length setting (Fig. 10).

• The two lines next to the setting selector show which setting you have selected (Fig. 11).

  4. Switch on the product (Fig. 7).
  5. Hold product as shown and move the trimmer against the direction of hair growth making sure the tips of the comb point in the same direction as you are moving the product (Fig. 12).

  6. Switch off and clean the product after each use (see "Cleaning").

Shaving

Do not use this shaving unit to shave or trim facial or scalp hair (Fig. 15). The shaving unit should only be used on skin below the neckline.

• When shaving sensitive areas for the first time, you may feel some discomfort, irritation or reddening of the skin. This is normal as your skin needs time to adjust to shaving.
• If your hair is longer than 13/32 in./10 mm, trim hair using a trimmer first for optimum shaving results.
• For dry use, be certain that your skin is clean and dry before using the shaving unit.
• For wet use, prepare your skin with lathered soap or shaving foam before using the shaving unit.
  1. Hold the product in the shaving position, with the shaving unit pointing upwards and the trimming unit pointing downwards (Fig. 13).

  2. Switch on the shaver (Fig. 6).
  3. Stretch your skin taut with your free hand (Fig. 14).

     Gently press shaving unit to skin and move it slowly and smoothly against the direction of hair growth (Fig. 15).

     • Do not press too hard. Too much pressure can distort the foil and cause skin irritation.
     • Make sure the shaving unit is always in full contact with your skin
  4. Switch off and clean the product after each use (see "Cleaning").

Cleaning

Never use scouring pads, abrasive cleaning agents or aggressive liquids such as gasoline or acetone to clean the product.
Never dry trimmer or shaving foil head with a towel or tissue, as this may cause damage.

Cleaning the trimmer

1. Switch off the product and disconnect the charging stand from the wall outlet.
2. Rinse the handle of the product and wipe the handle dry with a dry cloth.
3. Remove the trimming comb by sliding it off the product. Shake and/or blow out the hair or clean it under the tap.
4. Push the middle part of the trimming unit upwards with your thumb until it opens (Fig. 16).

5. Clean the hair chamber with the cleaning brush supplied (Fig. 17). You may also rinse the hair chamber under warm running tap water to remove any residual debris.

6. Rinse the trimming unit with warm running tap water (Fig. 18).

7. Leave the trimming unit open to air dry completely.
8. Close the trimming unit and reattach the trimming comb (Fig. 19). You will hear a click.


Cleaning the shaving unit

1. Switch off the product and disconnect the charging stand from the wall outlet.
2. Rinse the handle of the product and wipe dry with a dry cloth.
3. Remove the shaving foil head by pulling it off the product (Fig. 20).

   • Hold the shaving foil head by the plastic housing only.
4. Rinse the shaving foil head with warm running tap water (Fig. 21).

   • Do not use the cleaning brush to clean the shaving foil head as this may cause damage to the foil or cutters.
5. Allow the shaving foil head to air dry completely.
   • Never dry trimmer or shaving foil head with a towel or tissue, as this may cause damage.
6. Clean the hair chamber with the cleaning brush supplied. You may also rinse the hair chamber under warm running tap water to remove any residual debris (Fig. 22).

7. Reattach the shaving foil head by snapping it back onto the product (Fig. 23). You will hear a click.


This product has no other user-serviceable parts. For assistance call 1-800-243-3050.

Storage

• Fold the charging stand for easy traveling or storage (Fig. 24).

• Be sure the product is turned off. Remove cord from outlet and charging stand before storing in a safe, dry location where it will not be crushed, banged, or subject to damage.
• Do not wrap cord around the product when storing.
• Store cord in a safe location where it will not be cut or damaged.
• Do not place or store the product/ charging stand where it can fall or be pulled into a tub or sink, water or other liquid while plugged in.

Replacement

Replacing the shaving foil head

For maximum shaving performance, we advise you to replace the shaving foil head and cutters every year.
If shaving head foil and cutters are worn or damaged, do not use the product and replace immediately.
Always replace the shaving foil head and cutters with original Philips Norelco shaving foil head (see ‚Accessories').

1. Switch off the product and disconnect it from the wall outlet.
2. Remove the shaving foil head by pulling it off the product (Fig. 20).
   Note: The foil is a precision part. Handle with care.
3. Place the new shaving foil head on the product by snapping it into place (Fig. 23). You will hear a click.
4. After replacing the shaving foil head, check that the shaving head is firmly attached before using product.

Accessories

Replacement parts may be purchased on our website www.philips.com/store.
For maximum product performance, replace shaving foil head once a year.

• Model BG2000 Philips Norelco Replacement Shaving Foil Head

Assistance

For assistance, visit our website:
www.philips.com/support
or call toll free 1-800-243-3050.

Online information is available 24 hours a day, 7 days a week.

To fully benefit from the support that Philips Norelco offers, register your Bodygroom system at www.norelco.com/register.

In order to obtain warranty service, simply go to www.philips.com/norelco or call 1-800-243-3050 for assistance.

IMPORTANT SAFETY INSTRUCTIONS

When using an electric product, basic precautions should always be followed, including the following:

Read all instructions before using this product.

To reduce the risk of electric shock:

• Do not reach for a corded charging stand that has fallen into water. Unplug immediately.
• Power plug and the accessories connected to it are not for immersion or for use in shower.
• Do not use an extension cord with this product.
• Do not place or store the charging stand where it can fall or be pulled into a tub or sink. Do not place or drop the charging stand into water or other liquid.
• Always unplug this product from the electrical outlet immediately after use, except when the product is (re)charging.
• Unplug and remove power supply cord from the product before cleaning.

To reduce the risk of burns, fire, electric shock, or injury to persons:

• Close supervision is required when this product is used by, on, or near children, or persons with limited physical, sensory, or mental capabilities or invalids.
• Use this product for its intended household use as described in this manual. Do not use attachments not recommended by Philips Electronics North America Corporation.
• This product is only intended for shaving and trimming body parts below the neckline. Do not use it to shave or trim facial or scalp hair.
• Never operate this product if it has a damaged cord or charging plug, if it is not working properly, if it has been dropped or damaged, or dropped into water while plugged in. For assistance call 1-800-243-3050.
• Keep the product, cord, charging stand, charging plug and any attachments away from heated surfaces.
• Never drop or insert any object into any opening.
• Do not use the adapter in or near a power outlet that contains an electric air freshener to prevent damage to the adapter.
• Never operate the product with the air openings blocked or while on a soft surface, such as a bed or couch, where the air openings may be blocked. Keep the air openings free of lint, hair, and the like.
• Do not operate, charge, clean or plug in product outdoors where aerosol (spray) products are being used or where oxygen is being administered.
• Always check foil, cutters, cutting unit and combs before using the product. Do not use the product if foil, cutters, cutting unit or combs are damaged, as injury may occur.
• Always attach plug to charging stand first, then to outlet. To disconnect, turn on/off switch to „OFF" position, then remove plug from outlet.
• Use only the cord and charging stand provided to charge and (re)charge the product.
• Never put the product in direct sunlight or store at a temperature above 140°F (60°C).
• Product is water-safe and can be rinsed under running tap water or used in shower. Do not submerge product in water.
• To prevent possible damage to the cord, do not wrap cord around the product.
• Always store the product, attachments and power plug in a moisture-free area. Make sure the cord is disconnected from the product.
• Do not attempt to open the product to remove/replace the battery.
• Only use the power plug and other accessories supplied with the product.

SAVE THESE INSTRUCTIONS

The power plug contains a transformer. Do not cut off the power plug to replace it with another plug, as this will cause a hazardous condition.
