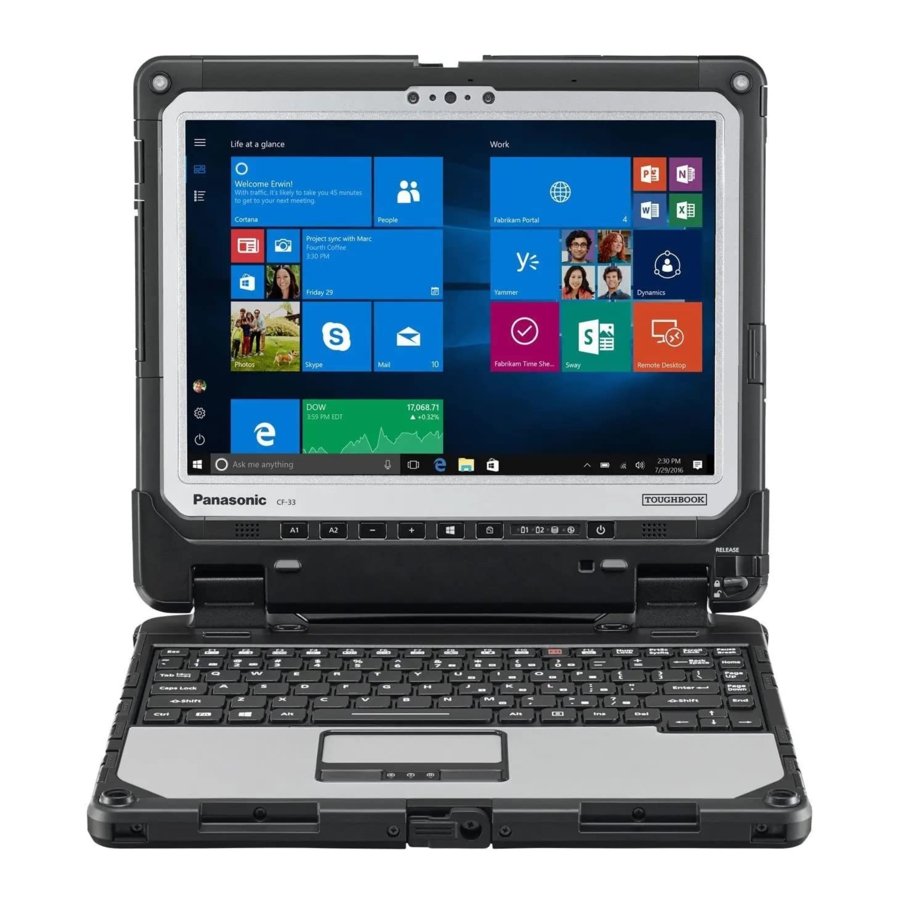

Panasonic CF-33 Series Manual

Terms and illustrations in these instructions

Please read these instructions carefully before using this product, and save this manual for future use. Update the on-screen manuals.

First-time Operation

• Preparation
  Check and identify the supplied accessories.
  If you do not find the described accessories, contact your support office.

• OPERATING INSTRUCTIONS - Read Me First (This book) - 1

Depending on the model, the following items are supplied.

• Keyboard Base- 1
  The keyboard base is attached to the tablet at the time of packing.

^*1 Stored in the tablet at the time of packing.

• Do not pull the tether with excessive force. The stylus may hit the computer, person's body or other objects when released.

Connect your computer to a power outlet

1. Connect the power cord and AC adaptor. Hold the plug (D) of the power cord, and securely insert it straight to the end.
2. <Only for model with keyboard base> Slide the cover. <For tablet> Slide the cover to the arrow direction and then open the cover.
3. Connect the AC adaptor to the DC-IN jack (E) of the computer.
4. Connect your computer to a power outlet. The shape of AC Plug and AC Outlet depend on the country.

The battery charging starts automatically.

• Do not disconnect the AC adaptor until the first-time operation procedure is completed.
• When using the computer for the first time, do not connect any peripheral device (including wired LAN cable) except the battery pack and AC adaptor.
• Handling the AC adaptor
  Problems such as sudden voltage drops may arise during periods of thunder and lightning. Since this could adversely affect your computer, an uninterruptible power source (UPS) is highly recommended unless running from the battery pack alone.
• When the DC plug is not connected to the computer, disconnect the AC cord from your electrical outlet. Power is consumed simply by having the AC adaptor plugged into an electrical outlet.

<Only for model with keyboard base>

1. Pull out the handle.

• If you do not pull out the handle before opening the display, the computer may fall over due to the weight of the display.

2. Rotate the latch (F) to the arrow direction.
3. Hold the dents with both hands, and lift the display slightly.
4. Hold the side of the computer with either of your hands and then lift up the display to open.

• Do not open the display wider than necessary (180° or more), and do not apply excessive pressure to the LCD. Do not open or close the computer holding the edge of the LCD segment.

Press and hold the power switch until the power indicator lights.

• Do not press the power switch repeatedly.
• The computer will be forcibly turned off if you press and hold the power switch for four seconds or longer. l Do not perform the following operation until the First-time Operation is completed.
  • Ÿ <Only for model with keyboard base> Touching the release lever (G) and detach lock (H)
  • Ÿ <Only for model with keyboard base> Detaching the tablet from keyboard base
  • Ÿ Disconnecting the AC adaptor
  • Ÿ Pressing the power switch
  • Ÿ <Only for model with keyboard base> Closing the display
  • Any changes from the default setting of the Setup Utility
• Once you turn off the computer, wait for ten seconds or more before you turn on the computer again.
• When the CPU temperature is high, the computer may not start up to prevent overheating of the CPU. Wait until the computer cools down, and then turn the power on again. If the computer does not power on even after cooling down, contact Panasonic Technical Support (→ Operating Instructions - Reference Manual).

Select language and click [Yes].

Follow the on-screen instructions.

• The computer restarts several times. Do not touch the touchscreen, external keyboard or external mouse, and wait until the drive indicator has turned off.
• After the computer is turned on, the screen remains black or unchanged for a while, but this is not a malfunction. Wait for a moment until the Windows setup screen appears.
• During setup of Windows, use the touchpad and clicking to move the pointer and to click an item.

• Setup of Windows will take approximately 5 minutes.
  Go to the next step, confirming each message on the display.
• You can set the Wireless Network after the setup of Windows is complete.
  If "Let's connect you to a network" is displayed, you can select [I don't have internet].
  If "There's more to discover when you connect to the internet" is displayed, you can select [Continue with limited setup].

• The active network connection and your Microsoft account are required to complete the Windows setup.
• When the "How would you like to set up this device" screen appears, choose your setup method.
• For further information (e.g. network connection, Microsoft account, Wi-Fi point, etc.), contact your technical support office.

• You can change the user name, image and security setting after setup of Windows. Do not use the following words and characters for user name: CON, PRN, AUX, CLOCK$, NUL, COM1 to COM9, LPT1 to LPT9, LPT, &, space.

1. Click (Start).
2. Click (Power) - [Restart].

1. Click (Start).
2. Click (Power) - [Restart].

• A portion of the Panasonic PC Settings Utility functions will

be enabled after the computer restarts.

NOTE

• When the "Emergency notification setting" screen appears, read the on-screen messages carefully. Follow the on-screen instructions. You can set the "Emergency notification setting" after the setup of Windows is complete.

1. Connect to the internet. Sign in to Windows as an administrator.
   For further information, refer to Connect to a network.
2. Update the on-screen manual.
   Click (Start) - [Panasonic PC Manual Selector]
   Click (Start) - [All apps] - [Panasonic PC Manual Selector].

Follow the on-screen instructions.

• How to create a recovery disc
  Connect to the Internet before creating a recovery disc. Note that the Windows version of the recovery disc to be created may be newer than the version at the time of factory shipment.
  For detailed information and creation method, see the following web page.
  https://pc-dl.panasonic.co.jp/itn/support/recv/win11recv-dls.html
  "Windows 11 Recovery Image Download Service"

• Create the recovery disc as soon as Windows setup is com-pleted. If the recovery area is accidentally deleted, Windows may not be reinstalled without the recovery disc. This case may require repair.

NOTE

• To set the password, proceed as follows.

1. Click (Start) - (Settings) - [Accounts] - [Sign-in options]
2. Click [Password] - [Add].

• To display the password input screen every time the computer is resumed from the modern standby or hibernation, perform the following setting.


1. Click (Start) - (Settings) - [Accounts] - [Sign-in options].
2. Select [Every Time] under "Require sign-in".

• Set the key entry mode to English ("ENG") and enter characters.
  The keyboard layout can be added or changed in the following steps.


1. Click (Start) - (Settings) - [Time & Language] - [Language].
2. Click a language and click [Options].
3. Click [Add a keyboard] and choose a keyboard from the list.

• Remember your password. If you forget the password, you cannot use Windows. Creating a password reset disk beforehand is recommended.
• PC Information Viewer
  This computer periodically records the management information of the flash memory, etc. The maximum data volume for each record is 1024 bytes.
  This information is only used for estimating the cause in the case when the flash memory goes down by any possibility. They are never sent to outside via network nor used for any other purpose except for the purpose described the above.
  To disable the function, add the check mark for [Disable the automatic save function for management information history] in [Hard Disk Status] of PC Information Viewer, and click [OK]. Then follow the on-screen instructions. → Operating Instructions - Reference Manual "Troubleshooting" "Troubleshooting" "Checking the Computer's Usage Status")

Detaching the tablet from the keyboard base

When detaching the tablet from the keyboard base while it is turned on, note the following points.

• Before detaching the tablet, confirm the following things.
  • Save the necessary data.
  • Close files you have opened from removable disks and network drives.
  • Remove peripheral devices connecting to the tablet.
• Do not detach the tablet in the conditions below.
  • When the SD Memory Card indicator is on.
  • When playing/recording audio files or displaying motion video such as MPEG files.
  • When using communication software or network functions.

NOTE

• Do not detach the tablet in the rain.

1. Release the detach lock (A).
2. Slide the release lever (B) in the direction of the arrow.

   The detach indicator (C) will turn from black () to orange ()

• After step , you cannot stop detaching the tablet. Detach the tablet once.

3. Detach the tablet from the keyboard base.


• When detaching the tablet from the keyboard base, hold the position at the locations dashed line circled in the illustration.
• Attach/detach the tablet on a flat location.
• While holding the keyboard base with hand, attach/detach the tablet.

Attaching the tablet to the keyboard base

NOTE

• Do not attach the tablet in the rain
• Clean the Tablet terminals (D) with a dry cloth. (Attached dust may cause a contact failure.)


1. Hold the area enclosed by the dashed circle in the illustration, and push the tablet downward. The detach indicator (E) will turn from orange () to black ().

2. Lock the detach lock (F).

• Confirm that the detach indicator (E) is black (). If the detach indicator is still orange-colored or partially orange-colored, the tablet has not been properly locked to the keyboard base. Attach the tablet properly.
• Do not lift up the computer set when even a little orange color is seen in the detach indicator. Doing so may result in the tablet falling down.

Safety Precautions

To reduce the risk of injury, loss of life, electric shock, fire, malfunction, and damage to equipment or property, always observe the following safety precautions.

Explanation of symbol word panels
The following symbol word panels are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.

Denotes a potential hazard that will result in serious injury or death.

Denotes a potential hazard that could result in serious injury or death.

Denotes a hazard that could result in minor injury.

NOTICE

Denotes a hazard that could result in property damage.

The following symbols are used to classify and describe the type of instructions to be observed.

	This symbol is used to alert users to a specific operating procedure that must not be performed.
	This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safety.

Precautions on the Battery Pack
Electrolyte leakage, generation of heat, ignition or rupture of the Battery Pack may result.

Do Not Throw the Battery Pack into a Fire or Expose It to Excessive Heat Do Not Deform, Disassemble, or Modify the Battery Pack Do Not Short the Positive (+) and Negative (-) Contacts →Do not place the battery pack together with articles such as necklaces or hairpins when carrying or storing. Do Not Apply Shocks to the Product by Dropping It, Applying Strong Pressure to It, etc. → If this product is subjected to a strong impact, remove the battery pack from the computer immediately. Do Not Charge the Battery Using Methods Other Than Those Specified Do Not Use the Battery Pack with Any Other Product The battery pack is rechargeable and was intended for the specified product Do Not Use This Product with a Battery Pack Other Than the One Specified → Use only the specified battery pack with your product.

Avoid Extreme Heat (Near the Fire, in Direct Sunlight, for Example) When the Battery Pack Has Deteriorated or If Abnormal Swelling Occur, Replace It with a New One → Do not continue to use a damaged battery pack.

Do Not Use This Product in Close Contact With Your Body For a Long Period of Time →Do not use this product with its heat-emitting parts in close contact with your body for a long period of time. Low-temperature burns may result. Do Not Expose Yourself or Other Persons to the Hot Wind from the Ventilation Hole (Exhaust) For a Long Period of Time Depending on the direction of the computer or the way you hold the computer, your hands and body will be more exposed to the hot wind. Covering the ventilation hole (exhaust) with your hand or other object can cause heat to build up inside, possibly resulting in burns. Do Not Touch The Surface of The AC Adaptor Continuously While Using/Charging Burns may result. Do Not Place the Product in a Bag or Case While It is Turned On Doing so may cause the product to overheat and result in burns.

Do Not Turn the Volume Up Too Loud When Using Headphones Listening at high volumes that overstimulate the ear for long periods of time may result in loss of hearing. <Only for model with wireless WAN> Do Not Leave a nanoSIM Card within Reach of Infants → In case of swallowing, consult a doctor immediately.

Radio waves transmitted from this product may affect the surrounding area.

Do Not Use This Product near Automatic Control Devices, Such As Automatic Doors And Fire Alarms Automatic control devices may malfunction, resulting in accidents.

Turn the Power Off on an Airplane*1 → For use on a plane, follow the airline's instructions. The safety of navigation may be compromised. Turn the Power Off in Hospitals or at Locations Where Medical Equipment is Present *1 → Do not bring this product into operating rooms, intensive care units, CCU, etc. *2 Medical electrical equipment may be affected, and malfunction may occur, resulting in accidents. Turn the Power Off in Crowded Locations, Such As a Crowded Train, Where There May Be a Person with a Cardiac Pacemaker The operation of a pacemaker may be affected. Keep This Product at Least 15 cm Away from the Position of an Implantable Pacemaker The operation of a pacemaker may be affected.

^*1 If there is no choice but to use this product in such an environment, turn the wireless capability off. However, bear in mind that use of a computer may be prohibited during takeoff and landing of an aircraft, etc. even if the wireless capability is turned off.

^*2 CCU is an abbreviated term of Coronary Care Unit.

Fire or electric shock may result.

Hold the Plug When Unplugging the AC Plug Use Only the Specified AC Adaptor With This Product → Do not use an AC adaptor other than the one supplied (supplied with the unit or one sold separately as an accessory).

This product may fall over or drop, resulting in an injury.

	Do Not Place This Product on Unstable Surfaces
	Avoid Stacking When Carrying the Computer, Attach the Tablet to the Keyboard Base by Pushing It Securely Until the Detach Indicator Changes from Orange to Black

Detrimental health effects on your body may result.

Take a Break Of 10-15 Minutes Every Hour Using this product for long periods of time may have detrimental health effects on the eyes or hands.

Burns, low-temperature burns, or frostbite may result.

Do Not Expose the Skin To This Product When Using the Product In A Hot Or Cold Environment → When it is necessary to expose the skin to this product such as to scan a fingerprint, perform the operation in the shortest time possible.

• Do not place the computer near a television or radio receiver.
• Keep the computer away from magnets. Data stored on the flash memory may be lost.
• This computer is not intended for the display of images for use in medical diagnosis.
• This computer is not intended for a use with connection of medical equipment for the purpose of medical diagnosis.
• Panasonic shall not be liable for loss of data or other incidental or consequential damages resulting from the use of this product. l Do not touch the terminals on the battery pack. The battery pack may no longer function properly if the contacts are dirty or damaged.
• Do not expose the battery pack to water, or allow it to become wet.
• If the battery pack will not be used for a long period of time (a month or more), charge or discharge (use) the battery pack until the remaining battery level becomes 30% to 40% and store it in a cool, dry place.
• This computer prevents overcharging of the battery by recharging only when the remaining power is less than approx. 95% of capacity.
• The battery pack is not charged when the computer is first purchased. Be sure to charge it before using it for the first time. When the AC adaptor is connected to the computer, charging begins automatically.
• Should the battery leak and the fluid get into your eyes, do not rub your eyes. Immediately flush your eyes with clear water and see a doctor for medical treatment as soon as possible.

NOTE

• The battery pack may become warm during recharging or normal use. This is completely normal.
• Recharging will not commence if internal temperature of the battery pack is outside of the allowable temperature range (0°C to 50°C).
  (→ Operating Instructions - Reference Manual "Basic Operation" "Battery Power") Once the allowable range requirement is satisfied, charging begins automatically. Note that the recharging time varies based on the usage conditions. (Recharging takes longer than usual when the temperature is 10°C or below.)
• If the temperature is low, the operating time is shortened. Only use the computer within the allowable temperature range.
• The battery pack is a consumable item. If the amount of time the computer can be run by using a particular battery pack becomes dramatically shorter and repeated recharging does not restore its performance, the battery pack should be replaced with a new one.
• When transporting a spare battery inside a package, briefcase, etc., it is recommended that it be placed in a plastic bag so that its contacts are protected.
• Always power off the computer when it is not in use. Leaving the computer on when the AC adaptor is not connected will exhaust the remaining battery capacity.

As with any portable computer device precautions should be taken to avoid any damage. The following usage and handling procedures are recommended.

Regulatory Information

Information to the User

<Only for model with wireless LAN/Bluetooth>
This product and your Health
This product, like other radio devices, emits radio frequency electromagnetic energy. The level of energy emitted by this product however is far much less than the electromagnetic energy emitted by wireless devices like for example mobile phones.

Because this product operates within the guidelines found in radio frequency safety standards and recommendations, we believe this product is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature.

In some situations or environments, the use of this product may be restricted by the proprietor of the building or responsible representatives of the organization. These situations may for example include: l Using this product on board of airplanes, or

l In any other environment where the risk of interference to other devices or services is perceived or identified as harmful.

If you are uncertain of the policy that applies on the use of wireless devices in a specific organization or environment (e.g. airports), you are encouraged to ask for authorization to use this product prior to turning on the product.

Regulatory Information
We are not responsible for any radio or television interference caused by unauthorized modification of this product. The correction of interference caused by such unauthorized modification will be the responsibility of the user. We and its authorized resellers or distributors are not liable for damage or violation of government regulations that may arise from failing to comply with these guidelines.

LED Light

<For model with rear camera>

<For model with Barcode Reader>

• The light from the LED is strong and can injure human eyes.
  Do not look directly at the LEDs with naked eyes.


USB Type-C Adaptors and Cables

Use USB Type-C adaptors and cables comply with IEC 62680-1-2 (USB Power Delivery Specification).

Laser Devices

<Only for model with Rear Camera>

THIS PRODUCT UTILIZES A CLASS 1 LASER.
USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT DISASSEMBLE OR REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.
Complies with IEC 60825-1:2014, EN 60825-1:2014+A11:2021, GB 7247.1-2012, JIS C 6802:2014.

The following label is put on the rear side of the computer.

<Only for model with Barcode Reader>

THIS PRODUCT UTILIZES A CLASS 2 LASER.
USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT DISASSEMBLE OR REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.
Complies with IEC 60825-1:2014, EN 60825-1:2014+A11:2021, GB 7247.1-2012, JIS C 6802:2014.
The laser is a "Class 2" laser which is indicated on the label for this product. Class 2 laser readers use a low power, visible light diode. As with any very bright light source, such as the sun, the user should avoid staring directly into the light beam.
Looking directly at the laser beam for a long time, it may cause damage to your eyes.

• Labeling/Marking


• Laser radiation information
  Beam Divergence
  • Vertical angle: 30 degree
  • Horizontal angle: 36 degree
    Wavelength: 650 nm
    Radiant Power (Max): 1 mW
    Pulse duration: 16.8 ms
    Repetition rate: 60 Hz

AC Adaptor

The AC adaptor used for the specified computers and Port Replicator option is Class I Equipment^*1. When using the computer and Port Replicator option, the AC adaptor must be earthed. The power plug must be connected to a properly wired earth ground socket outlet. Hazardous voltage could occur on user accessible metal parts by improperly wiring socket outlet.

*¹ Equipment with basic insulation used as a basic safeguard, and with protective bonding and protective earthing used as a supplementary safeguard for electrically-caused injury.

Battery Pack

Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used Batteries According to the Instructions.

Handling of lithium battery pack
Do not charge, use, or leave the battery in extremely high temperature or extremely low air pressure like high altitude where ordinary not entered, as this may result in explosion or leakage of flammable liquids.

For Used in Motor Vehicle

Check the following Commission Recommendation to determine proper installation and usage of this product while operating within a motor vehicle.

"Commission Recommendation on safe and efficient in-vehicle information and communication systems: A European statement of principles on human machine interface."

Commission Recommendation is available from Official Journal of the European Communities.

Regulations for Wireless LAN

<Only for model with wireless LAN>
Operation of the device in the 5 GHz frequency band is restricted to indoor use only in the following countries.

AT BE BG CH CY CZ DE DK EE EL ES
FI FR HR HU IE IS IT LI LT LU LV MT
NL NO PL PT RO SE SI SK TR UK UK(NI)

• Confirm the latest information to the radio regulation authorities.

Maximum radio - frequency power transmitted in frequency bands

Information about the Energy Efficiency of the AC Adaptor
Please visit our website, www.panasonic.com, and enter the model number on the AC adaptor (11 or 12 characters, including dash "-", excluding space) in the search box.

<Only for model with external antenna>
When using Port Replicator or Car Mounter on which an external antenna can be installed:

• Ÿ External antenna for wireless LAN must be professionally installed.
• Ÿ The gain of external antenna for wireless LAN must not exceed 5 dBi.
• Ÿ The user must maintain minimum of 20 cm spacing between the external antenna and all people (excluding extremities of hands, wrist and feet) during wireless modes of operation.

AC cord with BS 1363 plug

<For model that has a AC cord with BS 1363 plug>
For your safety, please read the following text carefully.
This appliance is supplied with a molded three pin mains plug for your safety and convenience.
A 3 ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 3 ampere and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark or the BSI mark on the body of the fuse.
If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local dealer.
If the fitted molded plug is unsuitable for the socket outlet in your home then the fuse should be removed and the plug cut off and disposed of safely.
There is a danger of severe electrical shock if the cut off plug is inserted into any 13-ampere socket.

How to replace the fuse
The location of the fuse differs according to the type of AC mains plug (figures A and B).
Confirm the AC mains plug fitted and follow the instructions below. Illustrations may differ from actual AC mains plug.
Open the fuse cover with a screwdriver and replace the fuse and close or attach the fuse cover.

Do's & Don'ts
