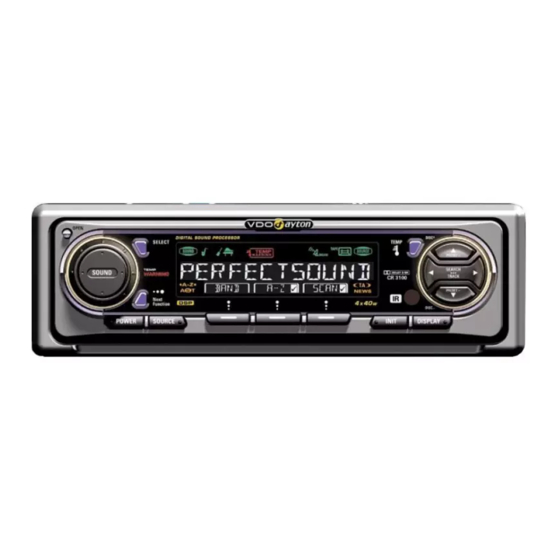

USER INSTRUCTIONS
CONTENTS
Installation
Preparation
.......................................................................................................................................................................
...........................................................................................................................................................................
................................................................................................................................................................................
....................................................................................................................................................................................
Radio Data System (RDS) on FM
Guarantee and Service
Important note:
This product has been designed and constructed in accordance with applicable Safety
Regulations. Please read the instruction manual carefully and use the product only as intended.
INSTALLATION
For cars supplied with standard ISO connectors, you can directly mount the car radio (see
'MOUNTING'). For cars with different connecting standards, your dealer can provide specific
adapter cables for a problem free installation (see table on separate installation card).
You can prepare the connection yourself (see 'PREPARATION').
Ensure all cables are installed so that they cannot be damaged by sharp edges or moving parts.
PREPARATION
The set must be connected to a 12 V car battery with the negative terminal to earth (car chassis).
Installation in vehicles not fulfilling these requirements could result in malfunction, damage
or fire!
• To prevent short-circuiting, disconnect the negative car battery terminal until the set has
been mounted and connected (fig. 1. from separate installation card).
* Depending on version
2
......................................................................................................................................................
.....................................................................................................................................
...........................................................................................................................
........................................................................................................................................................
..............................................................................................................................................................
...........................................................................................................................................................
...............................................................................................................................................................
..................................................................................................................................................................
....................................................................................................................................
...............................................................................................................................................
...................................................................................................
English
Complies with 21 CFR 1040.10
2
5
6
7
7
9
11
12
13
15
18
19
20
22
68
Advertisement
Table of Contents
Related Manuals for VDO CD 3100
Summary of Contents for VDO CD 3100
-
Page 1: Table Of Contents
USER INSTRUCTIONS English CONTENTS Installation Preparation ..................................Mounting ................................... Security ....................................Operation Function Operation ..............................Audio ....................................Radio – Tuning to a station ............................. Radio Data System (RDS) on FM ........................... RDS Memory store ................................ Cassette Player* ................................CD player* and CD changer (if connected) .................... - Page 2 CONNECTOR A (fig. 2) POWER SUPPLY CONNECTIONS • Brown wire A8: Connect to an earthing point on the car body. • Red wire A7: Connect to a permanent 12 V supply. This is the main power supply. Ensure this connection can handle a current of 10 A. •...
- Page 3 OTHER CONNECTIONS YELLOW CONNECTOR C1 for Line-output (fig. 4) You can connect a power amplifier with additional loudspeakers to this set: • Black wire: Connect to Front Left (white) and Front Right (red) channel on amplifier. • Black wire: Connect to Rear Left (white) and Rear Right (red) channel on amplifier. •...
-
Page 4: Mounting
MOUNTING METAL SLEEVE Insert metal sleeve into the opening (182 x 53 mm) in the car dashboard or console (fig. 7). See separate installation card. For optimal performance of the CD player*, the metal sleeve should be positioned within the limits shown (between -10°... -
Page 5: Security
SECURITY For theft protection this set is provided with the following security features: DETACHABLE FRONT Take the detachable front with you when leaving the car if not, the set will emit a warning beep 10 seconds after the removal of the ignition key as a reminder. Keep it in its protective cover. -
Page 6: Operation
OPERATION Legend: Briefly press the key. Press and hold the key. Turn the rotary knob. Press the key until you hear a confirmation beep. FUNCTION OPERATION Three SOFT KEYS located beneath the display control the majority of secondary functions of this set. -
Page 7: Audio Settings
AUDIO AUDIO SETTINGS Enter the audio menu. SOUND Select the desired audio settings: SOUND BASS Bass (Low notes) TREBLE Treble (High notes) BALANCE Balance (Left-Right) FADER Fader (Front-Rear) VOLUME Volume Adjust the selected audio setting. SOUND After 5 seconds the display goes back to the normal play mode. LOUDNESS This option dynamically amplifies the high and low notes so as to improve the sound output at low volume levels. -
Page 8: Search Tuning
RADIO - TUNING TO A STATION WAVEBAND Select the menu containing BAND. Next Function Select the desired waveband. if activated FM and FM AST cover the same frequencies. The same is true for MW and MW AST. SEARCH TUNING Use search tuning to automatically search for a station. PRESET + SEARCH •... -
Page 9: Radio - Tuning To A Station
RADIO - TUNING TO A STATION PRESETS Use manually-stored presets for the stations you listen to often. Use automatically-stored presets to quickly find the strongest stations, for example when travelling through different reception areas. MANUALLY STORING STATIONS ON A PRESET You can manually store 20 FM stations on the FM band, 10 MW stations on the MW band, 10 LW stations and 10 SW stations. - Page 10 RDS ON FM Many FM stations broadcast RDS information. This set uses the RDS information to offer you many advantages including: DISPLAY OF STATION NAME The set displays the station name instead of its frequency. ALTERNATIVE FREQUENCY (AF) When activated this ensures that the set remains tuned to the current station by continually searching for the best possible frequency for reception.
-
Page 11: Rds Memory Store
RDS MEMORY STORE It is possible to store up to 50 stations in alphabetical order on this set in a separate FM memory. You can then select them by name. LOADING RDS MEMORY To load all the receivable RDS stations of the current reception area into the RDS Memory. - Page 12 CASSETTE PLAYER (TAPE)* PLAYBACK Open the front. Slide a cassette with the open side to the right into the cassette opening. EJECT Close the front. The display briefly shows TAPE CR if a metal or chromium cassette is inserted. Playback starts. If a cassette is already inserted : SOURCE •...
-
Page 13: Cassette Player
CASSETTE PLAYER (TAPE)* FAST REWIND / FAST FORWARD Select the menu containing FRW and FFW. Next Function Activate / Deactivate FAST REWIND FAST FORWARD You hear the radio during this operation. CASSETTE EJECT EJECT CARE OF CASSETTES - Only use good quality cassettes of 60 or 90 minutes preferably, chrome type cassettes. - Put cassettes back in their boxes immediately after use to protect them from dust and dirt and to prevent the tape from unwinding. - Page 14 CD PLAYER* and CD CHANGER CD PLAYBACK (CD Player) This CD player is suitable for 12 cm discs. Do not use unusually shaped CDs. Open the front. Slide the disc into the slot with the label facing upwards. EJECT Close the front. Playback starts. If a disc is already inserted: SOURCE •...
-
Page 15: Cd Player* And Cd Changer (If Connected)
CD PLAYER* and CD CHANGER If the display shows: NO MAGAZINE, NO DISCS, D 2 ERROR or CDC NO FRONT. Check that the magazine has been inserted in the CD changer. Check that the magazine has been loaded with discs (at least one). - Page 16 CD PLAYER* and CD CHANGER FURTHER OPTIONS • Select the menu containing COMP and NAME. Next Function COMPRESSION • Activate / Deactivate Compression. This function reduces the volume of the loud sections and increases the volume of the quiet sections. See INITIAL SETTINGS to select the amount of compression.
-
Page 17: Special Functions
SPECIAL FUNCTIONS TEMPERATURE WARNING You can connect a temperature sensor to this set to give a visible and audible warning automatically when the outside temperature becomes lower than 3°C. TEMP WARNING TEMP See ‘INSTALLATION’ then ‘INITIAL SETTINGS’ option ‘TEMP’. Activate / Deactivate temperature warning. Now when the outside temperature falls below 3°C you see TEMP WARNING then the current temperature displayed and hear 3 bleeps. -
Page 18: Display Options
DISPLAY OPTIONS Choose what the display shows; In Radio mode: DISPLAY Station name. Frequency. (If available and RDS is active). DISPLAY Programme type Clock and temperature (if avaliable). (if sensor connected and activated). In Cassette* mode: DISPLAY Depending on Clock and temperature current operation. -
Page 19: Initial Settings
INITIAL SETTINGS It is possible to modify many of the set’s initial settings according to your preferences. Enter the Initial Settings menu. INIT Select one of the options you want to modify. PRESET + SEARCH TRACK PRESET - PRESET + Alter the chosen option. - Page 20 INITIAL SETTINGS - Select the type of confirmation beep. BEEP TYPE [1, 2, 3, 4] Beep is only emitted from the front speakers. - Select the confirmation beep level. BEEP LEVEL [1, 2, 3, 4, 5] - Select the compression level for CD playback* CD COMP [LOW, HIGH] (LOW retains the peaks in the volume,...
-
Page 21: Notes And Troubleshooting
NOTES AND TROUBLESHOOTING ENVIRONMENT This booklet is printed on low-chlorine recyclable paper that can be used for recycling. CHECKS BEFORE REQUESTING SERVICE There may be times when you suspect that your car radio is not functioning as you expect it to. - Page 22 Symptoms Possible Cause / Remedy Radio Display shows frequency (not station name). Set is tuned to non-RDS station or RDS is not active, see ‘INITIAL SETTING’ option ‘RDS’. Display shows ‘ALARM’. Emergency announcement is being broadcast. Unable to tune to desired station with •...
