Summary of Contents for VDO CD 2102

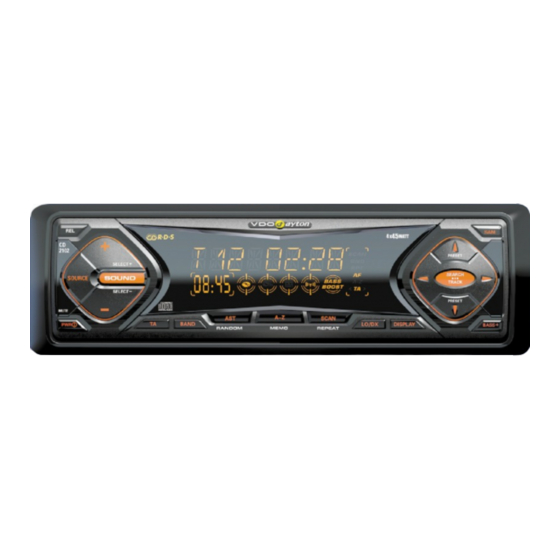

- Page 1 CD 2102 CR 2102 User manual Mode d’emploi Bedienungsanleitung Gebruiksaanwijzing Istruzioni d’uso Instrucciones de manejo Modo de emprego Bruksanvisning Betjeningsvejledning Käyttöohje www.vdodayton.com...
- Page 2 11 12...
- Page 3 SAM (Software Access Mode) TAVOL 1 TAVOL 2 TAVOL 3 TAVOL 31 ....... START 1 START 2 START 3 START 31 ....... MUTE 0 MUTE 1 MUTE 2 MUTE 16 ....... BEEP OFF BEEP 1 BEEP 2 BEEP 5 ....... TEL OFF MUTE HI MUTE LO...
-
Page 4: Table Of Contents
BEFORE YOU START..INSTALLATION Thank you for purchasing this VDO Dayton If your car is equipped with ISO connectors, product which has been designed and simply insert them in the connectors of the car manufactured to the highest standards and radio. -
Page 5: Mounting
CONNECTOR B (fig.3) • (optional) Insert the green connector C2 into socket C2’. Loudspeakers (use 4 ohm loudspeakers The green connector slides between the yellow only) connector C1 and the blue connector C3. • Do not connect any of the loudspeaker leads You need at least one of these connections to to earth or directly to a booster/amplifier without keep C2 in place. -
Page 6: Front Panel Presentation
FRONT PANEL PRESENTATION SECURITY For theft protection this set is provided with the For illustration, see page 3, figure A. following security features : ..... Short press: Switch on; mute/ DETACHABLE FRONT demute (when set is on) Long press: Switch off Take the detachable front with you when leaving the car. -
Page 7: Audio
Note : You can suppress MW/LW (AM) bands AUDIO if not required. See 'SAM' (page 11), Option ON/OFF 'MW/LW (AM)'. • Press to switch on the set. Press for more than 2 seconds to switch off the set. AUTOMATIC SEARCH Use search tuning to automatically search for a VOLUME station. -
Page 8: Radio Data System (Rds) On Fm
Recalling a preset If you activate TA mode : • You will hear the Traffic Announcements when • Press to select the desired preset. broadcast. • If the tuned station does not enable the Automatically storing stations (AUTO- reception of Traffic Announcements, the display STORE) shows ‘NO TA’. -
Page 9: Cd Player
CHANGE SIDE • If a disc is already inserted : Press to select CD as the source. • Press to change the side : Playback starts. – At the end of the cassette, playback automatically continues with the other side. PREVIOUS/ NEXT TRACK •... -
Page 10: Sam (Software Access Mode)
SAM (Software Access Mode) It is possible to modify many of the set's default settings according to your preferences via 'SAM'. • Press to enter the 'SAM' menu. • Press to select one of the options in the menu you want to modify. •... - Page 11 Option Value/Setting Usage ( or ) [ON, OFF] Select 'OFF' to switch off the flashing warning light when the detachable panel is removed with ignition off. RADIO [EUROPE, Select the tuner according to European, American AMERICA, ASIA] or Asia standards. [ON, OFF] Select 'OFF' to prevent the radio from returning to Alternative Frequencies.
-
Page 12: Trouble Shooting
TROUBLE SHOOTING Display shows 'NO TA', and set beeps at intervals. • The tuned station becomes too weak to enable There may be times when you suspect that your the reception of Traffic Announcements. Use car radio is not functioning as you would expect it search tuning to find another station. - Page 13 3139 166 22164.2 03/02 gm...
