Summary of Contents for VDO CD 2104

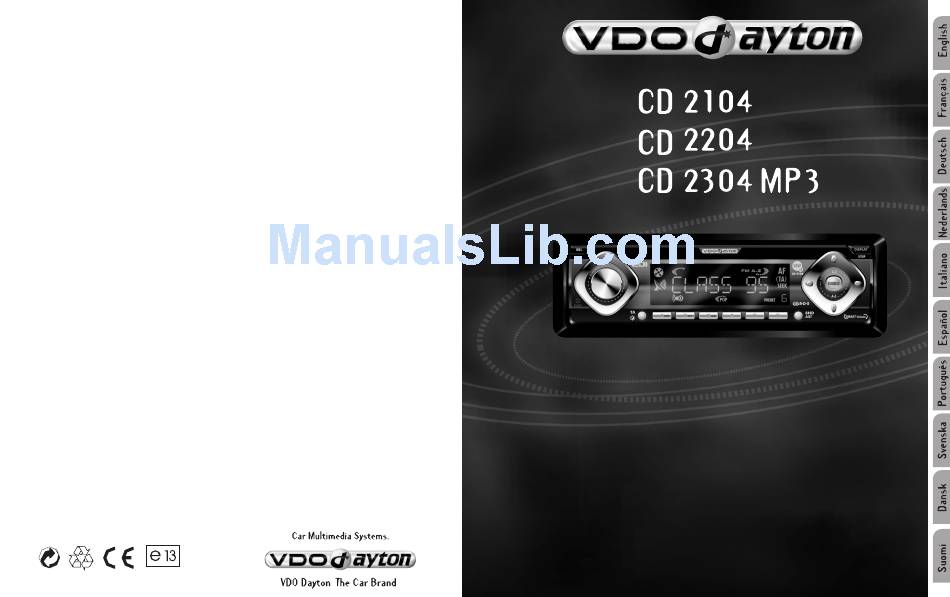

- Page 1 User manual Mode d’emploi Bedienungsanleitung Gebruiksaanwijzing Istruzioni d’uso Instrucciones de manejo Modo de emprego Bruksanvisning Betjeningsvejledning Käyttöohje www.vdodayton.com 3140 165 21871.2...
- Page 3 12 13...
- Page 4 SETUP SETUP - LOW - MID - HIGH LOUND OFF TAVOL 47 OL 0 TAVOL 2 TAVOL 3 ..............T FAD +7 T FAD -6 T FAD -7 T FAD -5 ..............EON OFF EON LOC EON DX START 1 START 2 START 3 START 47...
-
Page 5: Table Of Contents
RADIO ............. 10 RADIO DATA SYSTEM (RDS) ON FM ... 11 This manual covers the following models: CD, MP3* ............12 CD 2104, CD 2204, CD 2304 MP3 SPECIAL FUNCTIONS ........13 SETUP ............14 This main difference between them are as follows: TROUBLE SHOOTING ........ - Page 6 Green connector C2 (fig. 5) This can only be accomplished by persons familiar with automotive Steering wheel remote control electrical and mechanical systems. You can connect certain car steering wheel After Connection, see "SPECIAL FUNCTIONS' mounted remote control to this set via an interface. for calibration procedure.
-
Page 7: Mounting
REMOVING RADIO (using the two U- brackets MOUNTING supplied) METAL SLEEVE (fig. 10) • Remove the trimplate around the front panel. • Install the metal sleeve (dimension 182x53 mm) • Insert both U-brackets into the holes on the front in the dashboard. For optimal performance of of the set until they lock. -
Page 8: Front Panel Presentation
FRONT PANEL PRESENTATION For illustration, see page 3, figure A....Short press: Switch on; mute/demute (when set is on) Long press: Switch off ....Flip down the detachable panel ....Short press: Desired sound source ..Long press: Sound mode ...... -
Page 9: Security
SECURITY AUDIO For theft protection this set is provided with the ON/OFF following security features : • Press to switch on the set. Press for more than 2 seconds to switch off the set. DETACHABLE FRONT Take the detachable front with you when leaving VOLUME the car. -
Page 10: Radio
SOURCE PRESELECTED STATIONS • Press to select the desired source : Manually storing stations in a preset - TUNER You can manually store 18 FM stations, 12 MW - CD/MP3* stations and 6 LW stations. • Press to select desired waveband. •... -
Page 11: Radio Data System (Rds) On Fm
Interrupting T raffic Announcement/News mode Switching the display mode (RDS station) If you do not wish to continue listening to a • press DISPLAY once or repeatedly to switch the particular Traffic Announcement or News mode, display between station name, frequency followed you can interrupt it without switching off the mode. -
Page 12: Cd, Mp3
Make sure that a CD-R/CD-RW is formatted CD, MP3 PLAYER* – as a data disc and NOT as an audio disc. PLAYBACK (CD PLAYER) MP3 files are not compatible with packet write – This CD player is suitable for 12cm disc, do not data transfer. -
Page 13: Special Functions
To calibrate : DISC EJECT (CD PLAYER) (See page 3, figure To avoid unnecessary distraction we advise that this procedure is carried out with the help • Flip down the front by pressing REL button of somebody else. CD will automatic eject out when the front is flip down. -
Page 14: Setup
SETUP It is possible to modify many of the set's default settings according to your preferences via ' SETUP • Long press on DISPLAY button to enter the 'SETUP' menu. • Press to select one of the options in the menu you want to modify. to select the value/setting. - Page 15 Option Value/Setting Usage ( or ) Rotary Knob [-2,-1,0,+1,+2 Volume level of CD relative to tuner [-2,-1,0,+1,+2 Volume level of MP3* relative to tuner MP3* Select 'CDRW ON' when use CD-R/RW CD-R/RW [CDRW ON, CDRW OFF ] LOGIC [ON, OFF] Select 'ON' to limit the use of the set to one hour when the car ignition is switched off.
-
Page 16: Trouble Shooting
TROUBLE SHOOTING • Set is checking a list of Alternative Frequencies (AF) for the tuned radio station as reception is There may be times when you suspect that your weak. In case no AF is transmitted for the tuned car radio is not functioning as you would expect it station, switch off AF via the 'SETUP'.
