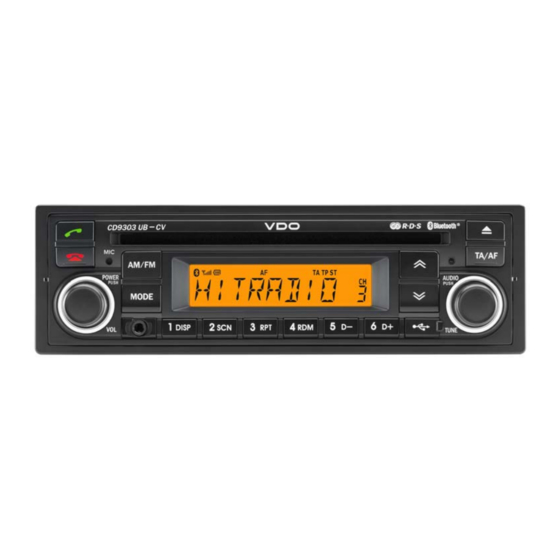

CD9303UB-CV RDS / MP3-CD / USB / AUS
TUNER WITH BLUETOOTH AND CD PLAYBACK (12 Volt)
OWNER´S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD 9303UB-CV and is the answer not in the manual?

Questions and answers

Summary of Contents for VDO CD 9303UB-CV

  • Page 1 CD9303UB-CV RDS / MP3-CD / USB / AUS TUNER WITH BLUETOOTH AND CD PLAYBACK (12 Volt) OWNER´S MANUAL...
  • Page 2: Table Of Contents

    1. PANEL CONTROLS ........................Page 03 Before operating the unit, please 2. GENERAL ........................... Page 04 read this manual thoroughly and re- 3. ANTI-THEFT SECURITY PIN CODE INPUT................Page 06 tain it for future reference. 4. RADIO............................Page 07 5. CD PLAYER..........................Page 08 6.
  • Page 3: Panel Controls

    PANEL CONTROLS PANEL CONTROLS Power ON/OFF/Volume control (10) Station preset button/Repeat Play selector Setup/Tune button (11) Station preset button/Random Play selector Mode (12) Station preset button/Directory down AM/FM (13) Station preset button/Directory up TA/AF (14) USB connector Deterent Pin LED (15) AUX connector Down tuning/Track down &...
  • Page 4: General

    GENERAL GENERAL Power On/Off (1) [VOL]-button Setup button (2) [TUNE]-button Treble control (2) [TUNE]-button Press [VOL]-knob (1) to turn the Set On or Off. This button can adjust the sound effect and other To adjust the treble tone level, first select the treble things.
  • Page 5 GENERAL Fader control (2) [TUNE]-button Beep control (2) [TUNE]-button Local distance control (LO/DX) (2) To adjust the front-rear speaker balance, first To adjust the Beep mode, first select the Beep [TUNE]-button select the Fader mode by pressing [TUNE]-button mode by pressing [TUNE]-button (2) until “BEEP LO/DX will select only local strong stations in sta- (2) until the “FADER”...
  • Page 6: Anti-Theft Security Pin Code Input

    Anti Theft Security PIN Code Input If you fail to succeed to enter the correct pin Input your new security code into 4digit as fol- Anti Theft Security PIN Code Input code at the third attempt, your stereo will turn lowing steps.
  • Page 7: Radio

    Radio In areas with very poor reception, there may be Radio • AM long paused while the radio attempts to find a bet- The range for most AM stations is greater ter frequency. In this case, you can deactivate the than for FM, especially at night.
  • Page 8: Cd Player

    CD Player If you want to search the file in the located direc- CD Player MP3 directory/File searching (2) tory, Press UP Tunning button (18) or DOWN Tun- [TUNE]-button ning button (7) consecutively. Press the [TUNE]- Track selection & cue/Revies button [TUNE]-button (2) is used to select a particular button (2) when you find the wanted file.
  • Page 9 CD Player Directory down [D-] (12) Random Play selector [RDM] (11)  Note: During MP3 playback, selection of the previous During disc play, press button (11) to play tracks on When playing a MP3 disc, when button (9) directory (if available on the MP3 disc) is possible the disc in a random or shuffled order.
  • Page 10 CD Player ID3 v2 [DISP] (8) Disc eject [ ] (16)  Note: Button (8) is used to change the display informa- By pressing DISC EJECT button (16) , the disc will • Load the disc at a straight angle into the tion.
  • Page 11: Usb Player

    USB Player USB Player  ∗ USB INFORMATION AND NOTICE: • It can be played by those conditions. - FAT, FAT12, FAT16 and FAT32 in the FILE SYSTEM. - V1.1, V2.2 and V2.3 in the TAG(ID3) Version. • It can be displayed only 32 characters. •...
  • Page 12: Aux Player

    AUX Player AUX Player Media Player AUX Connector (AUX) (15)  Note: It is possible to connect your portable media player • The audio quality of your media player to the car audio system for playback of the audio and the audio tracks on it may not be of tracks via the car speakers.
  • Page 13: Bluetooth

    Bluetooth Bluetooth Pairing your Head Unit and Bluetooth Pairing in Handsfree mode Phone Press and hold button (19) for 4 seconds until you hear beep sound 1 time, then “PAIR MO- Using a Bluetooth wireless connection This Head Unit supports Handsfree profile, Head- DE”,”...
  • Page 14 Bluetooth Bluetooth connection and disconnec- Using the Head Unit as a Handsfree De-  Note : tion vice • Each cellular phone type has distinct phone menu so you may need to refer to To disconnect Bluetooth Link: When the Head Unit is ringing, then it appears your manufacture's instruction for the cor- Press button (19) for 2 seconds, it appears “INCOMING”...
  • Page 15 Bluetooth Last number dialing During phone-in and phone-out, RED  Note : Press button (19) briefly, it appears “OUTGOING” LED on the set front will be turned ON. • Some kinds of phone can not play music on the display. And then make last call. by the Head Unit, and then you search It will turn OFF when call end.
  • Page 16: Wiring Connection

    Wiring connection Wiring connection Pin No. Function Wire color Speaker Rear Right - Violet Black Line Speaker Front Right + Gray Speaker Front Right - Gray Black Line Speaker Front Left + White Speaker Front Left - White Black Line Speaker Rear Left + Green Speaker Rear Left -...
  • Page 17: Handling Compact Discs

    Handling Compact Discs Handling Compact Discs Dirt, dust, scratches, and disc warpage can cause Discs should be kept in their storage cases ting to do so may damage the unit. Do not use such skipping in the play back and deterioration of sound when not in use.
  • Page 18: Product And Warranty Service

    Product and Warranty Service Product and Warranty Service Precautions when creating MP3/WMA disc.  Bit rate is the average number of bits that Usable sampling rates and bit rates: one second of audio data will consume. MP3/WMA CD Player supports for MP3/WMA CD MP3: Sampling rate 44.1KHz, Bit rate: 32 The unit is used Kbps(1000 bits/second).
  • Page 19: Specifications

    MP3/WMA informatoion and notice Specifications Dimension (W ×H ×D) 188mm ×58mm ×177mm Operation Voltage 12 volts DC, negative ground Output Power 160 watts maximum (40 watts ×4 channels) Output Impedance compatible with 4 ~ 8 ohm speakers Tuning Range AM : 522~ 1,620 KHz( 9KHz step ) FM : 87.5 ~ 108.0MHz ( 50 KHz step ) Sensitivity AM : 30dBuFM : 9dBu...
