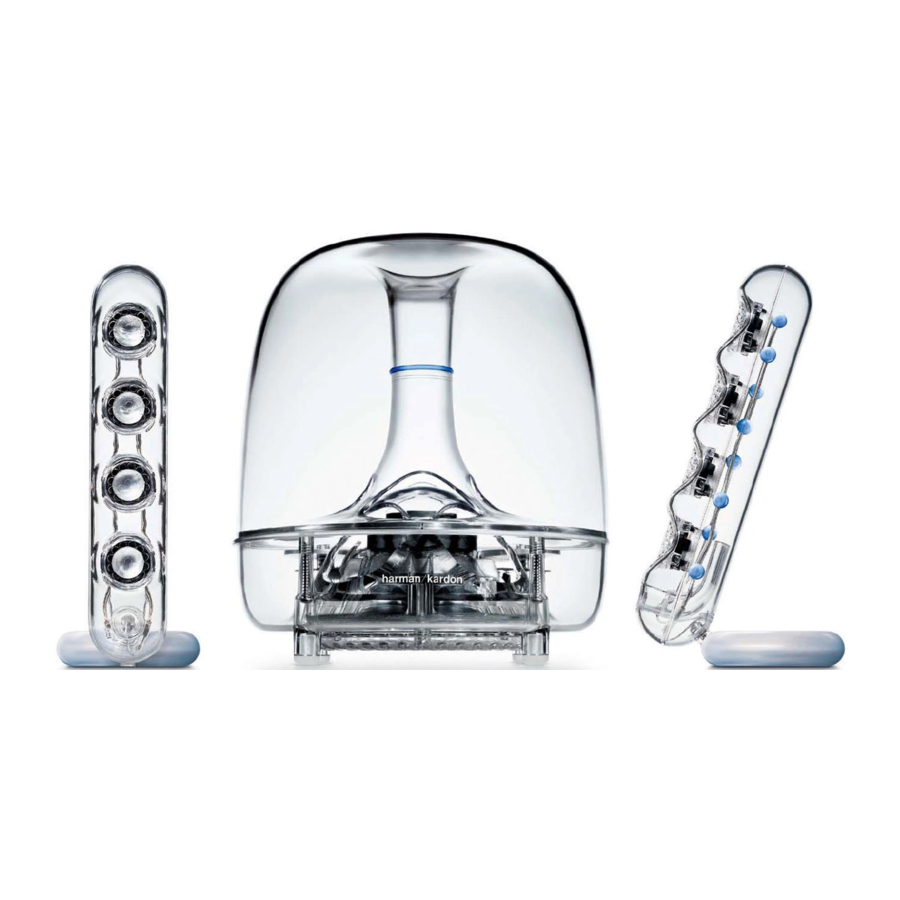

Harman Kardon SoundSticks II Easy Setup Guide

Table of Contents

Contents

1 Easy setup guide
2 Specifications*
3 Troubleshooting
4 FCC regulations
5 Documents / Resources
- 5.1 Download manual

Easy setup guide

Step 1. Place individual SoundSticks^® (satellites) beside monitor/computer.

Step 2. Place subwoofer as desired, but placement under your desk will provide optimal performance.

Step 3. Connect satellites to subwoofer.

Step 4. Insert SoundSticks II input cable into the computer or other audio device.

Step 5. Plug power cord into power adapter.

Step 6. Plug power adapter into subwoofer.

Step 7. Plug power cord into wall receptacle.

Step 8. Push power ON/OFF button. Unit is on when LED is lit.

Step 9. Adjust volume level by touching + or – button. Touching both the + and – buttons mutes the audio. When muted, touching either button unmutes the audio.

Specifications*

System
Frequency range: 44Hz – 20kHz
Power consumption: 4W idle, 65W maximum

Subwoofer
Transducer (1): 6" woofer
Amplifier output power: 20W RMS
Dimensions (W x H): 9-3/16" x 10-3/16" (232mm x 258mm)
Weight: 4 lb (2.2kg)

Satellite
Transducers (4): 1" full-range per channel
Amplifier output power: 10W RMS per channel
Dimensions (W x H): 2" x 10" (51mm x 254mm)
Weight: 1.5 lb (0.7kg)

*These specifications are subject to change without notice.

Troubleshooting

Symptom	Possible problem	Solution
No sound from SoundSticks II speaker system.	No power to subwoofer.	Ensure power supply is connected to live power source and is properly connected to subwoofer. Please note: When subwoofer is powered, a power LED should light.
	Power adapter plug not inserted correctly.	Place plug with arrow symbol facing UP into the subwoofer.
	No volume or low volume.	Touch the volume "Up" ( + ) pad on the volume control satellite to unmute and/or increase the system volume level. Note: Touching the volume "Down" ( – ) pad lowers the system volume. Touching both ( + ) and ( – ) volume control pads at the same time will mute the system.
No sound from subwoofer, only satellites.	Subwoofer volume control set at minimum.	Rotate subwoofer volume control clockwise until relative volume level is appropriate.
No sound from satellites, only subwoofer.	Satellites not connected to subwoofer.	Check connection of satellites to subwoofer.
High frequencies sound dull.	Satellites not positioned properly.	Position and tilt (angle) loudspeakers toward listener. The sound from the satellites is very directional due to the 4-element linear array design.

This product is intended to be supplied by a listed direct plug-in power unit marked "Class 2" and output rated 16V DC minimum 1.5 A.

FCC regulations

FCC Declaration of Conformity Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

this device may not cause harmful interference, and
this device must accept any interference received, including interference that may cause undesired operation.

Radio and Television Interference
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and then on, the user is encouraged to try to correct the interference by one or more of the following measures:

Increase the separation between the equipment and receiver.
Connect the equipment to a different outlet so that the equipment and receiver are on different branch circuits.
Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by Harman Consumer Group, Inc., could void the user's authority to operate the equipment.
