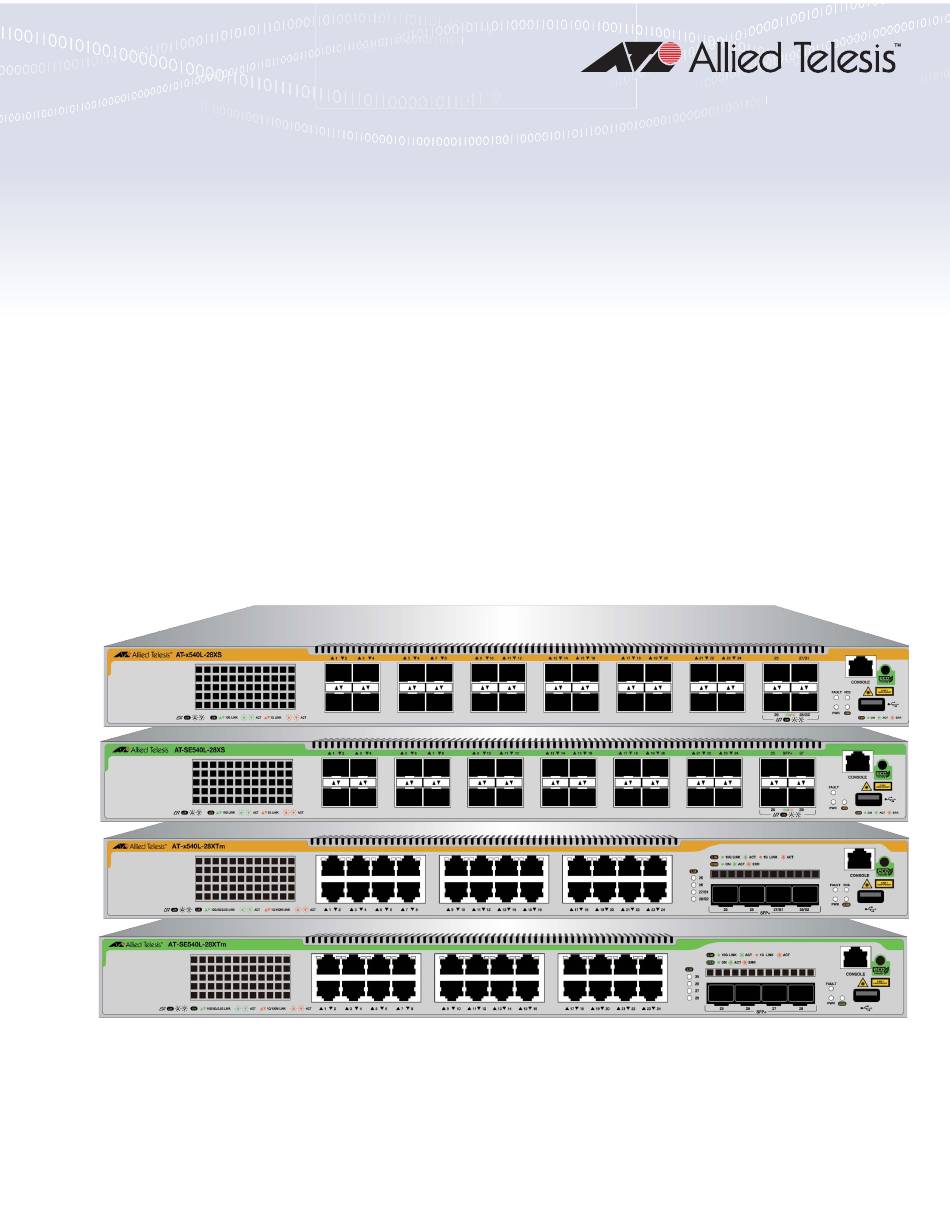

- Page 1 x540L and SE540L Series 10 GIGA LAYER 2 MANAGED SWITCHES AlliedWare Plus™ x540L-28XS SE540L-28XS x540L-28XTm SE540L-28XTm Installation Guide 613-003274 Rev. A...
- Page 2 Allied Telesis, Inc. has been advised of, known, or should have known, the...
-
Page 3: Electrical Safety And Emissions Standards
Electrical Safety and Emissions Standards This section contains the following: “US Federal Communications Commission” “Industry Canada” “Emissions, Immunity and Electrical Safety Standards” on page 4 “Translated Safety Statements” on page 4 US Federal Communications Commission Radiated Energy Note This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of FCC Rules. -
Page 4: Translated Safety Statements
EN61000-3-3: 2013 + A1: 2019 Warning Laser Safety: EN60825-1. Translated Safety Statements Important: The indicates that translations of the safety statement are available in the PDF document “Translated Safety Statements” posted on the Allied Telesis website at alliedtelesis.com/support. -
Page 5: Table Of Contents
Contents Preface....................................9 Document Conventions ..............................10 Translated Safety Statements ............................11 Contacting Allied Telesis ..............................12 Chapter 1: Overview ................................ 13 Physical Features .................................14 Features ..................................16 Hardware Features ...............................16 Virtual Chassis Stacking (VCStack) ........................16 Management Software and Interfaces ........................16 Management Methods ............................16 Management Panel ...............................17... - Page 6 Contents Guidelines for the Installation ..........................48 Chapter 4: Installing the Switch on a Table ........................49 Guidelines to Installing the Switch on the Table ......................50 Installing the Switch on a Table ........................... 51 Chapter 5: Installing the Switch in an Equipment Rack ....................53 Installing the Switch in a Rack .............................
- Page 7 x540L and SE540L Series Switches Installation Guide Chapter 12: Troubleshooting ............................123 Appendix A: Technical Specifications ......................... 127 Physical Specifications ...............................128 Environmental Specifications .............................130 Power Specifications ..............................131 RJ-45 Twisted Pair Port Pinouts..........................132 RJ-45 Style Serial Console Port Pinouts ........................134...
- Page 8 Contents...
-
Page 9: Preface
Note The VCS Stack section applies only to the x540L series switches. This preface contains the following sections: “Document Conventions” on page 10 “Translated Safety Statements” on page 11 “Contacting Allied Telesis” on page 12 ... -
Page 10: Document Conventions
Preface Document Conventions This document uses the following conventions: Note Notes provide additional information. Caution Cautions inform you that performing or omitting a specific action may result in equipment damage or loss of data. Warning Warnings inform you that performing or omitting a specific action may result in bodily injury. -
Page 11: Translated Safety Statements
Important: Le symbole indique que les traductions de la déclaration de sécurité sont disponibles dans le PDF Translated Safety Statements publiées sur le site Web de Allied Telesis à l'adresse alliedtelesis.com/us/en/library/search. Dichiarazioni di sicurezza tradotte Importante: indica che le traduzioni della dichiarazione di ... -
Page 12: Contacting Allied Telesis
Preface Contacting Allied Telesis For assistance with this product, contact Allied Telesis technical support at www.alliedtelesis.com/support. - Page 13 Chapter 1 Overview The chapter contains the following sections: “Physical Features” on page 14 “Features” on page 16 “Twisted Pair Ports on the Switch” on page 18 “SFP/SFP+ Transceiver Slots” on page 20 “Management Panel” on page 22 ...
-
Page 14: Chapter 1: Overview
Chapter 1: Overview Physical Features The x540L series and SE540L series switches are equipped with ports, management panel among others. See Figure 1, Figure 2, Figure 3, and Figure 4 on page 15 for the front panels of each model. x540L-28XS Switch Management Panel Ports 1 to 28: SFP/SFP+ Slots... - Page 15 x540L and SE540L Series Switches Installation Guide SE540L-28XTm Switch Management Panel Ports 1 to 24: Ports 25, 26, 27, 28: 100Mbps, 1/2.5/5/10Gbps Twisted Pair SFP/SFP+ Slot Figure 4. Front Panel of the SE540L-28XTm Switch The rear panel of the x540L-28XS, SE540L-28XS, x540L-28XTm, and SE540L-28XTm switches is shown in Figure 5 on page 15.
-
Page 16: Features
Chapter 1: Overview Features The main features of the switch are listed here. Hardware The switch has the following hardware features: Features Console port USB port Eco friendly button LEDs 100M/1G/2.5G/5G/10Gbps Twisted pair ports, SFP/SFP+ transceiver slots, or both. -
Page 17: Management Panel
x540L and SE540L Series Switches Installation Guide Management The management panel has the following features: Panel Console port USB port Eco-friendly button System LEDs For more information, see “Management Panel” on page 22. Note The eco-friendly mode can be turned on or off with the ECOFRIENDLY LED or NO ECOFRIENDLY LED command in the Command Line Interface. -
Page 18: Twisted Pair Ports On The Switch
Chapter 1: Overview Twisted Pair Ports on the Switch This section describes the twisted-pair ports on the switch. Note The x540L-28XTm, and SE540L-28XTm switches have twisted-pair ports. Connector Type The twisted pair ports have 8-pin RJ-45 connectors. The ports use four pins at 100Mbps and all eight pins at 1G/2.5G/5G/10Gbps. -
Page 19: Leds For Twisted Pair Ports
x540L and SE540L Series Switches Installation Guide LEDs for Twisted This section explains the LEDs for the 100Mbps and 1/2.5/5/10Gbps twisted pair ports on the switch. Pair Ports Each port has one LED that displays link and activity information. The LEDs are shown in Figure 6. -
Page 20: Sfp/Sfp+ Transceiver Slots
Chapter 1: Overview SFP/SFP+ Transceiver Slots The switch comes with slots for SFP/SFP+ transceivers. Note When using a Fiber Optic Small-Form Pluggable (SFP) module, ensure it is IEC 60825-1 certified and Class 1 Laser Product. LEDs The slots for the SFP/SFP+ transceivers have one link and activity status LED each. - Page 21 x540L and SE540L Series Switches Installation Guide The states of the LEDs are defined in Table 3. Table 3. Link and Activity LEDs for SFP/SFP+ Transceivers State Description Solid Green The transceiver has established a 10Gbps link to a network device. Flashing The transceiver is transmitting or receiving data Green...
-
Page 22: Management Panel
Chapter 1: Overview Management Panel The components on the management panel for the switch are identified in Figure 8. CONSOLE RS-232 Serial Port eco-friendly Button USB Slot System LEDs Figure 8. Management Panel for the Switch USB Port You can use the USB port with a flash drive for the following functions: Provide a centralized network backup location for Autonomous ... -
Page 23: Eco-Friendly Button
x540L and SE540L Series Switches Installation Guide eco-friendly Use the eco-friendly button on the management panel to turn the LEDs on or off. Button System LEDs The system LEDs on the management panel are described in Table 4. Table 4. System LEDs on the Management Panel Status Description FAULT... -
Page 24: Designating Ports In The Command Line Interface
Chapter 1: Overview Designating Ports in the Command Line Interface The individual ports on the switch are identified with the PORT parameter in the command line interface of the AlliedWare Plus management software. The format of the parameter is shown in Figure 9. port n.n.n Switch ID Number Slot Number... - Page 25 x540L and SE540L Series Switches Installation Guide Note You must include the PORT parameter when identifying individual ports, and omit it from the last port when specifying ranges. This example enters the port Interface mode for base port 10 in a switch with ID 1 and base port 18 in a switch with ID 2: awplus(config)# interface port1.0.10,port2.0.18...
- Page 26 Chapter 1: Overview...
-
Page 27: Chapter 2: Virtual Chassis Stacking
Chapter 2 Virtual Chassis Stacking The sections in this chapter are listed here: “Overview” on page 28 “Stacking Guidelines” on page 29 “Stack Trunks” on page 30 “Master and Member Switches” on page 32 “Switch ID Numbers” on page 33 ... -
Page 28: Overview
Chapter 2: Virtual Chassis Stacking Overview The Virtual Chassis Stacking (VCStack) feature enables you to link together two x540L series switches into a virtual stack so that they function as a single networking unit. Note VCStack feature is only available to the x540L series switches. The feature provides the following benefits: Simplifies management - You can manage the devices as a single ... -
Page 29: Stacking Guidelines
x540L Series and SE540L Series Switches Installation Guide Stacking Guidelines Here are general stacking guidelines: A stack must consist of two x540L series switches. Two ports per switch must be designated as trunk ports. The VCStack feature comes standard with the AlliedWare Plus ... -
Page 30: Stack Trunks
The fiber optic transceivers or direct attach cables of a trunk must be from Allied Telesis. Transceivers or cables from other network equipment providers might not perform properly as trunks. For a list of supported transceivers, visit the Allied Telesis web site. -
Page 31: Sfp+ Ports
x540L Series and SE540L Series Switches Installation Guide The trunk ports do not have to be consecutive, nor do they have to be the same ports on the two switches. However, following the recommendations can make trunk management easier. Figure 10. Example Stack of the x540L-28XTm Switches S1 or S2 SFP/ You can also use ports S1 and S2 on the x540L series switch, which are marked on SFP/SFP+ slots, for a stack trunk. -
Page 32: Master And Member Switches
Chapter 2: Virtual Chassis Stacking Master and Member Switches One switch of a stack functions as a master switch. Its main functions are listed here: Coordinate and monitor stack operations. Verify that the switches are using the same version of ... -
Page 33: Switch Id Numbers
x540L Series and SE540L Series Switches Installation Guide Switch ID Numbers Each switch must have an ID number. The ID number is 1 or 2. The default is 1. You can assign the numbers yourself or let the master switch assign the numbers automatically when you first power on the stack. -
Page 34: Optional Feature Licenses
Additional features and capabilities might be included with the operating system, but can be access only after they are unlocked with optional feature licenses from Allied Telesis. Contact your authorized reseller or distributor for a list of optional features licenses for this product. -
Page 35: Planning A Stack
x540L Series and SE540L Series Switches Installation Guide Planning a Stack Here are questions you need to answer before building or configuring a stack: How many switches will be in the stack? AlliedWare Plus supports stacks of two switches. Which switch will be the master switch? Refer to “Master and ... -
Page 36: Stacking Worksheet
Each switch in a stack has to have a unique ID number: 1 or 2. You use the ID numbers to configure the individual ports. Allied Telesis recommends assigning the ID 1, the default value, to the master switch. You should decide on the ID assignments of the switches before beginning the configuration procedures. - Page 37 Again, as with priority numbers, the lower the MAC address, the higher the priority. Allied Telesis recommends setting each switch’s priority value to match its ID value. This is to ensure that the switch you have chosen to be the master unit will indeed function in that role.
- Page 38 Chapter 2: Virtual Chassis Stacking Table 8 is an example of a completed worksheet for planning a stack with four switches. Table 8. Example of a Completed Stack Worksheet Firmware Switch/ Trunk Transceivers in Switch Switch Prior-ity Version Location Ports S1 and S2 Number Master...
-
Page 39: Chapter 3: Beginning The Installation
Chapter 3 Beginning the Installation The chapter contains the following sections: “Reviewing Safety Precautions” on page 40 “Choosing a Site for the Chassis” on page 44 “Unpacking the Box and Verifying the Contents” on page 45 “Installation Options” on page 47 ... -
Page 40: Reviewing Safety Precautions
Chapter 3: Beginning the Installation Reviewing Safety Precautions Please review the following safety precautions before beginning the installation procedure. Note Safety statements that have the symbol are translated into multiple languages in the Translated Safety Statements document at www.alliedtelesis.com/support. Warning Class 1 Laser product. - Page 41 x540L and SE540L Series Switches Installation Guide Warning Do not work on equipment or cables during periods of lightning activity. E2 Warning Power cord is used as a disconnection device. To de-energize equipment, disconnect the power cord. E3 Warning Class I Equipment.
- Page 42 Chapter 3: Beginning the Installation Caution Circuit Overloading: Consideration should be given to the connection of the equipment to the supply circuit and the effect that overloading of circuits might have on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.
- Page 43 x540L and SE540L Series Switches Installation Guide Warning Reliable earthing of rack-mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuits (e.g., use of power strips). E37 Warning This equipment shall be installed in a Restricted Access location.
-
Page 44: Choosing A Site For The Chassis
Chapter 3: Beginning the Installation Choosing a Site for the Chassis Observe these site requirements. If you are installing the device in an equipment rack, check that the rack is safely secured so that it will not tip over. Devices should be installed in the rack starting at the bottom, with the heavier devices near the bottom of the rack. -
Page 45: Unpacking The Box And Verifying The Contents
Warning The device is heavy. Always ask for assistance before moving or lifting it to avoid injure yourself or damage the equipment. E122 If any item is missing or damaged, contact your Allied Telesis sales representative for assistance. - Page 46 Chapter 3: Beginning the Installation Table 9. Accessory Kit (Continued) x540L-28XS, SE540L-28XS, x540L-28XTm, Item SE540L-28XTm Power cord Power cord retaining clip...
-
Page 47: Installation Options
x540L and SE540L Series Switches Installation Guide Installation Options The Installation options of the x540L series and SE540L series switches are shown in Table 10. Table 10. Installation Options x540L-28XS, SE540L-28XS, x540L-28XTm, SE540L-28XTm Tabletop Bumper Feet Equipment Rack Rack-Mount Brackets Wall Optional BRKT-J24 Brackets... -
Page 48: Guidelines For The Installation
Chapter 3: Beginning the Installation Guidelines for the Here is a list of guidelines for installing the x540L-28XS, SE540L-28XS, x540L-28XTm, or SE540L-28XTm switch: Installation To install the switch on a table, go to Chapter 4, “Installing the Switch on a Table” on page 49. To install the switch on a wall, go to Chapter 6, “Installing the ... -
Page 49: Chapter 4: Installing The Switch On A Table
Chapter 4 Installing the Switch on a Table This chapter contains instructions for installing the switch on a table. The procedure in this chapter is here: “Guidelines to Installing the Switch on the Table” on page 50 “Installing the Switch on a Table” on page 51 ... -
Page 50: Guidelines To Installing The Switch On The Table
Chapter 4: Installing the Switch on a Table Guidelines to Installing the Switch on the Table Here is the Guidelines to installing the switch on a table: The switch must be installed flat on the table. The switch cannot be ... -
Page 51: Installing The Switch On A Table
x540L Series and SE540L Series Switches Installation Guide Installing the Switch on a Table To install the x540L-28XS, SE540L-28XS, x540L-28XTm, or SE540L-28XTm switch on a table, perform the following procedure: 1. Disassemble the bumper feet by removing the rivets and rivet housings from the bumper feet. - Page 52 Chapter 4: Installing the Switch on a Table Figure 14. Placing the Bumper Foot Units on Base Corner Holes 5. Insert the rivet to secure the bumper foot to the base. See Figure 15 on page 52. Figure 15. Inserting the Rivet into the Bumper Foot 6.
-
Page 53: Chapter 5: Installing The Switch In An Equipment Rack
Chapter 5 Installing the Switch in an Equipment Rack This chapter contains instructions for installing the switch in a standard 19-inch equipment rack. The procedure in this chapter is here: “Installing the Switch in a Rack” on page 54 ... -
Page 54: Installing The Switch In A Rack
Chapter 5: Installing the Switch in an Equipment Rack Installing the Switch in a Rack When installing the switch in a 19-inch equipment rack, use the rack mount brackets that come with the switch Guidelines Here is a list of guidelines for installing the x540L-28XS, SE540L-28XS, x540L-28XTm, and SE540L-28XTm switches on an equipment rack: Before installing the switch, review the information and perform the ... -
Page 55: Removing The Bumper Feet
1. Review “Reviewing Safety Precautions” on page 40 and “Choosing a Site for the Chassis” on page 44. Caution The chassis may be heavy and awkward to lift. Allied Telesis recommends that you get assistance when mounting the chassis in an equipment rack. E28 2. - Page 56 Chapter 5: Installing the Switch in an Equipment Rack 5. Tighten the six M4x8 mm screws to attach the rack mount brackets to the switch. See Figure 19. Figure 19. Attaching the Rack Mount Brackets 6. Have another person hold the switch in the equipment rack while you secure it using standard equipment rack screws (not provided).
-
Page 57: Chapter 6: Installing The Switch On A Wall
Chapter 6 Installing the Switch on a Wall The procedures in this chapter are listed here: “Overview of Installing the Switch on a Wall” on page 58 “Unpacking the BRKT-J24 Wall Mount Bracket Kit” on page 61 “Plywood Base for a Wall with Wooden Studs” on page 62 ... -
Page 58: Overview Of Installing The Switch On A Wall
Chapter 6: Installing the Switch on a Wall Overview of Installing the Switch on a Wall The x540L series and SE540L series switches require BRKT-J24 wall mount brackets to be installed on a wall. Installation Here are the guidelines to installing the switch on a wall: Guidelines The BRKT-J24 wall mount bracket kit is optional. -
Page 59: Guidelines For Bracket Holes
x540L and SE540L Series Switches Installation Guide Figure 21. Correct Orientations of the Switch on the Wall Guidelines for To install the switch on a wall, you need the BRKT-J24 wall mount brackets. Here is a list of guidelines for bracket holes to attach your switch Bracket Holes to the brackets and attach the brackets to the wall: When you use two screws per bracket to install your switch to a... - Page 60 Chapter 6: Installing the Switch on a Wall For the key-hole slots on the bracket plate to a wall: 1. With a pencil, mark the smaller holes of the key-hole slots on the wall. 2. Install screws where you just marked on the wall. Leave them loose enough so that you can slide the bracket under the screw heads.
-
Page 61: Unpacking The Brkt-J24 Wall Mount Bracket Kit
16 M4x6mm screws for the BRKT-J24 wall mount brackets 3. If any item is missing or damaged, contact your Allied Telesis sales representative for assistance. Note Store the packaging material in a safe location. Please use the original shipping material if you need to return the device to Allied... -
Page 62: Plywood Base For A Wall With Wooden Studs
Chapter 6: Installing the Switch on a Wall Plywood Base for a Wall with Wooden Studs If you are installing the switch on a wall that has wooden studs, Allied Telesis recommends using a plywood base for the device. (A plywood base is not required for a concrete wall.) See Figure 24. - Page 63 x540L and SE540L Series Switches Installation Guide The recommended minimum dimensions of the plywood base are listed here: Width: 58.4 centimeters (23 inches) Height: 55.9 centimeters (22 inches) Thickness: 5.1 centimeters (2 inches) The dimensions assume the wall studs are 41 centimeters (16 inches) apart.
-
Page 64: Tools And Material
Chapter 6: Installing the Switch on a Wall Tools and Here are the required tools and material for installing the switch on a wall: Material Four BRKT-J24 wall mount brackets and sixteen M3-6mm screws (included with the switch) listed in Table 9 on page 45. Eight wood or concrete wall screws (not provided ... -
Page 65: Installing The Switch On A Wall
x540L and SE540L Series Switches Installation Guide Installing the Switch on a Wall If you plan to install your switch on the plywood base, go to “Plywood Base for a Wall with Wooden Studs” on page 62 before installing the switch. To install the switch on the plywood, perform the following procedure: 1. - Page 66 Chapter 6: Installing the Switch on a Wall 6. While another person holds the switch at the wall location, mark the holes with a pencil. For the key-hole slots, mark the smaller holes of the slots. See Figure Figure 27. Marking the Holes on the Wall 7.
- Page 67 x540L and SE540L Series Switches Installation Guide 8. Screw four screws to the pre-drilled holes that are closer to the switch, leaving space between the screw heads and the wall. See Figure 28. Figure 28. Screwing Four Screws on the Wall...
- Page 68 Chapter 6: Installing the Switch on a Wall 9. Install the brackets on the screws by sliding the key-hole slots under the screw heads.See Figure 29. Figure 29. Hooking and Slide the Switch 10. Tighten the four screws to secure the switch to the wall.
- Page 69 x540L and SE540L Series Switches Installation Guide 11. Install the other four screws to the rest of the pre-drilled holes. See Figure 30. Figure 30. Screwing the Rest of the Screws...
-
Page 70: Installing The Switch On A Concrete Wall
Chapter 6: Installing the Switch on a Wall Installing the Switch on a Concrete Wall Allied Telesis recommends a minimum of three people for this procedure. To install the switch on a concrete wall, perform the following procedure: 1. Place the switch on a table. - Page 71 Prior to drilling, set the drill to hammer and rotation mode. The modes break up the concrete and clean out the hole. Allied Telesis recommends cleaning out the holes with a brush or compressed air. 6. Insert the four anchors into the holes.
- Page 72 Chapter 6: Installing the Switch on a Wall...
-
Page 73: Chapter 7: Configuring The Master Switch
Chapter 7 Configuring the Master Switch This chapter contains the following sections: “Command Summary” on page 75 “General Steps for the Master Switch” on page 78 “Configuring the Master Switch - Part I” on page 80 “Configuring the Master Switch - Part II” on page 83 ... -
Page 74: Overview Of Stack Ports
Chapter 7: Configuring the Master Switch Overview of Stack Ports The x540L series switch has the Virtual Chassis Stacking (VCStack) feature that you can build a stack trunk. The ports marked S1 and S2 on the switch can be used for VCStack. In addition, any twisted-pair ports can be used for VCStack. -
Page 75: Command Summary
This command is used to configure ports S1 and S2 on the switch for the SFP/SFP+ transceiver. PORTMODE INTERFACE Allied Telesis recommends configuring these ports during the initial configuration procedure even if they will not be used for the stack trunk. The command format is shown here: platform portmode interface ports 10g The variables are defined here: The PORTS variable specifies the ports to be configured. -
Page 76: Stack Enable
As with priority numbers, the lower the MAC address, the higher the priority. A switch can have only one priority number. Allied Telesis recommends making a switch’s priority and ID numbers the same. This is not required, but it can make managing and troubleshooting a stack easier. -
Page 77: Stack Renumber
This example changes the switch’s ID from the default 1 to 2: awplus(config)# stack 1 renumber 2 SWITCH To ensure that the first power-on of the stack is successful, Allied Telesis recommends configuring the units such that each unit knows about the PROVISION others prior to forming the stack. -
Page 78: General Steps For The Master Switch
Chapter 7: Configuring the Master Switch General Steps for the Master Switch The procedure for configuring the master switch is divided into two parts. Here are the general steps to “Configuring the Master Switch - Part I” on page 80. Note The procedures require reseting the switch. - Page 79 2. Designate the types of transceivers to be used in ports S1 and S2 on the switch with the PLATFORM PORTMODE INTERFACE command, on the master and provisioned member switch. Allied Telesis recommends performing this task at this time even if you are not using those ports as the stack trunk.
-
Page 80: Configuring The Master Switch - Part I
Save the configuration and reboot the switch with the WRITE and REBOOT commands. Allied Telesis recommends filling out the worksheet in “Stacking Worksheet” on page 36 before performing this procedure. To configure the master switch, perform the procedure in Table 12. - Page 81 x540L and SE540L Series Switches Installation Guide Table 12. Configuring the Master Switch - Part I (Continued) Step Description and Command Verify that the switch hardware is operating correctly with the SHOW SYSTEM ENVIRONMENT command. The status of all components should be Ok. awplus# show system environment Environment Monitoring Status Overall Status: Normal...
- Page 82 Chapter 7: Configuring the Master Switch Table 12. Configuring the Master Switch - Part I (Continued) Step Description and Command Step 9 adds the member switches as provisioned switches to the master switch. You need to add one provisioned switch for each member switch to be in the stack. Add the member switch as a provisioned switch to the master switch, with the SWITCH PROVISION command.
-
Page 83: Configuring The Master Switch - Part Ii
x540L and SE540L Series Switches Installation Guide Configuring the Master Switch - Part II This section contains Part II for configuring the master switch. In this procedure, you do the following: Designate the types of transceivers to be used in ports S1 and S2 ... - Page 84 Chapter 7: Configuring the Master Switch Table 13. Configuring the Master Switch- Part II (Continued) Step Description and Command Designate the ports as trunk ports with the STACKPORT command. awplus(config-if)# stackport % Save the config and restart the system for this change to take effect.
- Page 85 x540L and SE540L Series Switches Installation Guide Table 13. Configuring the Master Switch- Part II (Continued) Step Description and Command Enter the WRITE command to save your change. awplus# write Building configuration ... [OK] Restart the switch with the REBOOT command. awplus# reboot reboot system? (y/n): awplus#...
-
Page 86: Verifying The Master Switch
Chapter 7: Configuring the Master Switch Verifying the Master Switch Perform the steps in Table 14 to confirm the configuration of the master switch. Table 14. Verifying the Master Switch Step Description and Command Start a new local management session. Move to the Privileged Exec mode with the ENABLE command. - Page 87 x540L and SE540L Series Switches Installation Guide Table 14. Verifying the Master Switch (Continued) Step Description and Command Enter the SHOW RUNNING-CONFIG command and verify the following: - Check the running configuration for SWITCH PROVISION commands. There should be one command for each switch and the commands should designated x540L-28XTm switches.
-
Page 88: What To Do Next
Chapter 7: Configuring the Master Switch What to Do Next After configuring the master switch, do the following: 1. Power off the switch by performing the following: Figure 34. Powering Off the AC Power Supply 2. Configure the member switches, as explained in Chapter 8, “Configuring Member Switches”... -
Page 89: Chapter 8: Configuring Member Switches
Chapter 8 Configuring Member Switches This chapter contains the following sections: “General Steps for Member Switches” on page 90 “Configuring a Member Switch - Part I” on page 92 “Configuring a Member Switch - Part II” on page 95 ... -
Page 90: General Steps For Member Switches
Chapter 8: Configuring Member Switches General Steps for Member Switches The procedure for configuring a member switch is divided into two parts. Here are the general steps to “Configuring a Member Switch - Part I” on page 92: Note The procedures require resetting a member switch twice. Network traffic will be lost if it is already connected to an active network. - Page 91 x540L and SE540L Series Switches Installation Guide 7. Start a new local management session. 8. Verify the changes with the SHOW STACK SHOW RUNNING-CONFIG command.
-
Page 92: Configuring A Member Switch - Part I
REBOOT commands. Allied Telesis recommends filling out the worksheet in “Stacking Worksheet” on page 36 before performing the procedures. To configure a member switch, perform the procedure in Table 15. Table 15. Configuring a Member Switch - Part I... - Page 93 x540L and SE540L Series Switches Installation Guide Table 15. Configuring a Member Switch - Part I (Continued) Step Description and Command Display the version number of the AlliedWare Plus operating software on the switch SHOW VERSION by entering the command. Write down the version number in the worksheet in “Stacking Worksheet”...
- Page 94 Chapter 8: Configuring Member Switches Table 15. Configuring a Member Switch - Part I (Continued) Step Description and Command REBOOT Restart the switch with the command. awplus# reboot reboot system? (y/n): awplus# Type “ ” for yes. Wait two minutes for the switch to initialize its management software. Check the ID LED on the front panel and do one of the following: - If the ID LED is displaying the ID number you assigned to the switch, VCStack is now enabled on the switch.
-
Page 95: Configuring A Member Switch - Part Ii
x540L and SE540L Series Switches Installation Guide Configuring a Member Switch - Part II This section contains the second part to configuring member switches. The steps show how to configure the following parameters: Set the priority number of the switch to match its ID number, with ... - Page 96 Chapter 8: Configuring Member Switches Table 16. Configuring a Member Switch - Part II (Continued) Step Description and Command Enter the port Interface modes of the ports to be the stack trunk on the master and INTERFACE member switches with the command.
-
Page 97: Verifying A Member Switch
x540L and SE540L Series Switches Installation Guide Verifying a Member Switch Perform the steps in Table 17 to confirm the configuration of a member switch. Table 17. Verifying a Member Switch Step Description and Command Start a local management session. Refer to “General Steps for the Master Switch” on page 78. - Page 98 Chapter 8: Configuring Member Switches Table 17. Verifying a Member Switch (Continued) Step Description and Command SHOW RUNNING-CONFIG Enter the command and verify the following: SWITCH PROVISION - Check the running configuration for commands. There should be one command for each switch and the commands should designate x540L-28XTm switches.
-
Page 99: What To Do Next
x540L and SE540L Series Switches Installation Guide What to Do Next After configuring a member switch, do the following: 1. Power off the switch. See “Powering off the Switch” on page 111. 2. If you have not already configured the master switch, perform “Configuring the Master Switch - Part I”... - Page 100 Chapter 8: Configuring Member Switches...
-
Page 101: Chapter 9: Powering On And Verifying The Stack
Chapter 9 Powering On and Verifying the Stack This chapter contains the following sections: “Powering on the Stack” on page 102 “Verifying the Stack” on page 103 Note This chapter applies only to the x540L-28XTm switch. -
Page 102: Powering On The Stack
Chapter 9: Powering On and Verifying the Stack Powering on the Stack After configuring the master and member switches for stacking and cabling the trunk ports, you are ready to power on the stack for the first time. (If you want to monitor the power-on sequence, connect a terminal or PC with a terminal emulator program to the Console port on any of the switches). -
Page 103: Verifying The Stack
x540L and SE540L Series Switches Installation Guide Verifying the Stack To verify the stack, perform the following procedure: 1. Start a local management session on any switch in the stack. Refer to “General Steps for the Master Switch” on page 78. SHOW STACK 2. - Page 104 Chapter 9: Powering On and Verifying the Stack...
-
Page 105: Chapter 10: Powering On And Starting The Switch
Chapter 10 Powering on and Starting the Switch This chapter contains the following sections: “Powering on the Switch” on page 106 “Starting a Local Management Session” on page 109 “Powering off the Switch” on page 111 ... -
Page 106: Powering On The Switch
Chapter 10: Powering on and Starting the Switch Powering on the Switch The procedure in this section explains how to power on the switch. Before powering on the chassis, review the information in “Power Specifications” on page 131. Warning Power cord is used as a disconnection device. To de-energize equipment, disconnect the power cord. - Page 107 x540L and SE540L Series Switches Installation Guide 2. Connect the AC power cord to the AC power connector on the rear panel. Refer to Figure 37. Figure 37. Connecting the AC Power Cord 3. Lower the power cord retaining clip to secure the cord to the switch. Refer to Figure 38.
- Page 108 Chapter 10: Powering on and Starting the Switch Figure 39. Connecting the Power Cord to an AC Power Source 5. Go to “Starting a Local Management Session” on page 109.
-
Page 109: Starting A Local Management Session
x540L and SE540L Series Switches Installation Guide Starting a Local Management Session This procedure explains how to start a local management session on the switch. It assumes that you powered on the device and waited two minutes for it to initialize its operating software. Note The first management session of the switch can be either a local session, as explained in this section, or a remote session over your... - Page 110 Chapter 10: Powering on and Starting the Switch 3. Configure the VT-100 terminal or terminal emulation program as follows: Baud rate: 9600 bps Data bits: 8 Parity: None Stop bits: 1 Flow controller: None Note The port settings are for a DEC VT100 or ANSI terminal, or an equivalent terminal emulator program.
-
Page 111: Powering Off The Switch
x540L and SE540L Series Switches Installation Guide Powering off the Switch To power off the switch, perform the following procedure: 1. Unplug the power cord. Figure 42. Powering Off the AC Power Supply... - Page 112 Chapter 10: Powering on and Starting the Switch...
-
Page 113: Chapter 11: Cabling The Networking Ports
Chapter 11 Cabling the Networking Ports This chapter contains the following procedures: “Cabling Twisted Pair Ports” on page 114 “Installing SFP and SFP+ Transceivers” on page 116 “Installing SP10TW Direct Connect Cables” on page 120 ... -
Page 114: Cabling Twisted Pair Ports
Chapter 11: Cabling the Networking Ports Cabling Twisted Pair Ports Note This section is applied only to the x540L-28XTm and SE540L-28XTm switches. Here are the guidelines to cabling the twisted pair ports: The minimum cable requirements are as follows: –... - Page 115 x540L and SE540L Series Switches Installation Guide The default speed setting for the wiring configurations of the ports is Auto-Negotiation. This setting is appropriate for ports connected to network devices that also support Auto-Negotiation. The ports must be set to the default setting of Auto-Negotiation to ...
-
Page 116: Installing Sfp And Sfp+ Transceivers
Note For a list of supported transceivers, refer to the product data sheet on the Allied Telesis web site. The operational specifications and fiber optic cable requirements of the transceivers are provided in the documents included with the devices. -
Page 117: Installing Sfp And Sfp+ Transceivers
2. Remove the transceiver from its shipping container and store the packaging material in a safe location. 3. Position the transceiver with the Allied Telesis label facing up. 4. Slide the transceiver into the port until it clicks into place, as shown in... - Page 118 Chapter 11: Cabling the Networking Ports Figure 44. Installing SFP+ Transceivers Note If you are ready to attach the fiber optic cable to the transceiver, continue with the next step. Otherwise, repeat step 1 to step 4 to install the remaining transceivers in the switch. 5.
- Page 119 x540L and SE540L Series Switches Installation Guide SFP Handle Figure 46. Positioning the SFP or SFP+ Handle in the Upright Position 7. Connect the fiber optic cable to the transceiver, as shown in Figure 47 on page 119. The connector on the cable should fit snugly into the port, and the tab should lock the connector into place.
-
Page 120: Installing Sp10Tw Direct Connect Cables
Chapter 11: Cabling the Networking Ports Installing SP10TW Direct Connect Cables The SFP/SFP+ transceiver ports support SP10TW direct connect twinax cables: The cables are an economical way to add 10G connections over short distances. They have SFP+ transceivers on both ends and come in lengths of 1 and 3 meters. - Page 121 x540L and SE540L Series Switches Installation Guide Note To remove the connector and cable from the port, gently push on the connector, pull on the release tab, and slide the connector from the port.
- Page 122 Chapter 11: Cabling the Networking Ports...
-
Page 123: Chapter 12: Troubleshooting
This chapter contains suggestions on how to troubleshoot problems with the switch. Note For further assistance, please contact Allied Telesis Technical Support at www.alliedtelesis.com/support. Problem 1: The unit is not receiving power. All the port LEDs and Switch ID LED are off, and the fans are not operating. - Page 124 Chapter 12: Troubleshooting Problem 3: A 1Gbps or 10Gbps fiber optic transceiver in SFP/SFP+ ports on the switch is unable to establish a link to a network device. Solutions: Try the following: Check that the transceiver is fully inserted in the port. ...
- Page 125 If the trunk is using fiber optic transceivers, verify that they are fully inserted into the ports. Verify that the transceivers are from Allied Telesis. Verify that the fiber optic cables are securely connected to the ...
- Page 126 Chapter 12: Troubleshooting Problem 7: The switch functions intermittently. Solutions: Try the following: SHOW SYSTEM ENVIRONMENT Use the command in the Privileged Exec mode to verify that the input voltage from the power source to the switch is stable and within the approved operating range.
-
Page 127: Appendix A: Technical Specifications
Appendix A Technical Specifications This appendix contains the following sections: ”Physical Specifications” on page 128 ”Environmental Specifications” on page 130 ”Power Specifications” on page 131 ”RJ-45 Twisted Pair Port Pinouts” on page 132 ”RJ-45 Style Serial Console Port Pinouts” on page 134 ... -
Page 128: Physical Specifications
Appendix A: Technical Specifications Physical Specifications Dimensions (H x W x D) Table 19 lists the dimensions of the switches. Table 19. Product Dimensions x540L-28XS SE540L-28XS 4.4 cm x 44.0 cm x 29 cm (1.7 in. x 17.3 in. x 11.4 in.) x540L-28XTm SE540L-28XTm Height, Width and Depth of x540L-28XS, SE540L-28XS, x540L-28XTm, and SE540L-28XTm... - Page 129 x540L and SE540L Series Switches Installation Guide Depth (x540L-28XTm and SE540L-28XTm) 29.0 cm (11.4 in.) Figure 50. Bracket Holes of x540L-28XS, SE540L-28XS, x540L-28XTm, and SE540L-28XTm Switches Weights Table 20. Product Weights x540L-28XS switch 3.8kg (8.4lb) SE540L-28XS switch 3.8kg (8.4lb) x540L-28XTm switch 4.0kg (8.8lb) SE540L-28XTm switch 4.0kg (8.8lb)
-
Page 130: Environmental Specifications
Appendix A: Technical Specifications Environmental Specifications Table 22 lists the environmental specifications of the switches. Table 22. Environmental Specifications Operating Temperature 0° C to 50° C (32° F to 122° F) Storage Temperature -25° C to 70° C (-13° F to 158° F) Operating Humidity 5% to 90% noncondensing Storage Humidity... -
Page 131: Power Specifications
x540L and SE540L Series Switches Installation Guide Power Specifications This section contains the maximum power consumption values, input voltages, and heat dissipation. Maximum Power Consumptions Table 23. Maximum Power Consumption x540L-28XS SE540L-28XS x540L-28XTm 160W SE540L-28XTm 160W The maximum power consumptions for the switch is 970W. Input Voltage and Frequency Table 24 lists the input voltages for the switches. -
Page 132: Twisted Pair Port Pinouts
Appendix A: Technical Specifications RJ-45 Twisted Pair Port Pinouts Figure 51 illustrates the pin layout of the RJ-45 connectors on the following products: x540L-28XTm switch SE540L-28XTm switch Figure 51. Pin Layout (Front View) of Twisted Pair Ports Table 26 lists the pin signals at 100Mbps. Table 26. - Page 133 x540L and SE540L Series Switches Installation Guide Table 27 lists the pin signals at 1/2.5/5/10Gbps. Table 27. Pin Signals on Twisted Pair Ports at 1/2.5/5/10Gbps Pair Signal TX and RX+ TX and RX- TX and RX+ TX and RX+ TX and RX- TX and RX- TX and RX+ TX and RX-...
-
Page 134: Rj-45 Style Serial Console Port Pinouts
Appendix A: Technical Specifications RJ-45 Style Serial Console Port Pinouts Table 28 lists the pin signals of the RJ-45 style serial Console port. Table 28. RJ-45 Style Serial Console Port Pin Signals Signal Looped to pin 8 Looped to pin 7 Transmit Data Ground Ground...
