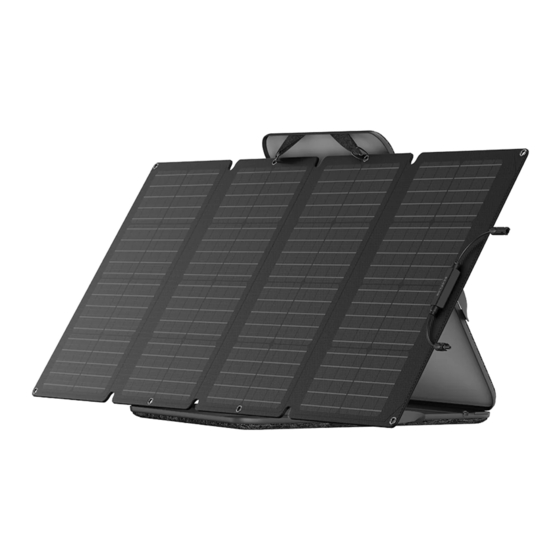

- Page 1 SO L AR PANEL Contact Us: ecoflow.com NA/LA/APAC/MEA: support@ecoflow.com EU: support.eu@ecoflow.com AU: support.au@ecoflow.com...
- Page 2 This marking indicates that this product should not be disposed of with other household waste within the EU. Recycle this product properly to prevent possible damage to the environment or a risk to human health via uncontrolled waste disposal and in order to promote the sustainable reuse of material resources. Please return your used product to an appropriate collection point or contact the retailer where you purchased this product.
- Page 3 Esta marca indica que este producto no debe ser eliminado en la basura del hogar en la Unión Europea. Debe reciclar este producto adecuadamente para evitar posibles daños al medio ambiente o riesgos para la salud humana a través de la eliminación no controlada y para promover la reutilización de recursos materiales.
-
Page 4: How It Works
Snap Hook User Manual Solar Charging and kickstand & Warranty Card Cable Photovoltaic connectors (adaptable to MC4 connectors) How It Works EcoFlow DELTA (Sold Separately) XT60 Solar Charging Cable INPUT PORT EcoFlow RIVER Solar Panel (Sold Separately) EcoFlow DELTA (Sold Separately) - Page 5 Your Solar Setup...
- Page 6 It is prohibited to be used for interconnection between solar panels or other connection purposes. In order to increase the efficiency of the EcoFlow 160W Solar Panel, use it in direct sunlight, position it perpendicular to the sunlight, and make sure the solar panels are unobstructed.
- Page 7 The kickstand feature should only be used before 10:00 am or after Noon 2:00 pm. To use the product during Afternoon Morning the midday sun, simply place the solar panel flat on the ground. Speed Up Solar Charging 1. Connect the positive poles of the two solar panels with the parallel Wire solar panels in parallel (refer to the figure below) cable and repeat the step for the negative poles.
- Page 8 1. Snap the male connector of one solar panel into the female Wire solar panels in series connector of the other respectively to wire the three solar panels (refer to the figure below) in series. 2. Wire the two connectors that are unwired in step 1 with the Solar Charging Cable respectively.
-
Page 9: Technical Specifications
Technical Specifications 160W Solar Panel Rated Power: 160W(+/-5W)* Open Circuit Voltage: 21.4V Running Voltage: 18.2 V Short Circuit Current: 9.6A Running Current: 8.8A Efficiency: 21%-22% Cell Type: Monocrystalline silicon General Solar Panel: Approx. 12.3 lbs(5.6KG) Unfolded Dimensions: 26.9*62.6*1.0 in(68.5*159.0*2.5cm) Folded Dimensions: 26.9*16.9*1.0 in(68.5*43.0*2.5cm) Warranty: 12 months Tested And Certified... - Page 10 Hereby, EcoFlow Inc. declares that the equipment type solar panel is in compliance with Directives 2014/30/EU, 2011/65/EU(RoHS), (EU) 2015/863(RoHs). The full text of the EU declaration of conformity is available at the following Internet address: eu: http://www.ecoflow.com/eu/eu-compliance uk: http://www.ecoflow.com/uk/eu-compliance de: http://www.ecoflow.com/de/eu-compliance...
