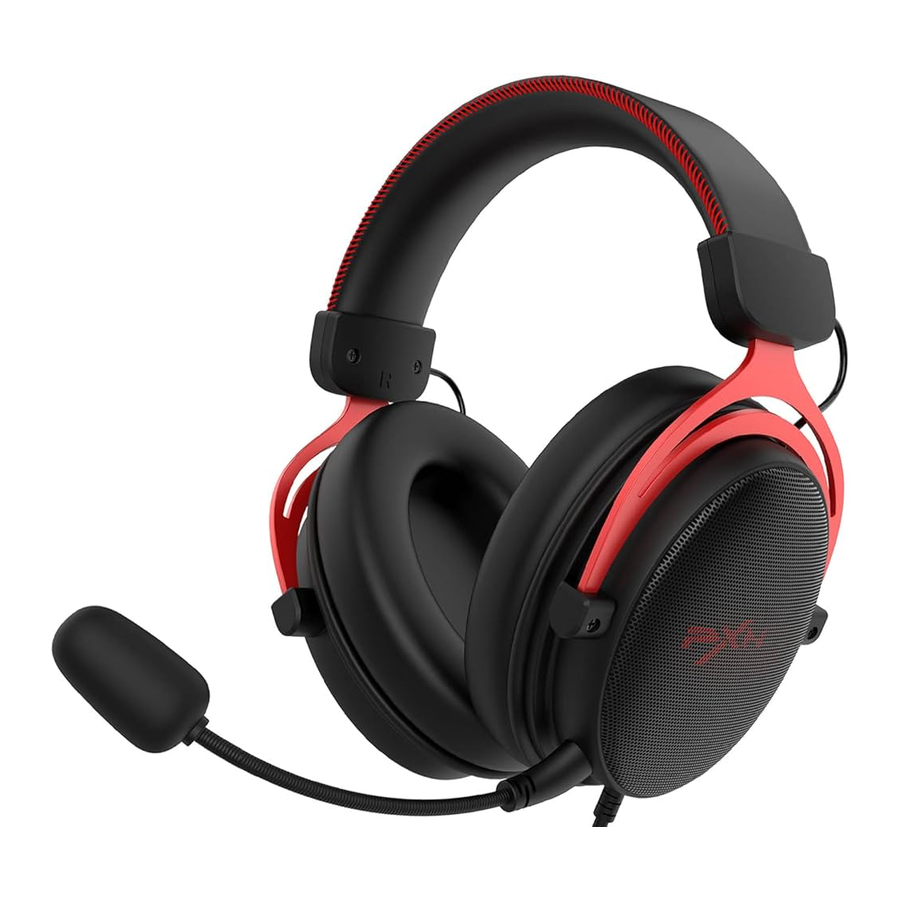

PXN Konlin II Manual
Operating Function
Press the 7.1MODE button on the cable controller to switch the EQ sound effect.
| Light status | Purple | Blue | Red | Green | OFF |  |
| Sound effect | 7.1 Mode | Game Mode | Music Mode | Movie Mode | Original Mode | |
| RGB Light Button | Press once | Press 2 times | Press 3 times | Long press for 2s | ||
| RGB Light Status | Color remains ON (Only in single color) | Colors cyclically change (Only in single color) | Color gradually changes | RGB Light ON / OFF | ||
Product Overview
- Supported Platforms: Support PC, MAC, PS4, PS5
- System Requirement: Windows XP/ 7/ 8/ 10/ 11
Product Specifications
| Product Model | PXN - Konlin II |
| Connection Method | USB Wired Connection, Cable length Appr. 2 m |
| Speaker Diameter | Φ 53 mm |
| Sensitivity | 114±3dB at 1KHz |
| Impedance | 58±15%Ω |
| Frequency Range | 20Hz ~ 20KHz |
| Rated Power | 20mW |
| Maximum Power | 30mW |
| Outline Size | Appr. 203*170*96mm |
| Microphone | ¢ 6.0X5mm |
| Microphone Sensitivity | -42±3dB |
| Microphone Impedance | ≤ 2.2KΩ |
| Microphone Rated Voltage | 3.0V |
| Microphone Maximum Voltage | 10.0V |
| Testing Current | 0.3±0.1mA |
| Microphone Frequency Range | 100Hz~10000Hz |
| Product Weight | Appr. 332g, Cable not included |
Attention
- Avoid placing in humid, high temperature or soot place.
- Prevent water or other liquids from entering the inside of the headphone.
- Avoid using the headphone at a high volume for a long time. If tinnitus or earache occurs, please stop using.
- If you have any problems or suggestions about the product, please contact the seller or the after-services.
