PXN Ravine Pro Manual

Table of Contents

Contents

1 Product Overview
- 1.1 Headset
- 1.2 USB transceiver
2 Power ON/OFF
3 Headset Charging
4 BT Connection
5 2.4G Connection
6 Forced Pairing
7 Button Functions
8 How to Wear
9 Product Specifications
10 Attentions
11 Documents / Resources
- 11.1 Download manual

Product Overview

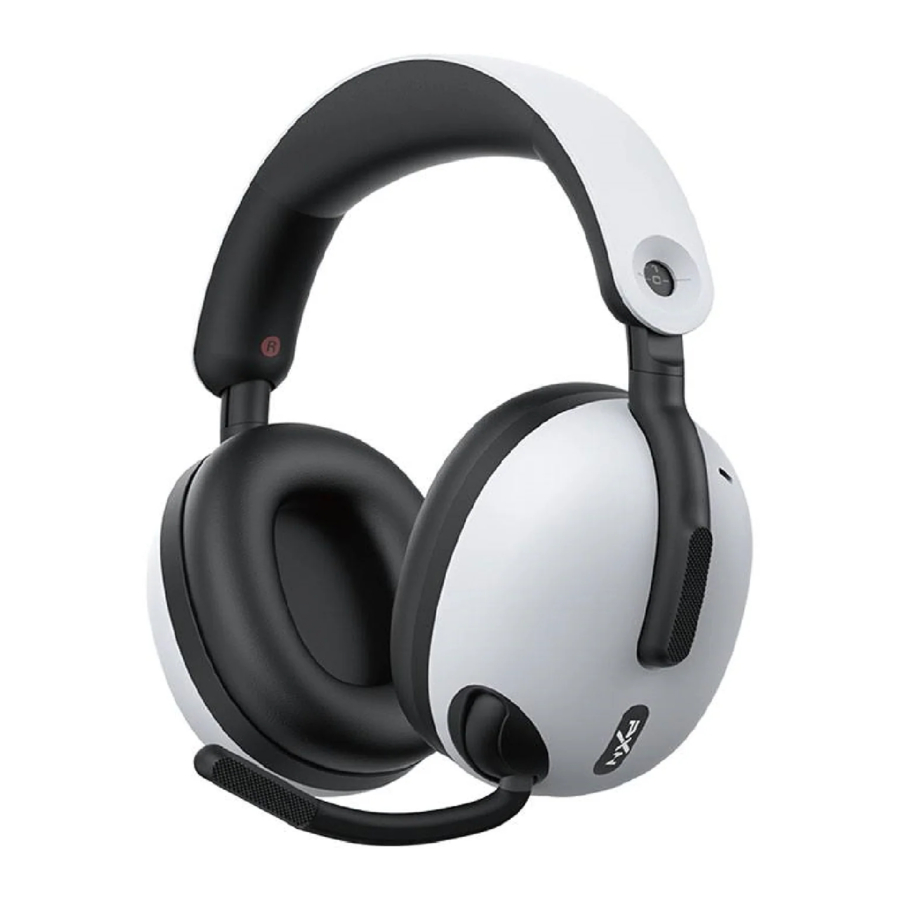

Headset

Product Overview - Headset

USB transceiver

Product Overview - USB transceiver

Power ON/OFF

Headset Charging

Hold and press the " power button" for about 3 seconds to turn it on, the blue light will turn on for 2 seconds and then start flashing.

Hold and press the " power button" for about 5 seconds to turn it off, the blue light will turn on for 2 seconds and then turn off.

BT Connection

For the first time using, the headset will automatically enter pairing mode and you will hear the prompt "Pairing" after turning it on. Then, check your BT pairing list on the phone to find "Ravine Pro" and connect to it. Once connected, you will hear the prompt "Connected" and the blue indicator will flash every 10 seconds.

2.4G Connection

After plug the transceiver into your PC, console, or mobile device, the headset will automatically connect after turning it on. When the headset are connected, you will hear the prompt "Connected" and the transceiver's blue light will remain on. The blue indicator light on the headset will flash every 10 seconds.

Forced Pairing

If you need to connect the headset to another device after using them with one device for more than 5 minutes, press and hold the up arrow button for 2 seconds to enter forced pairing mode. The blue indicator light on the headset will flash every 0.5 seconds.

Button Functions

How to Wear

Product Specifications

Product Name	Ravine Pro
BT Version	BT 5.3
BT Protocol	A2DP AVRCP HFP HSP
Audio Decoding	SBC、AAC
Driver	40mm composite diaphragm speaker
Frequency Response	20Hz-20KHz
Sensitivity	94dB
Effective Range	≥10m
Battery Type	Lithium battery
Battery Capacity	800mAh
Input Voltage	5V/600mA
Charging Interface	Type-C
Charging Time	1.5 H
Battery Life	BT mode: about 47 hours (with lights off), about 35 hours (with lights on) 2.4G mode: about 42 hours (with lights off), about 32 hours (with lights on)

Attentions

Avoid using the headphone at a high volume for a long time. If tinnitus or earache occurs, please stop using.

Do not use this product while driving a motor vehicle.

Avoid using this product during thunderstorms or rainy weather to prevent potential product malfunctions or electrical hazards.

Keep this product out of reach of children and pets to prevent accidental swallowing and potential choking hazards.

The rechargeable battery of this product must be properly handled for recycling purposes. Do not dispose of the battery in a fire, as it may cause an explosion.
