PXN V10 Manual

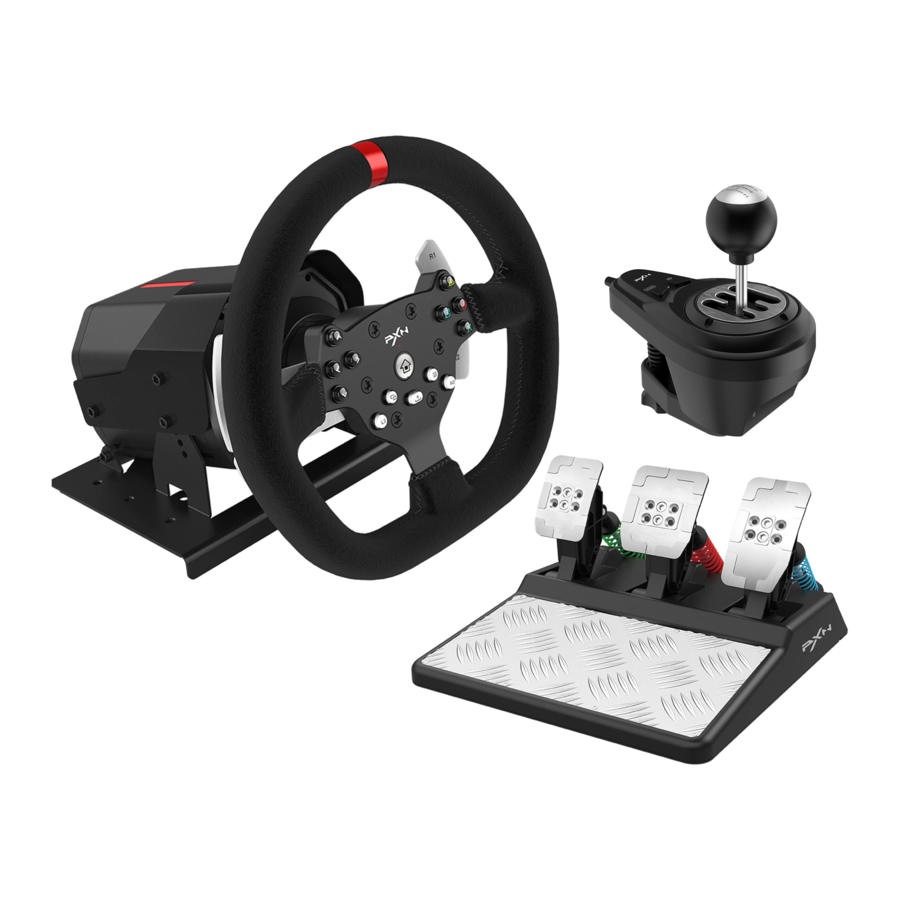

APPEARANCE

PRODUCT CONTENT

SYSTEM REQUIREMENTS

Supported platforms: PC/PS4/X-ONE/X-Series X|S
Compatible computer operating systems: Windows 7/8/10/11
Note: Original controller should be used for guidance while playing on PS4 and X-ONE/X-Series X|S platforms.

BACK INTERFACE OF THE STEERING WHEEL

Back Interface Connection Diagram

STEERING WHEEL INSTALLATION INSTRUCTION

Assembling of Panel and Base

1. Align the panel with the panel mounting position of the base, hold the steering wheel dial, and tighten the locking ring.


Steering Wheel Fixed Instruction

1. Put the steering wheel base in a proper position and install the clamp.

2. Use an Allen key to tighten the screws on the clamp to lock the clamp.


Steering Wheel Tilt Adjustment Instruction

When in use, you can set the inclination of the steering wheel base with 4 gears.

1. Use an Allen key to remove the screws shown in the figure.

2. Adjust the inclination of the base to the corresponding hole position and tighten the screws.


FOOT PEDALS INSTALLATION INSTRUCTION

Panel Angle Adjustment of Foot Pedal

1. Use an Allen key to loosen and remove the 2 Allen screws.

2. Adjust the pedal to the desired angle, install and tighten the 2 Allen screws.

   * DO Not Over Tighten

Pedal Strength Adjustment Instruction

1. Rotate the parts shown in the figure to adjust the pedal strength.


Note: Please adjust the parts within the thread range.

Foot Pedal Fixed Instruction

1. There are 4 screw holes reserved at the bottom of the foot pedal to fix the pedal to the bracket by combining the corresponding screws.


INSTRUCTION FOR PLAYING ON PC

1. Connect the gear shift and foot pedals to the steering wheel.
2. Fix the steering wheel and connect it to the power adapter.
3. Plug the USB main cable of the steering wheel to the PC.
4. The steering wheel will be in D-input mode by default if successfully connected, and the red indicator on the steering wheel will be always on.

Mode Switch While Playing on PC

The steering wheel is in D-input mode by default. Press the "" button for 3 seconds to switch to X-input mode and a purple indicator will be always on if successfully switched.
Mode Switch by "" Button

D-input mode supports force feedback function (requires the game to support force feedback)
Recommended games: Euro Truck Simulator 2, Forza Horizon 5, Assetto Corsa: Racing, Dirt Rally 2.0, F1 2020.
No forceback feedback function in X-input mode
Recommended games: Forza Horizon 4 (Steam version), Spintires: Snowrunner,
Need for Speed: Heat Pursuit.

INSTRUCTION FOR PLAYING ON PS4

1. Connect the gear shift and foot pedals to the steering wheel.
2. Securely install the steering wheel and connect to the power adapter.
3. Turn off the PS4 original controller and use the USB data cable to connect the controller to the controller interface of the steering wheel.
4. Plug the USB main cable of the steering wheel into the USB port of the PS4 host, and turn on the PS4 host.
5. Press the "" button of the steering wheel and the blue indicator of the steering wheel will be always on if connected successfully.

INSTRUCTION FOR PLAYING ON X-ONE/X-SERIES X|S

1. Connect the gear shift and foot pedal to the steering wheel.
2. Fix the steering wheel and connect it to the power adapter.
3. Turn off the X-ONE/X-Series X|S original controller and use the USB data cable to connect the controller to the controller interface of the steering wheel.
4. Plug the steering wheel USB main cable into the USB port of the X-ONE/X-Series X|S host and power on the X-ONE/X-Series X|S host.
5. Press the "" button of the steering wheel and the green indicator will be always on.

STEERING WHEEL ADVANCED SETTINGS

Download the [PXN Wheel] APP on your mobile phone to get the advanced settings of the steering wheel.
Main Functions of the APP:

• Steering effective rotation degree setting
• Force feedback setting
• Button mapping setting
• Game preset button configuration
• Steering wheel button test

Scan the QR code to download the APP

PRECAUTIONS

• Please read the manual carefully before using.
• Avoid strong vibration and gravity drop.
• Do not disassemble, modify or repair by yourself.
• Prevent water or other liquids from getting into the product to avoid damage.
• Avoid storing products in some places with humid, high temperature, oily smoke, etc.
• Please use proper power while connecting and removing devices to avoid damage.
• Children can only use this product under the supervision of an adult.

PRODUCT SPECIFICATIONS
