PXN Ravine Manual

Product Overview

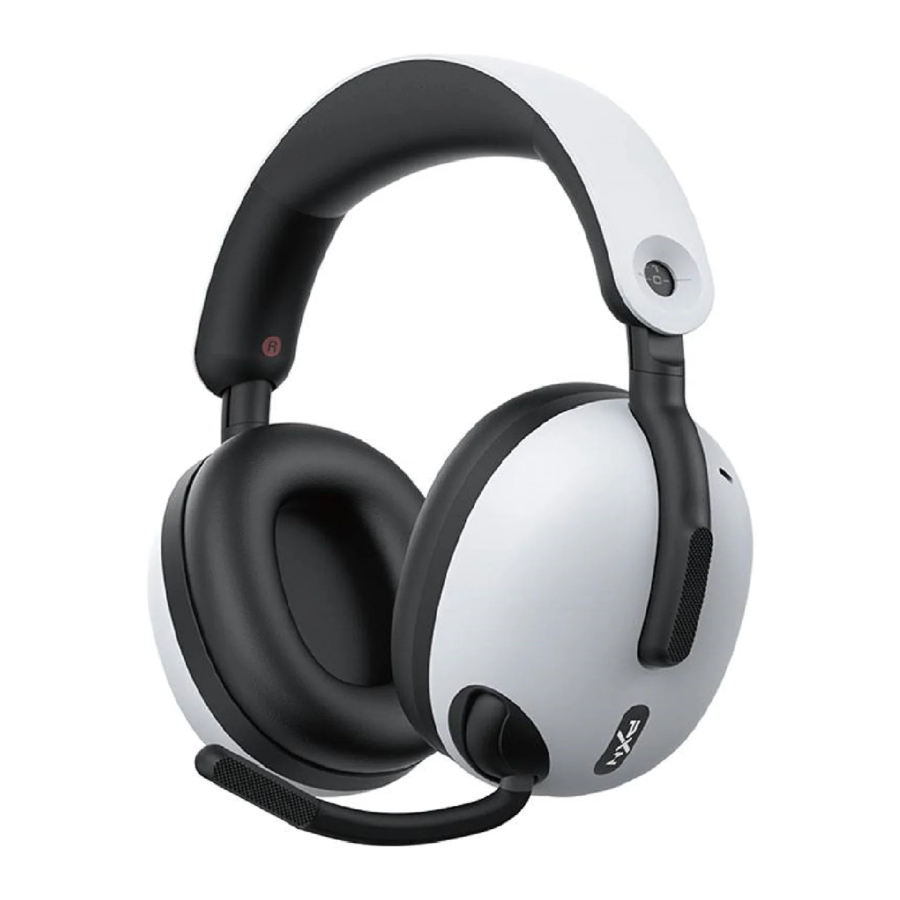

Headset

Product Overview - Headset

Receiver

Product Overview - Receiver

Headset Charging

Power ON/OFF

Hold and press the " Power button " for about 3 seconds to turn it on, the Mode Indicator on.
Hold and press the " Power button " for about 3 seconds to turn it off, the Mode Indicator off.

2.4G/BT Mode Switching

If playing music in BT mode, you must first press the " Power button " to pause the music before double pressing the " Power button " to switch to the 2.4G mode.

2.4G Connection

After plugging the receiver into the PC, game console, or mobile device, the headset will automatically connect after turning it on. Once successfully, you will hear the prompt "Connected" and the blue light on the receiver will remain on. The ice-blue indicator on the headset will stay on.

BT Connection

When switching the headset to BT mode (double-clicking the Power button), it will automatically enter pairing mode, and you will hear a prompt "Pairing". Then check the BT pairing list on your phone and find "Ravine" for connection.

Once successfully, you will hear the prompt "Connected" and the blue mode indicator will stay on.

Forced Pairing

After using the headset with one device for more than 5 minutes, if you need to connect the headset to another device, you can clear the existing pairing information by pressing the PREV button four times consecutively (within 1.5 seconds).
This will enter them into pairing mode for re-connection.

How to Wear

Button Functions

Product Specifications

Product Name	Ravine
BT Version	BT 5.3
BT Protocol	A2DP AVRCP HFP HSP
Audio Decoding	SBC, AAC
Driver	40mm composite diaphragm dynamic speaker
Frequency Response	20Hz-20KHz
Sensitivity	94dB
Effective Range	10m (obstacle-free open environment)
Battery Type	Lithium battery
Battery Capacity	550mAh
Input Voltage	5V/500mA
Charging Interface	Type-C
Charging Time	1.5 hour
Battery Life	BT mode: about 62 hours (with lights off), about 35 hours (with lights on) 2.4G mode: about 44 hours (with lights off), about 32 hours (with lights on)

Attentions

Avoid using the headphone at a high volume for a long time. If tinnitus or earache occurs, please stop using.

Do not use this product while driving a motor vehicle.

Avoid using this product during thunderstorms or rainy weather to prevent potential product malfunctions or electrical hazards.

Keep this product out of reach of children and pets to prevent accidental swallowing and potential choking hazards.

The rechargeable battery of this product must be properly handled for recycling purposes. Do not dispose of the battery in a fire, as it may cause an explosion.
