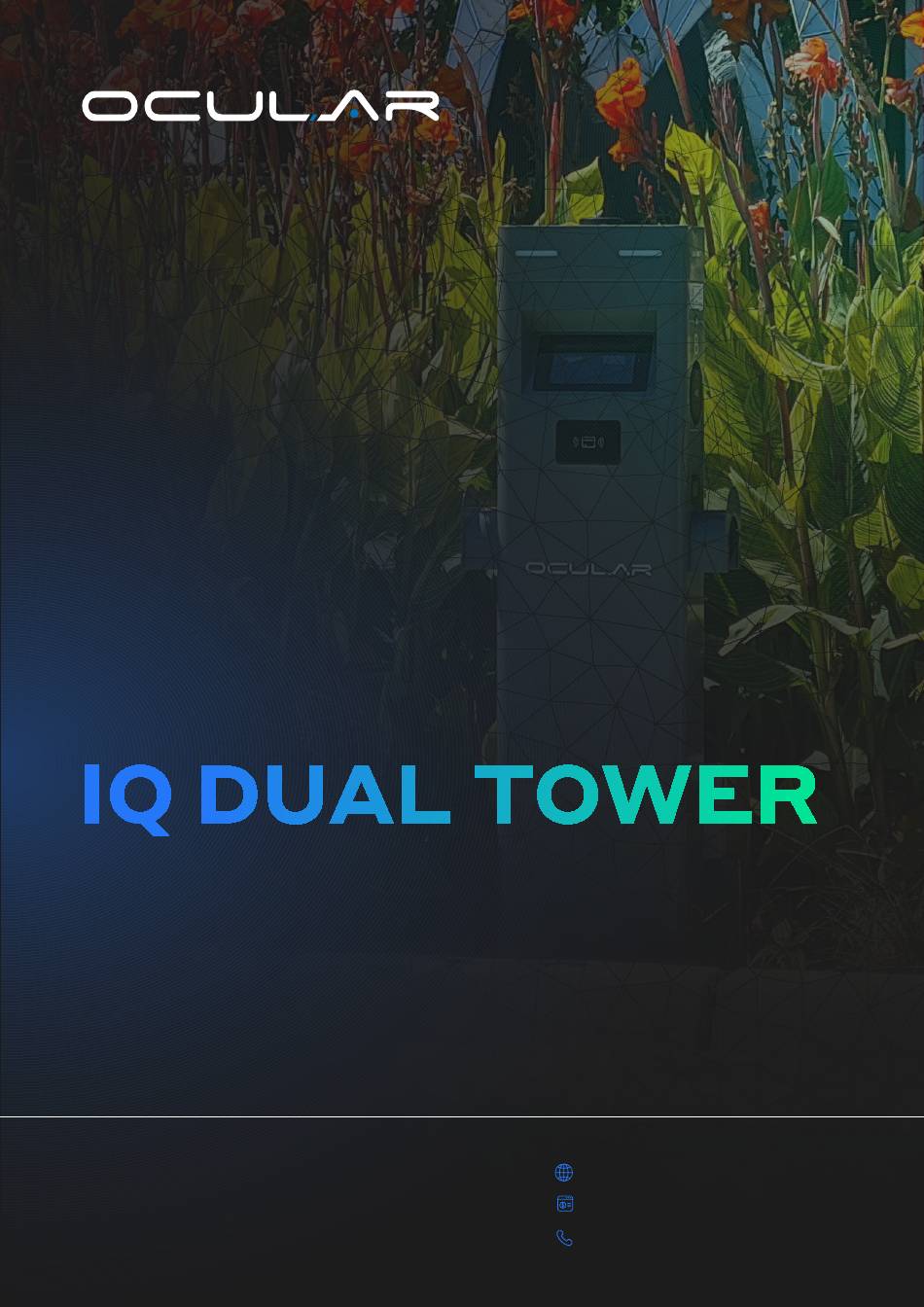

- Page 1 INSTALLATION GUIDE IOCAP06C-7S 4G/7T 4G ocularcharging.com.au IOCAP06C-22S 4G/22T 4G sales@ocularcharging.com.au Version 2.1 1300 912 650...
-
Page 2: Table Of Contents
CONTENTS Specifications ....................2 Product Overview ....................3 Safety Instructions ...................4 Installation .......................6 Tools Required ...................6 Overview of Steps ..................6 Step One - Check Box Contents ...............6 Step Two - Floor Mounting ................7 Step Three - Power Cable Wiring ..............7 Step Four - Internet Connection ..............8 Step Five - Verify The Installation ..............9 Step Six - Secure Cover ................9 LCD Screen Display Details ................10... -
Page 3: Specifications
All specifications and descriptions contained in this document are verified to be accurate at the time of printing. However, because continuous improvement is a goal at Ocular Charging, we reserve the right to make product modifications at any time. Model Number... -
Page 4: Product Overview
RCBO at the distribution board. LCD Screen & RFID Reader The Ocular IQ Tower is equipped with a 7 inch LCD screen allowing users to know the status of the charger. Details about the LCD screen are on page 11. -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS WARNINGS Do not install or use the charger near flammable, explosive, harsh, or combustible materials, chemicals, or vapors. Turn off input power at the circuit breaker before installing or maintaining. Do not use or stop using the charger if it is defective, appears cracked, frayed, broken or other- wise damaged, or fails to operate. -
Page 6: Example Wiring Diagram
EXAMPLE WIRING DIAGRAM Regarding the installation of the Ocular Tower, each charger will need 2 connections to allow smart charging with Energy Tracking, Smart Control and Load Management. • Power connection • Internet connection Regarding the power connection of the chargers, each charger will have its own designated circuit from the distribution board as per required in Appendix P, AS 3000:2018 Australia Standard for EV charging stations. -
Page 7: Installation
4. Internet connection. 5. Verify the installation. 6. Secure cover and power up. STEP 1 - Check box contents If any components are damaged or missing, please contact your installer or Ocular Charging. Backplate key x 1 Ferrule crimps x 3... -
Page 8: Step Two - Floor Mounting
STEP 2 - Floor mounting Open the charger backplate with Remove the screws and open the the key provided. guard plate. Anchor the charger to the concrete basement. STEP 3 - Power cable wiring Cross the power cables through Connect the power cables to the guard plate. -
Page 9: Step Four - Internet Connection
Choose the Wi-Fi SSID that you prefer, and then input the Wi-Fi Password Step 4 : Submit and reboot the charger to apply for changes If Static IP address is required, contact the internet provider & Ocular charging for instructions. -
Page 10: Step Five - Verify The Installation
STEP 5 - Verify the installation 1. Verify the power cables are wired properly 2. Close the RCD to power on the charger unit, and you should see the LED lights sequentially illuminate green. 3. If the LED red light illuminates or flashes, refer to the Troubleshooting table on page 11. -
Page 11: Lcd Screen Display Details
LCD SCREEN DISPLAY DETAILS Welcome Screen Scan the QR code or swipe Connect the charging plug the RFID card to start charging Charging in process Suspended by EV Suspended by EVSE Remove the charging plug Automatic upgrade mode Software downloading and activated upgrading automatically Network upgrade mode... -
Page 12: Troubleshooting
Turn OFF the charger and then back ON using the switch. powered on If the problem persists, contact your installer or Ocular Charging. Unplug the charging plug and reconnect it fully to the receptacle Status indicator on the EV. -
Page 13: Maintenance & Repair
MAINTENANCE & REPAIR • Regularly inspect the Charger. If damage is found, contact your installer or Ocular Charging. • The Charger contains no user-serviceable components. If unit is not operating correctly, contact your installer or Ocular Charging. • Wipe the outside of the Pedestal Charger regularly with a clean damp cloth to... - Page 14 ocularcharging.com.au sales@ocularcharging.com.au 1300 912 650...
